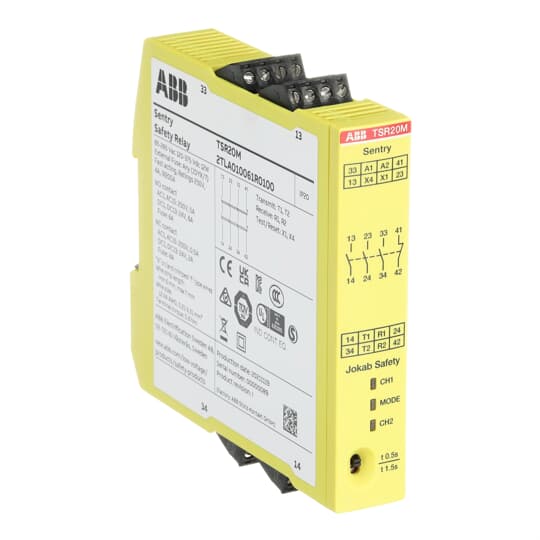

2TLA010061R0100 ABB - Sentry TSR20M
ABB PLC Systems / PLC Systems

2TLA010061R0100 ABB - Sentry TSR20M

Ordering

EAN:
7350024483369
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
120 mm
Product Net Depth / Length:
120 mm
Product Net Weight:
0.214 kg

Technical

Function:
Safety relay for monitoring of safety devices
Sub-Function:
Start/test input, Auto reset only, Time delay selectable by switch
Timer Relay Type:
OFF-Delay
Time Range:
0.5 and 1.5 seconds
Rated Control Supply Voltage (Us):
120 ... 375 V DC
85 ... 265 V AC
120 ... 375 V DC
85 ... 265 V AC
Rated Operational Current AC-15 (Ie):
5 A
Rated Operational Current DC-13 (Ie):
6 A
Degree of Protection:
IP20
Connecting Capacity:
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Tightening Torque:
0.7 N·m
Wire Stripping Length:
6.5 mm
Recommended Screw Driver:
M3.5
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
IS0 13849

Technical UL/CSA

Connecting Capacity UL/CSA:
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG

Environmental

Ambient Air Temperature:
Operation -25 ... +65 °C
Storage -40 ... +70 °C
Operation -25 ... +65 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
125 mm
Package Level 1 Depth / Length:
31 mm
Package Level 1 Height:
129 mm
Package Level 1 Gross Weight:
0.275 kg
Package Level 1 EAN:
7350024483369
Package Level 2 Units:
36 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
10.2 kg

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001449 - Device for monitoring of safety-related circuits
ETIM 8:
EC001449 - Device for monitoring of safety-related circuits
ETIM 9:
EC001449 - Device for monitoring of safety-related circuits
eClass:
V11.0 : 27371819
UNSPSC:
39122331
E-Number (Finland):
2712530
E-Number (Sweden):
3860827
