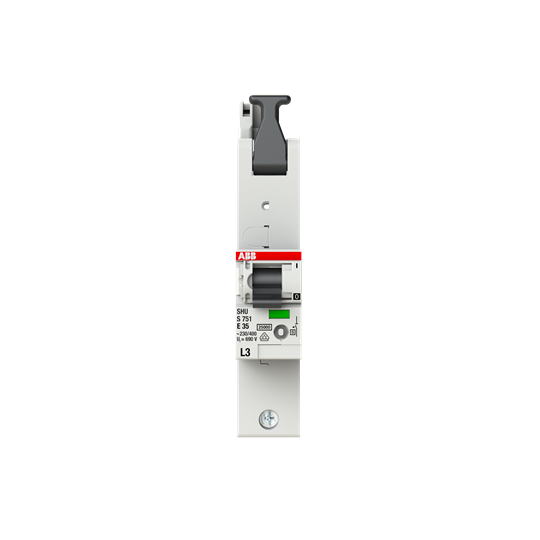

2CDS781001R7352 ABB - S751-E35L3

2CDS781001R7352 ABB - S751-E35L3

ABB EcoSolutions

ABB EcoSolutions:
No
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 40.4 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Suitable for Isolation:
Yes
Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Power Supply Connection:
Arbitrary
Contact Position Indication:
Red ON / Green OFF
Number of Poles:
1P
Tightening Torque:
2.5 ... 3 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking:
I / O
Actuator Material:
Insulation Group II, Black, Sealable
Recommended Screw Driver:
Pozidriv 2
Cross Recess Pozidriv 2
Slotted 1 x 5.5
Pozidriv 2
Cross Recess Pozidriv 2
Slotted 1 x 5.5
Accessories Available:
Yes
Connecting Capacity:
Busbar 12 x 5/10 mm²
Conductor (Load) 2.5...16 mm²
Conductor (Supply) 2.5...50 mm²
Spring Clamp / With Insulated Ferrrule 2.5...16 mm²
Spring Clamp / Without Insulated Ferrule 2.5...16 mm²
Busbar 12 x 5/10 mm²
Conductor (Load) 2.5...16 mm²
Conductor (Supply) 2.5...50 mm²
Spring Clamp / With Insulated Ferrrule 2.5...16 mm²
Spring Clamp / Without Insulated Ferrule 2.5...16 mm²
Installation Size:
acc. to DIN 43880 6
Terminal Type:
Screwless Terminals

Electrical

Tripping Characteristic:
E (Selective)
Rated Operational Voltage:
230 / 400 V AC
Operational Voltage:
Maximum (Incl. Tolerance) 440 V AC
Maximum (Incl. Tolerance) 253 V AC
Maximum (Incl. Tolerance) 440 V AC
Maximum (Incl. Tolerance) 253 V AC
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 690 V
Rated Impulse Withstand Voltage (Uimp):
6 kV
at 2000 m 8 kV
at Sea Level 9.8 kV
6 kV
at 2000 m 8 kV
at Sea Level 9.8 kV
Input Voltage Type:
AC
Rated Current (In):
35 A
Rated Short-Circuit Capacity:
(230 / 400 V AC) 25 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
at Rated Operating Conditions per Pole 6.9 W
Overvoltage Category:
IV
I²t Characteristic:

Design

Housing Material:
Insulation Group I, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20160607
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Degree of Protection:
IP20
IPXXB
Enclosure with Cover IP40
IP20
IPXXB
Enclosure with Cover IP40
Pollution Degree:
3
Environmental Conditions:
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 2g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
30g 3 shocks 11 ms

Dimensions

Product Net Width:
27 mm
Product Net Height:
151.3 mm
Product Net Depth / Length:
116 mm
Product Net Weight:
0.4 kg
Pole Net Weight:
0.4 kg
Built-In Depth (t2):
69 mm

Ordering

Package Level 1 Units:
carton 1 piece
Package Level 1 Gross Weight:
0.5 kg

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Type:
40 mm Busbar
Mounting on DIN Rail:
No
Mounting Position:
any

Popular Downloads

Data Sheet, Technical Information (Part 2):
I²t Characteristic:
Time-Current Characteristic Curve:

External Classifications and Standards

ETIM 9:
EC001047 - Selective main line circuit breaker
ETIM 10:
EC001047 - Selective main line circuit breaker
UNSPSC:
39121614
eClass:
V11.0 : 27141903
Object Classification Code:
F
Standards:
DIN VDE 0641-21
Certification Agency:
DIN
Standardization Body:
