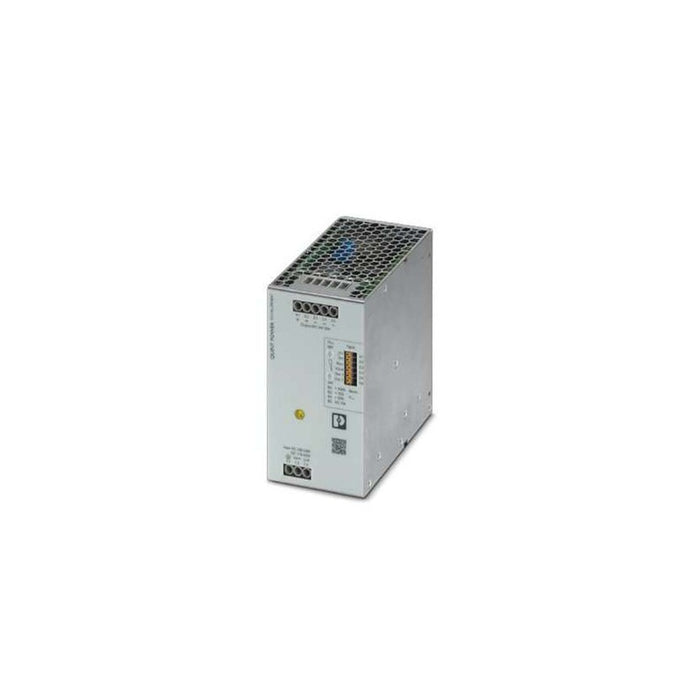

The Phoenix Contact QUINT4-PS/1AC/24DC/20/+ is a primary-switched industrial power supply designed for DIN rail mounting in demanding automation environments. It delivers a regulated 24 V DC output at 20 A continuous current with 480 W rated power. The unit features Selective Fuse Breaking (SFB) Technology that enables rapid, selective circuit breaker tripping to isolate faults without affecting parallel loads, enhancing system availability. An integrated decoupling MOSFET and protective coating ensure reliability in harsh industrial conditions. The power supply includes preventive function monitoring to detect critical operating states before failures occur, dynamic boost capability delivering up to 150% rated output for motor starting, and static boost for sustained overload support. NFC interface enables configuration of output characteristics and signaling thresholds. Applications include factory automation, conveyor systems, industrial control panels, and process control installations requiring high uptime and intelligent load management.
Item Details
- Brand Name: Phoenix Contact
- Manufacturer: Phoenix Contact
- Item Type Name: DIN Rail Power Supply
- Product Family / Series: QUINT POWER
- Model Number: QUINT4-PS/1AC/24DC/20/+
- Part Number: 2904617
Product Specifications
- input_voltage_ac: 100-240 V AC (-15% / +10%)
- input_voltage_dc: 90-350 V DC
- input_voltage_range_dc_nominal: 110/220/250 V DC (-18% / +40%)
- input_voltage_range_ac_nominal: 120/208/230/240 V AC
- output_voltage: 24 V DC
- output_voltage_adjustable_range: 24-28 V DC
- output_current: 20 A
- rated_power: 480 W
- efficiency: 92.7% (at 120 V AC)
- dynamic_boost: up to 150% rated output (30 A for several seconds)
- static_boost: up to 125% continuous
- ripple_noise: <30 mV pp
- mtbf: 868000 hours
- insulation_voltage: 4 kV
- inrush_current: 10 A typical at 25°C
- operating_temperature_range: -25°C to +60°C
- protection_rating: IP20
- overvoltage_protection: limits output to 30 V, switches off within 20 ms if exceeded
Additional Details
- Country of Origin*: Thailand
- Lifecycle Status: Commercialized
- Certifications / Approvals: UL 508, UL 60950-1, UL ANSI/ISA-12.12.01 Class I Division 2 Groups A,B,C,D, CSA C22.2 No. 60950-1-07, CSA C22.2 No. 107.1-01, EMC Directive 2014/30/EU, EN 55016, EN 61000-6-3 Class B, EN 61000-3-2 Class A, EN 61000-4 series, SIL 3 capable per IEC 61508 and IEC 61511, DNV GL (type approved)
- Rohs Compliant: Yes
- Housing Material: Aluminium
- Mounting Type: DIN Rail
- Connection Type Input: Screw connection
- Connection Type Output: Push-in connection
- Special Features: SFB Technology, NFC interface, integrated decoupling MOSFET, protective coating, preventive function monitoring, configurable signaling relay
*Country of origin may vary.
Measurements
- Weight: 1.34 kg (2.95 lbs)
