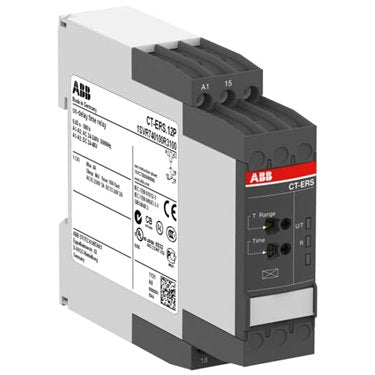

1SVR740100R3100 ABB CT-ERS.12P

Ordering

EAN:
4016779851664
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.101 kg

Technical

Timer Relay Type:
ON-Delay
Time Range:
0.05 s ... 300 h
Rated Control Supply Voltage (Us):
24 ... 240 V AC
24 ... 48 V DC
24 ... 240 V AC
24 ... 48 V DC
Rated Operational Voltage:
Auxiliary Circuit 250 V
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Output:
1 c/o (SPDT) contact
Terminal Type:
Screwless Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
12 V
100 mA
12 V
100 mA
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Input Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 500 V
Output Circuit 1 / Output Circuit 2 300 V
Input Circuit / Output Circuit 500 V
Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length:
8 mm
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
4ad25ba6-0cfd-4af6-a631-5701fcc75d0e Germany
Simplified SCIP:
82fd8a93-6aa7-4481-951e-4f2ae893c728 Greece
f664e502-fcf5-443d-9a92-eb617b46c604 Croatia
1e200899-4b42-4203-a704-1e0855477533 Sweden
04333b6a-dc10-4bbc-b18d-e271d0f00216 Poland
8d3736c9-b0f6-4eb0-9737-54d41298213a Germany
c63aa09c-31aa-406e-8157-5d7d4c08f76a Denmark
5290526f-8816-429f-ba84-f11386aab631 Germany
73c88f08-9705-4ceb-bed1-4bf62d8f2519 Czech Republic
548c3dd0-b9ef-4f82-afd3-491cb3fe2703 Poland
4564c436-630b-491e-af9b-a4aebb45342b Finland
16c226cb-ed17-4f42-9eb0-2eb29dfc2e2c Italy
72fcb4f5-002c-4845-8cbd-682ebc2ec2f0 Germany
d46bf670-c0cb-411b-b9a8-82eac5c396fc Netherlands
971a1af2-bed3-4918-a8e0-06cd7c144211 Estonia
fd3cfd43-f8f8-4c90-b6d6-d91dbada9e14 Sweden
c0d8ee0a-fef3-4abf-8ddd-183f09f71543 Norway
859ac66d-16dd-4570-88b6-ccfe9116e231 Poland
015af7ef-1f9e-4528-a677-fbae1133ad21 France
81420428-3c83-4aa6-8edf-9e8079dd36ad Germany
b9e3a4d9-9833-4dcd-bc0b-11ad6312fb70 Belgium
9e42746c-5ae9-4ec4-aab6-d4c93070e996 Belgium
9195dc1d-e4fe-40e6-b11a-c988b770a9d7 Hungary
27c4fb45-e1d1-4110-9fc5-d42454bf246c Spain
78eb365d-11eb-4353-8b73-b3efa240c00e France
f1b9eeea-189b-46e1-a8be-4347fec9b7bd Hungary
e10e9433-caf8-4bdc-8387-0397d0ccc788 Portugal
5a73ebcf-1ef9-4de2-bddc-c408e5e776dc Bulgaria
82fd8a93-6aa7-4481-951e-4f2ae893c728 Greece
f664e502-fcf5-443d-9a92-eb617b46c604 Croatia
1e200899-4b42-4203-a704-1e0855477533 Sweden
04333b6a-dc10-4bbc-b18d-e271d0f00216 Poland
8d3736c9-b0f6-4eb0-9737-54d41298213a Germany
c63aa09c-31aa-406e-8157-5d7d4c08f76a Denmark
5290526f-8816-429f-ba84-f11386aab631 Germany
73c88f08-9705-4ceb-bed1-4bf62d8f2519 Czech Republic
548c3dd0-b9ef-4f82-afd3-491cb3fe2703 Poland
4564c436-630b-491e-af9b-a4aebb45342b Finland

ABB EcoSolutions

ABB EcoSolutions:
Yes
Environmental Product Declaration - EPD:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.123 kg
Package Level 1 EAN:
4016779851664

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001439 - Timer relay
ETIM 8:
EC001439 - Timer relay
ETIM 9:
EC001439 - Timer relay
eClass:
V11.0 : 27371605
UNSPSC:
39122329
E-Number (Finland):
2712222
E-Number (Norway):
4187951
E-Number (Sweden):
4033134
Price on request
Ask for quote


Notify Me When Available

Ordering

EAN:
4016779851664
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.101 kg

Technical

Timer Relay Type:
ON-Delay
Time Range:
0.05 s ... 300 h
Rated Control Supply Voltage (Us):
24 ... 240 V AC
24 ... 48 V DC
24 ... 240 V AC
24 ... 48 V DC
Rated Operational Voltage:
Auxiliary Circuit 250 V
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Output:
1 c/o (SPDT) contact
Terminal Type:
Screwless Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
12 V
100 mA
12 V
100 mA
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Input Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 500 V
Output Circuit 1 / Output Circuit 2 300 V
Input Circuit / Output Circuit 500 V
Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length:
8 mm
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
4ad25ba6-0cfd-4af6-a631-5701fcc75d0e Germany
Simplified SCIP:
82fd8a93-6aa7-4481-951e-4f2ae893c728 Greece
f664e502-fcf5-443d-9a92-eb617b46c604 Croatia
1e200899-4b42-4203-a704-1e0855477533 Sweden
04333b6a-dc10-4bbc-b18d-e271d0f00216 Poland
8d3736c9-b0f6-4eb0-9737-54d41298213a Germany
c63aa09c-31aa-406e-8157-5d7d4c08f76a Denmark
5290526f-8816-429f-ba84-f11386aab631 Germany
73c88f08-9705-4ceb-bed1-4bf62d8f2519 Czech Republic
548c3dd0-b9ef-4f82-afd3-491cb3fe2703 Poland
4564c436-630b-491e-af9b-a4aebb45342b Finland
16c226cb-ed17-4f42-9eb0-2eb29dfc2e2c Italy
72fcb4f5-002c-4845-8cbd-682ebc2ec2f0 Germany
d46bf670-c0cb-411b-b9a8-82eac5c396fc Netherlands
971a1af2-bed3-4918-a8e0-06cd7c144211 Estonia
fd3cfd43-f8f8-4c90-b6d6-d91dbada9e14 Sweden
c0d8ee0a-fef3-4abf-8ddd-183f09f71543 Norway
859ac66d-16dd-4570-88b6-ccfe9116e231 Poland
015af7ef-1f9e-4528-a677-fbae1133ad21 France
81420428-3c83-4aa6-8edf-9e8079dd36ad Germany
b9e3a4d9-9833-4dcd-bc0b-11ad6312fb70 Belgium
9e42746c-5ae9-4ec4-aab6-d4c93070e996 Belgium
9195dc1d-e4fe-40e6-b11a-c988b770a9d7 Hungary
27c4fb45-e1d1-4110-9fc5-d42454bf246c Spain
78eb365d-11eb-4353-8b73-b3efa240c00e France
f1b9eeea-189b-46e1-a8be-4347fec9b7bd Hungary
e10e9433-caf8-4bdc-8387-0397d0ccc788 Portugal
5a73ebcf-1ef9-4de2-bddc-c408e5e776dc Bulgaria
82fd8a93-6aa7-4481-951e-4f2ae893c728 Greece
f664e502-fcf5-443d-9a92-eb617b46c604 Croatia
1e200899-4b42-4203-a704-1e0855477533 Sweden
04333b6a-dc10-4bbc-b18d-e271d0f00216 Poland
8d3736c9-b0f6-4eb0-9737-54d41298213a Germany
c63aa09c-31aa-406e-8157-5d7d4c08f76a Denmark
5290526f-8816-429f-ba84-f11386aab631 Germany
73c88f08-9705-4ceb-bed1-4bf62d8f2519 Czech Republic
548c3dd0-b9ef-4f82-afd3-491cb3fe2703 Poland
4564c436-630b-491e-af9b-a4aebb45342b Finland

ABB EcoSolutions

ABB EcoSolutions:
Yes
Environmental Product Declaration - EPD:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.123 kg
Package Level 1 EAN:
4016779851664

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001439 - Timer relay
ETIM 8:
EC001439 - Timer relay
ETIM 9:
EC001439 - Timer relay
eClass:
V11.0 : 27371605
UNSPSC:
39122329
E-Number (Finland):
2712222
E-Number (Norway):
4187951
E-Number (Sweden):
4033134
Object Classification Code:
K
ETIM 7:
EC001439 - Timer relay
ETIM 8:
EC001439 - Timer relay
ETIM 9:
EC001439 - Timer relay
eClass:
V11.0 : 27371605
UNSPSC:
39122329
E-Number (Finland):
2712222
E-Number (Norway):
4187951
E-Number (Sweden):
4033134

All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.

If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.

In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.

PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.

Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.

PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.

Trusted By

"Fast service for obsolete parts"

Increasingly PLC/ HMI control platforms are becoming obsolete and parts are no longer supported, however PLC Direct had the HMI we needed and fast shipping for our system to get back online!

Buyer at GE Health

"Helping us move projects forward"

With supply chain issues increasingly affecting our business, PLC Direct has been there for us to supply the PLC products we need, when we need it. If they don't have it readily available, they find it and provide it quickly and reliably. This has helped us move forward with several projects that would have otherwise taken us many, many months to complete.

Buyer at E-Merge Systems – A Rockwell Integrator
