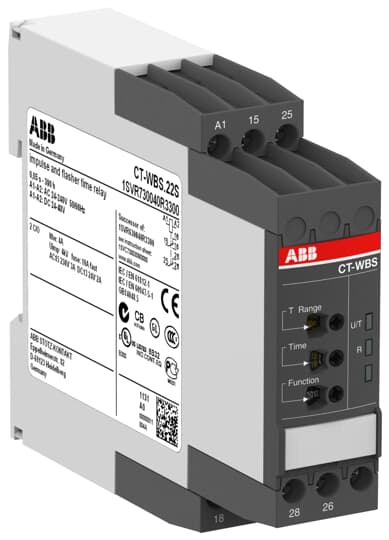

1SVR730040R3300 ABB - CT-WBS.22S

1SVR730040R3300 ABB - CT-WBS.22S

Ordering

EAN:
4016779851435
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.123 kg

Technical

Timer Relay Type:
Flasher Starting with OFF
Flasher Starting with ON
Impulse ON
ON-Delay
Adjustable Impulse with Fixed Time Delay
Fixed Impulse with Adjustable Time Delay
ON / OFF Function
Flasher Starting with OFF
Flasher Starting with ON
Impulse ON
ON-Delay
Adjustable Impulse with Fixed Time Delay
Fixed Impulse with Adjustable Time Delay
ON / OFF Function
Time Range:
0.05 s ... 300 h
Rated Control Supply Voltage (Us):
24 ... 240 V AC
24 ... 48 V DC
24 ... 240 V AC
24 ... 48 V DC
Rated Operational Voltage:
Auxiliary Circuit 250 V
Rated Frequency (f):
50 / 60 Hz
DC
50 / 60 Hz
DC
Output:
2 c/o (SPDT) contacts
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
12 V
100 mA
12 V
100 mA
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Input Circuit 4 kV
Output Circuit 1 / Output Circuit 2 4 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 500 V
Output Circuit 1 / Output Circuit 2 300 V
Input Circuit / Output Circuit 500 V
Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
8 mm
Recommended Screw Driver:
0.8 x 4
4.5
Pozidriv 1
0.8 x 4
4.5
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
e129f004-824b-4f32-bbf2-35a85e0d516b Germany
Simplified SCIP:
9f790993-6683-4a2c-a702-53400e6a1c81 France
1c331a21-08c0-45e2-a42a-2d47a035754b Germany
efd3e620-e2fb-46df-a99d-f4b4e86f9a6b Poland
e3c35fb9-c642-4b7b-9659-6f7a93bf8c3a Hungary
1ce22d22-1a5a-4217-9a2e-0018a364512a Bulgaria
fd766528-46bb-4fc2-9e0d-168701e71403 Germany
930aab95-2101-48b2-8dc5-a2ba7147e0ff Germany
61f45262-fe41-4717-a13e-40f91eba67d0 Denmark
ac1e5ae9-7e0f-4eed-b63c-e35801738d84 Belgium
c954df41-c97f-40a6-b553-8b1fe8f432c3 Italy
e7e58e89-70d3-4c30-8926-99e923a9ba82 Finland
b781dc47-96cc-4664-9a69-5b4fc7bfe227 Germany
d18573bd-dec3-4af8-ac2e-f0499901c850 Czech Republic
4cb1a826-e45b-4b1f-9974-ccf07389958d Poland
ad8b92fa-21b8-4b20-9e03-cf4f4d4937c0 Netherlands
41700964-7966-43f4-9d03-a2db878e0221 Estonia
7310b25f-fdbe-48bf-b827-2800edd6064b Poland
81e5afd4-3a84-4bfc-b090-558b7f5659c1 Greece
eedd1077-52f6-4dfe-ae2e-754fc217b2bb Hungary
f9b4a91e-b51f-4f21-b5b0-937baceb81b1 Belgium
cb539878-f3ac-40a4-b511-5f446e23cb21 Spain
e4cf178d-bda1-4596-bce8-24dd8ceee916 Portugal
b24a7640-fbd5-408f-b253-3ef6eebc4d1a Sweden
6e27fa4b-6cc2-466f-9c34-073c5e6dd662 France
9df9ae0a-a1cd-4b42-9d76-71ab6163701c Norway
c6d7ffc8-2127-4d98-b26b-520b92c08760 Croatia
c84afbbd-886f-4bc6-a137-6a3e222983e6 Sweden
9f790993-6683-4a2c-a702-53400e6a1c81 France
1c331a21-08c0-45e2-a42a-2d47a035754b Germany
efd3e620-e2fb-46df-a99d-f4b4e86f9a6b Poland
e3c35fb9-c642-4b7b-9659-6f7a93bf8c3a Hungary
1ce22d22-1a5a-4217-9a2e-0018a364512a Bulgaria
fd766528-46bb-4fc2-9e0d-168701e71403 Germany
930aab95-2101-48b2-8dc5-a2ba7147e0ff Germany
61f45262-fe41-4717-a13e-40f91eba67d0 Denmark
ac1e5ae9-7e0f-4eed-b63c-e35801738d84 Belgium
c954df41-c97f-40a6-b553-8b1fe8f432c3 Italy

ABB EcoSolutions

ABB EcoSolutions:
Yes
Environmental Product Declaration - EPD:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.145 kg
Package Level 1 EAN:
4016779851435

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001439 - Timer relay
ETIM 8:
EC001439 - Timer relay
ETIM 9:
EC001439 - Timer relay
eClass:
V11.0 : 27371605
UNSPSC:
39122329
E-Number (Finland):
2712201
E-Number (Norway):
4187942
E-Number (Sweden):
4033113
