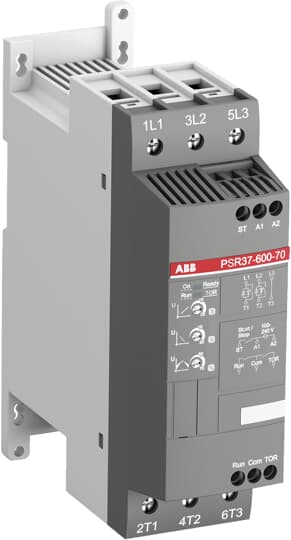

The ABB PSR37-600-70 is a compact soft starter designed for controlled starting and stopping of three-phase AC motors. It features two-phase voltage ramp control for smooth soft start and stop operation, reducing mechanical stress and electrical current spikes during motor startup. The device includes an integrated bypass for energy savings and simplified installation. With a rated operational current of 37 A and broad voltage compatibility from 208 to 600 V AC, it is suitable for motors with power ratings up to 18.5 kW at 400 V or 22 kW at 500 V. The soft starter includes LED indicators for operational monitoring, adjustable start/stop ramps via front-panel potentiometers, and relay outputs for RUN and Top of Ramp (TOR) signals. It supports DIN rail mounting and is ideal for space-constrained installations in industrial automation applications.
Item Details
- Brand Name: ABB
- Manufacturer: ABB
- Item Type Name: Soft Starter
- Product Family / Series: PSR Series
- Model: PSR37-600-70
- Catalog Number: 1SFA896110R7000
- Ean: 7320500338322
Product Specifications
- rated_operational_current: 37 A
- rated_operational_voltage: 208-600 V AC
- rated_control_supply_voltage: 100-240 V AC
- frequency: 50/60 Hz
- power_rating_at_230v: 7.5 kW
- power_rating_at_400v: 18.5 kW
- power_rating_at_500v: 22 kW
- control_method: Two-phase voltage ramp control
- starts_per_hour: 10 starts/hour (20 with auxiliary fan)
- mounting_type: DIN rail
- operating_temperature_range: -25°C to +60°C
- ip_rating: IP10/IP20
Additional Details
- Country of Origin*: CN
- Built In Bypass: Yes
- Relay Outputs: RUN and TOR (Top of Ramp)
- Adjustable Parameters: Start/stop ramp and time via potentiometers
- Fieldbus Capability: Optional via external adaptor
*Country of origin may vary.
Measurements
- Weight: 1.0 kg
- Width: 54 mm
- Height: 187 mm
- Depth: 153 mm
