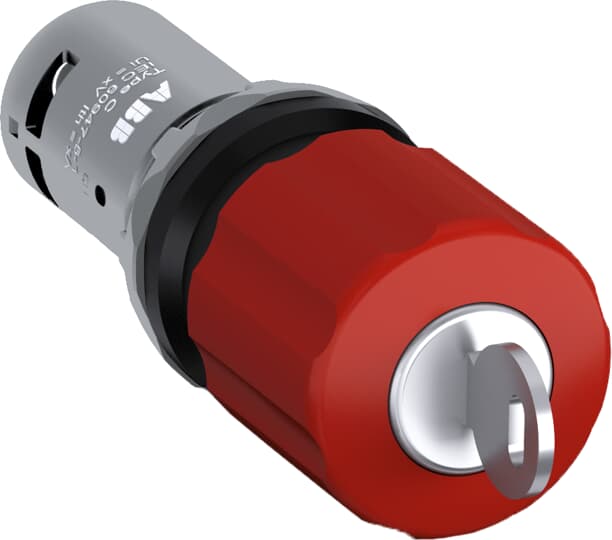

1SFA619502R1071 ABB - CE3K1-10R-11

Ordering

Minimum Order Quantity:
10 piece
Customs Tariff Number:
8536508090

Dimensions

Product Net Width:
0.03 m
Product Net Height:
0.03 m
Product Net Depth / Length:
0.103 m
Product Net Weight:
0.068 kg

Technical

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Color:
Red
Actuator Type:
Mushroom 30mm
Bezel Material:
n/a
Illumination:
Non-illuminated
Function:
Maintained
Sub-Function:
Key release
Key Code:
Key code 71
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
1
Enclosure Type NEMA:
Type1
Type12
Type13
Type3R
Type4
Type4X
Type1
Type12
Type13
Type3R
Type4
Type4X
Pollution Degree:
3
Rated Insulation Voltage (Ui):
300 V
Rated Impulse Withstand Voltage (Uimp):
6 kV
Rated Frequency (f):
50 / 60 Hz
Rated Operational Voltage:
24 ... 300 V
Rated Operational Current DC-13 (Ie):
(24 V) 0.3 A
(125 V) 0.2 A
(24 V) 0.3 A
(125 V) 0.2 A
Rated Operational Current AC-15 (Ie):
(240 V) 2 A
(220 / 240 V) 2 A
(240 V) 2 A
(220 / 240 V) 2 A
Power Loss:
Maximum 5 W
Mechanical Durability:
50000 cycle
Connecting Capacity:
Flexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Flexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Connection Type:
Screw Clamp
Terminal Type:
Screw Terminals
Tightening Torque:
0.8 N·m
Wire Stripping Length:
6 mm

Technical UL/CSA

Connecting Capacity UL/CSA:
1x 22...14 AWG
2x 22...14 AWG
1x 22...14 AWG
2x 22...14 AWG

Environmental

Degree of Protection:
Front IP66
Front IP67
Front IP69K
Terminals IP20
Front IP66
Front IP67
Front IP69K
Terminals IP20

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
ee4e63d3-93a1-4a61-8360-30d4a026c564 Sweden
Simplified SCIP:
eb131651-a74d-48de-8d1f-9ffd9983a421 Germany
6a175e18-de58-47e1-999e-90c3b7c57aaa Estonia
959bc4d4-c75e-4f4e-a9b9-0985bdfe08c7 Hungary
956e7ddd-9697-435b-bb38-0952f3b5c7c9 Netherlands
211d812c-11aa-43b3-b8df-c7e506fed803 Poland
be0e5439-1f00-46a7-b6cd-96414ef85831 Germany
cbeb22c3-8a83-4f6e-98e3-2e2a029d29f9 Croatia
1cbd1adf-3402-4afa-adc5-997c04031414 Czech Republic
f96fce42-3e84-46d8-be1f-52b97d5a8780 Belgium
e6d19745-9b15-407a-b02c-e5902cdd6df1 Denmark
c06ba7e9-8397-43f2-b931-4c8aba42311e Italy
da6167af-f14b-496d-9b25-b424c542e4d3 Finland
b81a6fd2-6f48-4715-adb7-a3f9140851ff Germany
7c2a6708-3c2f-4291-91b9-7244962e8efb Poland
dd71f455-0945-4951-b96b-076f45e0e6ff Norway
7c8bfbe2-80eb-49e9-81f4-443f6e8ac389 Belgium
ca07ef5a-147c-456b-b7ac-ad55ff72b3af Spain
82054523-e6d6-44a3-a8ef-736c70eafffe France
9f9b289c-83c5-4aef-ad70-b7b1f1f421b5 Hungary
deab5e84-a89c-44ae-9470-aca397d41b0a Germany
0ea062a7-d0b1-47ec-9ec2-24b8d87c4552 Greece
b204f793-da92-4ac2-884b-0a0f4a22882f Portugal
ea87ac22-3312-4776-b02a-d6ebc54f6846 Bulgaria
fc561bba-de92-4689-98a3-18362ae4db68 Sweden
200e67a0-d124-404c-b6d3-c18278e8206d Poland
7e3b69ba-de0d-4ba7-8a45-99ca7fa79710 France
bf3928ac-0d04-4e26-8cc7-124ee05463f2 Germany
eb131651-a74d-48de-8d1f-9ffd9983a421 Germany
6a175e18-de58-47e1-999e-90c3b7c57aaa Estonia
959bc4d4-c75e-4f4e-a9b9-0985bdfe08c7 Hungary
956e7ddd-9697-435b-bb38-0952f3b5c7c9 Netherlands
211d812c-11aa-43b3-b8df-c7e506fed803 Poland
be0e5439-1f00-46a7-b6cd-96414ef85831 Germany
cbeb22c3-8a83-4f6e-98e3-2e2a029d29f9 Croatia
1cbd1adf-3402-4afa-adc5-997c04031414 Czech Republic
f96fce42-3e84-46d8-be1f-52b97d5a8780 Belgium
e6d19745-9b15-407a-b02c-e5902cdd6df1 Denmark
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
bag 1 piece
Package Level 1 Width:
0.165 m
Package Level 1 Depth / Length:
0.09 m
Package Level 1 Height:
0.035 m
Package Level 1 Gross Weight:
0.07 kg
Package Level 1 EAN:
7320500308783

External Classifications and Standards

Object Classification Code:
S
ETIM 6:
EC002034 - Emergency stop complete
ETIM 7:
EC002034 - Emergency stop complete
ETIM 8:
EC002034 - Emergency stop complete
eClass:
V11.0 : 27371244
UNSPSC:
39122216
IDEA Granular Category Code (IGCC):
5212 >> Push button for distribution board
E-Number (Finland):
2313534
E-Number (Norway):
4372706
E-Number (Sweden):
3711512
Price on request
Ask for quote


Notify Me When Available

Ordering

Minimum Order Quantity:
10 piece
Customs Tariff Number:
8536508090

Dimensions

Product Net Width:
0.03 m
Product Net Height:
0.03 m
Product Net Depth / Length:
0.103 m
Product Net Weight:
0.068 kg

Technical

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Color:
Red
Actuator Type:
Mushroom 30mm
Bezel Material:
n/a
Illumination:
Non-illuminated
Function:
Maintained
Sub-Function:
Key release
Key Code:
Key code 71
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
1
Enclosure Type NEMA:
Type1
Type12
Type13
Type3R
Type4
Type4X
Type1
Type12
Type13
Type3R
Type4
Type4X
Pollution Degree:
3
Rated Insulation Voltage (Ui):
300 V
Rated Impulse Withstand Voltage (Uimp):
6 kV
Rated Frequency (f):
50 / 60 Hz
Rated Operational Voltage:
24 ... 300 V
Rated Operational Current DC-13 (Ie):
(24 V) 0.3 A
(125 V) 0.2 A
(24 V) 0.3 A
(125 V) 0.2 A
Rated Operational Current AC-15 (Ie):
(240 V) 2 A
(220 / 240 V) 2 A
(240 V) 2 A
(220 / 240 V) 2 A
Power Loss:
Maximum 5 W
Mechanical Durability:
50000 cycle
Connecting Capacity:
Flexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Flexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Connection Type:
Screw Clamp
Terminal Type:
Screw Terminals
Tightening Torque:
0.8 N·m
Wire Stripping Length:
6 mm

Technical UL/CSA

Connecting Capacity UL/CSA:
1x 22...14 AWG
2x 22...14 AWG
1x 22...14 AWG
2x 22...14 AWG

Environmental

Degree of Protection:
Front IP66
Front IP67
Front IP69K
Terminals IP20
Front IP66
Front IP67
Front IP69K
Terminals IP20

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
ee4e63d3-93a1-4a61-8360-30d4a026c564 Sweden
Simplified SCIP:
eb131651-a74d-48de-8d1f-9ffd9983a421 Germany
6a175e18-de58-47e1-999e-90c3b7c57aaa Estonia
959bc4d4-c75e-4f4e-a9b9-0985bdfe08c7 Hungary
956e7ddd-9697-435b-bb38-0952f3b5c7c9 Netherlands
211d812c-11aa-43b3-b8df-c7e506fed803 Poland
be0e5439-1f00-46a7-b6cd-96414ef85831 Germany
cbeb22c3-8a83-4f6e-98e3-2e2a029d29f9 Croatia
1cbd1adf-3402-4afa-adc5-997c04031414 Czech Republic
f96fce42-3e84-46d8-be1f-52b97d5a8780 Belgium
e6d19745-9b15-407a-b02c-e5902cdd6df1 Denmark
c06ba7e9-8397-43f2-b931-4c8aba42311e Italy
da6167af-f14b-496d-9b25-b424c542e4d3 Finland
b81a6fd2-6f48-4715-adb7-a3f9140851ff Germany
7c2a6708-3c2f-4291-91b9-7244962e8efb Poland
dd71f455-0945-4951-b96b-076f45e0e6ff Norway
7c8bfbe2-80eb-49e9-81f4-443f6e8ac389 Belgium
ca07ef5a-147c-456b-b7ac-ad55ff72b3af Spain
82054523-e6d6-44a3-a8ef-736c70eafffe France
9f9b289c-83c5-4aef-ad70-b7b1f1f421b5 Hungary
deab5e84-a89c-44ae-9470-aca397d41b0a Germany
0ea062a7-d0b1-47ec-9ec2-24b8d87c4552 Greece
b204f793-da92-4ac2-884b-0a0f4a22882f Portugal
ea87ac22-3312-4776-b02a-d6ebc54f6846 Bulgaria
fc561bba-de92-4689-98a3-18362ae4db68 Sweden
200e67a0-d124-404c-b6d3-c18278e8206d Poland
7e3b69ba-de0d-4ba7-8a45-99ca7fa79710 France
bf3928ac-0d04-4e26-8cc7-124ee05463f2 Germany
eb131651-a74d-48de-8d1f-9ffd9983a421 Germany
6a175e18-de58-47e1-999e-90c3b7c57aaa Estonia
959bc4d4-c75e-4f4e-a9b9-0985bdfe08c7 Hungary
956e7ddd-9697-435b-bb38-0952f3b5c7c9 Netherlands
211d812c-11aa-43b3-b8df-c7e506fed803 Poland
be0e5439-1f00-46a7-b6cd-96414ef85831 Germany
cbeb22c3-8a83-4f6e-98e3-2e2a029d29f9 Croatia
1cbd1adf-3402-4afa-adc5-997c04031414 Czech Republic
f96fce42-3e84-46d8-be1f-52b97d5a8780 Belgium
e6d19745-9b15-407a-b02c-e5902cdd6df1 Denmark
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
bag 1 piece
Package Level 1 Width:
0.165 m
Package Level 1 Depth / Length:
0.09 m
Package Level 1 Height:
0.035 m
Package Level 1 Gross Weight:
0.07 kg
Package Level 1 EAN:
7320500308783

External Classifications and Standards

Object Classification Code:
S
ETIM 6:
EC002034 - Emergency stop complete
ETIM 7:
EC002034 - Emergency stop complete
ETIM 8:
EC002034 - Emergency stop complete
eClass:
V11.0 : 27371244
UNSPSC:
39122216
IDEA Granular Category Code (IGCC):
5212 >> Push button for distribution board
E-Number (Finland):
2313534
E-Number (Norway):
4372706
E-Number (Sweden):
3711512
Object Classification Code:
S
ETIM 6:
EC002034 - Emergency stop complete
ETIM 7:
EC002034 - Emergency stop complete
ETIM 8:
EC002034 - Emergency stop complete
eClass:
V11.0 : 27371244
UNSPSC:
39122216
IDEA Granular Category Code (IGCC):
5212 >> Push button for distribution board
E-Number (Finland):
2313534
E-Number (Norway):
4372706
E-Number (Sweden):
3711512

All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.

If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.

In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.

PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.

Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.

PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.

Trusted By

"Fast service for obsolete parts"

Increasingly PLC/ HMI control platforms are becoming obsolete and parts are no longer supported, however PLC Direct had the HMI we needed and fast shipping for our system to get back online!

Buyer at GE Health

"Helping us move projects forward"

With supply chain issues increasingly affecting our business, PLC Direct has been there for us to supply the PLC products we need, when we need it. If they don't have it readily available, they find it and provide it quickly and reliably. This has helped us move forward with several projects that would have otherwise taken us many, many months to complete.

Buyer at E-Merge Systems – A Rockwell Integrator
