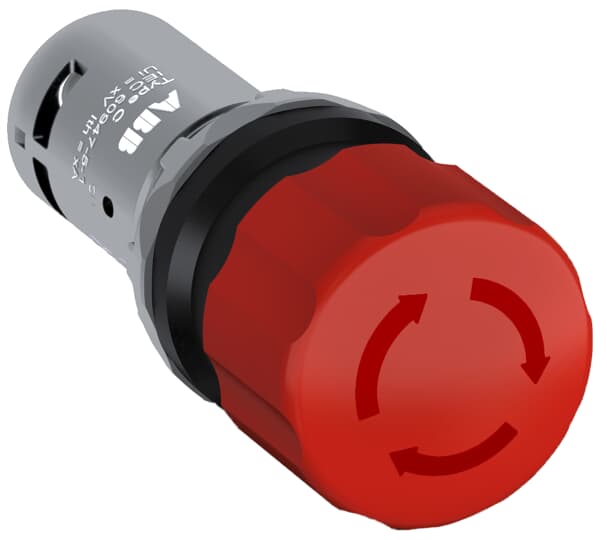

1SFA619500R1071 ABB - CE3T-10R-11

Ordering

Minimum Order Quantity:
10 piece
Customs Tariff Number:
8536508090

Dimensions

Product Net Width:
0.03 m
Product Net Height:
0.03 m
Product Net Depth / Length:
0.073 m
Product Net Weight:
0.038 kg

Technical

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Color:
Red
Actuator Type:
Mushroom 30mm
Bezel Material:
n/a
Illumination:
Non-illuminated
Function:
Maintained
Sub-Function:
Twist release
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
1
Enclosure Type NEMA:
Type1
Type12
Type13
Type3R
Type4
Type4X
Type1
Type12
Type13
Type3R
Type4
Type4X
Pollution Degree:
3
Rated Insulation Voltage (Ui):
300 V
Rated Impulse Withstand Voltage (Uimp):
6 kV
Rated Frequency (f):
50 / 60 Hz
Rated Operational Voltage:
24 ... 300 V
Rated Operational Current DC-13 (Ie):
(24 V) 0.3 A
(125 V) 0.2 A
(24 V) 0.3 A
(125 V) 0.2 A
Rated Operational Current AC-15 (Ie):
(240 V) 2 A
(220 / 240 V) 2 A
(240 V) 2 A
(220 / 240 V) 2 A
Power Loss:
Maximum 5 W
Mechanical Durability:
50000 cycle
Connecting Capacity:
Flexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Flexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Connection Type:
Screw Clamp
Terminal Type:
Screw Terminals
Tightening Torque:
0.8 N·m
Wire Stripping Length:
6 mm

Technical UL/CSA

Connecting Capacity UL/CSA:
1x 22...14 AWG
2x 22...14 AWG
1x 22...14 AWG
2x 22...14 AWG

Environmental

Degree of Protection:
Front IP66
Front IP67
Front IP69K
Terminals IP20
Front IP66
Front IP67
Front IP69K
Terminals IP20

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
c826273d-1026-4779-9d8d-c48969f494f0 Sweden
Simplified SCIP:
8607d15c-b0d8-4a6b-ac28-4122308242c3 Germany
4295ba18-5d15-420f-bc76-7a4937b75fa0 Poland
1c698047-bbf0-49b3-9c56-987973a70307 Croatia
51b1a41d-107c-4629-a04a-a2221b0b188b Estonia
b04ee8de-097f-4d0c-bdb1-c07efbda39ca Greece
9c14410f-52e9-4ba3-b8c0-33b385de2bf7 Hungary
11fa5ac0-dc78-4473-8d8e-24102215936b Netherlands
2827ebb0-3d64-44e5-96ae-9ea87c51d784 Czech Republic
7f28b208-b4c1-436d-a785-f122328dcd4d Sweden
e6dfe9e9-6280-4051-97ef-4522b30abcb5 Portugal
97290e5b-d809-4f3e-8b98-32bc2d5ee632 Bulgaria
072de4bb-4768-4e8d-a1ca-57110b135545 Spain
eac162a7-7497-452e-98b5-1cb7afb572f4 Belgium
31fcd33d-a0ac-4800-897b-e31be70cfdaf Hungary
ef555c54-b152-4407-a4c6-a93d3f83ad40 Germany
489c4751-2b8b-42a9-af29-9eb7b56e8a1c France
cc0eb86d-ad4a-4d46-bb0c-d03e0cb8db93 France
6030b10c-24d4-4242-ae0e-bc16f4ee9bb1 Germany
c0597d2e-24a0-4e8c-ae98-b6bdc926cd69 Poland
ffcb348d-e84d-4664-9bf7-757d7cf513f4 Poland
9ea846dc-d32e-4b5e-82fd-6c4b0380a354 Norway
af3a7950-a916-4357-844b-41f8ed09adfb Finland
17614e67-6d03-426f-a0ee-701392539d8d Denmark
caabe193-00aa-4286-b4b4-8775a7268ed7 Germany
d21b94ea-95fa-41e9-b53e-1f2a775cb1ea Italy
22a9c041-6187-4f82-b24c-3081b536bde1 Germany
f5216b76-8e56-4b89-a346-4560554cedca Belgium
8607d15c-b0d8-4a6b-ac28-4122308242c3 Germany
4295ba18-5d15-420f-bc76-7a4937b75fa0 Poland
1c698047-bbf0-49b3-9c56-987973a70307 Croatia
51b1a41d-107c-4629-a04a-a2221b0b188b Estonia
b04ee8de-097f-4d0c-bdb1-c07efbda39ca Greece
9c14410f-52e9-4ba3-b8c0-33b385de2bf7 Hungary
11fa5ac0-dc78-4473-8d8e-24102215936b Netherlands
2827ebb0-3d64-44e5-96ae-9ea87c51d784 Czech Republic
7f28b208-b4c1-436d-a785-f122328dcd4d Sweden
e6dfe9e9-6280-4051-97ef-4522b30abcb5 Portugal
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
bag 1 piece
Package Level 1 Width:
0.165 m
Package Level 1 Depth / Length:
0.09 m
Package Level 1 Height:
0.035 m
Package Level 1 Gross Weight:
0.04 kg
Package Level 1 EAN:
7320500260814

External Classifications and Standards

Object Classification Code:
S
ETIM 6:
EC002034 - Emergency stop complete
ETIM 7:
EC002034 - Emergency stop complete
ETIM 8:
EC002034 - Emergency stop complete
eClass:
V11.0 : 27371244
UNSPSC:
39122216
IDEA Granular Category Code (IGCC):
5212 >> Push button for distribution board
E-Number (Finland):
2313526
E-Number (Norway):
4372740
E-Number (Sweden):
3711504
Price on request
Ask for quote
