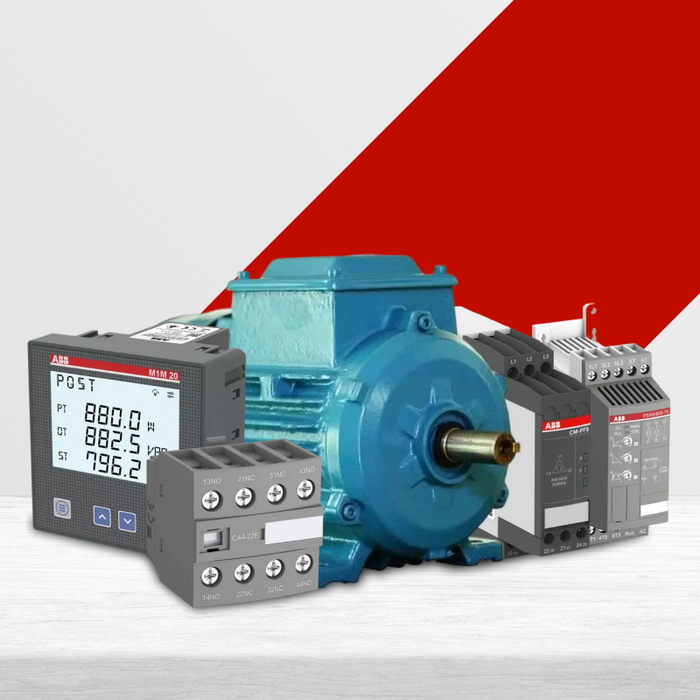

ABB New Stock Image

1SDA100828R1 ABB

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 64.1 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
659357b2-430e-43e0-82a3-2e7c44b0f8c5 Italy
Simplified SCIP:
880b8803-52ae-4d94-b5ab-091c0f59a892 Germany
3c8923ac-ad55-4b3f-955f-dbee15c51f86 Poland
d5b5d2db-348e-40c8-b7e8-5295ea4141e7 Norway
dd2ab85f-7f3f-4517-bb99-e7d2540d7276 Finland
0d249bb6-a903-4b46-b509-ce5435af61b8 Netherlands
8bfb998c-fe43-4100-812e-6c742bb0a94f Germany
36243cd0-6631-430c-93d2-33232844f7a9 Denmark
409d366c-8db4-4731-8f64-63f736de9d17 Germany
367f2fa2-af4f-4b6b-8c35-f8b478fe366b Croatia
ec54c558-55ce-4f08-b170-5fd6cabcae90 Czech Republic
c738092c-8134-4868-a783-00d2ec6c8725 Poland
82cc2556-19b4-4728-aa33-1f97cedd89e5 Netherlands
6714a551-b0a7-42cc-83c9-5db21ed613dd Netherlands
c1a7008d-3c43-4e4d-8e2b-a3d7e82b186a Estonia
47659d22-e3ee-4084-9743-c531a5ff0ae0 Greece
bc67820f-2ae8-4c09-bd06-aa6fd5c4434e Portugal
20cb4f86-ff78-47d9-adf4-c7dcd9a12194 Bulgaria
055011bd-ef75-482f-9012-cf5eae8112ed Sweden
75163275-580d-499f-a463-028898457c23 Poland
85c54814-a5c9-4c89-a02d-5160438b23b5 France
48365389-37aa-41ad-82af-7a684dc48aba Sweden
4d716284-7771-4e14-8e4a-d47575a42efe Germany
404eee7c-992a-4f40-9e28-906315ca7852 Germany
9df46d60-a21f-45b3-944e-ce35fb2a4006 France
301641f6-f5ca-47a5-88cd-6db538348cec Netherlands
983946b4-88ec-4a16-9b37-b82337404f0a Spain
3339d977-9a17-4bb6-8af8-65e6df910145 Netherlands
880b8803-52ae-4d94-b5ab-091c0f59a892 Germany
3c8923ac-ad55-4b3f-955f-dbee15c51f86 Poland
d5b5d2db-348e-40c8-b7e8-5295ea4141e7 Norway
dd2ab85f-7f3f-4517-bb99-e7d2540d7276 Finland
0d249bb6-a903-4b46-b509-ce5435af61b8 Netherlands
8bfb998c-fe43-4100-812e-6c742bb0a94f Germany
36243cd0-6631-430c-93d2-33232844f7a9 Denmark
409d366c-8db4-4731-8f64-63f736de9d17 Germany
367f2fa2-af4f-4b6b-8c35-f8b478fe366b Croatia
ec54c558-55ce-4f08-b170-5fd6cabcae90 Czech Republic

Environmental

Ambient Air Temperature:
Operation -40 ... 125 °C
Environmental Information:

Ordering

Order Code US and Canada:
XT7SE312EEFF000XXX
E-Number (Norway):
4380617
EAN:
8056221008822
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
210 mm
Product Net Height:
268 mm
Product Net Depth / Length:
166 mm
Product Net Weight:
13.585 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
280 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
360 mm
Package Level 1 Gross Weight:
14.3 kg
Package Level 1 EAN:
8056221008822

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F

Technical

Current Type:
AC
Electrical Durability:
3000 cycle
60 cycles per hour
3000 cycle
60 cycles per hour
Mechanical Durability:
10000 cycle
60 cycles per hour
10000 cycle
60 cycles per hour
Number of Poles:
3P
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 57 W
Rated Current (In):
1250 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw):
20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Uninterrupted Current (Iu):
1250 A
Release:
Ekip Dip LS/I
Release Type:
EL
Short-Circuit Performance Level:
S
Standards:
IEC60947-2
Sub-type:
XT7
Terminal Connection Type:
Front

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Est. delivery between and
Estimated delivery dates are estimates only. Int'l customers allow a few more days. For more precise delivery estimates, please contact us at support@plc-direct.com. Contact us in advance for expedited shipping options.
17,930.00 kr
1-year warranty
FREE WORDWIDE SHIPPING
Condition:
17,930.00 kr
0.00 kr
