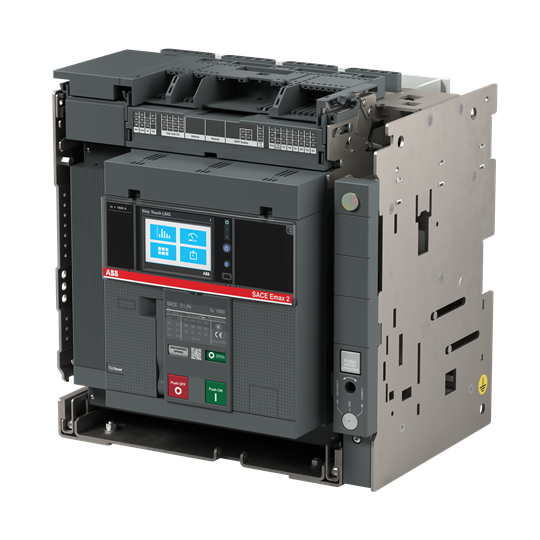

1SDA072785R1 ABB - E1.2N 1000 Ekip Touch LSI 4p WMP

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 76.4 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
eb2fbb54-cdad-4a75-a43b-ad2fbaee8304 Italy
Simplified SCIP:
29970431-07bb-4257-ba00-9db2223a0d7a Germany
d0e5b50f-74ef-4af5-b904-fcf58ea8613b Sweden
c946881b-efda-48b0-b65b-b0bb7b3970e6 Belgium
dfdc8af1-6b08-4f65-a2bc-6848e7531609 Spain
6bf1f26a-abe3-451f-aab5-638a0f562b1f France
826c6292-b48b-4439-9215-83a7482c96e8 Hungary
a29e6223-1358-48bc-863c-29d51f329ad8 Norway
87dfc689-722e-4f35-9b2a-f37cc92b628e Hungary
cb469ed7-f28d-4d1d-a3ed-75c10acc746e Poland
54c940fa-dc66-4873-95ea-1a2f85c310b2 France
93706396-7c53-4eaf-a8a2-d72f6c9d052e Germany
80f6e01c-e3c3-4c64-9c6f-e8e60c432cf1 Croatia
6bb852d8-e4ff-46a9-ad07-74d2d9899ba0 Denmark
1989e5c1-0ca9-48f8-8803-761ef4668c43 Germany
9dcd1e31-c962-4e6b-b854-2a1ba7981373 Germany
c2e41493-ff16-4b28-b1cd-4071126a9446 Finland
7183a817-6f0d-406c-b104-2ae06e900642 Germany
d82bd8e1-35be-4bd4-9059-72010ac3d360 Belgium
66589042-9bdf-4e70-b90c-0ae0d8c8ceae Sweden
d23f8f12-ac63-4da9-a727-6bbffe1e689c Netherlands
f9cb7ef5-d2f0-44a5-80c2-bda21cd7acbc Estonia
12174979-887c-49fe-a4a9-80e7ab3d73bf Greece
e5ac665b-47f8-4af2-a28d-74798fd0cd44 Poland
814299a7-49f9-41fd-a221-d9696be1ea16 Poland
183b7ea2-89da-452b-a82d-9b309a29a0aa Czech Republic
b52a4c52-6101-4b84-902f-491616fde2f2 Portugal
ba85a38f-ecfe-4b82-8cbc-cda67744c5df Bulgaria
29970431-07bb-4257-ba00-9db2223a0d7a Germany
d0e5b50f-74ef-4af5-b904-fcf58ea8613b Sweden
c946881b-efda-48b0-b65b-b0bb7b3970e6 Belgium
dfdc8af1-6b08-4f65-a2bc-6848e7531609 Spain
6bf1f26a-abe3-451f-aab5-638a0f562b1f France
826c6292-b48b-4439-9215-83a7482c96e8 Hungary
a29e6223-1358-48bc-863c-29d51f329ad8 Norway
87dfc689-722e-4f35-9b2a-f37cc92b628e Hungary
cb469ed7-f28d-4d1d-a3ed-75c10acc746e Poland
54c940fa-dc66-4873-95ea-1a2f85c310b2 France

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
ZANQEGAE000A000000XX
EAN:
8015644766351
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
348 mm
Product Net Height:
363.5 mm
Product Net Depth / Length:
271 mm
Product Net Weight:
20 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
350 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
330 mm
Package Level 1 Gross Weight:
23 kg
Package Level 1 EAN:
8015644766351

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability:
20000 cycle
60 cycles per hour
20000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu]):
100 %
Number of Poles:
4P
Power Loss:
156 W
Rated Current (In):
1000 A
Rated Impulse Withstand Voltage (Uimp):
acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
(220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
100 %
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 50 kA
for 3 s 30 kA
for 1 s 50 kA
for 3 s 30 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu):
1000 A
Rated Voltage (Ur):
690 V
Release:
Ekip Touch LSI
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
E1.2
Suitable for IT Networks:
Yes, 690V

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote


Notify Me When Available

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 76.4 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
eb2fbb54-cdad-4a75-a43b-ad2fbaee8304 Italy
Simplified SCIP:
29970431-07bb-4257-ba00-9db2223a0d7a Germany
d0e5b50f-74ef-4af5-b904-fcf58ea8613b Sweden
c946881b-efda-48b0-b65b-b0bb7b3970e6 Belgium
dfdc8af1-6b08-4f65-a2bc-6848e7531609 Spain
6bf1f26a-abe3-451f-aab5-638a0f562b1f France
826c6292-b48b-4439-9215-83a7482c96e8 Hungary
a29e6223-1358-48bc-863c-29d51f329ad8 Norway
87dfc689-722e-4f35-9b2a-f37cc92b628e Hungary
cb469ed7-f28d-4d1d-a3ed-75c10acc746e Poland
54c940fa-dc66-4873-95ea-1a2f85c310b2 France
93706396-7c53-4eaf-a8a2-d72f6c9d052e Germany
80f6e01c-e3c3-4c64-9c6f-e8e60c432cf1 Croatia
6bb852d8-e4ff-46a9-ad07-74d2d9899ba0 Denmark
1989e5c1-0ca9-48f8-8803-761ef4668c43 Germany
9dcd1e31-c962-4e6b-b854-2a1ba7981373 Germany
c2e41493-ff16-4b28-b1cd-4071126a9446 Finland
7183a817-6f0d-406c-b104-2ae06e900642 Germany
d82bd8e1-35be-4bd4-9059-72010ac3d360 Belgium
66589042-9bdf-4e70-b90c-0ae0d8c8ceae Sweden
d23f8f12-ac63-4da9-a727-6bbffe1e689c Netherlands
f9cb7ef5-d2f0-44a5-80c2-bda21cd7acbc Estonia
12174979-887c-49fe-a4a9-80e7ab3d73bf Greece
e5ac665b-47f8-4af2-a28d-74798fd0cd44 Poland
814299a7-49f9-41fd-a221-d9696be1ea16 Poland
183b7ea2-89da-452b-a82d-9b309a29a0aa Czech Republic
b52a4c52-6101-4b84-902f-491616fde2f2 Portugal
ba85a38f-ecfe-4b82-8cbc-cda67744c5df Bulgaria
29970431-07bb-4257-ba00-9db2223a0d7a Germany
d0e5b50f-74ef-4af5-b904-fcf58ea8613b Sweden
c946881b-efda-48b0-b65b-b0bb7b3970e6 Belgium
dfdc8af1-6b08-4f65-a2bc-6848e7531609 Spain
6bf1f26a-abe3-451f-aab5-638a0f562b1f France
826c6292-b48b-4439-9215-83a7482c96e8 Hungary
a29e6223-1358-48bc-863c-29d51f329ad8 Norway
87dfc689-722e-4f35-9b2a-f37cc92b628e Hungary
cb469ed7-f28d-4d1d-a3ed-75c10acc746e Poland
54c940fa-dc66-4873-95ea-1a2f85c310b2 France

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
ZANQEGAE000A000000XX
EAN:
8015644766351
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
348 mm
Product Net Height:
363.5 mm
Product Net Depth / Length:
271 mm
Product Net Weight:
20 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
350 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
330 mm
Package Level 1 Gross Weight:
23 kg
Package Level 1 EAN:
8015644766351

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability:
20000 cycle
60 cycles per hour
20000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu]):
100 %
Number of Poles:
4P
Power Loss:
156 W
Rated Current (In):
1000 A
Rated Impulse Withstand Voltage (Uimp):
acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
(220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
100 %
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 50 kA
for 3 s 30 kA
for 1 s 50 kA
for 3 s 30 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu):
1000 A
Rated Voltage (Ur):
690 V
Release:
Ekip Touch LSI
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
E1.2
Suitable for IT Networks:
Yes, 690V

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409

All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.

If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.

In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.

PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.

Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.

PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.

Trusted By

"Fast service for obsolete parts"

Increasingly PLC/ HMI control platforms are becoming obsolete and parts are no longer supported, however PLC Direct had the HMI we needed and fast shipping for our system to get back online!

Buyer at GE Health

"Helping us move projects forward"

With supply chain issues increasingly affecting our business, PLC Direct has been there for us to supply the PLC products we need, when we need it. If they don't have it readily available, they find it and provide it quickly and reliably. This has helped us move forward with several projects that would have otherwise taken us many, many months to complete.

Buyer at E-Merge Systems – A Rockwell Integrator
