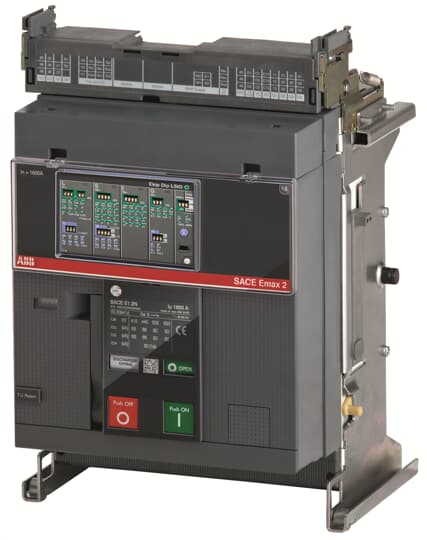

1SDA072061R1 ABB - E1.2C 630 Ekip Dip LI 3p WMP

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 76.4 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
6d0618cd-f996-4662-adae-243f2e4b7d2d Italy
Simplified SCIP:
df51b149-6e71-4f73-9940-427c16634f3b Germany
3e4c32f2-0152-4b79-956c-78fac43e4f1d Portugal
d24a5f5d-b996-4aec-87f5-401f22fb07f4 Czech Republic
2e824420-42b6-4c26-89b7-55f28841713a Hungary
7356938d-a8f9-4a9a-a09c-cc77e6c38b5a Belgium
07aac190-8338-445a-bebd-d83961e3b4c9 Spain
b4802db9-d00f-4106-9cdc-ae9f7b6a3065 Poland
10344ac5-e15b-4fff-8c12-45e768934b85 Norway
c22ef2e6-876f-45aa-9cdd-cd5f2831e80e Hungary
a2d05866-8d14-43c1-92ec-c8c25e38fcf3 Germany
ecf34d83-7755-403f-ac89-dec110fea1b3 Germany
713a103d-c92e-4590-ace9-e5a2941045b8 Denmark
39e876f3-76fc-4063-b826-6e54161ced30 Belgium
58af985b-d93c-4047-b817-c4dfec054832 France
7980b906-4af8-4a4e-8ba1-7d450a73a248 Greece
a5d2cc05-777f-4c5c-99c0-f78341191a6c Finland
5be4b23e-1579-4292-ba45-c9b0f89a7468 Netherlands
ee6468e7-bf66-45fb-b7d1-e05d05f926b1 Estonia
78e3eb1f-8292-4ad4-9411-2cca971ad535 Sweden
076fbb0c-6d30-4190-89a7-2ff0bd71375f France
6b53f1cf-450b-4cfe-9dca-11f7fa9225dc Croatia
496a7ec8-8654-47ad-80f9-0d9369270a3a Germany
4f079a12-afb9-4dc8-bda0-74fa89c2b830 Germany
7286fdb5-2792-44c0-b18f-17b13185ff34 Poland
235ab62a-4002-4e8c-b76e-4437dc0737bd Poland
c9e3937e-08ae-4935-afac-22b20205b604 Sweden
4aaf67ee-49d6-415e-839f-cd03747b6ba9 Bulgaria
df51b149-6e71-4f73-9940-427c16634f3b Germany
3e4c32f2-0152-4b79-956c-78fac43e4f1d Portugal
d24a5f5d-b996-4aec-87f5-401f22fb07f4 Czech Republic
2e824420-42b6-4c26-89b7-55f28841713a Hungary
7356938d-a8f9-4a9a-a09c-cc77e6c38b5a Belgium
07aac190-8338-445a-bebd-d83961e3b4c9 Spain
b4802db9-d00f-4106-9cdc-ae9f7b6a3065 Poland
10344ac5-e15b-4fff-8c12-45e768934b85 Norway
c22ef2e6-876f-45aa-9cdd-cd5f2831e80e Hungary
a2d05866-8d14-43c1-92ec-c8c25e38fcf3 Germany

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
Z1CNEEAA000A000000XX
EAN:
8015644759117
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
278 mm
Product Net Height:
363.5 mm
Product Net Depth / Length:
271 mm
Product Net Weight:
18 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
270 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
330 mm
Package Level 1 Gross Weight:
20 kg
Package Level 1 EAN:
8015644759117

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability:
20000 cycle
60 cycles per hour
20000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
62 W
Rated Current (In):
630 A
Rated Impulse Withstand Voltage (Uimp):
acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 50 kA
(230 V AC) 50 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
(220 V AC) 50 kA
(230 V AC) 50 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
100 %
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 42 kA
for 3 s 24 kA
for 1 s 42 kA
for 3 s 24 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 42 kA
(525 V AC) 42 kA
(690 V AC) 42 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 42 kA
(525 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu):
630 A
Rated Voltage (Ur):
690 V
Release:
Ekip Dip LI
Release Type:
EL
Short-Circuit Performance Level:
C
Standards:
IEC
Sub-type:
E1.2
Suitable for IT Networks:
Yes, 690V

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote


Notify Me When Available

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 76.4 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
6d0618cd-f996-4662-adae-243f2e4b7d2d Italy
Simplified SCIP:
df51b149-6e71-4f73-9940-427c16634f3b Germany
3e4c32f2-0152-4b79-956c-78fac43e4f1d Portugal
d24a5f5d-b996-4aec-87f5-401f22fb07f4 Czech Republic
2e824420-42b6-4c26-89b7-55f28841713a Hungary
7356938d-a8f9-4a9a-a09c-cc77e6c38b5a Belgium
07aac190-8338-445a-bebd-d83961e3b4c9 Spain
b4802db9-d00f-4106-9cdc-ae9f7b6a3065 Poland
10344ac5-e15b-4fff-8c12-45e768934b85 Norway
c22ef2e6-876f-45aa-9cdd-cd5f2831e80e Hungary
a2d05866-8d14-43c1-92ec-c8c25e38fcf3 Germany
ecf34d83-7755-403f-ac89-dec110fea1b3 Germany
713a103d-c92e-4590-ace9-e5a2941045b8 Denmark
39e876f3-76fc-4063-b826-6e54161ced30 Belgium
58af985b-d93c-4047-b817-c4dfec054832 France
7980b906-4af8-4a4e-8ba1-7d450a73a248 Greece
a5d2cc05-777f-4c5c-99c0-f78341191a6c Finland
5be4b23e-1579-4292-ba45-c9b0f89a7468 Netherlands
ee6468e7-bf66-45fb-b7d1-e05d05f926b1 Estonia
78e3eb1f-8292-4ad4-9411-2cca971ad535 Sweden
076fbb0c-6d30-4190-89a7-2ff0bd71375f France
6b53f1cf-450b-4cfe-9dca-11f7fa9225dc Croatia
496a7ec8-8654-47ad-80f9-0d9369270a3a Germany
4f079a12-afb9-4dc8-bda0-74fa89c2b830 Germany
7286fdb5-2792-44c0-b18f-17b13185ff34 Poland
235ab62a-4002-4e8c-b76e-4437dc0737bd Poland
c9e3937e-08ae-4935-afac-22b20205b604 Sweden
4aaf67ee-49d6-415e-839f-cd03747b6ba9 Bulgaria
df51b149-6e71-4f73-9940-427c16634f3b Germany
3e4c32f2-0152-4b79-956c-78fac43e4f1d Portugal
d24a5f5d-b996-4aec-87f5-401f22fb07f4 Czech Republic
2e824420-42b6-4c26-89b7-55f28841713a Hungary
7356938d-a8f9-4a9a-a09c-cc77e6c38b5a Belgium
07aac190-8338-445a-bebd-d83961e3b4c9 Spain
b4802db9-d00f-4106-9cdc-ae9f7b6a3065 Poland
10344ac5-e15b-4fff-8c12-45e768934b85 Norway
c22ef2e6-876f-45aa-9cdd-cd5f2831e80e Hungary
a2d05866-8d14-43c1-92ec-c8c25e38fcf3 Germany

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
Z1CNEEAA000A000000XX
EAN:
8015644759117
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
278 mm
Product Net Height:
363.5 mm
Product Net Depth / Length:
271 mm
Product Net Weight:
18 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
270 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
330 mm
Package Level 1 Gross Weight:
20 kg
Package Level 1 EAN:
8015644759117

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Ue =< 440 V 8000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability:
20000 cycle
60 cycles per hour
20000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
62 W
Rated Current (In):
630 A
Rated Impulse Withstand Voltage (Uimp):
acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 50 kA
(230 V AC) 50 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
(220 V AC) 50 kA
(230 V AC) 50 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
100 %
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 42 kA
for 3 s 24 kA
for 1 s 42 kA
for 3 s 24 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 42 kA
(525 V AC) 42 kA
(690 V AC) 42 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 42 kA
(525 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu):
630 A
Rated Voltage (Ur):
690 V
Release:
Ekip Dip LI
Release Type:
EL
Short-Circuit Performance Level:
C
Standards:
IEC
Sub-type:
E1.2
Suitable for IT Networks:
Yes, 690V

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4926 >> Air circuit breakers
Object Classification Code:
Q
UNSPSC:
39121615
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409

All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.

If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.

In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.

PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.

Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.

PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.

Trusted By

"Fast service for obsolete parts"

Increasingly PLC/ HMI control platforms are becoming obsolete and parts are no longer supported, however PLC Direct had the HMI we needed and fast shipping for our system to get back online!

Buyer at GE Health

"Helping us move projects forward"

With supply chain issues increasingly affecting our business, PLC Direct has been there for us to supply the PLC products we need, when we need it. If they don't have it readily available, they find it and provide it quickly and reliably. This has helped us move forward with several projects that would have otherwise taken us many, many months to complete.

Buyer at E-Merge Systems – A Rockwell Integrator
