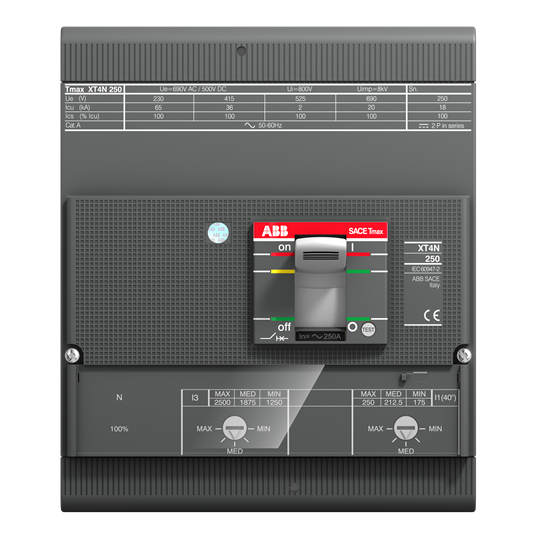

1SDA068106R1 ABB - XT4N 250 TMA 250-2500 4p F F InN=50%

1SDA068106R1 ABB - XT4N 250 TMA 250-2500 4p F F InN=50%

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 56.3 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
53eb001f-1b12-49fa-aac6-79990a1155b1 Italy
Simplified SCIP:
757ca5b2-c7d6-4e8f-8954-00e27ffc9ff1 Germany
1fbac286-daca-42c7-ba89-bac9ab7e7b62 Sweden
b933acd2-27c8-4844-9a4f-65c6f3239eec Poland
fcd8942d-c7d9-47f4-9dce-428c3edcd44a France
6025aa89-c4b1-4749-9010-d6b28fad2176 Germany
fb70c5d5-283d-4b69-9f43-65126366b249 Denmark
7e9bb7e0-8d63-4623-9f7f-74ee70cebfe7 Germany
89cddb77-7988-48b6-80dc-7fada698b56d Croatia
08a706c1-1a1b-434b-a982-e88dc011961b Czech Republic
12bd441c-00d8-469d-81da-96c3f7d36265 Poland
2a73d77e-6dca-4790-b277-beb31477fa3b Netherlands
a39a0046-ba6c-4398-955d-1a6e9b7b8941 Sweden
217186e3-4935-4046-8655-649cf241e3d5 Germany
d1960592-408a-4bd7-a0de-c570ac9d4bf9 Germany
8081da26-02fc-4b71-87c9-974fc7af0e5a France
adf859a5-7e26-413a-84c3-6f63c2f470a1 Netherlands
4a255223-29b9-401f-ae40-cbfcbc433f3f Spain
0a6430bd-7e06-4172-8a32-03a7e26aa25a Netherlands
724ab3bd-b7dc-4f67-bfe9-7509858f7c73 Poland
559a9fd3-7a52-49d8-9207-80057050ffef Norway
174edf2a-6d2a-4fdf-af85-d164b5b61c67 Finland
236b2029-19bc-44f6-8cde-b263e2565cee Netherlands
7bff4f4a-b099-403f-ae8a-b7437ce52db6 Netherlands
4afd1b45-2511-4096-a892-f2ceaf853f52 Estonia
ee9de11c-3bef-43a2-b010-2e8036c7ff1d Greece
d3f46012-7430-42de-889c-4e34cf9abbeb Portugal
1e1c1594-bf78-4f74-b8d4-51768e9371ac Bulgaria
757ca5b2-c7d6-4e8f-8954-00e27ffc9ff1 Germany
1fbac286-daca-42c7-ba89-bac9ab7e7b62 Sweden
b933acd2-27c8-4844-9a4f-65c6f3239eec Poland
fcd8942d-c7d9-47f4-9dce-428c3edcd44a France
6025aa89-c4b1-4749-9010-d6b28fad2176 Germany
fb70c5d5-283d-4b69-9f43-65126366b249 Denmark
7e9bb7e0-8d63-4623-9f7f-74ee70cebfe7 Germany
89cddb77-7988-48b6-80dc-7fada698b56d Croatia
08a706c1-1a1b-434b-a982-e88dc011961b Czech Republic
12bd441c-00d8-469d-81da-96c3f7d36265 Poland

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT4NEN250BFF000XXX
EAN:
8015644695903
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
160 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
3.5 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
145 mm
Package Level 1 Height:
210 mm
Package Level 1 Depth / Length:
168 mm
Package Level 1 Gross Weight:
3.5 kg
Package Level 1 EAN:
8015644695903

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 85..200 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
4P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 16.44 W
Rated Current (In):
250 A
Rated Frequency (f):
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
1250…2500 A
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
750 V DC
690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 36 kA
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(250 V DC) 2 Poles in Series 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 36 kA
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(250 V DC) 2 Poles in Series 36 kA
Rated Uninterrupted Current (Iu):
250 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M8
Release:
TMA
Release Type:
TM
Setting Range:
175...250 A
Short-Circuit Performance Level:
N
Standards:
IEC60947-2
Sub-type:
XT4
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
8 N·m

Certificates and Declarations

ATEX Certificate:
Declaration of Conformity - CE:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
