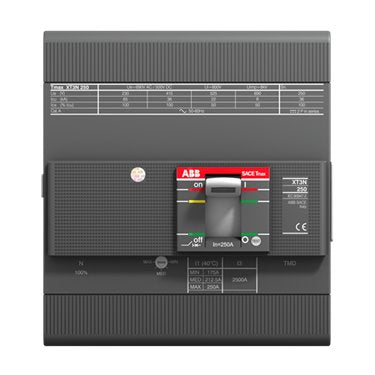

1SDA068064R1 ABB XT3N 250 TMD 160-1600 4p F F InN50%

1SDA068064R1 ABB XT3N 250 TMD 160-1600 4p F F InN50%

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 56.6 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
1fede2ee-9fd7-40c5-a1ed-8be7a3cc52de Italy
Simplified SCIP:
c04dff40-db9e-4d07-8e26-077296e31430 Germany
6ac0070d-4831-415d-9175-30b51c3c5632 Netherlands
b3e4f2d8-8e15-4f48-ab6d-2374d8c337f3 Sweden
3b74bf50-c391-4327-a305-3296f209692a Germany
70c2ead9-2ed1-43bf-a95d-2b24c356adc6 Poland
afa7c38a-4877-469e-a14f-2ddc6b4b82a8 Norway
d873296b-aae6-4ffa-9fd4-2681000007fc Finland
6001d11b-ae2b-46af-a08d-afc609705d3f Netherlands
154eb7e5-fb24-40c4-887e-4f974391960f Germany
574cdcb4-63e5-48e1-9251-5a8dc7e3e4da Netherlands
578e4899-f61f-4811-986c-dc6aedc1d047 Croatia
dad19a67-f529-4615-bdae-696c52261fb8 Czech Republic
ea622b46-2ddb-4e36-817a-e63f817b511b Poland
be288df6-9016-4651-93e9-5bc9f6283f9a Netherlands
290eda8b-fb02-4193-b063-6260e375a711 Estonia
a24da859-dac9-4416-ae1d-6bf8d384fbac Greece
d6ad4888-fe71-4d92-b7a0-a491efcc6274 Portugal
2eca4128-396f-4093-a033-0b2fe1f211f5 Bulgaria
35c6672d-e183-4314-81f7-380d75385d32 Sweden
fd450ef7-927b-4e1f-9906-565d4446b5ed Denmark
c730c4de-c133-49e3-9e24-7b3c57548c29 Poland
844f864f-1554-4579-a1e6-3a7eac5ef469 France
e37bc8d6-5316-4524-816f-41be9863b96b Germany
eb91fbb1-64a4-41d0-8c20-41a91305c8dd Germany
a3027d55-ebd3-4822-9305-b7ee09a46ac3 France
7336aeb1-d559-4886-b06f-70f04678a8b5 Netherlands
713d2b3b-686c-4466-ae8b-bc1e99844423 Spain
c04dff40-db9e-4d07-8e26-077296e31430 Germany
6ac0070d-4831-415d-9175-30b51c3c5632 Netherlands
b3e4f2d8-8e15-4f48-ab6d-2374d8c337f3 Sweden
3b74bf50-c391-4327-a305-3296f209692a Germany
70c2ead9-2ed1-43bf-a95d-2b24c356adc6 Poland
afa7c38a-4877-469e-a14f-2ddc6b4b82a8 Norway
d873296b-aae6-4ffa-9fd4-2681000007fc Finland
6001d11b-ae2b-46af-a08d-afc609705d3f Netherlands
154eb7e5-fb24-40c4-887e-4f974391960f Germany
574cdcb4-63e5-48e1-9251-5a8dc7e3e4da Netherlands

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT3NEN160AFF000XXX
E-Number (Finland):
3641009
EAN:
8015644019655
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
150 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
2.1 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
155 mm
Package Level 1 Height:
190 mm
Package Level 1 Depth / Length:
155 mm
Package Level 1 Gross Weight:
2.1 kg
Package Level 1 EAN:
8015644019655

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 85..192 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
4P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 7.9 W
Rated Current (In):
160 A
Rated Frequency (f):
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
1600 A
Rated Insulation Voltage (Ui):
800 V
Rated Operational Voltage:
690 V AC
500 V DC
690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 18 kA
(500 V AC) 15 kA
(525 V AC) 9,75 kA
(690 V AC) 3,75 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 2 Poles in Series 50 kA
(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 18 kA
(500 V AC) 15 kA
(525 V AC) 9,75 kA
(690 V AC) 3,75 kA
(250 V DC) 2 Poles in Series 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 20 kA
(525 V AC) 13 kA
(690 V AC) 5 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 50 kA
(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 20 kA
(525 V AC) 13 kA
(690 V AC) 5 kA
(250 V DC) 2 Poles in Series 36 kA
Rated Uninterrupted Current (Iu):
250 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M8
Release:
TMD
Release Type:
TM
Setting Range:
112...160 A
Short-Circuit Performance Level:
N
Standards:
IEC60947-2
Sub-type:
XT3
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
8 N·m

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote

Notify Me When Available
