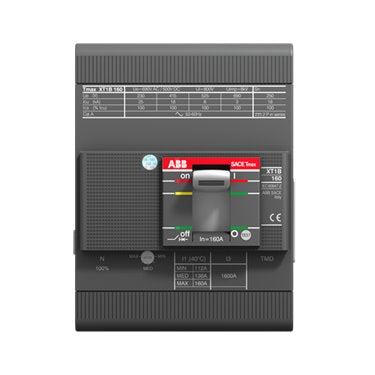

1SDA066817R1 ABB XT1B 160 TMD 80-800 4p F F

1SDA066817R1 ABB XT1B 160 TMD 80-800 4p F F

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 55.9 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
a943ed44-4235-453a-beee-ce834cf372fe Italy
Simplified SCIP:
0147d83e-c5d7-413e-8f24-65b8e1b6fb4d Germany
b431f35b-1f96-490a-a7c2-8a6cc22f7500 Poland
215798aa-2b02-41bd-9634-302747961651 Norway
4eac72ff-892f-4ff2-82d0-c21e9c520485 Finland
efe375a4-bcdf-46ce-a558-ba03c12e488c Netherlands
bc484707-a31e-45e2-8375-a4605a0c4163 Germany
b1b3e14c-e8f6-4289-b7fc-d5aab4ce816f Denmark
60a91a61-9ead-49e6-8169-7cda04c66dcd Germany
0326c47c-dd79-450d-b2bd-3d90fcbbbc4c Croatia
162f37d5-e57a-4b76-8f36-7384684e8f01 Czech Republic
2e827726-64d3-4efc-87ec-22462d26739a Poland
3d3a7694-b98a-41bc-9530-b47abf21d453 Netherlands
4b35c0e4-2d12-48d0-8c90-0b8f127892f0 Netherlands
184dcce7-b47b-4d71-8c62-71cc3f45eb4e Estonia
ab562bd1-1c53-40ee-9227-2941b5adde00 Greece
0bb6b765-9c71-49a8-ad40-36690b1c84e0 Portugal
748e83e4-abf3-4533-b1ab-dfec7b8ee96b Bulgaria
21d8766a-ee24-4074-8732-011203fd325e Sweden
0f24ea69-2cc1-49f6-83a2-c35c70d09681 Poland
0714bd13-a38c-445f-b771-3b1a6bc968c7 France
0982874d-1466-4556-b90a-9b28af9b7c80 Sweden
18632971-3a27-4fe2-957a-d38b0dbc8455 Germany
066fc8b9-f695-4901-a8cc-fcfd4d6e6e0e Germany
660b252b-f02a-40ad-836d-d91f2d82d400 France
91cce256-25f2-4ed6-9157-f274842bbd7c Netherlands
083afd60-1e8b-4a2f-bf73-8058f41740fe Spain
e9ef4ee6-d181-4131-a42a-ff4646e1ee6d Netherlands
0147d83e-c5d7-413e-8f24-65b8e1b6fb4d Germany
b431f35b-1f96-490a-a7c2-8a6cc22f7500 Poland
215798aa-2b02-41bd-9634-302747961651 Norway
4eac72ff-892f-4ff2-82d0-c21e9c520485 Finland
efe375a4-bcdf-46ce-a558-ba03c12e488c Netherlands
bc484707-a31e-45e2-8375-a4605a0c4163 Germany
b1b3e14c-e8f6-4289-b7fc-d5aab4ce816f Denmark
60a91a61-9ead-49e6-8169-7cda04c66dcd Germany
0326c47c-dd79-450d-b2bd-3d90fcbbbc4c Croatia
162f37d5-e57a-4b76-8f36-7384684e8f01 Czech Republic

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT1BE4080AFF000XXX
E-Number (Finland):
3638190
E-Number (Norway):
4309707
EAN:
8015644694531
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
101.6 mm
Product Net Height:
130 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
1.4 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
128 mm
Package Level 1 Height:
135 mm
Package Level 1 Depth / Length:
143 mm
Package Level 1 Gross Weight:
1.448 kg
Package Level 1 EAN:
8015644694531

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 45.5 ... 80 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
4P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 4.8 W
Rated Current (In):
80 A
Rated Frequency (f):
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
800 A
Rated Insulation Voltage (Ui):
800 V
Rated Operational Voltage:
690 V AC
500 V DC
690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 11.25 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
(500 V DC) 3 Poles in Series 18 kA
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 11.25 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 15 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
(500 V DC) 3 Poles in Series 18 kA
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 15 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
Rated Uninterrupted Current (Iu):
160 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M6
Release:
TMD
Release Type:
TM
Setting Range:
56...80 A
Short-Circuit Performance Level:
B
Standards:
IEC60947-2
Sub-type:
XT1
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
6 N·m

Certificates and Declarations

ATEX Certificate:
Declaration of Conformity - CE:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:
Dimension Diagram:
Mechanical Drawings:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote

Notify Me When Available
