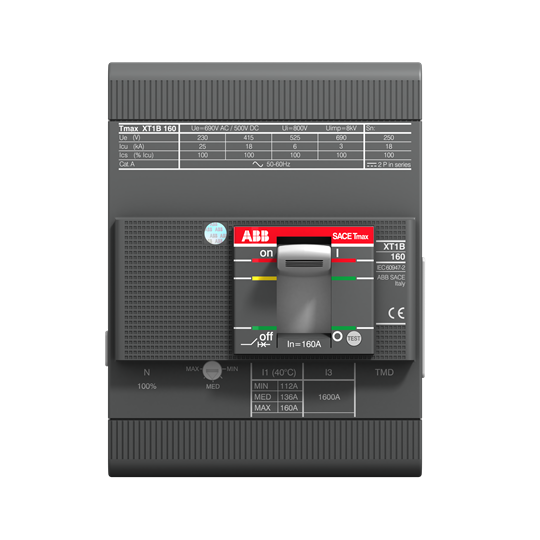

1SDA066812R1 ABB - XT1B 160 TMD 25-450 4p F F

1SDA066812R1 ABB - XT1B 160 TMD 25-450 4p F F

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 55.9 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
8cb3ed1b-4dd2-4c55-a8f6-faabe7c2b9ad Italy
Simplified SCIP:
7f55227d-81b0-426c-b95d-87c224a5525b Spain
f02605f6-fb0e-4e86-98af-0814a8d0ba70 Hungary
d0ab3184-a0e7-41a0-9c0f-b2936d10155f Belgium
83abee8b-5b8f-4dae-9018-3f08f8109dfe Germany
c49eab37-57f8-4b6e-84c4-ef9413dd28c2 Denmark
0b417151-96f3-4697-b26c-15be68f6f56b Sweden
a733aefb-7fc4-4b91-aaf8-0cfa9038a88d Croatia
c70822c6-3b77-41dc-9438-f29d72d6261c Germany
35f94476-ae3c-4f8f-a673-1e1004524daf Germany
c55964cb-9eba-4808-98b2-9558a3643a72 Czech Republic
e4c49f80-81bb-456a-9545-3af28943ceae France
57858120-58a5-4f82-8b27-7242054e05d8 Poland
21eb8b7f-fbd0-44f2-afbe-65f5b5470087 Finland
a656bff7-6b0a-4bcb-9873-06bcc001c424 Netherlands
85de621d-acc3-4fb3-852b-4537b886822d Norway
e422f81e-d870-43eb-af88-077488e3c5bc Sweden
56123d5f-2c84-40b7-8116-79fa14e412d7 Bulgaria
1e925491-bad4-4cda-8f75-8d0f91c758c8 Portugal
dd28347b-5e19-4326-831a-d3757956d536 Germany
7b88bc6a-b066-4793-9f9d-993f2163e806 Poland
0cc592fd-cdbe-4e10-aa1d-7efffb9d65e6 Germany
b29ab876-8a3d-4ccc-9943-c92002afdb31 France
8ac237d2-0f40-437a-9c46-6cd5a1142107 Greece
06173978-d35f-4fd9-ad70-2c549716b779 Poland
c1baa18a-7f83-4a85-9554-4483bebe4720 Hungary
ba8fae24-e97e-45ec-a566-c60a2adc74b4 Estonia
af8d3bdb-26fb-4075-847f-2b2d365fc2f8 Belgium
7f55227d-81b0-426c-b95d-87c224a5525b Spain
f02605f6-fb0e-4e86-98af-0814a8d0ba70 Hungary
d0ab3184-a0e7-41a0-9c0f-b2936d10155f Belgium
83abee8b-5b8f-4dae-9018-3f08f8109dfe Germany
c49eab37-57f8-4b6e-84c4-ef9413dd28c2 Denmark
0b417151-96f3-4697-b26c-15be68f6f56b Sweden
a733aefb-7fc4-4b91-aaf8-0cfa9038a88d Croatia
c70822c6-3b77-41dc-9438-f29d72d6261c Germany
35f94476-ae3c-4f8f-a673-1e1004524daf Germany
c55964cb-9eba-4808-98b2-9558a3643a72 Czech Republic

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT1BE4025AFF000XXX
E-Number (Finland):
3640505
E-Number (Norway):
4309702
EAN:
8015644007195
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
101.6 mm
Product Net Height:
130 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
1.4 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
128 mm
Package Level 1 Height:
135 mm
Package Level 1 Depth / Length:
143 mm
Package Level 1 Gross Weight:
1.424 kg
Package Level 1 EAN:
8015644007195

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 45.5 ... 80 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
4P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 2 W
Rated Current (In):
25 A
Rated Frequency (f):
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
450 A
Rated Insulation Voltage (Ui):
800 V
Rated Operational Voltage:
690 V AC
500 V DC
690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 11.25 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
(500 V DC) 3 Poles in Series 18 kA
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 11.25 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 15 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
(500 V DC) 3 Poles in Series 18 kA
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 15 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
Rated Uninterrupted Current (Iu):
160 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M6
Release:
TMD
Release Type:
TM
Setting Range:
17.5...25 A
Short-Circuit Performance Level:
B
Standards:
IEC60947-2
Sub-type:
XT1
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
6 N·m

Certificates and Declarations

ATEX Certificate:
Declaration of Conformity - CE:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:
Dimension Diagram:
Mechanical Drawings:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote
