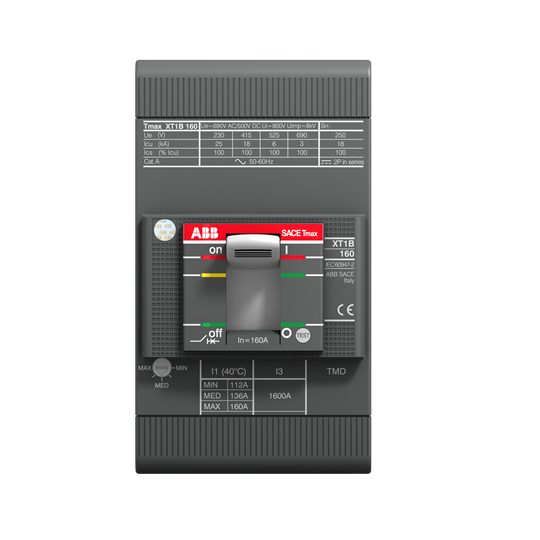

1SDA066803R1 ABB - XT1B 160 TMD 40-450 3p F F

1SDA066803R1 ABB - XT1B 160 TMD 40-450 3p F F

ABB EcoSolutions

ABB EcoSolutions:
Yes
ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 55.9 %

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
5cab19a8-a211-40c5-bc9a-598007736c08 Italy
Simplified SCIP:
abcf1fa6-993f-40bd-948e-7031a129c6fd Spain
2909f5f6-ef26-4852-a421-00343f2a1bf8 Belgium
235f26cb-78ea-4142-86a8-40c6d9269936 Czech Republic
b696f5da-3bb1-4927-8e16-fbeb5af0d012 Hungary
d0e32a4a-d6ae-4037-9851-caecdc49d0d1 France
bb77a6d6-2708-474c-9f92-8318a5904431 Germany
617944fc-cc3f-4139-be4e-7081dda306fe Sweden
55adadea-3c4a-42ca-8e5b-951e0b147e82 Germany
a7a3ee97-4148-4339-8171-d93ccb74797e Denmark
f9f02b49-3f65-40ed-8d49-47307e1ed2cc Germany
67490311-ba58-4d42-b7a3-a1906ce91f7d Germany
f99a2448-1391-42bf-a0b1-c2bc741303dd Croatia
edb092a4-db53-4f4d-ac32-e7197c9fc30f Sweden
29bd069c-9cf7-451d-a67b-e19c26a6024f Netherlands
52315325-7b94-42a9-a354-6b77d2f4ecb3 Poland
8a890085-a4df-4f26-8327-093b43f9d1c2 Bulgaria
f66a5efb-a803-42ba-866b-e1fecc118301 Norway
6133c899-40e7-4adc-8cd3-cfd3163257c9 Germany
c6867efd-1d68-44fd-830a-c3cbfac0122a Portugal
8650c8bf-2467-49e7-9e5a-2a12ae456925 Poland
bad829f3-7ca9-408f-b042-c31ab585e58e Greece
c3fa5ce2-5f63-4b2e-a6c1-0b728aa19a97 France
afa820e1-182b-4046-a65a-c721fbd0877f Estonia
f2d51ade-ddb7-40d4-bc3f-bf975ca32912 Belgium
00ad4c8c-baf2-406d-aec8-f7ce17297da9 Hungary
ecb413a7-766a-4b40-8eef-164b819c6b12 Poland
241539ed-acf4-4841-92dd-cb32075995b6 Finland
abcf1fa6-993f-40bd-948e-7031a129c6fd Spain
2909f5f6-ef26-4852-a421-00343f2a1bf8 Belgium
235f26cb-78ea-4142-86a8-40c6d9269936 Czech Republic
b696f5da-3bb1-4927-8e16-fbeb5af0d012 Hungary
d0e32a4a-d6ae-4037-9851-caecdc49d0d1 France
bb77a6d6-2708-474c-9f92-8318a5904431 Germany
617944fc-cc3f-4139-be4e-7081dda306fe Sweden
55adadea-3c4a-42ca-8e5b-951e0b147e82 Germany
a7a3ee97-4148-4339-8171-d93ccb74797e Denmark
f9f02b49-3f65-40ed-8d49-47307e1ed2cc Germany

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
XT1BE3040AFF000XXX
E-Number (Finland):
3638025
E-Number (Norway):
4309604
EAN:
8015644003302
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
76.2 mm
Product Net Height:
130 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
1.1 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
128 mm
Package Level 1 Height:
135 mm
Package Level 1 Depth / Length:
143 mm
Package Level 1 Gross Weight:
1.124 kg
Package Level 1 EAN:
8015644003302

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 45.5 ... 80 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
240 cycles per hour
25000 cycle
Number of Poles:
3P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 2.6 W
Rated Current (In):
40 A
Rated Frequency (f):
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
450 A
Rated Insulation Voltage (Ui):
800 V
Rated Operational Voltage:
690 V AC
500 V DC
690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 11.25 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
(500 V DC) 3 Poles in Series 18 kA
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 11.25 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 15 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
(500 V DC) 3 Poles in Series 18 kA
(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 15 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
Rated Uninterrupted Current (Iu):
160 A
Rated Voltage (Ur):
690 V
Recommended Screw Driver:
Main Circuit M6
Release:
TMD
Release Type:
TM
Setting Range:
28...40 A
Short-Circuit Performance Level:
B
Standards:
IEC60947-2
Sub-type:
XT1
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
6 N·m

Certificates and Declarations

ATEX Certificate:
Declaration of Conformity - CE:
GL Certificate:
LR Certificate:
UL Certificate:
VDE Certificate:
Dimension Diagram:
Mechanical Drawings:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Est. delivery between and
Estimated delivery dates are estimates only. Int'l customers allow a few more days. For more precise delivery estimates, please contact us at support@plc-direct.com. Contact us in advance for expedited shipping options.
1,300.00 kr
1-year warranty
FREE WORDWIDE SHIPPING
Condition:
1,300.00 kr
0.00 kr
0.00 kr
