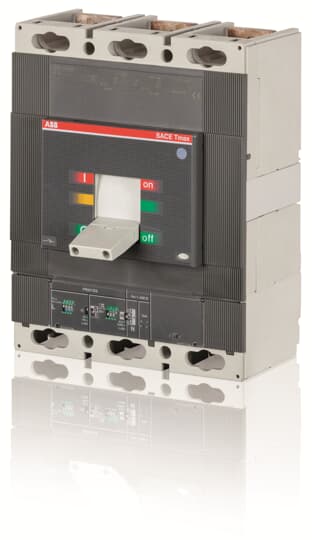

1SDA060227R1 ABB - T6N 630 PR221DS-I In=630 3p F F

1SDA060227R1 ABB - T6N 630 PR221DS-I In=630 3p F F

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
49138db6-22ef-443a-b5a0-b078b7e2ffc6 China
Simplified SCIP:
ea7955b8-9338-44d8-bbac-e8cb30e4cf0b Bulgaria
18047292-26c2-402b-89ce-b07074efca11 Belgium
e1be9424-841a-448b-8615-cf59ecba9c50 Czech Republic
97517b0d-3824-47d7-a2de-f194494e0030 Denmark
19d7a6a4-1731-4dfb-a7b6-742aa1d2efc0 Germany
e1a292be-fc76-4948-ae8f-3a3e3f5f73b4 Poland
ac3fbb4a-b717-4a00-91f8-6df455ee40f7 Netherlands
be73ee93-8357-4e6e-a974-44b8e739ba68 Norway
4a27bbca-f257-4580-b8a5-517fce09edd4 France
abce5aba-cb3d-4eba-b7c9-edd652f9626f Finland
45c8168f-62c4-4da8-9a67-f3e5b9a63963 Sweden
60e905dd-4b67-400f-bfcb-b9fdf2385016 Germany
78455a59-a539-47b3-97db-b5358c5a0e06 France
ebf3d89b-8293-4dc2-b732-8c5554f434a1 Germany
70267702-d6dc-4e1f-a351-6496b3ef0eae Germany
1e49d272-ac46-4486-80a1-827e9b3087d8 Greece
f032365a-38ac-4f87-9a3a-a95b8a66a4e9 Hungary
4f854043-d032-4398-b18c-265c27fb3659 Spain
a8166b11-420a-438c-b153-d44ea4c59796 Germany
a7035776-9156-4e0e-a7c0-c4f878909472 Portugal
98d712cb-25d3-481d-914a-a16040c34406 Poland
f95f893b-d2a0-4d2a-8d57-85b3b10a1007 Sweden
e59b02fb-630f-41b5-bff9-2d1ce4363281 Poland
ea7955b8-9338-44d8-bbac-e8cb30e4cf0b Bulgaria
18047292-26c2-402b-89ce-b07074efca11 Belgium
e1be9424-841a-448b-8615-cf59ecba9c50 Czech Republic
97517b0d-3824-47d7-a2de-f194494e0030 Denmark
19d7a6a4-1731-4dfb-a7b6-742aa1d2efc0 Germany
e1a292be-fc76-4948-ae8f-3a3e3f5f73b4 Poland
ac3fbb4a-b717-4a00-91f8-6df455ee40f7 Netherlands
be73ee93-8357-4e6e-a974-44b8e739ba68 Norway
4a27bbca-f257-4580-b8a5-517fce09edd4 France
abce5aba-cb3d-4eba-b7c9-edd652f9626f Finland

Ordering

EAN:
8015644626693
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
210 mm
Product Net Height:
268 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
9.5 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
305 mm
Package Level 1 Height:
285 mm
Package Level 1 Depth / Length:
370 mm
Package Level 1 Gross Weight:
11 kg
Package Level 1 EAN:
8015644626693

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T6
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
7000 cycle
60 cycles per hour
7000 cycle
60 cycles per hour
Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 20 W
Rated Current (In):
630 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 15 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 15 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 7.6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
Rated Uninterrupted Current (Iu):
630 A
Release:
PR221DS-I
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
T6
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3500 V

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
GL Certificate:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote

Notify Me When Available

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
49138db6-22ef-443a-b5a0-b078b7e2ffc6 China
Simplified SCIP:
ea7955b8-9338-44d8-bbac-e8cb30e4cf0b Bulgaria
18047292-26c2-402b-89ce-b07074efca11 Belgium
e1be9424-841a-448b-8615-cf59ecba9c50 Czech Republic
97517b0d-3824-47d7-a2de-f194494e0030 Denmark
19d7a6a4-1731-4dfb-a7b6-742aa1d2efc0 Germany
e1a292be-fc76-4948-ae8f-3a3e3f5f73b4 Poland
ac3fbb4a-b717-4a00-91f8-6df455ee40f7 Netherlands
be73ee93-8357-4e6e-a974-44b8e739ba68 Norway
4a27bbca-f257-4580-b8a5-517fce09edd4 France
abce5aba-cb3d-4eba-b7c9-edd652f9626f Finland
45c8168f-62c4-4da8-9a67-f3e5b9a63963 Sweden
60e905dd-4b67-400f-bfcb-b9fdf2385016 Germany
78455a59-a539-47b3-97db-b5358c5a0e06 France
ebf3d89b-8293-4dc2-b732-8c5554f434a1 Germany
70267702-d6dc-4e1f-a351-6496b3ef0eae Germany
1e49d272-ac46-4486-80a1-827e9b3087d8 Greece
f032365a-38ac-4f87-9a3a-a95b8a66a4e9 Hungary
4f854043-d032-4398-b18c-265c27fb3659 Spain
a8166b11-420a-438c-b153-d44ea4c59796 Germany
a7035776-9156-4e0e-a7c0-c4f878909472 Portugal
98d712cb-25d3-481d-914a-a16040c34406 Poland
f95f893b-d2a0-4d2a-8d57-85b3b10a1007 Sweden
e59b02fb-630f-41b5-bff9-2d1ce4363281 Poland
ea7955b8-9338-44d8-bbac-e8cb30e4cf0b Bulgaria
18047292-26c2-402b-89ce-b07074efca11 Belgium
e1be9424-841a-448b-8615-cf59ecba9c50 Czech Republic
97517b0d-3824-47d7-a2de-f194494e0030 Denmark
19d7a6a4-1731-4dfb-a7b6-742aa1d2efc0 Germany
e1a292be-fc76-4948-ae8f-3a3e3f5f73b4 Poland
ac3fbb4a-b717-4a00-91f8-6df455ee40f7 Netherlands
be73ee93-8357-4e6e-a974-44b8e739ba68 Norway
4a27bbca-f257-4580-b8a5-517fce09edd4 France
abce5aba-cb3d-4eba-b7c9-edd652f9626f Finland

Ordering

EAN:
8015644626693
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
210 mm
Product Net Height:
268 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
9.5 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
305 mm
Package Level 1 Height:
285 mm
Package Level 1 Depth / Length:
370 mm
Package Level 1 Gross Weight:
11 kg
Package Level 1 EAN:
8015644626693

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T6
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
7000 cycle
60 cycles per hour
7000 cycle
60 cycles per hour
Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 20 W
Rated Current (In):
630 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 15 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 15 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 7.6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
Rated Uninterrupted Current (Iu):
630 A
Release:
PR221DS-I
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
T6
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3500 V

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
GL Certificate:

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
