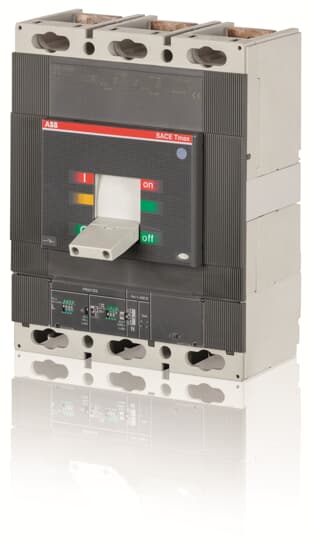

The ABB 1SDA060226R1 is a three-pole molded case circuit breaker from the Tmax T6N series, rated at 630 A with a frame size of 630 AF. It features a fixed configuration with front terminals and is equipped with a PR221DS-LS/I electronic trip unit providing comprehensive protection functions. The breaker offers adjustable overload protection (0.4-1xIn), short-circuit protection with time delay (1-10xIn), and instantaneous short-circuit protection (1-10xIn). It provides a short-circuit breaking capacity (Icu) of 70 kA at 240 V AC, 36 kA at 380-415 V AC, and 20 kA at 690 V AC. Designed for three-phase AC systems, this MCCB is suitable for transformer, generator, and installation protection applications in industrial and commercial power distribution systems. The device complies with IEC standards and includes thermal magnetic trip functionality for reliable circuit protection.
Item Details
- Brand Name: ABB
- Manufacturer: ABB
- Item Type Name: Molded Case Circuit Breaker
- Product Family / Series: Tmax
- Series: Tmax T6N
- Trip Unit: PR221DS-LS/I
- Terminal Type: Front terminals
- Mounting: Fixed
- Protection Type: L, S, I (Overload, Short-circuit with delay, Instantaneous)
Product Specifications
- poles: 3
- protected_poles: 3
- rated_current: 630 A
- frame_current_rating: 630 AF
- rated_voltage_ac: 690 V
- rated_operating_voltage: 690 V
- short_circuit_breaking_capacity_icu_240v: 70 kA
- short_circuit_breaking_capacity_icu_380v: 36 kA
- short_circuit_breaking_capacity_icu_415v: 36 kA
- short_circuit_breaking_capacity_icu_440v: 30 kA
- short_circuit_breaking_capacity_icu_500v: 25 kA
- short_circuit_breaking_capacity_icu_690v: 20 kA
- short_circuit_withstand_current_icw_1s: 7.6 kA
- service_short_circuit_breaking_capacity_ics_percentage: 100 %
- overload_protection_adjustment: 0.4-1xIn
- short_circuit_delay_protection_adjustment: 1-10xIn
- instantaneous_protection_adjustment: 1-10xIn
- trip_unit_type: Electronic
Additional Details
- Country of Origin*: Italy
- Ean: 8015644626686
- Customs Tariff Number: 85362090
*Country of origin may vary.
Measurements
- Weight: 9.852 kg
- Width: 210 mm
- Height: 268 mm
- Depth: 103.5 mm
