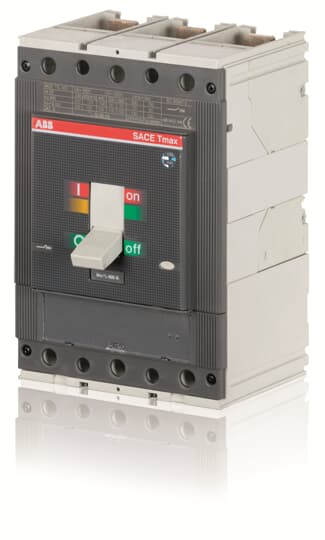

1SDA054601R1 ABB - T5D 630 3p F F

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
1fdc593c-e498-4bfe-afc0-e0ed9c1122af Italy
Simplified SCIP:
10db32a5-70f3-4cae-8d54-8495976cb8cb Germany
b165941e-51ab-4239-9fc5-ee48f0c9fae4 Poland
3a5a5b6a-5983-4da6-8b69-eaf0947dc165 Germany
e87f90ee-d4cb-40a2-9528-2500796ada6c Norway
4259d9a1-1aae-4ee0-b0c5-7cda50e4e643 Finland
548eebc7-f802-4941-a5ca-030463f4dade Denmark
48244e27-964d-42d8-bea3-4cb32325bd3f Greece
4db5401f-03a1-4259-8366-4638e79ef561 Bulgaria
84e42664-daf9-4cb7-aaf2-0dc73e564183 Netherlands
6a96e2e0-9629-4727-bdcf-28562b26683f Germany
e3e7e710-2be2-4971-a794-f0159820c05a Germany
0b44202b-b1ae-4dc3-8b9b-7dcb4a413ab8 Croatia
d6dae9c3-7eed-437b-ad5c-6274ade8f77d Czech Republic
a17f0b1f-80ba-4793-8b81-2398539189aa Poland
23009673-c4b0-459d-a9ad-f89336ebb7e4 Netherlands
0e11b245-e027-492e-afaf-2177ba2d02fb Netherlands
dce2cc52-def2-436d-af6f-3712fd8f539a Estonia
de84e64e-1633-4bf0-a0de-42938fd5b505 Portugal
2465f06c-973e-4f43-bf9d-43314b76825b Sweden
51dab352-11d8-4ab0-9049-624a6e8fc96e Poland
36bcc96b-1ad4-4158-bc73-61101d037450 France
66b8db6d-5a1e-44bf-8907-e468389d718c Sweden
14388075-4bcd-43e2-8d01-737c41cd450b Germany
c9c11825-054b-44db-a623-4fea3b191a5c France
381ff290-0419-42f8-9b4f-b980a619f420 Netherlands
1aec8987-71c4-43bb-bbf1-c1e36e7f6147 Spain
0d02963b-0754-418e-a2ca-47cdb7e656ee Netherlands
10db32a5-70f3-4cae-8d54-8495976cb8cb Germany
b165941e-51ab-4239-9fc5-ee48f0c9fae4 Poland
3a5a5b6a-5983-4da6-8b69-eaf0947dc165 Germany
e87f90ee-d4cb-40a2-9528-2500796ada6c Norway
4259d9a1-1aae-4ee0-b0c5-7cda50e4e643 Finland
548eebc7-f802-4941-a5ca-030463f4dade Denmark
48244e27-964d-42d8-bea3-4cb32325bd3f Greece
4db5401f-03a1-4259-8366-4638e79ef561 Bulgaria
84e42664-daf9-4cb7-aaf2-0dc73e564183 Netherlands
6a96e2e0-9629-4727-bdcf-28562b26683f Germany

Ordering

E-Number (Finland):
3655615
E-Number (Norway):
4383619
EAN:
8015644556990
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
3.25 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
4.585 kg
Package Level 1 EAN:
8015644556990

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Switch Disconnector
Suitable For:
T5
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 41 W
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
750 V DC
690 V AC
750 V DC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 6 kA
Rated Uninterrupted Current (Iu):
630 A
Short-Circuit Performance Level:
D
Standards:
IEC
Sub-type:
T5
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3000 V
Test Voltage at Industrial Frequency for 1 Minute:
3000 V

Certificates and Declarations

ATEX Certificate:
Data Sheet, Technical Information:
Declaration of Conformity - CE:
UL Certificate:
VDE Certificate:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371403
Est. delivery between and
Estimated delivery dates are estimates only. Int'l customers allow a few more days. For more precise delivery estimates, please contact us at support@plc-direct.com. Contact us in advance for expedited shipping options.
Sale price11,989.00 kr
1-year warranty
FREE WORDWIDE SHIPPING
Condition:
0.00 kr
0.00 kr
11,989.00 kr
Ach Direct Debit American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
1fdc593c-e498-4bfe-afc0-e0ed9c1122af Italy
Simplified SCIP:
10db32a5-70f3-4cae-8d54-8495976cb8cb Germany
b165941e-51ab-4239-9fc5-ee48f0c9fae4 Poland
3a5a5b6a-5983-4da6-8b69-eaf0947dc165 Germany
e87f90ee-d4cb-40a2-9528-2500796ada6c Norway
4259d9a1-1aae-4ee0-b0c5-7cda50e4e643 Finland
548eebc7-f802-4941-a5ca-030463f4dade Denmark
48244e27-964d-42d8-bea3-4cb32325bd3f Greece
4db5401f-03a1-4259-8366-4638e79ef561 Bulgaria
84e42664-daf9-4cb7-aaf2-0dc73e564183 Netherlands
6a96e2e0-9629-4727-bdcf-28562b26683f Germany
e3e7e710-2be2-4971-a794-f0159820c05a Germany
0b44202b-b1ae-4dc3-8b9b-7dcb4a413ab8 Croatia
d6dae9c3-7eed-437b-ad5c-6274ade8f77d Czech Republic
a17f0b1f-80ba-4793-8b81-2398539189aa Poland
23009673-c4b0-459d-a9ad-f89336ebb7e4 Netherlands
0e11b245-e027-492e-afaf-2177ba2d02fb Netherlands
dce2cc52-def2-436d-af6f-3712fd8f539a Estonia
de84e64e-1633-4bf0-a0de-42938fd5b505 Portugal
2465f06c-973e-4f43-bf9d-43314b76825b Sweden
51dab352-11d8-4ab0-9049-624a6e8fc96e Poland
36bcc96b-1ad4-4158-bc73-61101d037450 France
66b8db6d-5a1e-44bf-8907-e468389d718c Sweden
14388075-4bcd-43e2-8d01-737c41cd450b Germany
c9c11825-054b-44db-a623-4fea3b191a5c France
381ff290-0419-42f8-9b4f-b980a619f420 Netherlands
1aec8987-71c4-43bb-bbf1-c1e36e7f6147 Spain
0d02963b-0754-418e-a2ca-47cdb7e656ee Netherlands
10db32a5-70f3-4cae-8d54-8495976cb8cb Germany
b165941e-51ab-4239-9fc5-ee48f0c9fae4 Poland
3a5a5b6a-5983-4da6-8b69-eaf0947dc165 Germany
e87f90ee-d4cb-40a2-9528-2500796ada6c Norway
4259d9a1-1aae-4ee0-b0c5-7cda50e4e643 Finland
548eebc7-f802-4941-a5ca-030463f4dade Denmark
48244e27-964d-42d8-bea3-4cb32325bd3f Greece
4db5401f-03a1-4259-8366-4638e79ef561 Bulgaria
84e42664-daf9-4cb7-aaf2-0dc73e564183 Netherlands
6a96e2e0-9629-4727-bdcf-28562b26683f Germany

Ordering

E-Number (Finland):
3655615
E-Number (Norway):
4383619
EAN:
8015644556990
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
3.25 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
4.585 kg
Package Level 1 EAN:
8015644556990

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Switch Disconnector
Suitable For:
T5
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 41 W
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
750 V DC
690 V AC
750 V DC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 6 kA
Rated Uninterrupted Current (Iu):
630 A
Short-Circuit Performance Level:
D
Standards:
IEC
Sub-type:
T5
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3000 V
Test Voltage at Industrial Frequency for 1 Minute:
3000 V

Certificates and Declarations

ATEX Certificate:
Data Sheet, Technical Information:
Declaration of Conformity - CE:
UL Certificate:
VDE Certificate:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371403
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371403
