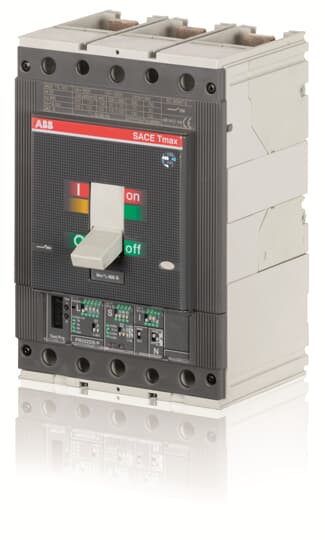

1SDA054323R1 ABB - T5N 400 PR222DS/P-LSIG In=400 3p F F

1SDA054323R1 ABB - T5N 400 PR222DS/P-LSIG In=400 3p F F

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
964c2610-0511-4da3-95bd-fef3fb338897 China
Simplified SCIP:
45793a66-bc3b-4dd7-a0c7-60198374bf56 Germany
74313217-d509-4abd-bc46-90f92011c970 Germany
102b6b51-d843-4a7f-bcd0-d15383851eb9 Poland
85cf3352-78fa-4334-abc2-4233f6951b1b France
df0e1f8a-a789-44a2-803a-6aa890380d63 Portugal
a980022e-b8cd-4362-b796-740eb0c8d781 Sweden
61df4bed-bdec-423e-a4ff-4bcc0deebce7 Bulgaria
864787e0-7afb-43d1-add5-3af53af7a9da Spain
f8bc7284-3b6a-4010-9ab7-dbf4f3292cfd Sweden
d7233cca-7d5c-436c-96af-148bd4bdbcaa Germany
2e54dd0c-ad4e-48e7-a932-08fae0639224 France
94e7263f-3f5f-401b-be13-2fc02bb2fe0d Hungary
1954d773-dbcf-4ad1-86ec-9b616daecc24 Belgium
8a3aa586-0ad8-4f89-bc09-cb50d0e59b0e Netherlands
179f5af4-d66a-4022-9a9a-1bc0fa214ec0 Poland
5806a856-ff30-460e-961d-6a4379b08afd Hungary
878b72c8-6065-4ae8-9941-cd1ebd2ab531 Estonia
47794841-15af-45ea-84a5-bcd9db450c84 Greece
2c40b8e4-94a1-46be-9d3a-7f4ab33ea3fd Belgium
270ce5d8-822a-4b47-bbb9-67cf2d725503 Finland
c4bb9c7c-1cb6-4685-9790-fb26ed1fb02c Norway
c95c80aa-c0f9-46b3-afda-2876a7c1e209 Czech Republic
f3b338e8-ea66-4f46-8191-55045850220b Germany
b523a6b7-1e62-4c5f-94f8-969cb5a683b5 Croatia
b4af4df5-a599-4d00-9e3f-60adb2e51217 Poland
f4545ead-57d6-4070-942e-d6685380c220 Germany
187b6f69-2e49-49bc-a068-2035626ed493 Denmark
45793a66-bc3b-4dd7-a0c7-60198374bf56 Germany
74313217-d509-4abd-bc46-90f92011c970 Germany
102b6b51-d843-4a7f-bcd0-d15383851eb9 Poland
85cf3352-78fa-4334-abc2-4233f6951b1b France
df0e1f8a-a789-44a2-803a-6aa890380d63 Portugal
a980022e-b8cd-4362-b796-740eb0c8d781 Sweden
61df4bed-bdec-423e-a4ff-4bcc0deebce7 Bulgaria
864787e0-7afb-43d1-add5-3af53af7a9da Spain
f8bc7284-3b6a-4010-9ab7-dbf4f3292cfd Sweden
d7233cca-7d5c-436c-96af-148bd4bdbcaa Germany

Ordering

E-Number (Finland):
3655382
E-Number (Norway):
4384046
EAN:
8015644552688
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
5.1 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
5.1 kg
Package Level 1 EAN:
8015644552688

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T5
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
7000 cycle
60 cycles per hour
7000 cycle
60 cycles per hour
Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 16.5 W
Rated Current (In):
400 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
Rated Uninterrupted Current (Iu):
400 A
Release:
PR222DS/P-LSIG
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
T5
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3500 V
Test Voltage at Industrial Frequency for 1 Minute:
3500 V

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
Instructions and Manuals:
Instructions and Manuals (Part 2):
Instructions and Manuals (Part 3):

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
Price on request
Ask for quote

Notify Me When Available

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
964c2610-0511-4da3-95bd-fef3fb338897 China
Simplified SCIP:
45793a66-bc3b-4dd7-a0c7-60198374bf56 Germany
74313217-d509-4abd-bc46-90f92011c970 Germany
102b6b51-d843-4a7f-bcd0-d15383851eb9 Poland
85cf3352-78fa-4334-abc2-4233f6951b1b France
df0e1f8a-a789-44a2-803a-6aa890380d63 Portugal
a980022e-b8cd-4362-b796-740eb0c8d781 Sweden
61df4bed-bdec-423e-a4ff-4bcc0deebce7 Bulgaria
864787e0-7afb-43d1-add5-3af53af7a9da Spain
f8bc7284-3b6a-4010-9ab7-dbf4f3292cfd Sweden
d7233cca-7d5c-436c-96af-148bd4bdbcaa Germany
2e54dd0c-ad4e-48e7-a932-08fae0639224 France
94e7263f-3f5f-401b-be13-2fc02bb2fe0d Hungary
1954d773-dbcf-4ad1-86ec-9b616daecc24 Belgium
8a3aa586-0ad8-4f89-bc09-cb50d0e59b0e Netherlands
179f5af4-d66a-4022-9a9a-1bc0fa214ec0 Poland
5806a856-ff30-460e-961d-6a4379b08afd Hungary
878b72c8-6065-4ae8-9941-cd1ebd2ab531 Estonia
47794841-15af-45ea-84a5-bcd9db450c84 Greece
2c40b8e4-94a1-46be-9d3a-7f4ab33ea3fd Belgium
270ce5d8-822a-4b47-bbb9-67cf2d725503 Finland
c4bb9c7c-1cb6-4685-9790-fb26ed1fb02c Norway
c95c80aa-c0f9-46b3-afda-2876a7c1e209 Czech Republic
f3b338e8-ea66-4f46-8191-55045850220b Germany
b523a6b7-1e62-4c5f-94f8-969cb5a683b5 Croatia
b4af4df5-a599-4d00-9e3f-60adb2e51217 Poland
f4545ead-57d6-4070-942e-d6685380c220 Germany
187b6f69-2e49-49bc-a068-2035626ed493 Denmark
45793a66-bc3b-4dd7-a0c7-60198374bf56 Germany
74313217-d509-4abd-bc46-90f92011c970 Germany
102b6b51-d843-4a7f-bcd0-d15383851eb9 Poland
85cf3352-78fa-4334-abc2-4233f6951b1b France
df0e1f8a-a789-44a2-803a-6aa890380d63 Portugal
a980022e-b8cd-4362-b796-740eb0c8d781 Sweden
61df4bed-bdec-423e-a4ff-4bcc0deebce7 Bulgaria
864787e0-7afb-43d1-add5-3af53af7a9da Spain
f8bc7284-3b6a-4010-9ab7-dbf4f3292cfd Sweden
d7233cca-7d5c-436c-96af-148bd4bdbcaa Germany

Ordering

E-Number (Finland):
3655382
E-Number (Norway):
4384046
EAN:
8015644552688
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
5.1 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
5.1 kg
Package Level 1 EAN:
8015644552688

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T5
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
7000 cycle
60 cycles per hour
7000 cycle
60 cycles per hour
Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 16.5 W
Rated Current (In):
400 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
Rated Uninterrupted Current (Iu):
400 A
Release:
PR222DS/P-LSIG
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
T5
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3500 V
Test Voltage at Industrial Frequency for 1 Minute:
3500 V

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
Instructions and Manuals:
Instructions and Manuals (Part 2):
Instructions and Manuals (Part 3):

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409

All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.

If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.

In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.

PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.

Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.

PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.

Trusted By

Need More?

Contact Us

You can call, email, or chat us
we're here to support your business.

(847) 242-1595

Chat

support@plc-direct.com

"Fast service for obsolete parts"

Increasingly PLC/ HMI control platforms are becoming obsolete and parts are no longer supported, however PLC Direct had the HMI we needed and fast shipping for our system to get back online!

Buyer at GE Health

"Helping us move projects forward"

With supply chain issues increasingly affecting our business, PLC Direct has been there for us to supply the PLC products we need, when we need it. If they don't have it readily available, they find it and provide it quickly and reliably. This has helped us move forward with several projects that would have otherwise taken us many, many months to complete.

Buyer at E-Merge Systems – A Rockwell Integrator
