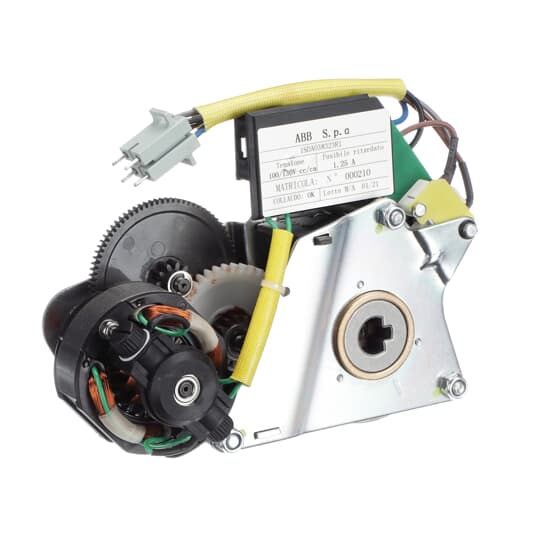

The ABB 1SDA038323R1 is a geared motor operator device designed for automatic charging of closing springs in ABB SACE Emax and Tmax T series low voltage air circuit breakers. This motorized gearbox mechanism operates at a supply voltage of 100-130V AC/DC and is compatible with frame sizes E1, E2, E3, E4, E6, and T8. The device is supplied as standard with a limit contact and microswitch for electrical indication when the closing springs are fully charged. The motor operator enables remote and automatic operation of circuit breaker closing mechanisms, reducing manual intervention and improving operational efficiency in industrial power distribution systems. It requires a delayed fuse rated at 1.25A and operates at 50/60 Hz frequency.
Item Details
- Brand Name: ABB
- Manufacturer: ABB
- Item Type Name: Geared Motor Operator
- Product Family / Series: SACE Emax / SACE Tmax T Accessories
- Part Number: 1SDA038323R1
- Product Type: Accessory
- Application: Automatic charging of closing springs for Emax and Tmax T8 circuit breakers
Product Specifications
- supply_voltage: 100-130 V AC/DC
- frequency: 50/60 Hz
- fuse_rating: 1.25 A (delayed)
- suitable_for_frame_sizes: E1, E2, E3, E4, E6, T8
- suitable_for_product_class: SACE Emax, SACE Tmax T
- current_type: AC/DC
- standard_features: Limit contact and microswitch for spring charged indication
- configuration_type: Loose or configurable
Additional Details
- Country of Origin*: China
- Standards: IEC
- Rohs Compliant: Yes
- Reach Compliant: Yes
- Ean: 8015644383237
- Upc: 66201962245
- Customs Tariff Number: 85389099
- Weee Category: 5 - Small Equipment
*Country of origin may vary.
Measurements
- Weight: 1.9 kg
- Package Gross Weight: 1.663 kg
