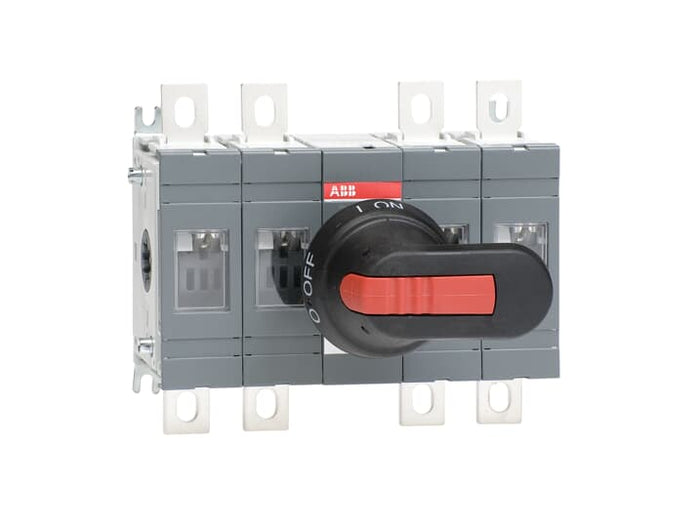

1SCA120537R1001 ABB - OT160EV22P

1SCA120537R1001 ABB - OT160EV22P

ABB EcoSolutions

End Of Life Disassembling Instructions:
Environmental Information:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
30e3b4f5-a7d2-41e9-b139-b85489727fca Finland
Simplified SCIP:
1db14216-144f-482c-b6e4-17266a8cc72e Germany
1daec6ed-79bb-4f9c-aafe-1c2dfa27a2f3 Portugal
70947fed-4f6f-41bf-981b-0a5d6cf0b01f Greece
2820ef9e-6dc2-44de-8a77-d992d0553f40 Denmark
4356ab47-319c-4606-8944-1961d57326fe Estonia
ba4c0a78-7ab0-41ae-97be-d1d355d95223 Poland
14fb4b76-606f-445a-9b98-6532f2ff6522 Croatia
2c31c37e-a8ba-45b6-b845-d48d05326d36 Poland
e7916974-cd10-421d-88f0-1278a7b79c61 Czech Republic
aa3a57f8-4f6d-4a8c-8536-782e40acc798 Germany
d83beddc-7152-4c4e-a0c0-ad89155adc81 Germany
b2f3501c-a3b6-4ce8-8ac9-f8542ae85a35 Hungary
3e527529-87f8-4e67-815c-21fafe79f60f France
04b78ee5-3410-483c-a247-fa6543fabe3a Sweden
59622a76-39e3-4c8b-973b-58aed9955b66 France
9b90e31c-8e96-4a1e-bbc3-39071591fd84 Germany
0ed7c7eb-539e-4553-8d63-8561066a90b0 Italy
927b4667-24d5-4e4d-99b5-0c64dc254f55 Belgium
e5e23bdb-c150-453c-b200-54b17dbca432 Hungary
c6f18315-dd8b-493e-868e-55d9193696ff Netherlands
c9e35348-becb-4c2b-86ae-6667ad179353 Bulgaria
f8beb87a-61a8-457e-8975-0f148049bf01 Sweden
00b0371c-5b65-437b-b523-808e697013fe Norway
c08572a6-7ec4-4a5d-bb68-2044ec9b8b2b Spain
fc1a9dfe-375a-40d3-a780-c275e61aa35c Poland
41a6b21c-161c-4638-ba40-aa332e3815e1 Belgium
f8690d28-7600-47ab-84da-35e75842fd8b Germany
1db14216-144f-482c-b6e4-17266a8cc72e Germany
1daec6ed-79bb-4f9c-aafe-1c2dfa27a2f3 Portugal
70947fed-4f6f-41bf-981b-0a5d6cf0b01f Greece
2820ef9e-6dc2-44de-8a77-d992d0553f40 Denmark
4356ab47-319c-4606-8944-1961d57326fe Estonia
ba4c0a78-7ab0-41ae-97be-d1d355d95223 Poland
14fb4b76-606f-445a-9b98-6532f2ff6522 Croatia
2c31c37e-a8ba-45b6-b845-d48d05326d36 Poland
e7916974-cd10-421d-88f0-1278a7b79c61 Czech Republic
aa3a57f8-4f6d-4a8c-8536-782e40acc798 Germany

Environmental

Degree of Protection:
Front IP00
Environmental Information:
Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
185.5 mm
Product Net Height:
150 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
1.7 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
6.69 in
170 mm
6.69 in
Package Level 1 Depth / Length:
190 mm
7.48 in
190 mm
7.48 in
Package Level 1 Height:
145 mm
5.71 in
145 mm
5.71 in
Package Level 1 Gross Weight:
2.1 kg
0.93 lb
2.1 kg
0.93 lb
Package Level 1 EAN:
6417019520049

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe):
Fully Enclosed 160 A
Degree of Protection:
Front IP00
Distance Between Phases:
Standard
Fourth Pole Position:
Right Side
Fourth Pole Type:
Switched - Simultaneous Function
Handle Color:
Black
Handle Type:
Handle and shaft included
Mechanical Durability:
20000
Mounting Type:
Base mounting
Number of Poles:
4P
Operating Mode:
Front operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out
Bottom In - Top Out
Top In - Bottom Out
Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 3.2 W
Rated Conditional Short-Circuit Current (Inc):
(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 160 A
(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 160 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 48 kW
(400 ... 415 V) 88 kW
(500 V) 112 kW
(690 V) 144 kW
(220 ... 240 V) 48 kW
(400 ... 415 V) 88 kW
(500 V) 112 kW
(690 V) 144 kW
Rated Operational Voltage:
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm):
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 8 kA
Special Functions:
No
Standards:
IEC 60947-3
Switches Operating Mechanism:
Mechanism Between the Poles
22 (Between the Poles)
Mechanism Between the Poles
22 (Between the Poles)
Terminal Type:
Lug terminals
Tightening Torque:
acc. IEC 60947-1 15 … 22 N·m

Technical UL/CSA

Tightening Torque:
acc. IEC 60947-1 15 … 22 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
UNSPSC:
39122221
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3601365
E-Number (Sweden):
3170911
