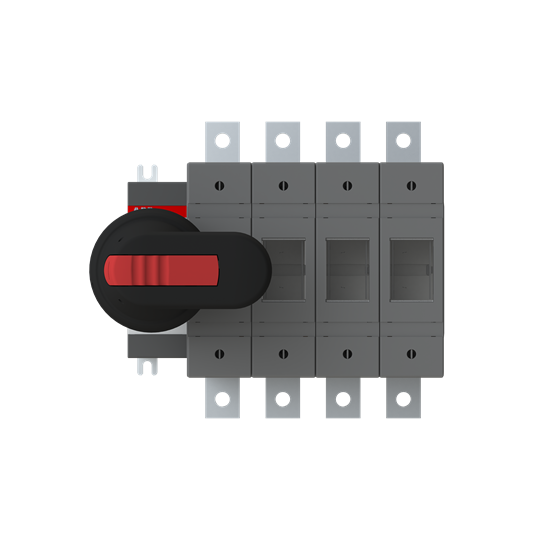

1SCA115901R1001 ABB - OS125GB04N1P

1SCA115901R1001 ABB - OS125GB04N1P

ABB EcoSolutions

ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
6c6fbb77-6683-4375-909f-f826d48fea0c Finland
Simplified SCIP:
617d713b-d4f3-44b5-bb42-509cf2dcd872 Germany
3d186158-cd14-4997-89f2-35bc96fe0659 Hungary
c3476aef-52ea-414e-b657-1be1e4dd3d9e Netherlands
5b25ff41-a285-47a8-a880-3b6044f55e0e Germany
d3fd3413-bd57-4b32-b977-0ec568a898f8 Portugal
64e9dc2d-a560-40c5-85d1-e108e7449f57 Germany
80ed7330-619b-43cd-8e52-c4af2229f6bb Poland
55b12af5-db44-4e8e-a98e-4e123ec51d06 Sweden
308e1cec-2ed9-444c-bcd0-09214e07d078 Greece
0498e94e-4666-4902-a057-46059df1d41c Estonia
32abe3e6-6001-416c-9551-0e51d18e7e67 Norway
c7c9a420-6aec-4dd7-a3d5-13fe86e8c52f Belgium
7e06d8a5-ba99-4d9c-854d-65a3daa9953c Poland
da156230-0fee-433a-9169-ce4b410f8db4 Spain
4a3d60cd-2628-4363-b662-ef3c192e721a Belgium
2f8df2d8-3a29-4e2f-b92e-d7612d9de9a7 Sweden
be2548ff-d1b8-4a8f-8434-26601c2fe903 France
85e5ef5f-6608-4922-a400-0044e5c7254b Bulgaria
d21ca395-fe30-477d-b444-fbfa8eb466f1 Hungary
b71278b0-09ca-4c71-935f-b0c15995c067 Czech Republic
e838ff75-0f00-4855-b20a-5d0956e55b23 Croatia
dea54f0f-7a52-48cf-91ad-d1f74ec299b5 Denmark
d68223aa-91d4-46d1-a2b5-2fb0c95d84e8 Germany
bab4d739-b8bb-47ab-beb7-f4cb62ee9bd9 Poland
752f35ae-1732-4351-bc93-a707e15de94b France
206c4eea-60ab-4c41-a9d8-5098d5ed0c2e Italy
944b4337-e8d9-48b3-994f-ceeabb32350c Germany
617d713b-d4f3-44b5-bb42-509cf2dcd872 Germany
3d186158-cd14-4997-89f2-35bc96fe0659 Hungary
c3476aef-52ea-414e-b657-1be1e4dd3d9e Netherlands
5b25ff41-a285-47a8-a880-3b6044f55e0e Germany
d3fd3413-bd57-4b32-b977-0ec568a898f8 Portugal
64e9dc2d-a560-40c5-85d1-e108e7449f57 Germany
80ed7330-619b-43cd-8e52-c4af2229f6bb Poland
55b12af5-db44-4e8e-a98e-4e123ec51d06 Sweden
308e1cec-2ed9-444c-bcd0-09214e07d078 Greece
0498e94e-4666-4902-a057-46059df1d41c Estonia

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Mechanical Drawings:
Environmental Product Declaration - EPD:

Environmental

Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
182 mm
Product Net Height:
140 mm
Product Net Depth / Length:
115 mm
Product Net Weight:
2.61 kg
5.75 lb
2.61 kg
5.75 lb

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
260 mm
10.2 in
260 mm
10.2 in
Package Level 1 Depth / Length:
290 mm
11.4 in
290 mm
11.4 in
Package Level 1 Height:
190 mm
7.5 in
190 mm
7.5 in
Package Level 1 Gross Weight:
2.9 kg
6.4 lb
2.9 kg
6.4 lb
Package Level 1 EAN:
6417019481708

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 125 A
Conventional Thermal Current (Ithe):
Fully Enclosed 125 A
Fourth Pole Position:
Left Side
Fourth Pole Type:
Switched - With Solid Link
Fuse Size:
A2-A4
Fuse System:
British Standard
Handle Type:
Pistol handle and shaft included
Mounting Type:
Base mounting
Number of Poles:
4P
Operating Mode:
Front Operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out, Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 4 W
Rated Conditional Short-Circuit Current (Inc):
(690 V) 80 kA
Rated Current (In):
Main Circuit 125 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current AC-21A (Ie):
(500 V) 125 A
(690 V) 125 A
(500 V) 125 A
(690 V) 125 A
Rated Operational Current AC-22A (Ie):
(500 V) 125 A
(690 V) 125 A
(500 V) 125 A
(690 V) 125 A
Rated Operational Current AC-23A (Ie):
(500 V) 125 A
(690 V) 125 A
(500 V) 125 A
(690 V) 125 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 37 kW
(400 V) 55 kW
(415 V) 55 kW
(500 V) 75 kW
(690 V) 110 kW
(220 ... 240 V) 37 kW
(400 V) 55 kW
(415 V) 55 kW
(500 V) 75 kW
(690 V) 110 kW
Rated Operational Voltage:
Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 5 kiloampere rms
Standards:
IEC 60947-3
Switches Operating Mechanism:
04 (Left Side)
Terminal Type:
Lug terminals
Terminal Width:
20 mm
Tightening Torque:
15 … 22 N·m

Technical UL/CSA

Tightening Torque:
15 … 22 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC001040 - Fuse switch disconnector
ETIM 10:
EC001040 - Fuse switch disconnector
UNSPSC:
39122233
IDEA Granular Category Code (IGCC):
5291 >> Fuse switch disconnector
eClass:
V11.1 : 27371401
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
Price on request
Ask for quote

Notify Me When Available

ABB EcoSolutions

ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
6c6fbb77-6683-4375-909f-f826d48fea0c Finland
Simplified SCIP:
617d713b-d4f3-44b5-bb42-509cf2dcd872 Germany
3d186158-cd14-4997-89f2-35bc96fe0659 Hungary
c3476aef-52ea-414e-b657-1be1e4dd3d9e Netherlands
5b25ff41-a285-47a8-a880-3b6044f55e0e Germany
d3fd3413-bd57-4b32-b977-0ec568a898f8 Portugal
64e9dc2d-a560-40c5-85d1-e108e7449f57 Germany
80ed7330-619b-43cd-8e52-c4af2229f6bb Poland
55b12af5-db44-4e8e-a98e-4e123ec51d06 Sweden
308e1cec-2ed9-444c-bcd0-09214e07d078 Greece
0498e94e-4666-4902-a057-46059df1d41c Estonia
32abe3e6-6001-416c-9551-0e51d18e7e67 Norway
c7c9a420-6aec-4dd7-a3d5-13fe86e8c52f Belgium
7e06d8a5-ba99-4d9c-854d-65a3daa9953c Poland
da156230-0fee-433a-9169-ce4b410f8db4 Spain
4a3d60cd-2628-4363-b662-ef3c192e721a Belgium
2f8df2d8-3a29-4e2f-b92e-d7612d9de9a7 Sweden
be2548ff-d1b8-4a8f-8434-26601c2fe903 France
85e5ef5f-6608-4922-a400-0044e5c7254b Bulgaria
d21ca395-fe30-477d-b444-fbfa8eb466f1 Hungary
b71278b0-09ca-4c71-935f-b0c15995c067 Czech Republic
e838ff75-0f00-4855-b20a-5d0956e55b23 Croatia
dea54f0f-7a52-48cf-91ad-d1f74ec299b5 Denmark
d68223aa-91d4-46d1-a2b5-2fb0c95d84e8 Germany
bab4d739-b8bb-47ab-beb7-f4cb62ee9bd9 Poland
752f35ae-1732-4351-bc93-a707e15de94b France
206c4eea-60ab-4c41-a9d8-5098d5ed0c2e Italy
944b4337-e8d9-48b3-994f-ceeabb32350c Germany
617d713b-d4f3-44b5-bb42-509cf2dcd872 Germany
3d186158-cd14-4997-89f2-35bc96fe0659 Hungary
c3476aef-52ea-414e-b657-1be1e4dd3d9e Netherlands
5b25ff41-a285-47a8-a880-3b6044f55e0e Germany
d3fd3413-bd57-4b32-b977-0ec568a898f8 Portugal
64e9dc2d-a560-40c5-85d1-e108e7449f57 Germany
80ed7330-619b-43cd-8e52-c4af2229f6bb Poland
55b12af5-db44-4e8e-a98e-4e123ec51d06 Sweden
308e1cec-2ed9-444c-bcd0-09214e07d078 Greece
0498e94e-4666-4902-a057-46059df1d41c Estonia

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Mechanical Drawings:
Environmental Product Declaration - EPD:

Environmental

Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
182 mm
Product Net Height:
140 mm
Product Net Depth / Length:
115 mm
Product Net Weight:
2.61 kg
5.75 lb
2.61 kg
5.75 lb

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
260 mm
10.2 in
260 mm
10.2 in
Package Level 1 Depth / Length:
290 mm
11.4 in
290 mm
11.4 in
Package Level 1 Height:
190 mm
7.5 in
190 mm
7.5 in
Package Level 1 Gross Weight:
2.9 kg
6.4 lb
2.9 kg
6.4 lb
Package Level 1 EAN:
6417019481708

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 125 A
Conventional Thermal Current (Ithe):
Fully Enclosed 125 A
Fourth Pole Position:
Left Side
Fourth Pole Type:
Switched - With Solid Link
Fuse Size:
A2-A4
Fuse System:
British Standard
Handle Type:
Pistol handle and shaft included
Mounting Type:
Base mounting
Number of Poles:
4P
Operating Mode:
Front Operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out, Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 4 W
Rated Conditional Short-Circuit Current (Inc):
(690 V) 80 kA
Rated Current (In):
Main Circuit 125 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current AC-21A (Ie):
(500 V) 125 A
(690 V) 125 A
(500 V) 125 A
(690 V) 125 A
Rated Operational Current AC-22A (Ie):
(500 V) 125 A
(690 V) 125 A
(500 V) 125 A
(690 V) 125 A
Rated Operational Current AC-23A (Ie):
(500 V) 125 A
(690 V) 125 A
(500 V) 125 A
(690 V) 125 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 37 kW
(400 V) 55 kW
(415 V) 55 kW
(500 V) 75 kW
(690 V) 110 kW
(220 ... 240 V) 37 kW
(400 V) 55 kW
(415 V) 55 kW
(500 V) 75 kW
(690 V) 110 kW
Rated Operational Voltage:
Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 5 kiloampere rms
Standards:
IEC 60947-3
Switches Operating Mechanism:
04 (Left Side)
Terminal Type:
Lug terminals
Terminal Width:
20 mm
Tightening Torque:
15 … 22 N·m

Technical UL/CSA

Tightening Torque:
15 … 22 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC001040 - Fuse switch disconnector
ETIM 10:
EC001040 - Fuse switch disconnector
UNSPSC:
39122233
IDEA Granular Category Code (IGCC):
5291 >> Fuse switch disconnector
eClass:
V11.1 : 27371401
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
Object Classification Code:
Q
ETIM 9:
EC001040 - Fuse switch disconnector
ETIM 10:
EC001040 - Fuse switch disconnector
UNSPSC:
39122233
IDEA Granular Category Code (IGCC):
5291 >> Fuse switch disconnector
eClass:
V11.1 : 27371401
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.

If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.

In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.

PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.

Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.

PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.

Trusted By

Need More?

Contact Us

You can call, email, or chat us
we're here to support your business.

(847) 242-1595

Chat

support@plc-direct.com

"Fast service for obsolete parts"

Increasingly PLC/ HMI control platforms are becoming obsolete and parts are no longer supported, however PLC Direct had the HMI we needed and fast shipping for our system to get back online!

Buyer at GE Health

"Helping us move projects forward"

With supply chain issues increasingly affecting our business, PLC Direct has been there for us to supply the PLC products we need, when we need it. If they don't have it readily available, they find it and provide it quickly and reliably. This has helped us move forward with several projects that would have otherwise taken us many, many months to complete.

Buyer at E-Merge Systems – A Rockwell Integrator
