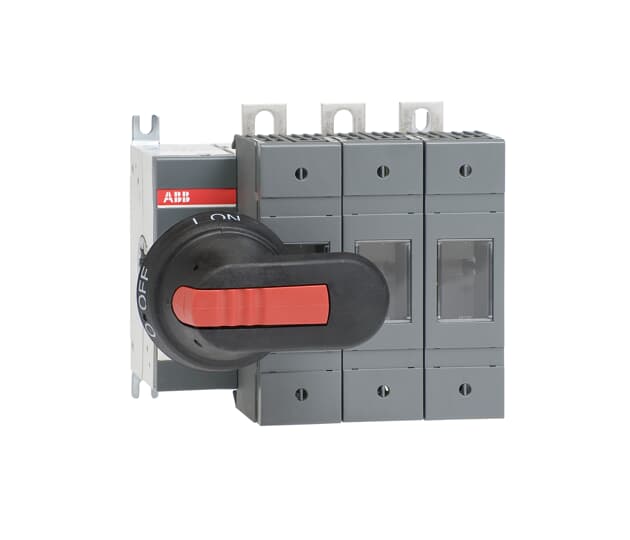

1SCA115639R1001 ABB - OS125GD03P

1SCA115639R1001 ABB - OS125GD03P

ABB EcoSolutions

ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
e99b5a1b-52fc-41f5-a489-e2af81329c2a Finland
Simplified SCIP:
762112ed-bd29-46f7-bb2d-4ca5033ef0fe Germany
6217d37e-c272-4238-b0cb-6e2f62330e9e Norway
f3b64afd-6172-4717-8acf-72c81e263e6d Poland
177d70b7-07de-4eba-82dd-950058243b70 Sweden
f515b1dc-2712-4644-b701-e71fdb3cea5f Poland
47f2230b-f687-48dd-b494-1e62cca18822 Bulgaria
7d8b4194-b0a5-4faf-a1ac-ed0beb5fcf97 Portugal
d0b06ac1-95e9-427d-b211-ca3d95b81de9 Germany
4110b36d-f03f-4bfe-8104-4f25977e3bbc Greece
9b702483-58b8-4da1-887d-0f2d39a2c2a1 Estonia
5d583fd8-9b82-42c5-851a-8eb485cdb4ec France
503eb8d7-273e-4761-bf14-76397b51a2da Czech Republic
c0eed106-22d8-4c38-9213-7104a7620b6d Belgium
f8f82697-50e4-4db8-820b-9862e58eaaaa Spain
187e1b49-f979-4f13-8b54-f7d04339545b Hungary
7b4bf351-c301-4c7d-9232-0dff1633fcff Denmark
b8c30d31-b006-41a9-8aff-5fd9efcefe44 Croatia
d5e45d84-2a11-4770-8104-768a987c359d Germany
9a8b016d-c74c-445b-a6d8-002d05939819 Germany
6e04afb5-ea98-47c2-895d-978049903366 France
93493313-d3c5-47b1-85c7-378c4bc8d70d Italy
9e8433c9-37dc-4c35-91e1-4f1aa56b9b1c Belgium
364a672f-75d9-4478-aa1e-8dfbac85a59c Poland
2de1e864-9ac1-4d60-8cdc-790ea637c16b Netherlands
7f062f6a-ccec-454b-8747-b19f3681d93f Germany
cb3a3bec-427c-47ed-b8ca-f8517a03196f Hungary
5f61fbce-048a-42b9-bcb1-5361d63bab3c Sweden
762112ed-bd29-46f7-bb2d-4ca5033ef0fe Germany
6217d37e-c272-4238-b0cb-6e2f62330e9e Norway
f3b64afd-6172-4717-8acf-72c81e263e6d Poland
177d70b7-07de-4eba-82dd-950058243b70 Sweden
f515b1dc-2712-4644-b701-e71fdb3cea5f Poland
47f2230b-f687-48dd-b494-1e62cca18822 Bulgaria
7d8b4194-b0a5-4faf-a1ac-ed0beb5fcf97 Portugal
d0b06ac1-95e9-427d-b211-ca3d95b81de9 Germany
4110b36d-f03f-4bfe-8104-4f25977e3bbc Greece
9b702483-58b8-4da1-887d-0f2d39a2c2a1 Estonia

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Mechanical Drawings:
Environmental Product Declaration - EPD:

Environmental

Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
147 mm
Product Net Height:
140 mm
Product Net Depth / Length:
130 mm
Product Net Weight:
2.035 kg
4.49 lb
2.035 kg
4.49 lb

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
6.7 in
170 mm
6.7 in
Package Level 1 Depth / Length:
220 mm
8.7 in
220 mm
8.7 in
Package Level 1 Height:
150 mm
5.9 in
150 mm
5.9 in
Package Level 1 Gross Weight:
2.2 kg
4.8 lb
2.2 kg
4.8 lb
Package Level 1 EAN:
6417019479774

Technical

Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 125 A
Conventional Thermal Current (Ithe):
Fully Enclosed 125 A
Fuse Size:
NH000
NH00
NH000
NH00
Fuse System:
DIN
Handle Type:
Pistol handle and shaft included
Mounting Type:
Base mounting
Number of Poles:
3P
Operating Mode:
Front Operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out, Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 4 W
Rated Conditional Short-Circuit Current (Inc):
(690 V) 80 kA
Rated Current (In):
Main Circuit 125 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current AC-21A (Ie):
(500 V) 125 A
(690 V) 125 A
(500 V) 125 A
(690 V) 125 A
Rated Operational Current AC-22A (Ie):
(500 V) 125 A
(690 V) 125 A
(500 V) 125 A
(690 V) 125 A
Rated Operational Current AC-23A (Ie):
(500 V) 125 A
(690 V) 125 A
(500 V) 125 A
(690 V) 125 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 37 kW
(400 V) 55 kW
(415 V) 55 kW
(500 V) 75 kW
(690 V) 110 kW
(220 ... 240 V) 37 kW
(400 V) 55 kW
(415 V) 55 kW
(500 V) 75 kW
(690 V) 110 kW
Rated Operational Voltage:
Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 5 kiloampere rms
Standards:
IEC 60947-3
Switches Operating Mechanism:
03 (Left Side)
Terminal Type:
Lug terminals
Terminal Width:
20 mm
Tightening Torque:
15 … 22 N·m

Technical UL/CSA

Tightening Torque:
15 … 22 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC001040 - Fuse switch disconnector
ETIM 10:
EC001040 - Fuse switch disconnector
UNSPSC:
39122233
IDEA Granular Category Code (IGCC):
5291 >> Fuse switch disconnector
eClass:
V11.1 : 27371401
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3660239
E-Number (Sweden):
3172118
Price on request
Ask for quote

Notify Me When Available
