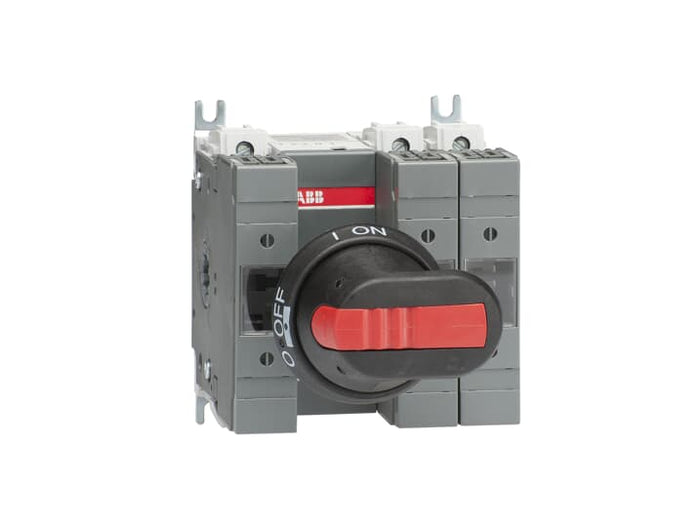

1SCA115331R1001 ABB - OS32GB12P

1SCA115331R1001 ABB - OS32GB12P

ABB EcoSolutions

ABB Site Meeting Group Waste To Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
42e81309-0ac7-41f1-8cd1-74d39d9d070a Finland
Simplified SCIP:
041cf757-0718-4841-8e69-566da2f0fc05 Germany
db98bd10-119d-4dc9-89b7-5a00064fa151 Greece
1d9c1ca4-9660-4ebb-91ec-576725e7475b Portugal
6bb25257-3966-4ac9-8125-ba00d7a22846 Poland
0263cf74-752a-4d1a-8e13-480d4209b0b0 Croatia
df587d6d-3be0-43de-a703-858c30155bb3 Germany
7acfc7d3-d01d-4477-be14-28588143709f Poland
94a02015-97dd-41b2-a562-008f15afde71 Sweden
cf4e1c70-4546-4fa3-a1e4-c35264239650 Bulgaria
d032e4da-1627-42cb-80c8-626f16742226 Spain
b7196f65-45d2-4a72-83c1-4bb5b0d5b56f Belgium
58d69985-4e9f-4713-ae5d-9912bea346e4 Estonia
e0826b43-8eaf-43b8-b7f1-942ba1e88b2f France
af790dff-c4e8-473f-ab58-f78c71eba751 Sweden
ee8531de-e821-47d1-a0f0-6a30e9706d54 Netherlands
3530c2ba-9e42-4682-bee2-ff1c3a0d9a5c Hungary
b25a7aad-824a-401e-9879-3e187d7b5506 France
425b990c-07d0-40f8-b5b6-ae9f597391fe Czech Republic
f13e6c6f-014d-4ba9-87dd-f4de24fff7d6 Germany
609b398b-83d3-4944-9c72-e731da5f020c Denmark
fb055972-04ff-4366-a903-595acfc785c5 Poland
d32b23d5-4a2e-4b5f-9333-bb7d6c44ba55 Norway
a29c66fb-1ce0-4b2f-b75e-46bb54b4871b Italy
05c91d12-0b4b-4c5a-821b-a68181dafc76 Belgium
8355270b-3635-482e-881a-073e1925a98b Hungary
358f140d-41ad-4a36-831c-15df838dcf0a Germany
dfb5adcb-4066-4adf-88a8-3dbc8e2a3910 Germany
041cf757-0718-4841-8e69-566da2f0fc05 Germany
db98bd10-119d-4dc9-89b7-5a00064fa151 Greece
1d9c1ca4-9660-4ebb-91ec-576725e7475b Portugal
6bb25257-3966-4ac9-8125-ba00d7a22846 Poland
0263cf74-752a-4d1a-8e13-480d4209b0b0 Croatia
df587d6d-3be0-43de-a703-858c30155bb3 Germany
7acfc7d3-d01d-4477-be14-28588143709f Poland
94a02015-97dd-41b2-a562-008f15afde71 Sweden
cf4e1c70-4546-4fa3-a1e4-c35264239650 Bulgaria
d032e4da-1627-42cb-80c8-626f16742226 Spain

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Mechanical Drawings:
Environmental Product Declaration - EPD:

Environmental

Pollution Degree:
3

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland

Dimensions

Product Net Width:
112 mm
Product Net Height:
125 mm
Product Net Depth / Length:
109 mm
Product Net Weight:
1.18 kg
2.6 lb
1.18 kg
2.6 lb

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
6.7 in
170 mm
6.7 in
Package Level 1 Depth / Length:
190 mm
7.5 in
190 mm
7.5 in
Package Level 1 Height:
145 mm
5.7 in
145 mm
5.7 in
Package Level 1 Gross Weight:
1.3 kg
2.9 lb
1.3 kg
2.9 lb
Package Level 1 EAN:
6417019477091

Technical

Cable Cross-Section:
2.5 ... 25 mm²
Connecting Capacity:
Stranded 2.5 … 25 mm²
Flexible 2.5 … 25 mm²
Stranded 2.5 … 25 mm²
Flexible 2.5 … 25 mm²
Conventional Free-air Thermal Current (Ith):
Θ = 40 °C 32 A
Conventional Thermal Current (Ithe):
Fully Enclosed 32 A
Fuse Size:
A2-A3
Fuse System:
British Standard
Handle Type:
Pistol handle and shaft included
Mounting Type:
Base mounting
Number of Poles:
3P
Operating Mode:
Front Operated
Pollution Degree:
3
Position of Line Terminals:
Top In - Bottom Out, Bottom In - Top Out
Power Loss:
at Rated Operating Conditions per Pole 1 W
Rated Conditional Short-Circuit Current (Inc):
(690 V) 80 kA
Rated Current (In):
Main Circuit 32 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current AC-21A (Ie):
(500 V) 32 A
(690 V) 32 A
(500 V) 32 A
(690 V) 32 A
Rated Operational Current AC-22A (Ie):
(500 V) 32 A
(690 V) 32 A
(500 V) 32 A
(690 V) 32 A
Rated Operational Current AC-23A (Ie):
(500 V) 32 A
(690 V) 32 A
(500 V) 32 A
(690 V) 32 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 7.5 kW
(400 V) 15 kW
(415 V) 15 kW
(500 V) 18.5 kW
(690 V) 22 kW
(220 ... 240 V) 7.5 kW
(400 V) 15 kW
(415 V) 15 kW
(500 V) 18.5 kW
(690 V) 22 kW
Rated Operational Voltage:
Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 2.5 kiloampere rms
Recommended Screw Driver:
Main Circuit Hexagon 4
Standards:
IEC 60947-3
Switches Operating Mechanism:
12 (Between the Poles)
Terminal Type:
Screw Terminals
Tightening Torque:
3 N·m
4 N·m
3 N·m
4 N·m
Wire Stripping Length:
Main Circuit 12 mm
Main Circuit 0.47 in
Main Circuit 12 mm
Main Circuit 0.47 in

Technical UL/CSA

Wire Stripping Length:
Main Circuit 12 mm
Main Circuit 0.47 in
Main Circuit 12 mm
Main Circuit 0.47 in
Recommended Screw Driver:
Main Circuit Hexagon 4
Tightening Torque:
3 N·m
4 N·m
3 N·m
4 N·m

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC001040 - Fuse switch disconnector
ETIM 10:
EC001040 - Fuse switch disconnector
UNSPSC:
39122233
IDEA Granular Category Code (IGCC):
5291 >> Fuse switch disconnector
eClass:
V11.1 : 27371401
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
