Main
| Characteristic | Value(s) |
|---|---|

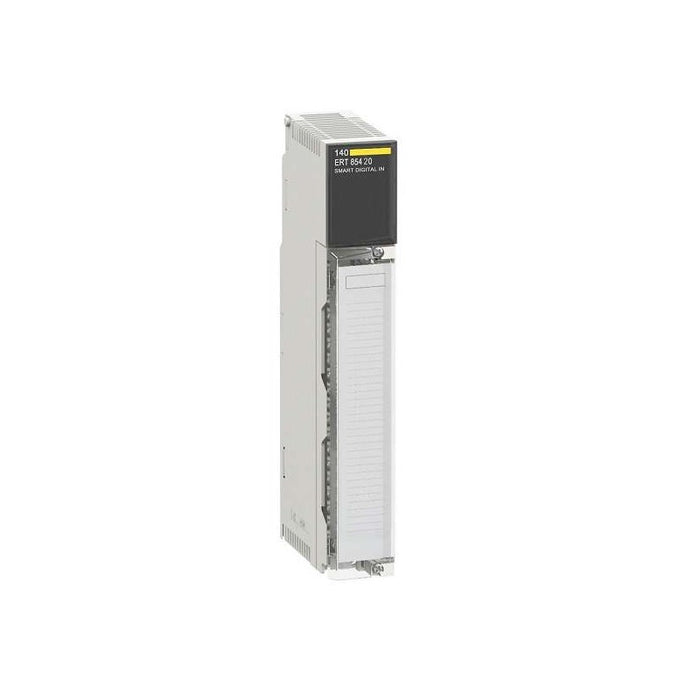

| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Multifunction input module |
| Number of terminals | 40 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Function of module | Status logging counting 500 Hz Status monitoring on discrete inputs Time and date stamped event logging |
| Time synchronisation protocol | DCF77 IRIG-B |
| Product compatibility | Unity Pro V4.1 - without IRIG-B or TXSNTP100 function Unity Pro V5.0 - without IRIG-B or TXSNTP100 function Unity Pro V6.0 - without IRIG-B or TXSNTP100 function Unity Pro V7.0 |
| Group of channels | 2 groups of 16 inputs process input |
| Discrete input number | 1 24 V clock signal input 32 24...125 V process input |
| Switching voltage | 125 V 1 mA process input 24 V 6 mA process input 48 V 2.5 mA process input 60 V 2.5 mA process input |
| Maximum power consumption in W | 7.5 W process input |
| Insulation | By optocoupler clock signal input |
| Insulation between group of channels | By optocoupler |
| Anti bounce filtering | Configurable from 0 to 255 ms |
| Input state | Inversion configurable |
| Acquisition time | 1 ms clock signal input |
| Input current | 5 mA clock signal input |
| Electrical connection | Cable - shielded cable <1968.5 ft (600 m) process input Cable - unshielded cable <1312.3 ft (400 m) process input |
| Connections - Terminals | Screw terminal block |
| Local signalling | for communication on the bus (Active) 1 LED (green) for self test OK, module ready (R) 1 LED (green) for fault (F) 1 LED (red) for status of inputs (1 to 32) 32 LEDs |
| Current consumption | 300 mA 5 V DC bus 20 mA 24...125 V DC external power supply per group of channel |
| Module format | Standard |
| Product Weight | 0.99 lb(US) (0.45 kg) |
