Schneider

Schneider 140-ACI-030-00C Schneider

11,916.00 kr

Only 2 units left

Analog input module Modicon Quantum - 8 I multirange

Schneider 140-ACI-040-00 Schneider

7,674.00 kr

Only 10 units left

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Analogue input module
Type of filter	Single pole low pass - 3 dB at 34 Hz +/- 25 %

Complementary

Characteristic	Value(s)
Analogue input number	16
Input type	Differential
Addressing requirement	17 input words
Analogue input resolution	0...16000 counts 4...20 mA 0...20000 counts 0...20 mA 0...25000 counts 0...25 mA 0...4095 counts 4...20 mA
Absolute maximum input	30 mA
Input impedance	250 Ohm
Absolute accuracy error	+/- 0.125 % of full scale
Linearity error	+/- 12 ÂµA max 4...20 mA +/- 6 ÂµA max 0...20 mA +/- 6 ÂµA max 0...25 mA +/- 6 ÂµA max 4...20 mA
Accuracy drift according to temperature	+/- 0.0025 % of full scale/Â°C <= 0.0050 % of full scale /Â°C
Common mode rejection	> - 90 dB 60 Hz
Isolation between channels and bus	1780 V AC 60 s
Update time	15 ms 2 wires/4 wires
Fault type	Broken wire 4...20 mA
Marking	CE
Local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 16 LEDs (green) for channel is turned on 16 LEDs (red) for channel fault
Bus current requirement	360 mA
Power dissipation in W	5 W
Module format	Standard
Product Weight	0.7 lb(US) (0.3 kg)

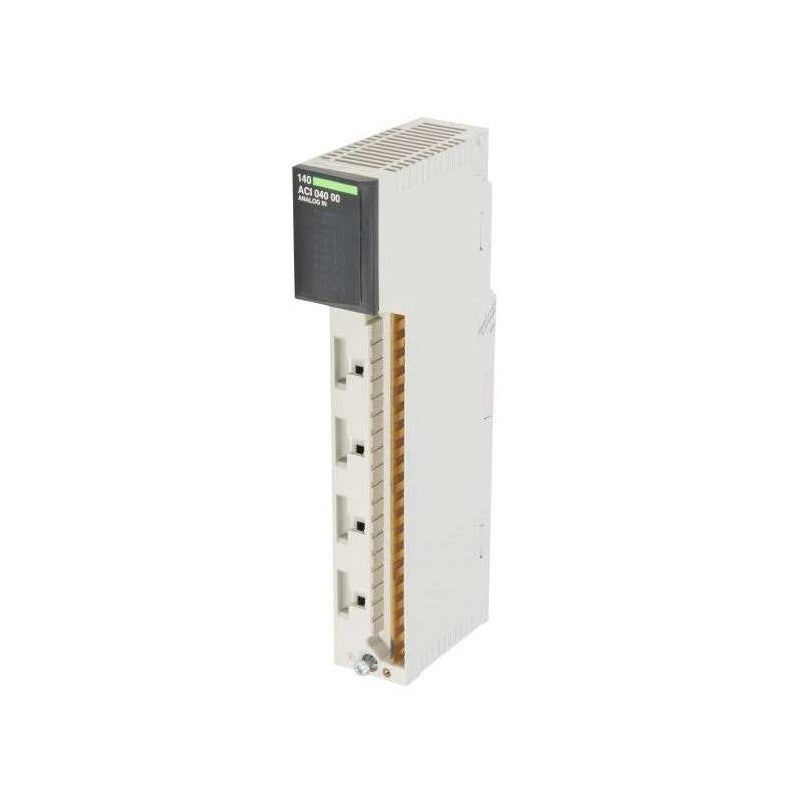

Schneider 140-ACI-040-00C Schneider

4,456.00 kr

Only 3 units left

Analog input module Modicon Quantum - 16 I multirange

Schneider 140-ACO-020-00 Schneider

4,715.00 kr

In stock, 11 units

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Analogue output module

Complementary

Characteristic	Value(s)
Analogue output number	4
Addressing requirement	4 output words
Loop voltage	12â¦30 V DC
Maximum voltage drop	<30 V 20 mA
Analogue output range	4...20 mA 0...4096 counts, 12 bits bipolar current
Absolute accuracy error	+/- 0.20 % of full scale 77 Â°F (25 Â°C)
Linearity	+/- 1 LSB
Accuracy drift according to temperature	+/- 0.004 % of full scale/Â°C +/- 0.007 % of full scale/Â°C maximum
Isolation between channels	500 V 47...63 Hz AC 750 V for 1 minute DC
Update time	3 ms
Setting time	900 Âµs to +/- 0.1 % of the final value
Fault type	Open circuit 4...20 mA
Bus current requirement	480 mA
Maximum power dissipation in W	5.3 W
External power requirement	12...30 V
Marking	CE
Local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault for channel is turned on 4 LEDs (green) for channel fault 4 LEDs (red)
Module format	Standard
Product Weight	0.7 lb(US) (0.3 kg)

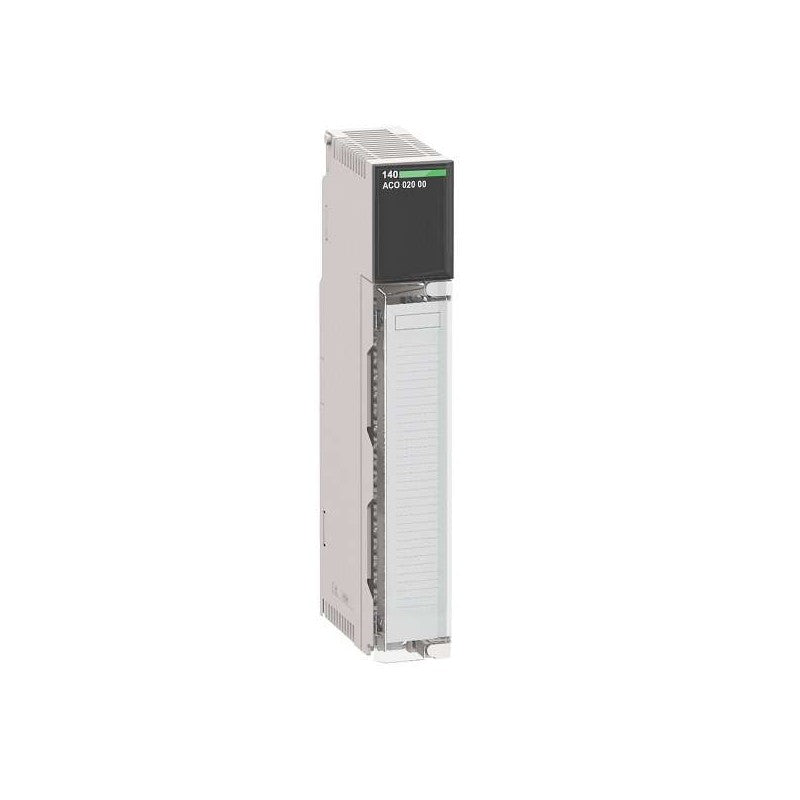

Schneider 140-ACO-020-00C Schneider

0.00 kr

Sold Out

Analog output module Modicon Quantum - 4 O - 4..20 mA

Schneider 140-ACO-130-00 Schneider

7,023.00 kr

In stock, 14 units

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Analogue output module

Complementary

Characteristic	Value(s)
Analogue output number	8
Addressing requirement	8 output words
Loop voltage	6â¦30 V DC
Maximum voltage drop	<30 V 25 mA
Analogue output range	0...20 mA 0...20000 counts 0...25 mA 0...25000 counts 4...20 mA 0...16000 counts 4...20 mA 0...4095 counts
Absolute accuracy error	+/- 0.2 % of full scale 77 Â°F (25 Â°C)
Linearity	+/- 12 ÂµA 4...20 mA 0...4095 counts +/- 4 ÂµA 0...20 mA 0...20000 counts +/- 4 ÂµA 0...25 mA 0...25000 counts +/- 4 ÂµA 4...20 mA 0...16000 counts
Accuracy drift according to temperature	0.004 % of full scale/Â°C typical 0.007 % of full scale/Â°C maximum
Isolation between channels and bus	1780 V for 1 minute AC
Update time	5 ms
Setting time	3.2 ms to +/-0.1% of the final value 1.6 ms to 5% of the final value
Fault type	Open circuit 4...20 mA
Bus current requirement	550 mA
Maximum power dissipation in W	5 W
External power requirement	6...30 V
Marking	CE
Local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 8 LEDs (green) for channel is turned on 8 LEDs (red) for channel fault
Module format	Standard
Product Weight	0.7 lb(US) (0.3 kg)

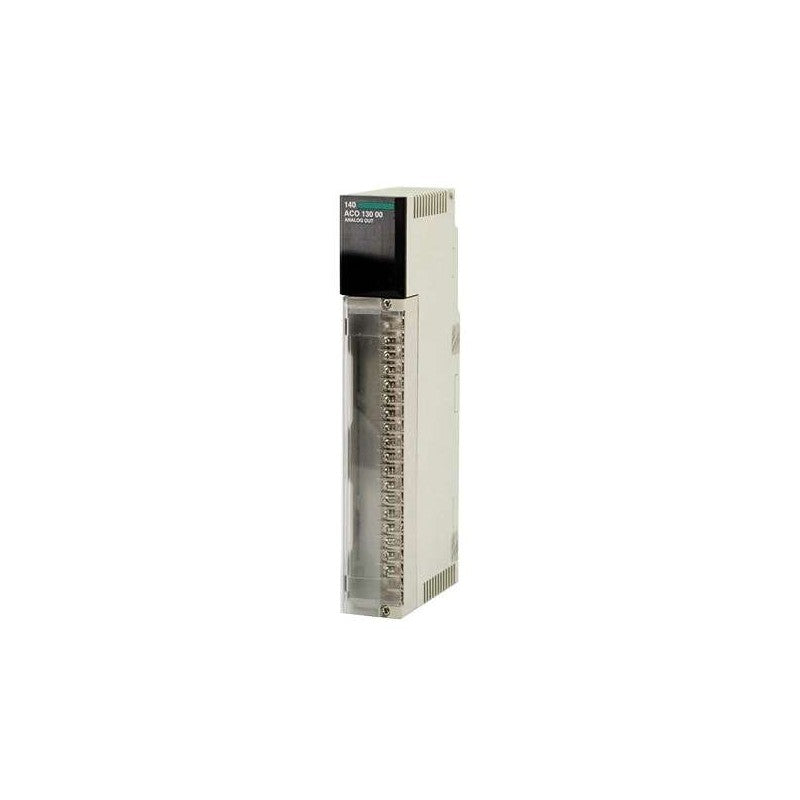

Schneider 140-ACO-130-00C Schneider

0.00 kr

Sold Out

Analog output module Modicon Quantum - 8 O

Schneider 140-AII-330-00 Schneider

8,749.00 kr

Only 4 units left

Intrinsically safe temperature input module Modicon Quantum - 8 I

Schneider 140-AII-330-00C Schneider

15,984.00 kr

Only 4 units left

Intrinsically safe temperature input module - Modicon Quantum - 8 I

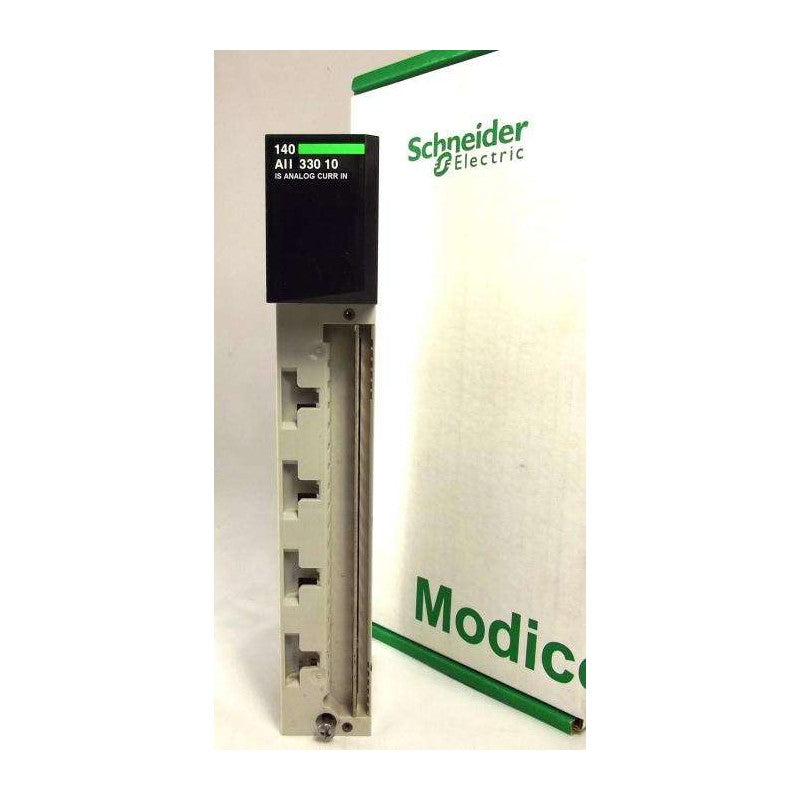

Schneider 140-AII-330-10 Schneider

69,411.00 kr

Only 4 units left

Intrinsically safe current input module Modicon Quantum

Schneider 140-AIO-330-00 Schneider

7,540.00 kr

Only 4 units left

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Intrinsically safe analog output module
Software Designation	Concept V2.2 and above ProWORX Unity Pro

Complementary

Characteristic	Value(s)
Product destination	In conjunction with products for zone 20, 21 or 22
Analogue output number	8
Analogue output range	0...20 mA 0 to 20000 points 0...25 mA 0 to 25000 points 4...20 mA 15 bits, 0 to 16000 points 4...20 mA 15 bits, 0 to 4095 points
Maximum loop resistance	500 Ohm
Absolute accuracy error	+/- 0.2 % of full scale 77 Â°F (25 Â°C)
Accuracy drift according to temperature	40 ppm/Â°C <= 70 ppm/Â°C
Linearity	+/- 1 LSB
Update time	4 ms
Setting time	1 ms to +/- 0.1 % of the final value
Isolation between channels and bus	1780 Vrms 60 s AC
Fault type	Open circuit 4...20 mA
Power dissipation in W	12.5 W
Hot swapping fallback	Not allowed per intrinsic safety standards
Protection Type	Internal fuse
Marking	CE II1 G/D-EEx ia IIC
Bus current requirement	2.5 A
Module format	Standard
Product Weight	0.7 lb(US) (0.3 kg)

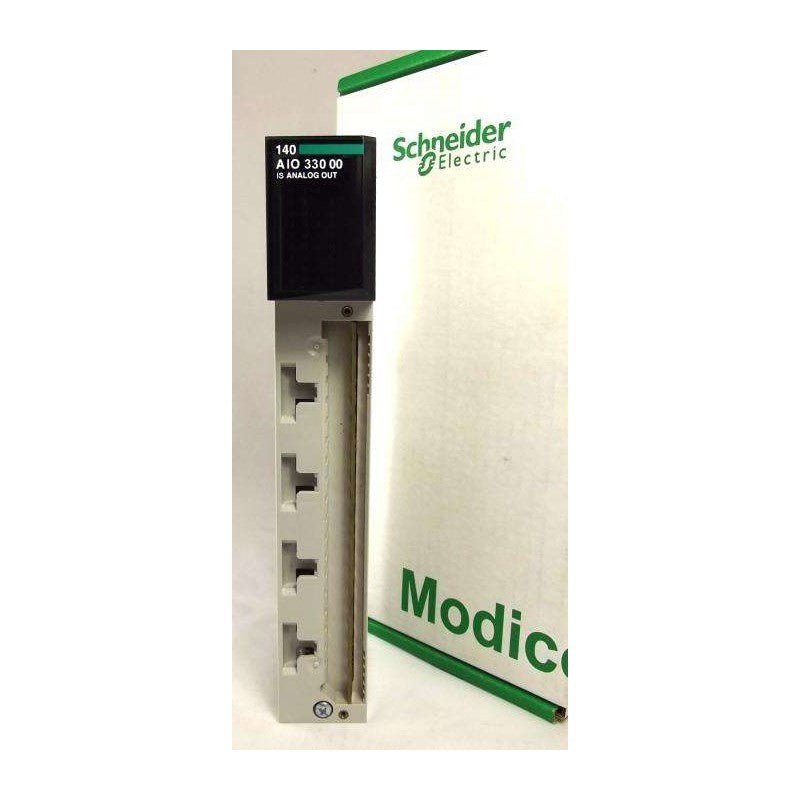

Schneider 140-AIO-330-00C Schneider

0.00 kr

Sold Out

Intrinsically safe analog output module - Modicon Quantum - 8 O

Schneider 140-AMM-090-00 Schneider

7,588.00 kr

Only 5 units left

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Input/output analog module
Type of filter	Single pole low pass - 3 dB at 21 Hz +/- 20 % input circuit

Complementary

Characteristic	Value(s)
I/O modularity	6 channels
Addressing requirement	2 output words 5 input words
Analogue input number	4
Analogue input type	Bipolar current +/- 20 mA 15 bits DC Bipolar voltage +/- 10 V 16 bits DC Bipolar voltage +/- 5 V 15 bits DC Unipolar current 0...20 mA 15 bits DC Unipolar offset current 4...20 mA 14 bits DC Unipolar offset voltage 1...5 V 14 bits DC Unipolar voltage 0...10 V 16 bits DC Unipolar voltage 0...5 V 15 bits DC
Absolute maximum input	+/- 25 mA current +/- 50 V voltage
Input impedance	> 10 MOhm voltage > 250 Ohm current
Offset	+/- 0.0014 % of full scale maximum/Â°C 0...60 Â°C input circuit
Gain shift	+/- 0.002 of full scale maximum 0...60 Â°C input circuit
Common mode rejection	> 80 dB 50/60 Hz input circuit
Analogue output number	2
Analogue output range	4...20 mA
Analogue output resolution	12 bits
Loop voltage	0â¦60 V DC with external resistance output circuit 7â¦30 V DC output circuit
Maximum voltage drop	<30 V DC 20 mA
Setting time	900 Âµs to +/- 0.1 % of the final value output circuit
External power requirement	7...30 V output circuit
Absolute accuracy error	+/- 0.004 % of full scale 32â¦140 Â°F (0â¦60 Â°C) output circuit +/- 0.007 %/Â°C of full scale maximum 32â¦140 Â°F (0â¦60 Â°C) output circuit +/- 0.03 % 77 Â°F (25 Â°C) input circuit +/- 0.05 % of full scale maximum 77 Â°F (25 Â°C) input circuit +/- 0.20 % of full scale 77 Â°F (25 Â°C) output circuit
Linearity	2.4 % over and under range voltage 2.4 % over range, and - 9.6 % under range current Monotonic +/- 1 LSB input Monotonic +/- 1 LSB output
Update time	15 ms output circuit 320 ms input circuit
Fault type	Open circuit input/output circuit Overtacking scale (unipolar) input circuit Status byte output circuit
Isolation between channels	500 V AC for 1 minute 750 V DC for 1 minute
Isolation between channels and bus	500 V AC for 1 minute 750 V DC for 1 minute
Isolation between input channel and output channel	500 V for 1 minute 750 V for 1 minute
Marking	CE
Local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault for channel is turned on 6 LEDs (green) for channel fault 6 LEDs (red)
Bus current requirement	350 mA
Module format	Standard
Product Weight	0.7 lb(US) (0.3 kg)

Schneider 140-AMM-090-00C Schneider

0.00 kr

Sold Out

Analog input output module Modicon Quantum - 4 I - 2 O

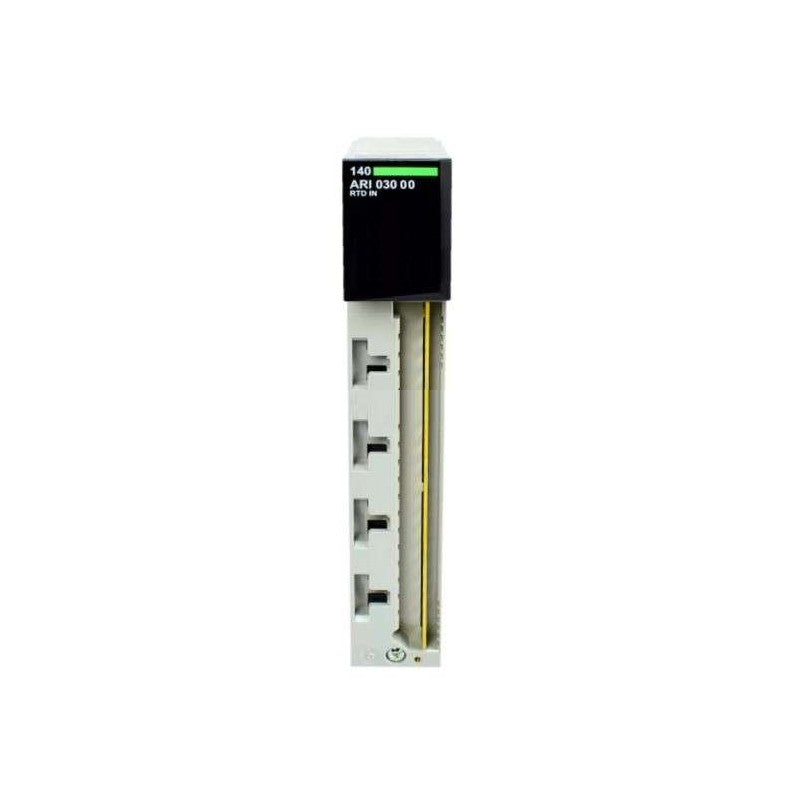

Schneider 140-ARI-030-00 Schneider

20,206.00 kr

Only 1 unit left

Analog RTD Input 8CH

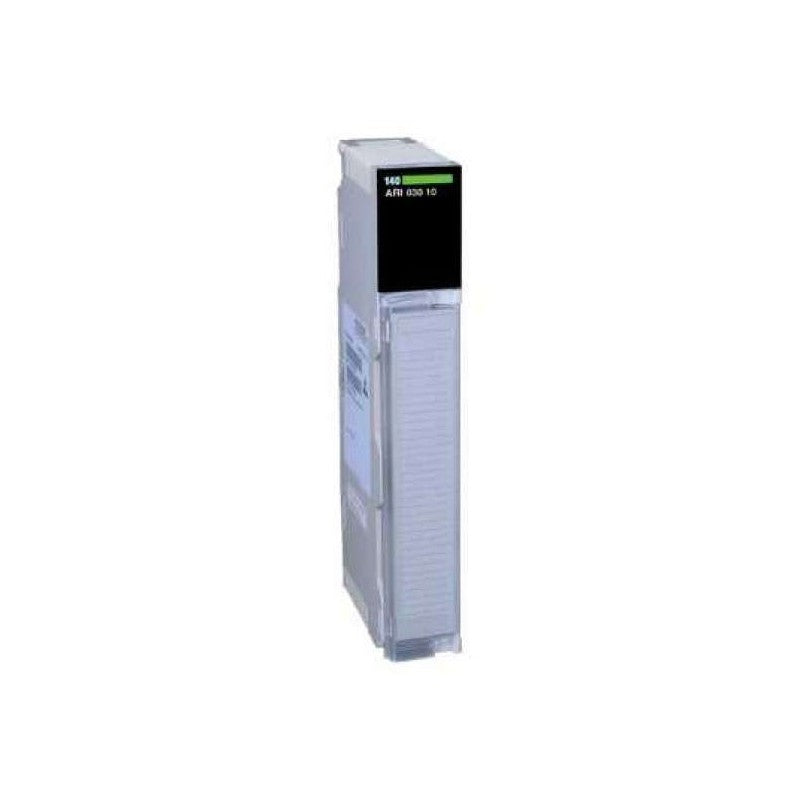

Schneider 140-ARI-030-10 Schneider

4,558.00 kr

Only 4 units left

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Analogue input module

Complementary

Characteristic	Value(s)
Analogue input number	8
Input type	Differential
Addressing requirement	9 input words
Analogue input type	Temperature probe - 100...450 Â°C Pt 100, Pt 200, Pt 500, Pt 1000 Temperature probe - 200...850 Â°C Pt 100, Pt 200, Pt 500, Pt 1000 Temperature probe - 60...180 Â°C Ni 100, Ni 200, Ni 500, Ni 1000 Temperature probe 0.5 mA Ni 100, Ni 200, Ni 500, Ni 1000 Temperature probe 2.5 mA Pt 100, Pt 200, Ni 100, Ni 200
Analogue input resolution	13 bits
Input impedance	>= 10 MOhm
Absolute accuracy error	0.1 Â°C
Linearity error	+/- 0.01 % full scale +/- 0.5 Â°C
Accuracy drift according to temperature	+/- 0.5 Â°C 77 Â°F (25 Â°C) +/- 0.9 Â°C 32â¦140 Â°F (0â¦60 Â°C)
Isolation between channels and bus	1780 V AC 47...63 Hz 60 s 2500 V DC 60 s
Isolation between channels	300 Vrms AC
Update time	1200 ms 3 wires 640 ms 2 wires/4 wires
Fault type	Broken wire Overtacking scale
Marking	CE
Local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault for channel is turned on 8 LEDs (green) for channel fault 8 LEDs (red)
Bus current requirement	200 mA
Power dissipation in W	1 W
Module format	Standard
Product Weight	0.7 lb(US) (0.3 kg)

Schneider 140-ARI-030-10C Schneider

28,130.00 kr

Only 1 unit left

Analog input module Modicon Quantum - 8 I Ni / Pt 100, 200, 500, 1000

Schneider 140-ATI-030-00 Schneider

5,307.00 kr

In stock, 12 units

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Analogue input module
Type of filter	Notch filter - 3 dB at 50/60 Hz Single pole low pass - 3 dB at 20 Hz

Complementary

Characteristic	Value(s)
Analogue input number	8
Addressing requirement	10 input words
Analogue input type	Thermocouple - 210...760 Â°C thermocouple J Thermocouple - 270...1000 Â°C thermocouple E Thermocouple - 270...1370 Â°C thermocouple K Thermocouple - 270...400 Â°C thermocouple T Thermocouple - 50...1665 Â°C thermocouple R Thermocouple - 50...1665 Â°C thermocouple S
Analogue input resolution	16 bits
Absolute accuracy error	+/- 2 Â°C plus + 0.1 % of reading thermocouple E +/- 2 Â°C plus + 0.1 % of reading thermocouple J +/- 2 Â°C plus + 0.1 % of reading thermocouple K +/- 2 Â°C plus + 0.1 % of reading thermocouple T +/- 4 Â°C plus + 0.1 % of reading thermocouple R +/- 4 Â°C plus + 0.1 % of reading thermocouple S
Linearity error	1 Â°C, 0.1 Â°C, 1 F, 0.1 F - 210...760 Â°C 1 Â°C, 0.1 Â°C, 1 F, 0.1 F - 270...1000 Â°C 1 Â°C, 0.1 Â°C, 1 F, 0.1 F - 270...1370 Â°C 1 Â°C, 0.1 Â°C, 1 F, 0.1 F - 270...400 Â°C 1 Â°C, 0.1 Â°C, 1 F, 0.1 F - 50...1665 Â°C
Accuracy drift according to temperature	0.15 ÂµV/Â°C + 0.0015 % of reading/Â°C max low level voltage
Common mode rejection	> - 120 dB 50/60 Hz
Isolation between channels and bus	1780 V AC 60 s 2500 V DC 60 s
Isolation between channels	300 V DC 220 V AC
Update time	1000 ms
Fault type	Broken wire Overtacking scale
Marking	CE
Cold junction compensation	Internal 32â¦140 Â°F (0â¦60 Â°C)
Local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault for channel is turned on 8 LEDs (green) for channel fault 8 LEDs (red)
Bus current requirement	280 mA
Power dissipation in W	1.5 W
Module format	Standard
Product Weight	0.7 lb(US) (0.3 kg)

Schneider 140-ATI-030-00C Schneider

0.00 kr

Sold Out

Analog input module Modicon Quantum - 8 I thermocouple

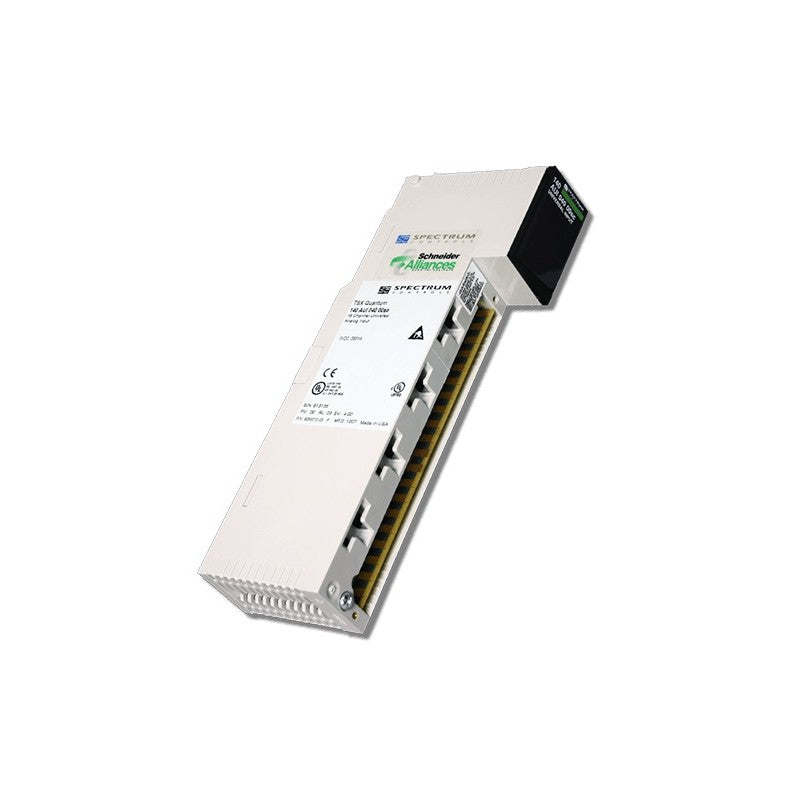

Schneider 140-AUI-040-00sc Schneider Electric

3,037.00 kr

Only 1 unit left

I/O MODULE 16-CHANNELS, UNIVERSAL ANALOG INPUT, THERMOCOUPLE, RTD, CURRENT OR VOLTAGE

Schneider 140-AVI-030-00 Schneider

6,846.00 kr

In stock, 18 units

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Analogue input module
Type of filter	Single pole low pass - 3 dB at 847 Hz +/- 20 %

Complementary

Characteristic	Value(s)
Analogue input number	8
Input type	Differential
Addressing requirement	9 input words
Analogue input type	Bipolar current 20 mA Bipolar voltage +/- 10 V Bipolar voltage +/- 5 V Unipolar current 0...20 mA Unipolar voltage 0...10 V Unipolar voltage 0...5 V
Analogue input resolution	16 bits +/- 10 V 16 bits +/- 5 V 16 bits 0...10 V 16 bits 0...20 mA 16 bits 0...5 V 16 bits 20 mA
Linear measuring range	(input range) x 1.024 mA (input range) x 1.024 V
Absolute maximum input	50 V DC 25 mA
Input impedance	> 20 Ohm voltage 250 MOhm +/- 0.03 %
Absolute accuracy error	+/- 0.03 % +/- 0.05 % of full scale maximum
Linearity error	+/- 0.008 %
Accuracy drift according to temperature	+/- 0.0015 % of full scale/Â°C <= 0.004 % of full scale /Â°C
Common mode rejection	> - 80 dB 60 Hz
Isolation between channels and bus	500 Vrms AC 60 s 750 V DC
Isolation between channels	135 Vrms AC 200 V DC
Update time	10 ms
Fault type	Broken wire 4...20 mA Overtacking scale 1...5 V
Marking	CE
Local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 8 LEDs (green) for channel is turned on 8 LEDs (red) for channel fault
Bus current requirement	280 mA
Power dissipation in W	2.2 W
Module format	Standard
Product Weight	0.7 lb(US) (0.3 kg)

Schneider 140-AVI-030-00C Schneider

4,138.00 kr

Only 1 unit left

Analog input module Modicon Quantum - 8 I multirang

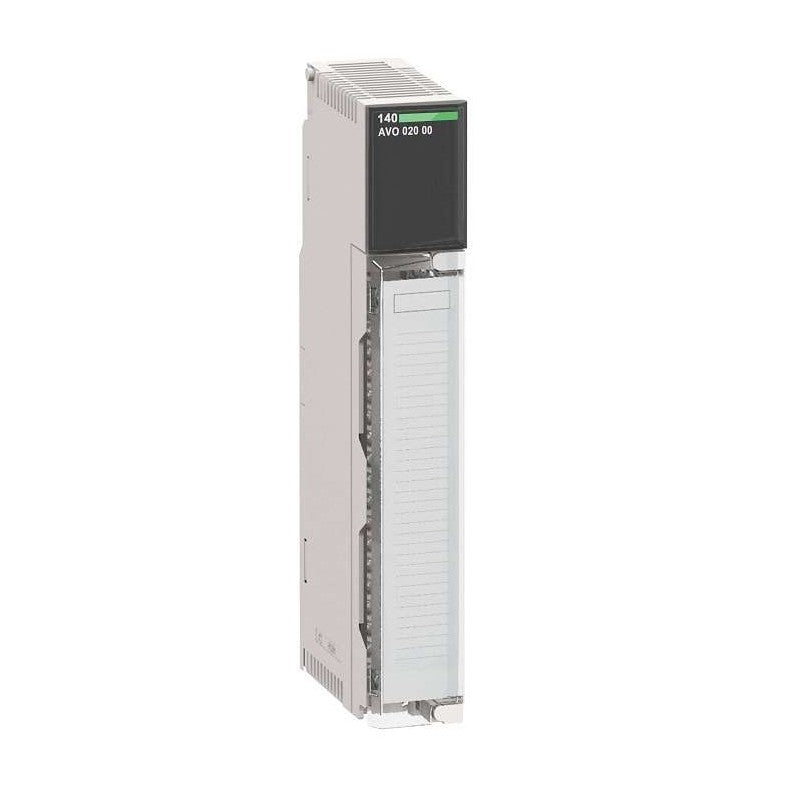

Schneider 140-AVO-020-00 Schneider

5,800.00 kr

In stock, 11 units

Main

Characteristic	Value(s)
Range of Product	Modicon Quantum automation platform
Product or Component Type	Analogue output module

Complementary

Characteristic	Value(s)
Analogue output number	4
Addressing requirement	4 output words
Analogue output range	+/- 10 V >= 1000 Ohm bipolar voltage +/- 5 V >= 500 Ohm bipolar voltage 0...10 V >= 1000 Ohm unipolar voltage 0...5 V >= 500 Ohm unipolar voltage
Analogue output resolution	12 bits
Analogue output current	-10â¦10 mA
Source resistance	0.1 Ohm
Maximum cable distance between devices	1312.3 ft (400 m)
Absolute accuracy error	+/- 0.15 % of full scale 77 Â°F (25 Â°C)
Linearity	+/- 1 LSB
Accuracy drift according to temperature	0.003 % of full scale/Â°C unipolar 0.004 % of full scale/Â°C bipolar 0.005 % of full scale/Â°C maximum unipolar 0.007 % of full scale/Â°C maximum bipolar
Isolation between channels	500 V for 1 minute 47...63 Hz AC
Isolation between channels and bus	780 V for 1 minute AC
Update time	3 ms
Setting time	700 Âµs to +/- 0.1 % of the final value maximum
Bus current requirement	700 mA
Maximum power dissipation in W	4.5 W
Associated fuse rating	0.063 mA 3 AG fast blow 250 V
Marking	CE
Local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 4 LEDs (green) for channel is turned on 4 LEDs (red) for channel fault
Module format	Standard
Product Weight	0.7 lb(US) (0.3 kg)

Schneider 140-AVO-020-00C Schneider

0.00 kr

Sold Out

Analog output module Modicon Quantum - 4 O
