Modicon Premium

12 products

Showing 1 - 12 of 12 products

Showing 1 - 12 of 12 products
View
TSXPSY2600M Schneider
Schneider TSXPSY2600M Schneider
4,493.00 kr
In stock, 16 units

Main

Characteristic Value(s)
Range of Product Modicon Premium Automation platform
Product or Component Type Power supply module

Complementary

Characteristic Value(s)
Primary voltage 100...240 V AC 85...264 V
Network Frequency 50/60 Hz
Network frequency limits 47…63 Hz
Input current 300 mA 240 V
500 mA 100 V
Inrush current 37 A 100 V
75 A 240 V
I²t on activation 0.63 A².s 100 V
2.6 A².s 240 V
It on activation 0.034 A.s 100 V
0.067 A.s 240 V
Protection type Internal fuse 4 A 5 x 20 mm time-delayed primary circuit
Overload protection secondary circuit
Overvoltage protection secondary circuit
Short-circuit protection secondary circuit
Total useful secondary power 26 W
Secondary power 15 W 24 V DC
25 W 5 V DC
Current at secondary voltage 0.5 A 24 V DC sensor power supply
0.6 A 24 V DC relay power supply
5 A 5 V DC
Insulation resistance >= 100 MOhm primary/ground
>= 100 MOhm primary/secondary
Marking CE
Local signalling 1 LED (green) for presence of sensor voltage (24V)
1 LED (green) for presence of voltages (OK)
1 LED (red) for battery fault (BAT)
Module format Standard
Product Weight 1.12 lb(US) (0.51 kg)
TSXPSY3610M Schneider
Schneider TSXPSY3610M Schneider
4,543.00 kr
Only 4 units left

Main

Characteristic Value(s)
Range of Product Modicon Premium Automation platform
Product or Component Type Power supply module

Complementary

Characteristic Value(s)
Primary voltage 24 V DC 19.2...30 V
Input current <= 2700 mA 24 V
Inrush current 150 A 24 V
I²t on activation 20 A².s
It on activation 0.5 A.s
Protection type Overload protection secondary circuit
Overvoltage protection secondary circuit
Short-circuit protection secondary circuit
Total useful secondary power 50 W
Secondary power 19 W 24 V DC
35 W 5 V DC
Current at secondary voltage 0.6 A 24 V DC relay power supply
7 A 5 V DC
Marking CE
Local signalling 1 LED (green) for presence of voltages (OK)
1 LED (red) for battery fault (BAT)
Module format Double
Product Weight 1.72 lb(US) (0.78 kg)
TSXPSY5500M Schneider
Schneider TSXPSY5500M Schneider
4,142.00 kr
In stock, 12 units

Main

Characteristic Value(s)
Range of Product Modicon Premium Automation platform
Product or Component Type Power supply module

Complementary

Characteristic Value(s)
Primary voltage 100...120 V AC 85...140 V
200...240 V AC 190...264 V
Network Frequency 50/60 Hz
Network frequency limits 47…63 Hz
Input current 1700 mA 100 V
500 mA 240 V
Inrush current 38 A 100 V
38 A 240 V
I²t on activation 2 A².s 240 V
4 A².s 100 V
It on activation 0.11 A.s 100 V
0.11 A.s 240 V
Protection type Internal fuse 4 A 5 x 20 mm time-delayed primary circuit
Overload protection secondary circuit
Overvoltage protection secondary circuit
Short-circuit protection secondary circuit
Total useful secondary power 50 W
Secondary power 19 W 24 V DC
35 W 5 V DC
Current at secondary voltage 0.8 A 24 V DC relay power supply
0.8 A 24 V DC sensor power supply
7 A 5 V DC
Insulation resistance >= 100 MOhm primary/ground
>= 100 MOhm primary/secondary
Marking CE
Local signalling 1 LED (green) for presence of sensor voltage (24V)
1 LED (green) for presence of voltages (OK)
1 LED (red) for battery fault (BAT)
Module format Double
Product Weight 1.37 lb(US) (0.62 kg)
TSXPSY8500 Schneider
Schneider TSXPSY8500 Schneider
24,703.00 kr
Only 2 units left

Power Supply 100/240 Vac, 85 Watt, Output 5-24 Vdc
TSXPSY2600MC Schneider
Schneider TSXPSY2600MC Schneider
0.00 kr
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Premium Automation platform
Product or Component Type Power supply module

Complementary

Characteristic Value(s)
Primary voltage 100...240 V AC 85...264 V
Network Frequency 50/60 Hz
Network frequency limits 47…63 Hz
Input current 300 mA 240 V
500 mA 100 V
Inrush current 37 A 100 V
75 A 240 V
I²t on activation 0.63 A².s 100 V
2.6 A².s 240 V
It on activation 0.034 A.s 100 V
0.067 A.s 240 V
Protection type Internal fuse 4 A 5 x 20 mm time-delayed primary circuit
Overload protection secondary circuit
Overvoltage protection secondary circuit
Short-circuit protection secondary circuit
Total useful secondary power 26 W
Secondary power 15 W 24 V DC
25 W 5 V DC
Current at secondary voltage 0.5 A 24 V DC sensor power supply
0.6 A 24 V DC relay power supply
5 A 5 V DC
Insulation resistance >= 100 MOhm primary/ground
>= 100 MOhm primary/secondary
Marking CE
Local signalling 1 LED (green) for presence of sensor voltage (24V)
1 LED (green) for presence of voltages (OK)
1 LED (red) for battery fault (BAT)
Module format Standard
Product Weight 1.12 lb(US) (0.51 kg)
TSXPSY5500MC Schneider
Schneider TSXPSY5500MC Schneider
18,306.00 kr
Only 1 unit left

Main

Characteristic Value(s)
Range of Product Modicon Premium Automation platform
Product or Component Type Power supply module

Complementary

Characteristic Value(s)
Primary voltage 100...120 V AC 85...140 V
200...240 V AC 190...264 V
Network Frequency 50/60 Hz
Network frequency limits 47…63 Hz
Input current 1700 mA 100 V
500 mA 240 V
Inrush current 38 A 100 V
38 A 240 V
I²t on activation 2 A².s 240 V
4 A².s 100 V
It on activation 0.11 A.s 100 V
0.11 A.s 240 V
Protection type Internal fuse 4 A 5 x 20 mm time-delayed primary circuit
Overload protection secondary circuit
Overvoltage protection secondary circuit
Short-circuit protection secondary circuit
Total useful secondary power 50 W
Secondary power 19 W 24 V DC
35 W 5 V DC
Current at secondary voltage 0.8 A 24 V DC relay power supply
0.8 A 24 V DC sensor power supply
7 A 5 V DC
Insulation resistance >= 100 MOhm primary/ground
>= 100 MOhm primary/secondary
Marking CE
Local signalling 1 LED (green) for presence of sensor voltage (24V)
1 LED (green) for presence of voltages (OK)
1 LED (red) for battery fault (BAT)
Module format Double
Product Weight 1.37 lb(US) (0.62 kg)
TSXPSY8500MC Schneider
Schneider TSXPSY8500MC Schneider
0.00 kr
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Premium Automation platform
Product or Component Type Power supply module

Complementary

Characteristic Value(s)
Primary voltage 100...120 V AC 85...140 V
200...240 V AC 170...264 V
Network Frequency 50/60 Hz
Network frequency limits 47…63 Hz
Input current 1700 mA 100 V
500 mA 240 V
Inrush current 30 A 100 V
60 A 240 V
I²t on activation 15 A².s 100 V
8 A².s 240 V
It on activation 0.15 A.s 100 V
0.15 A.s 240 V
Protection type Internal fuse 4 A 5 x 20 mm time-delayed primary circuit
Overload protection secondary circuit
Overvoltage protection secondary circuit
Short-circuit protection secondary circuit
Total useful secondary power 100 W 131 °F (55 °C) with fan module
77 W 140 °F (60 °C)
85 W 131 °F (55 °C)
Secondary power 75 W 5 V DC
Current at secondary voltage 1.6 A 24 V DC sensor power supply
15 A 5 V DC
Insulation resistance >= 100 MOhm primary/ground
>= 100 MOhm primary/secondary
Marking CE
Local signalling 1 LED (green) for presence of sensor voltage (24V)
1 LED (green) for presence of voltages (OK)
1 LED (red) for battery fault (BAT)
Module format Double
Product Weight 1.63 lb(US) (0.74 kg)

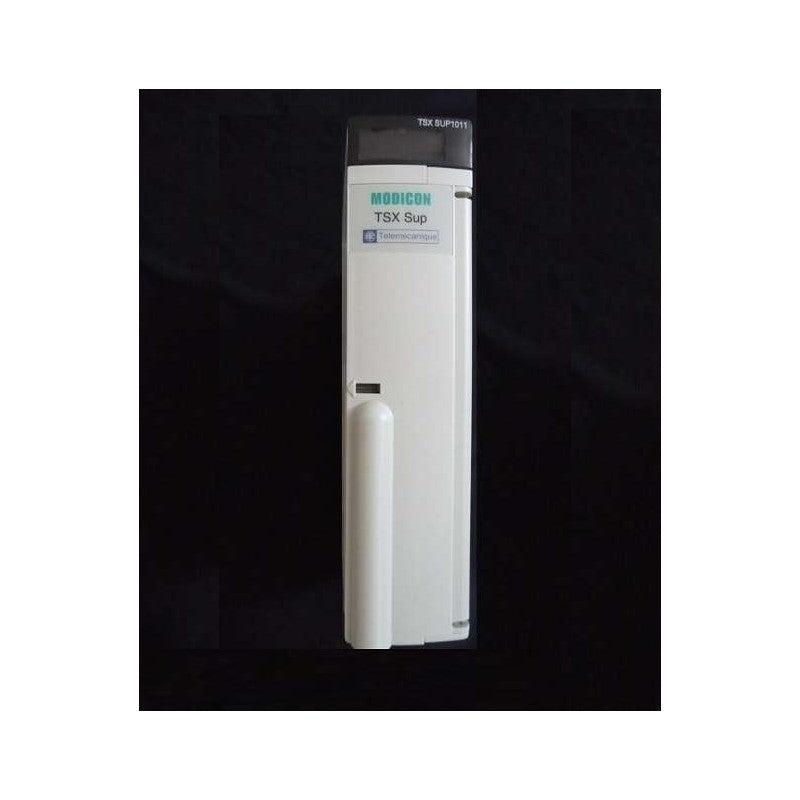

TSXSUP1011 Schneider Electric
Schneider TSXSUP1011 Schneider Electric
0.00 kr
Sold Out

POWER SUPPLY 24VAC/VDC 1AMP

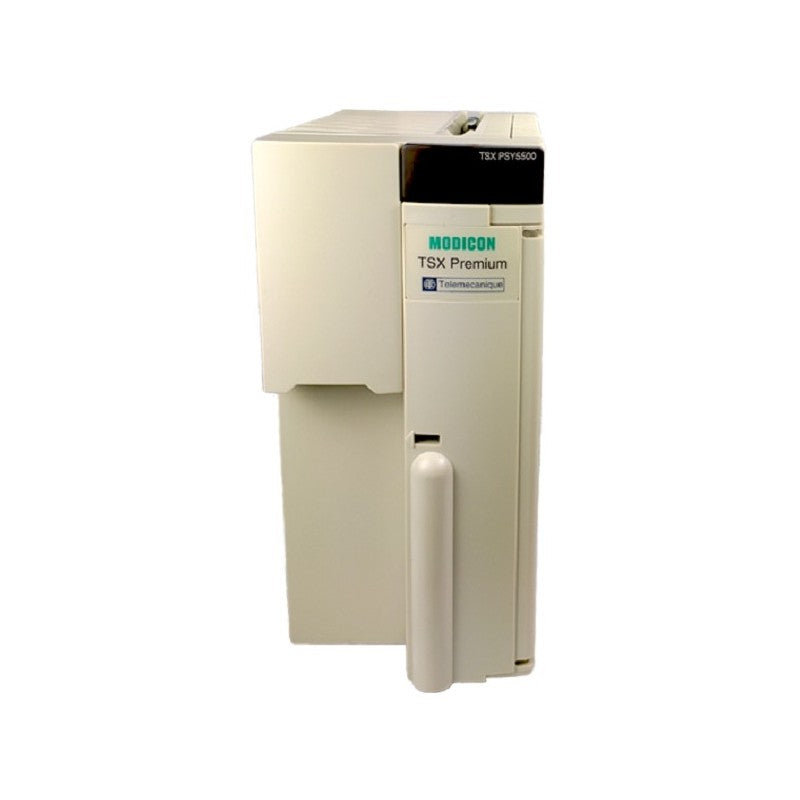

TSXPSY5520MC Schneider
Schneider TSXPSY5520MC Schneider
0.00 kr
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Premium Automation platform
Product or Component Type Power supply module

Complementary

Characteristic Value(s)
Primary voltage 24...48 V DC 19.2...60 V
Input current <= 1500 mA 48 V
<= 3000 mA 24 V
Inrush current 15 A 24 V
15 A 48 V
I²t on activation 50 A².s 24 V
55 A².s 48 V
It on activation 6 A.s 48 V
7 A.s 24 V
Protection type Internal fuse 5 A 5 x 20 mm time-delayed primary circuit
Overload protection secondary circuit
Overvoltage protection secondary circuit
Short-circuit protection secondary circuit
Total useful secondary power 50 W
Secondary power 19 W 24 V DC
35 W 5 V DC
Current at secondary voltage 0.8 A 24 V DC relay power supply
7 A 5 V DC
Insulation resistance >= 10 mOhm primary/ground
>= 10 mOhm primary/secondary
Marking CE
Local signalling 1 LED (green) for presence of voltages (OK)
1 LED (red) for battery fault (BAT)
Module format Double
Product Weight 1.96 lb(US) (0.89 kg)
TSXPSY1610M Schneider
Schneider TSXPSY1610M Schneider
4,751.00 kr
Only 4 units left

Main

Characteristic Value(s)
Range of Product Modicon Premium Automation platform
Product or Component Type Power supply module

Complementary

Characteristic Value(s)
Primary voltage 24 V DC 19.2...30 V
Input current <= 1500 mA 24 V
Inrush current 100 A 24 V
I²t on activation 12.5 A².s
It on activation 0.2 A.s
Protection type Internal fuse 3.5 A 5 x 20 mm time-delayed primary circuit
Overload protection secondary circuit
Overvoltage protection secondary circuit
Short-circuit protection secondary circuit
Total useful secondary power 30 W
Secondary power 15 W 24 V DC
15 W 5 V DC
Current at secondary voltage 0.6 A 24 V DC relay power supply
3 A 5 V DC
Marking CE
Local signalling 1 LED (green) for presence of voltages (OK)
1 LED (red) for battery fault (BAT)
Module format Standard
Product Weight 1.19 lb(US) (0.54 kg)
TSXPSY1610MC Schneider
Schneider TSXPSY1610MC Schneider
0.00 kr
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Premium Automation platform
Product or Component Type Power supply module

Complementary

Characteristic Value(s)
Primary voltage 24 V DC 19.2...30 V
Input current <= 1500 mA 24 V
Inrush current 100 A 24 V
I²t on activation 12.5 A².s
It on activation 0.2 A.s
Protection type Internal fuse 3.5 A 5 x 20 mm time-delayed primary circuit
Overload protection secondary circuit
Overvoltage protection secondary circuit
Short-circuit protection secondary circuit
Total useful secondary power 30 W
Secondary power 15 W 24 V DC
15 W 5 V DC
Current at secondary voltage 0.6 A 24 V DC relay power supply
3 A 5 V DC
Marking CE
Local signalling 1 LED (green) for presence of voltages (OK)
1 LED (red) for battery fault (BAT)
Module format Standard
Product Weight 1.19 lb(US) (0.54 kg)
TSXPSY5520M Schneider
Schneider TSXPSY5520M Schneider
0.00 kr
Sold Out

Main

Characteristic Value(s)
Range of Product Modicon Premium Automation platform
Product or Component Type Power supply module

Complementary

Characteristic Value(s)
Primary voltage 24...48 V DC 19.2...60 V
Input current <= 1500 mA 48 V
<= 3000 mA 24 V
Inrush current 15 A 24 V
15 A 48 V
I²t on activation 50 A².s 24 V
55 A².s 48 V
It on activation 6 A.s 48 V
7 A.s 24 V
Protection type Internal fuse 5 A 5 x 20 mm time-delayed primary circuit
Overload protection secondary circuit
Overvoltage protection secondary circuit
Short-circuit protection secondary circuit
Total useful secondary power 50 W
Secondary power 19 W 24 V DC
35 W 5 V DC
Current at secondary voltage 0.8 A 24 V DC relay power supply
7 A 5 V DC
Insulation resistance >= 10 mOhm primary/ground
>= 10 mOhm primary/secondary
Marking CE
Local signalling 1 LED (green) for presence of voltages (OK)
1 LED (red) for battery fault (BAT)
Module format Double
Product Weight 1.96 lb(US) (0.89 kg)

Recently viewed
