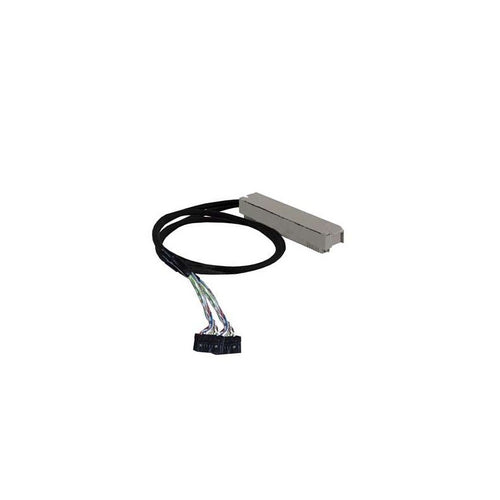

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum |
| Accessory / separate part designation | Cabled connector |
| Accessory / Separate Part Type | Connector |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Modicon Quantum PLC |
| Number of channels | 32 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Cable length | 9.8 ft (3 m) |
| Type of signal | Relay I/O |
| Electrical Connection | 2 connectors |
| Connector Type | HE10 |
| Number of ways | 20 ways |
| Wire section | 0.0005 in² (0.324 mm²) |
| AWG Gauge | AWG 22 |
| Channel splitting | 2 x 16 |
| Product Weight | 2.54 lb(US) (1.15 kg) |

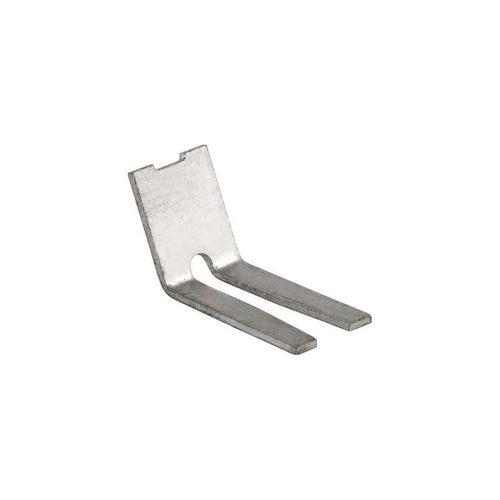

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Accessory / separate part designation | Pack of jumpers |
| Accessory / Separate Part Type | Jumper |
| Accessory / separate part category | Connection accessory |
| Product Specific Application | For 40-way screw terminal block |
| Quantity per Set | Set of 12 |
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 32A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Multi9 |
| product name | Multi9 C60 |
| Product or Component Type | Miniature circuit-breaker |
| Device short name | C60SP |
| Device Application | Distribution |
| Poles description | 1P |
| Number of protected poles | 1 |
| Line Rated Current | 32 A 77 °F (25 °C) EN/IEC 60947-2 |
| Network type | AC DC |
| Trip unit technology | Thermal-magnetic |
| Curve code | B |
| Breaking capacity | 10 kA AIR 277 V AC UL 1077 14 kA AIR 240 V AC UL 1077 14 kA AIR 120 V AC UL 1077 10 kA AIR 65 V DC UL 1077 10 kA AIR 277 V AC CSA C22.2 No 235 14 kA AIR 240 V AC CSA C22.2 No 235 14 kA AIR 120 V AC CSA C22.2 No 235 10 kA AIR 65 V DC CSA C22.2 No 235 3 kA Icu 415 V AC EN/IEC 60947-2 10 kA Icu 240 V AC EN/IEC 60947-2 20 kA Icu 60 V DC EN/IEC 60947-2 3 kA Icu 415 V AC GB 14048.2 10 kA Icu 240 V AC GB 14048.2 20 kA Icu 60 V DC GB 14048.2 |
| Standards | EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235 |
| Product certifications | IEC CCC UR CSA |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ue] rated operational voltage | 240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC |
| Magnetic tripping limit | 4 x In +/- 20 % AC 5.7 x In +/- 20 % DC |
| [Ics] rated service breaking capacity | 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 20 kA 100 % EN/IEC 60947-2 - 60 V DC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 20 kA 100 % GB 14048.2 - 60 V DC |
| [Ui] rated insulation voltage | 500 V AC EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kVEN/IEC 60947-2 |
| Suitability for isolation | Yes EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Control Type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| 9 mm pitches | 2 |
| Height | 3.2 in (81 mm) |
| Width | 0.7 in (18 mm) |
| Depth | 2.8 in (72 mm) |
| color | Gray |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Provision for padlocking | Padlockable |
| Connections - terminals | Tunnel type terminal top or bottom) 0.002â¦0.05 in² (1â¦35 mm²) AWG 18...AWG 2) - rigid Tunnel type terminal top or bottom) 0.002â¦0.04 in² (1â¦25 mm²) AWG 18...AWG 3) - flexible with ferrule Tunnel type terminal top or bottom) 0.002â¦0.04 in² (1â¦25 mm²) AWG 18...AWG 8) - flexible |
| Wire stripping length | 0.6 in (14 mm) for top or bottom connection |
| Tightening torque | 31.0 lbf.in (3.5 N.m) top or bottom |
| Earth-leakage protection | Without |

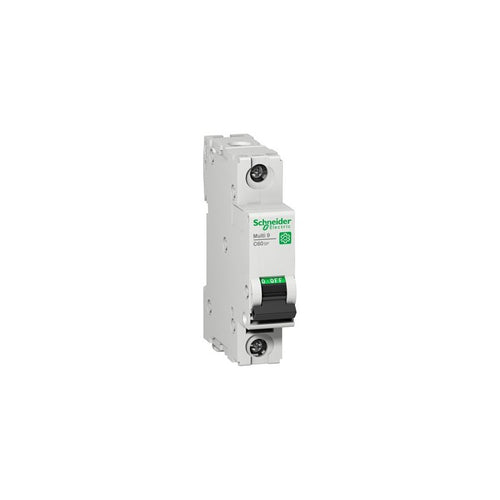

This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 50A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Multi9 |
| product name | Multi9 C60 |
| Product or Component Type | Miniature circuit-breaker |
| Device short name | C60SP |
| Device Application | Distribution |
| Poles description | 1P |
| Number of protected poles | 1 |
| Line Rated Current | 50 A 77 °F (25 °C) EN/IEC 60947-2 |
| Network type | DC AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | B |
| Breaking capacity | 10 kA AIR 65 V DC UL 1077 10 kA AIR 65 V DC CSA C22.2 No 235 3 kA Icu 415 V AC EN/IEC 60947-2 10 kA Icu 240 V AC EN/IEC 60947-2 20 kA Icu 60 V DC EN/IEC 60947-2 3 kA Icu 415 V AC GB 14048.2 10 kA Icu 240 V AC GB 14048.2 20 kA Icu 60 V DC GB 14048.2 5 kA AIR 277 V AC UL 1077 10 kA AIR 240 V AC UL 1077 10 kA AIR 120 V AC UL 1077 5 kA AIR 277 V AC CSA C22.2 No 235 10 kA AIR 240 V AC CSA C22.2 No 235 10 kA AIR 120 V AC CSA C22.2 No 235 |
| Standards | EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235 |
| Product certifications | IEC CCC UR CSA |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ue] rated operational voltage | 240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC |
| Magnetic tripping limit | 4 x In +/- 20 % AC 5.7 x In +/- 20 % DC |
| [Ics] rated service breaking capacity | 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 20 kA 100 % EN/IEC 60947-2 - 60 V DC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 20 kA 100 % GB 14048.2 - 60 V DC |
| [Ui] rated insulation voltage | 500 V AC EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kVEN/IEC 60947-2 |
| Suitability for isolation | Yes EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Control Type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| 9 mm pitches | 2 |
| Height | 3.2 in (81 mm) |
| Width | 0.7 in (18 mm) |
| Depth | 2.8 in (72 mm) |
| color | Gray |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Provision for padlocking | Padlockable |
| Connections - terminals | Tunnel type terminal top or bottom) 0.002â¦0.05 in² (1â¦35 mm²) AWG 18...AWG 2) - rigid Tunnel type terminal top or bottom) 0.002â¦0.04 in² (1â¦25 mm²) AWG 18...AWG 3) - flexible with ferrule Tunnel type terminal top or bottom) 0.002â¦0.04 in² (1â¦25 mm²) AWG 18...AWG 8) - flexible |
| Wire stripping length | 0.6 in (14 mm) for top or bottom connection |
| Tightening torque | 31.0 lbf.in (3.5 N.m) top or bottom |
| Earth-leakage protection | Without |
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 4A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Multi9 |
| product name | Multi9 C60 |
| Product or Component Type | Miniature circuit-breaker |
| Device short name | C60SP |
| Device Application | Distribution |
| Poles description | 1P |
| Number of protected poles | 1 |
| Line Rated Current | 4 A 77 °F (25 °C) EN/IEC 60947-2 |
| Network type | DC AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | B |
| Breaking capacity | 10 kA AIR 277 V AC UL 1077 14 kA AIR 240 V AC UL 1077 14 kA AIR 120 V AC UL 1077 10 kA AIR 65 V DC UL 1077 10 kA AIR 277 V AC CSA C22.2 No 235 14 kA AIR 240 V AC CSA C22.2 No 235 14 kA AIR 120 V AC CSA C22.2 No 235 10 kA AIR 65 V DC CSA C22.2 No 235 3 kA Icu 415 V AC EN/IEC 60947-2 10 kA Icu 240 V AC EN/IEC 60947-2 20 kA Icu 60 V DC EN/IEC 60947-2 3 kA Icu 415 V AC GB 14048.2 10 kA Icu 240 V AC GB 14048.2 20 kA Icu 60 V DC GB 14048.2 |
| Standards | EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235 |
| Product certifications | IEC CCC UR CSA |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ue] rated operational voltage | 240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC |
| Magnetic tripping limit | 4 x In +/- 20 % AC 5.7 x In +/- 20 % DC |
| [Ics] rated service breaking capacity | 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 20 kA 100 % EN/IEC 60947-2 - 60 V DC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 20 kA 100 % GB 14048.2 - 60 V DC |
| [Ui] rated insulation voltage | 500 V AC EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kVEN/IEC 60947-2 |
| Suitability for isolation | Yes EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Control Type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| 9 mm pitches | 2 |
| Height | 3.2 in (81 mm) |
| Width | 0.7 in (18 mm) |
| Depth | 2.8 in (72 mm) |
| color | Gray |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Provision for padlocking | Padlockable |
| Connections - terminals | Tunnel type terminal top or bottom) 0.002â¦0.04 in² (1â¦25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.002â¦0.02 in² (1â¦16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.002â¦0.02 in² (1â¦16 mm²) AWG 18...AWG 8) - flexible |
| Wire stripping length | 0.6 in (14 mm) for top or bottom connection |
| Tightening torque | 22.1 lbf.in (2.5 N.m) top or bottom |
| Earth-leakage protection | Without |

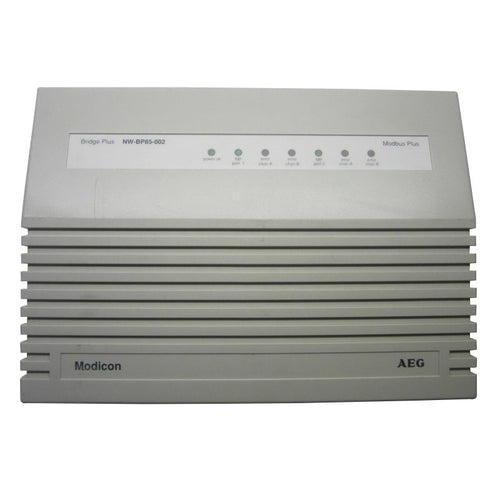

Signal Buffers, Repeaters ASSY BRIDGE PLUS

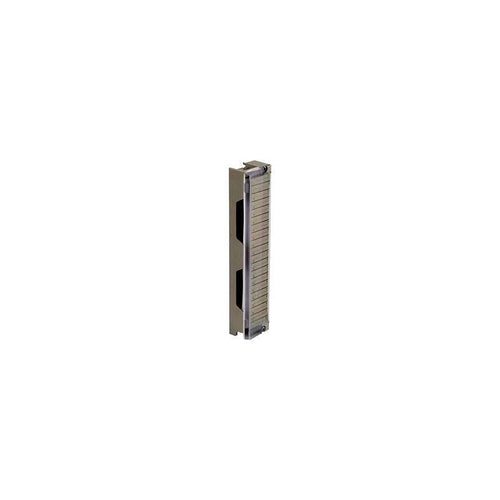

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Accessory / separate part designation | Terminal block, 40 points (IP20) for I/O |
| Accessory / Separate Part Type | Terminal block |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | 140ACO..... 140ARI..... 140AVI..... 140AVO..... 140ACI..... 140ATI..... 140AMM..... |
| Pin number | 40 pins |

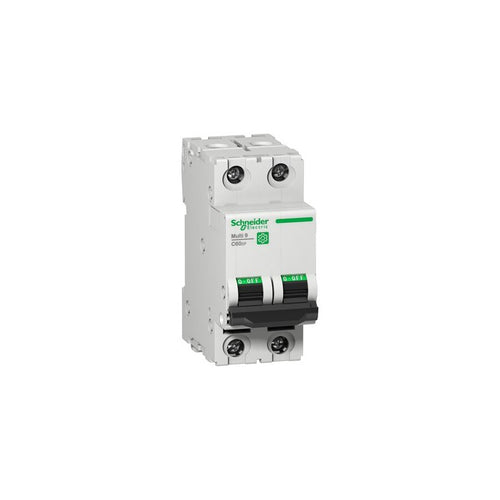

This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 10A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Multi9 |
| product name | Multi9 C60 |
| Product or Component Type | Miniature circuit-breaker |
| Device short name | C60SP |
| Device Application | Distribution |
| Poles description | 2P |
| Number of protected poles | 2 |
| Line Rated Current | 10 A 77 °F (25 °C) EN/IEC 60947-2 |
| Network type | AC DC |
| Trip unit technology | Thermal-magnetic |
| Curve code | B |
| Breaking capacity | 14 kA AIR 240 V AC UL 1077 14 kA AIR 240 V AC CSA C22.2 No 235 10 kA AIR 480Y/277 V AC UL 1077 10 kA AIR 125 V DC UL 1077 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 10 kA AIR 125 V DC CSA C22.2 No 235 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 |
| Standards | EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235 |
| Product certifications | IEC CCC UR CSA |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ue] rated operational voltage | 240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz |
| Magnetic tripping limit | 4 x In +/- 20 % AC 5.7 x In +/- 20 % DC |
| [Ics] rated service breaking capacity | 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC |
| [Ui] rated insulation voltage | 500 V AC EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kVEN/IEC 60947-2 |
| Suitability for isolation | Yes EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Control Type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| 9 mm pitches | 4 |
| Height | 3.2 in (81 mm) |
| Width | 1.4 in (36 mm) |
| Depth | 2.8 in (72 mm) |
| color | Gray |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Provision for padlocking | Padlockable |
| Connections - terminals | Tunnel type terminal top or bottom) 0.002â¦0.04 in² (1â¦25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.002â¦0.02 in² (1â¦16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.002â¦0.02 in² (1â¦16 mm²) AWG 18...AWG 8) - flexible |
| Wire stripping length | 0.6 in (14 mm) for top or bottom connection |
| Tightening torque | 22.1 lbf.in (2.5 N.m) top or bottom |
| Earth-leakage protection | Without |

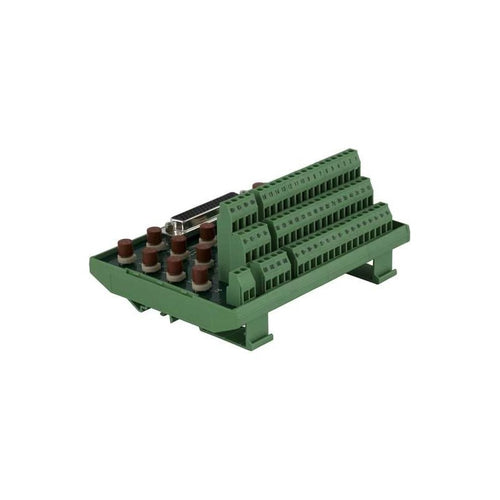

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Accessory / separate part designation | High-power output CableFast terminal block |
| Accessory / Separate Part Type | Terminal block |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Quantum I/O module |
| Product Specific Application | Provides individual 16-point 4 A fused connection |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | 140DAI54000 140DAI34000 140DAO84010 140DAO84000 140DAI44000 140DAO84210 140DDO84300 140DAO84220 |
| Number of ways | 16 contacts |
| Electrical connection | 1 female connector SUB-D 50 Captive screw terminal |
| Mounting Support | Standard DIN rail |
Multi 9 - C60SP - MCB - 2P - 6 A - B Curve - 480Y/277 V - 10 kA - UL 1077

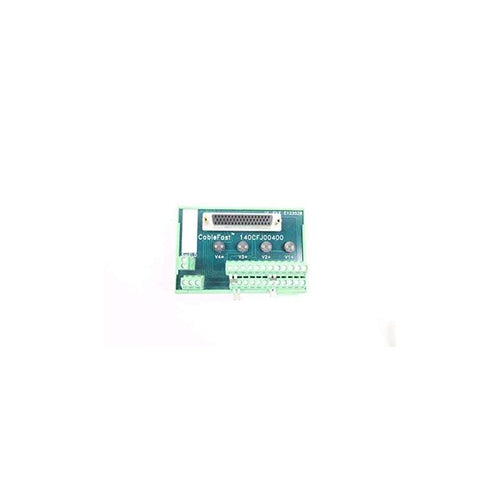

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Accessory / separate part designation | CableFast terminal block with fuses |
| Accessory / Separate Part Type | Terminal block |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Quantum I/O module |
| Product Specific Application | Provides plus, minus, shield and power supply interfaces Provides 4 connection 0.063 A fused point sets for the analog input modules Provides power supply interfaces for both field and loop power configurations |
| Additional information | Each point is allocated 6 terminals |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | 140ACO02000 |
| Number of ways | 4 contacts |
| Electrical connection | 1 female connector SUB-D 50 Captive screw terminal |
| Mounting Support | Standard DIN rail |
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 0.5A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Multi9 |
| product name | Multi9 C60 |
| Product or Component Type | Miniature circuit-breaker |
| Device short name | C60SP |
| Device Application | Distribution |
| Poles description | 1P |
| Number of protected poles | 1 |
| Line Rated Current | 0.5 A 77 °F (25 °C) EN/IEC 60947-2 |
| Network type | DC AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | B |
| Breaking capacity | 10 kA AIR 277 V AC UL 1077 14 kA AIR 240 V AC UL 1077 14 kA AIR 120 V AC UL 1077 10 kA AIR 65 V DC UL 1077 10 kA AIR 277 V AC CSA C22.2 No 235 14 kA AIR 240 V AC CSA C22.2 No 235 14 kA AIR 120 V AC CSA C22.2 No 235 10 kA AIR 65 V DC CSA C22.2 No 235 3 kA Icu 415 V AC EN/IEC 60947-2 10 kA Icu 240 V AC EN/IEC 60947-2 20 kA Icu 60 V DC EN/IEC 60947-2 3 kA Icu 415 V AC GB 14048.2 10 kA Icu 240 V AC GB 14048.2 20 kA Icu 60 V DC GB 14048.2 |
| Standards | EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235 |
| Product certifications | IEC CCC UR CSA |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ue] rated operational voltage | 240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC |
| Magnetic tripping limit | 4 x In +/- 20 % AC 5.7 x In +/- 20 % DC |
| [Ics] rated service breaking capacity | 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 20 kA 100 % EN/IEC 60947-2 - 60 V DC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 20 kA 100 % GB 14048.2 - 60 V DC |
| [Ui] rated insulation voltage | 500 V AC EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kVEN/IEC 60947-2 |
| Suitability for isolation | Yes EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Control Type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| 9 mm pitches | 2 |
| Height | 3.2 in (81 mm) |
| Width | 0.7 in (18 mm) |
| Depth | 2.8 in (72 mm) |
| color | Gray |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Provision for padlocking | Padlockable |
| Connections - terminals | Tunnel type terminal top or bottom) 0.002â¦0.04 in² (1â¦25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.002â¦0.02 in² (1â¦16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.002â¦0.02 in² (1â¦16 mm²) AWG 18...AWG 8) - flexible |
| Wire stripping length | 0.6 in (14 mm) for top or bottom connection |
| Tightening torque | 22.1 lbf.in (2.5 N.m) top or bottom |
| Earth-leakage protection | Without |

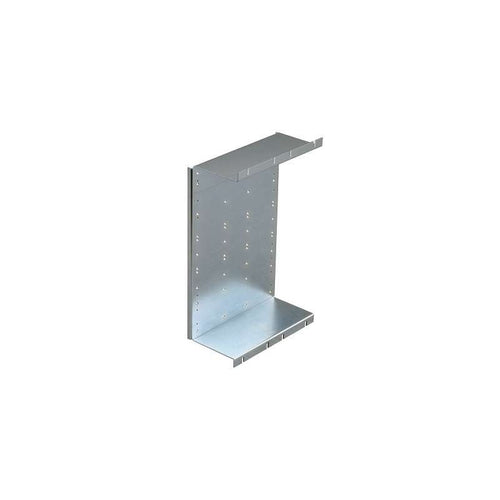

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Accessory / separate part designation | 19 inch front rail mounting bracket |
| Accessory / Separate Part Type | Rail mounting bracket |
| Accessory / separate part category | Mounting and fixing accessories |
| Accessory / separate part destination | Rack |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | 140XBP01000 |
| Depth | 4.9 in (125 mm) |

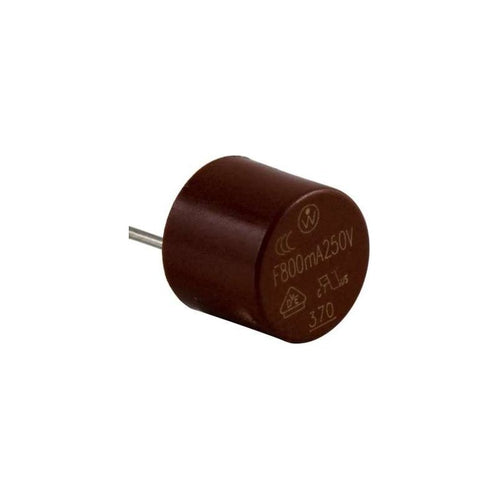

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Accessory / separate part designation | Wickmann fuse kit |
| Accessory / Separate Part Type | Fuses |
| Accessory / separate part category | Fuses |
| Accessory / separate part destination | I/O module |
| Quantity per Set | Set of 10 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Fuse type | Wickmann |
| Line Rated Current | 0.8 A |
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 10A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Multi9 |
| product name | Multi9 C60 |
| Product or Component Type | Miniature circuit-breaker |
| Device short name | C60SP |
| Device Application | Distribution |
| Poles description | 1P |
| Number of protected poles | 1 |
| Line Rated Current | 10 A 77 °F (25 °C) EN/IEC 60947-2 |
| Network type | DC AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | B |
| Breaking capacity | 10 kA AIR 277 V AC UL 1077 14 kA AIR 240 V AC UL 1077 14 kA AIR 120 V AC UL 1077 10 kA AIR 65 V DC UL 1077 10 kA AIR 277 V AC CSA C22.2 No 235 14 kA AIR 240 V AC CSA C22.2 No 235 14 kA AIR 120 V AC CSA C22.2 No 235 10 kA AIR 65 V DC CSA C22.2 No 235 3 kA Icu 415 V AC EN/IEC 60947-2 10 kA Icu 240 V AC EN/IEC 60947-2 20 kA Icu 60 V DC EN/IEC 60947-2 3 kA Icu 415 V AC GB 14048.2 10 kA Icu 240 V AC GB 14048.2 20 kA Icu 60 V DC GB 14048.2 |
| Standards | EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235 |
| Product certifications | IEC CCC UR CSA |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ue] rated operational voltage | 240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC |
| Magnetic tripping limit | 4 x In +/- 20 % AC 5.7 x In +/- 20 % DC |
| [Ics] rated service breaking capacity | 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 20 kA 100 % EN/IEC 60947-2 - 60 V DC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 20 kA 100 % GB 14048.2 - 60 V DC |
| [Ui] rated insulation voltage | 500 V AC EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kVEN/IEC 60947-2 |
| Suitability for isolation | Yes EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Control Type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| 9 mm pitches | 2 |
| Height | 3.2 in (81 mm) |
| Width | 0.7 in (18 mm) |
| Depth | 2.8 in (72 mm) |
| color | Gray |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Provision for padlocking | Padlockable |
| Connections - terminals | Tunnel type terminal top or bottom) 0.002â¦0.04 in² (1â¦25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.002â¦0.02 in² (1â¦16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.002â¦0.02 in² (1â¦16 mm²) AWG 18...AWG 8) - flexible |
| Wire stripping length | 0.6 in (14 mm) for top or bottom connection |
| Tightening torque | 22.1 lbf.in (2.5 N.m) top or bottom |
| Earth-leakage protection | Without |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Accessory / separate part designation | I/O connector |
| Accessory / Separate Part Type | Connector |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Intrinsically safe I/O module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | 140AII33000 140DII33000 140DIO33000 140AII33010 140AIO33000 |
| Pin number | 40 pins |
| Color | Blue |
| Product Weight | 0.33 lb(US) (0.15 kg) |

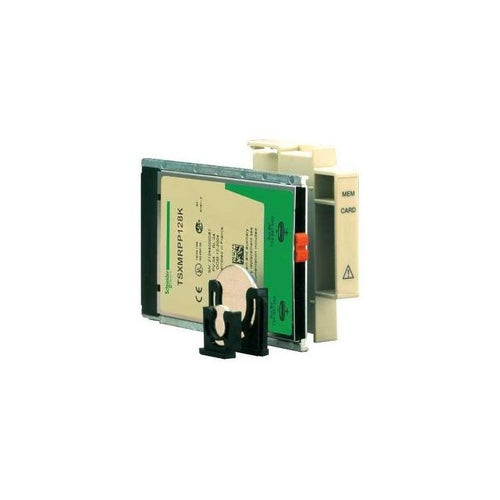

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Accessory / separate part designation | SRAM application memory extension |
| Accessory / Separate Part Type | Memory extension |
| Accessory / separate part category | Separate parts |
| Accessory / separate part destination | Processor |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | TSX570. to TSX574. TSX57C. TSXPCI572./3. |
| Memory type | SRAM |
| Memory capacity | 384 kB application |
| Slot | Slot 0 |
| Product Weight | 0.168 lb(US) (0.076 kg) |

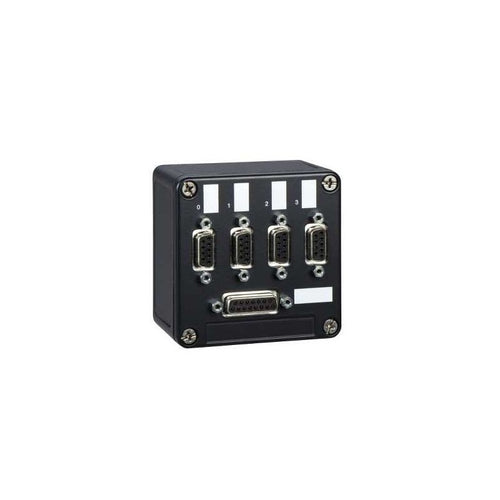

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Accessory / separate part designation | Splitter unit |
| Accessory / Separate Part Type | Splitter block |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Servo drive |
| Product Specific Application | For speed references towards servo drives |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | TSXCAY.. |
| Connector Type | SUB-D 9 |
| Product Weight | 1.30 lb(US) (0.59 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Accessory / separate part designation | SRAM application memory extension |
| Accessory / Separate Part Type | Memory extension |
| Accessory / separate part category | Separate parts |
| Accessory / separate part destination | Processor |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | TSX57C. TSXPCI572./3. TSX570. to TSX574. |
| Memory type | SRAM |
| Memory capacity | 128 kB application |
| Slot | Slot 0 |
| Product Weight | 0.168 lb(US) (0.076 kg) |
TSX Server NTP, module has RS-485 serial port

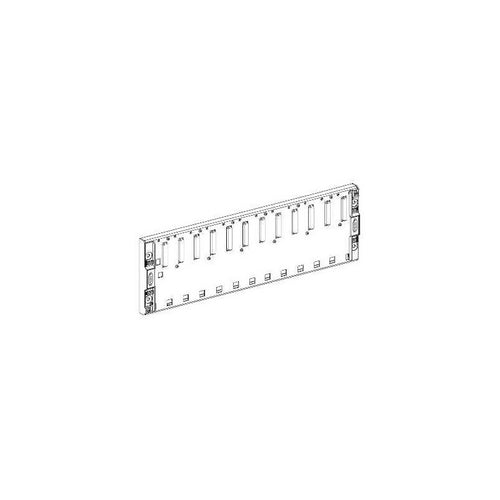

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Extendable rack |
| Product Specific Application | For multi-racks configuration |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of slots | 12 |
| Product Compatibility | Specific application module I/O module TSXPSY power supply TSXP57 processor |
| Electrical connection | 2 connectors female SUB-D 9 remote connection of bus X) |
| Fixing mode | By 4 M6 screws (panel) By clips (35 mm symmetrical DIN rail) |
| Marking | CE |
| Product Weight | 5.16 lb(US) (2.34 kg) |

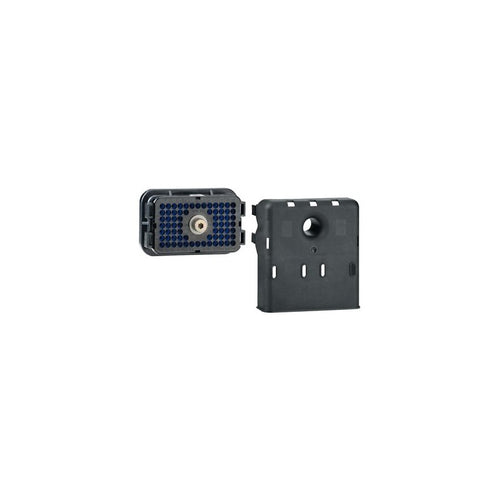

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Twido |
| Accessory / separate part category | Connection accessory |
| Accessory / Separate Part Type | Connector |
| Accessory / separate part designation | IP67 70-way connector |
| Accessory / separate part destination | Extreme base |
| Product Specific Application | For mounting with 80 pins, 80 plugs, 1 cover |
| Electrical connection | 1 connector 70 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Weight | 0.4 lb(US) (0.2 kg) |

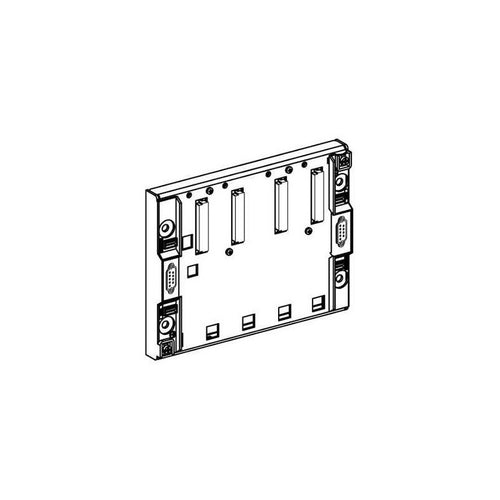

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Extendable rack |
| Product Specific Application | For multi-racks configuration |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of slots | 4 |
| Product Compatibility | Specific application module I/O module TSXP57 processor TSXPSY power supply |
| Electrical connection | 2 connectors female SUB-D 9 remote connection of bus X) |
| Fixing mode | By 4 M6 screws (panel) By clips (35 mm symmetrical DIN rail) |
| Marking | CE |
| Product Weight | 2.56 lb(US) (1.16 kg) |

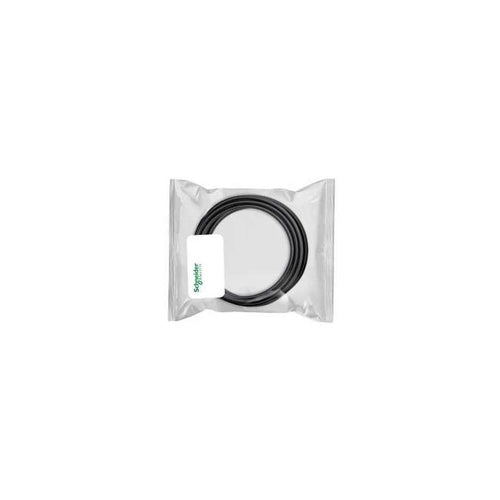

RS232 connecting cable with 25-way male adaptor for DCE terminal port - 3 m
