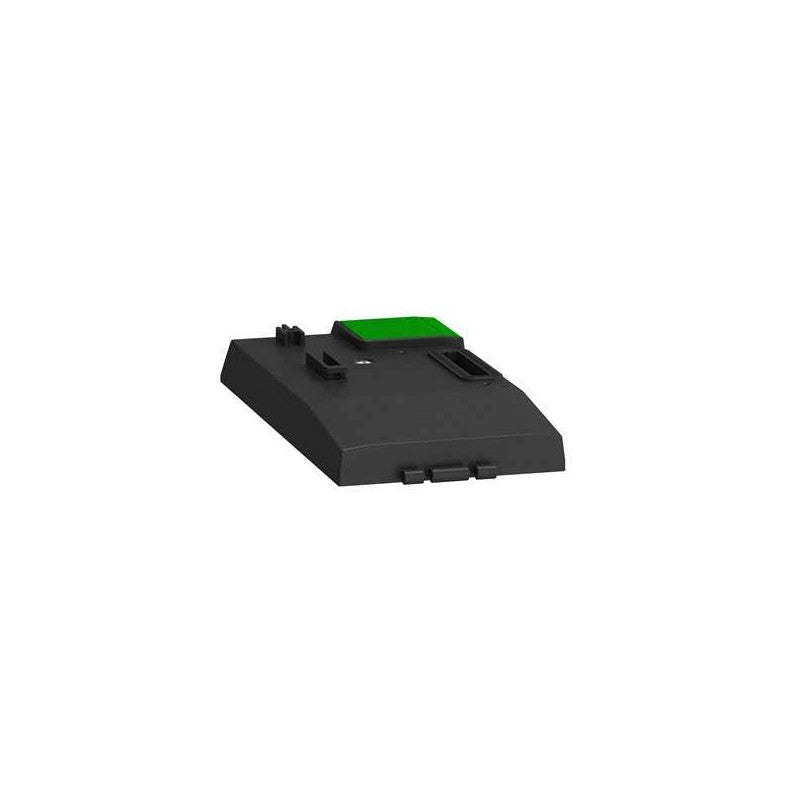

This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW. This control unit provides 2 safety discrete inputs, 4 logic discrete inputs and 2 positive or negative logic outputs. It is easy to integrate and maintain. It is furnished with RJ45 connectors for Modbus, M12 for EtherCAT. It is a control unit with a discrete input voltage of 24V DC and a discrete output voltage of 30V DC. Signals are controlled by servo motor encoder feedback. It is an IP65 rated product. It weighs 0.637kg. It is suitable for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is certified by CE, TUV, CSA, RoHS and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. With servo motor and servo drive integrated in one housing, the Lexium 32i is designed for application areas requiring high precision and advanced motor control.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Lexium 32i |
| Product or Component Type | Control unit |
| Device short name | LXM32i |
| Format of the drive | Board |
| Discrete input number | 2 safety 4 logic |
| Discrete input type | Safety compliment of STO_A, compliment of STO_B Logic DI |
Complementary
| Characteristic | Value(s) |
|---|---|
| Sampling duration | DI 0.25 ms discrete |
| Discrete input voltage | 24 V DC capture 24 V DC logic 24 V DC safety |
| Discrete input logic | Positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V IEC 61131-2 Type 1 Positive DI)> 19 V < 9 V IEC 61131-2 Type 1 Positive or negative DI)< 5 V > 15 V IEC 61131-2 Type 1 |
| Response time | <= 5 ms compliment of STO_A, compliment of STO_B |
| Discrete output number | 2 |
| Discrete output type | Logic DO)24 V DC |
| Discrete output voltage | <= 30 V DC |
| Discrete output logic | Positive or negative DO)IEC 61131-2 |
| Contact bounce time | <= 1 ms compliment of STO_A, compliment of STO_B 0.25 µs...1.5 ms DI |
| Braking current | 50 mA |
| Response time on output | 250 µs DO)discrete |
| Control signal type | Servo motor encoder feedback |
| Protection type | Against reverse polarity inputs signal Against short-circuits outputs signal |
| Safety function | Safe torque off safety function, Integrated |
| Safety level | SIL 3 IEC 61508 PL = e ISO 13849-1 |
| Communication interface | EtherCAT, Integrated |
| Connector type | RJ45 Modbus M12 EtherCAT |
| Method of access | Slave |
| Physical interface | 2-wire RS485 multidrop Modbus |
| Transmission rate | 9600, 19200, 38400 bps 0.0000000000â¦131.2 ft (0â¦40 m) Modbus |
| Number of addresses | 1â¦127 CANopen, CANmotion 1â¦247 Modbus |
| Status LED | 1 LED (Red) servo drive voltage 1 LED error 1 LED RUN |
| Electromagnetic compatibility | Conducted EMC conforming to EN 55011 class A group 1 Conducted EMC conforming to EN 55011 class A group 2 Conducted EMC conforming to EN/IEC 61800-3 environment 2 category C3 Conducted EMC conforming to IEC/EN 61800-3 category C2 EMC immunity conforming to IEC/EN 61800-3 environments 1 and 2 EMC immunity level 3 conforming to IEC 61000-4-2 EMC immunity level 3 conforming to IEC 61000-4-3 EMC immunity level 3 conforming to IEC 61000-4-5 EMC immunity level 4 conforming to IEC 61000-4-4 Radiated EMC conforming to EN 55011 class A group 2 Radiated EMC conforming to IEC/EN 61800-3 category C3 |
| type of cooling | Natural convection |
| Operating altitude | <= 3280.84 ft (1000 m) without derating > 3280.84...9842.52 ft (> 1000...3000 m) with conditions |
| Operating position | Vertical +/- 10 degree |
| Product Weight | 1.404 lb(US) (0.637 kg) |
