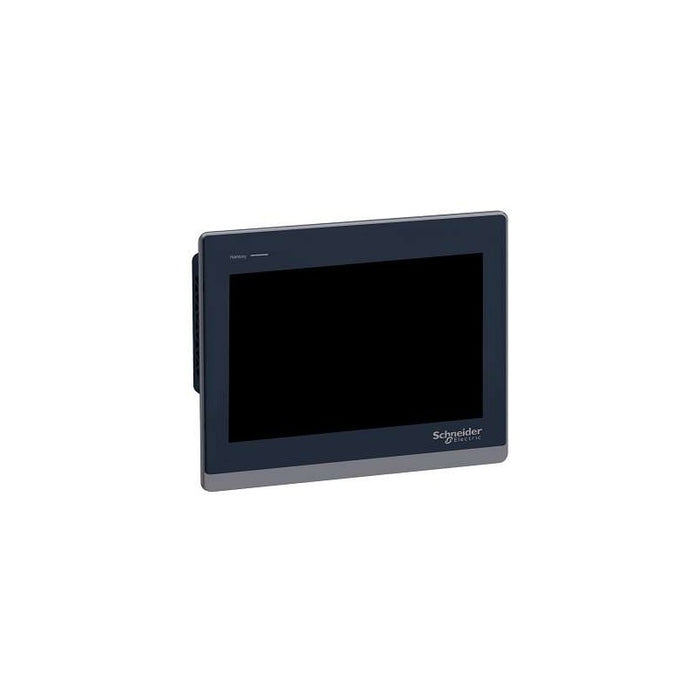

This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 10.1 inch wide with 16 million colors and 1024 x 600 pixel resolution (SVGA). It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 273mm (width) x 203mm (height) x 47mm (depth) and weighs 1.30Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony ST6 |
| Product or Component Type | Touch panel screen |
| Software package | EcoStruxure Operator Terminal Expert |
| Processor name | ARM Cortex-A8 |
| Processor frequency | 800 MHz |
| Memory description | 1 GB device memory 512 KB backup memory 128 MB user data memory |
Complementary
| Characteristic | Value(s) |
|---|---|
| Display size | 10 inch |
| Display Type | Colour TFT LCD |
| Display colour | 16 million colours |
| Display Resolution | 1024 x 600 pixels WSVGA |
| Touch panel | Single touch analogue resistive |
| Backlight lifespan | 50000 hours white |
| Brightness | 16 levels |
| Character font | ASCII ASCII (European characters) Chinese (simplified Chinese) Japanese (ANK, Kanji) Katakana Korean Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC +/- 20 %) |
| Power Consumption in W | 12.6 W |
| Inrush current | 30 A |
| Local signalling | Status LED green, steady offline Status LED green, steady operating Status LED green, flashing operating Status LED green, faded stand-by Status LED orange, flashing software starting up Status LED red, steady power supply (ON) Status LED red, flashing operating Status LED red, off power supply (OFF) |
| Number of pages | 200 application pages |
| Port Ethernet | 10/100BASE |
| Integrated connection type | 1 COM1 serial link - 1 SUB-D 9-pin female - RS232C 2400...115200 bps)bottom 1 COM2 serial link - female RJ45 - RS485 2400...115200 bps)back COM2 serial link 2400...187500 bps)back 1 USB 2.0 type Abottom 1 USB 2.0 type micro B 2 Ethernet |
| Supply | External supply |
| Realtime clock | Built-in 0...50 °C Built-in 10...90 % RH |
| Downloadable protocols | Modbus Uni-TE Third party protocols |
| Product brand | Schneider Electric Modicon Mitsubishi Melsec Omron Sysmac Rockwell Automation Allen-Bradley Siemens Simatic |
| Fixing mode | By 4 screws 1.6...5 mm thick panel UL 61010-2-201 By 4 screws IEC 61131-2 By 4 screws IEC 61000-6-2 |
| Enclosure Material | PC |
| Front material | Aluminium |
| Marking | CE |
| Cut-out dimensions | 255 x 185 mm panel cut dimension |
| Height | 8.0 in (203 mm) |
| Width | 10.7 in (273 mm) |
| Depth | 1.9 in (47 mm) |
| Product Weight | 2.9 lb(US) (1.3 kg) |
