Main
| Characteristic | Value(s) |
|---|---|

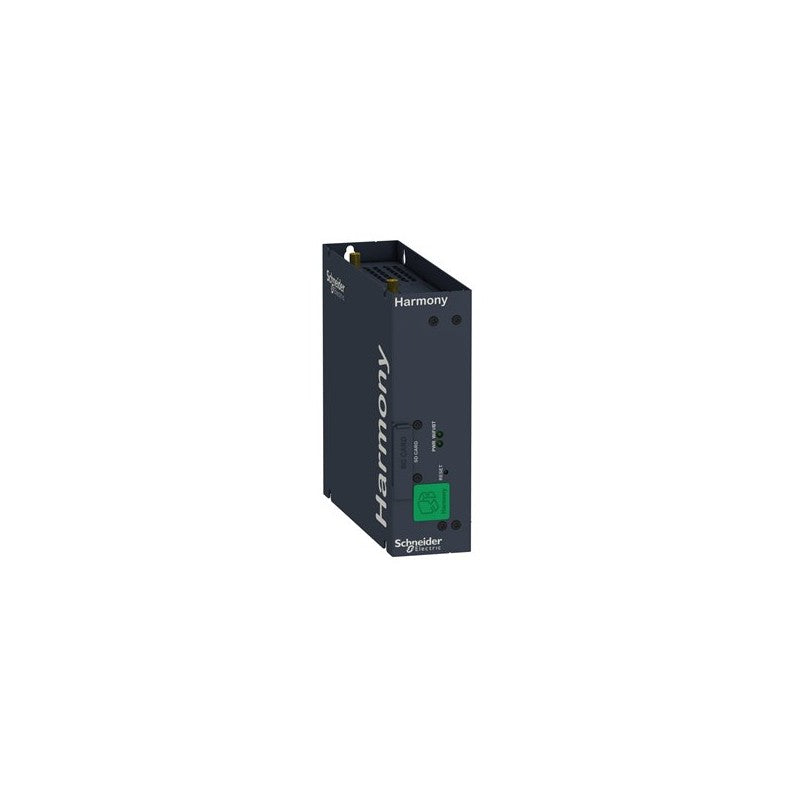

| Range of Product | Harmony iPC |
| Device short name | IIoT Edge Box Core |
| Product or Component Type | IIoT Edge Box Core |
| Range Compatibility | HMIYMIN4GUS1 Interface Mini PCIe 4G US for iPC HMIYMIN4GEU1 Interface Mini PCIe 4G EU for iPC HMIYMIN8AI1 Interface Mini PCIe 8x Analog Input 0-10V HMIYBIN2AIM21 Interface M.2 2x Analog Input 0-10V/4-20mA |
| Accessory / separate part destination | Celullar 4G and analog Inputs |
| Software package | Node-RED and system nodes default IIoT Wiring |
Complementary
| Characteristic | Value(s) |
|---|---|
| Mounting Location | Book mounting Flat mounting Wall mounting |
| Memory description | 1 GB RAM LPDDR3 internal not expandable) |
| Free slots | 1 SD card SD 3.0, max raw transfer rate 104 MBps Supports SD,SDHC,SDXC (Standard 32 mm x 24 mm) |
| Number of slots available for expansion | 1.0 mini PCIe 1.0 M.2 (not for storage) |
| Display resolution | 1920 x 1080 pixels at 60 Hz |
| Watchdog timer | 1â¦255 ms |
| Electrical connection | Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom Connector, connector type: SMA - location: top |
| Cyber secured boot | Secure password boot |
| Connector type | 1.0 GPIO Pin, 8 pins bottom(Software utility provided) |
| [Us] rated supply voltage | 24 V DC power supply 100...240 V AC power supply |
| Supply voltage limits | 12â¦24 V |
| Control type | Resettable |
| Communication network type | 1.0 WCN3620 Wi-Fi 2.4 GHz conforming to IEEE 802.11 b/g/n 1.0 WCN3620 Bluetooth 4.1 |
| Main type | IIoT Edge Box Core |
| Number of slots | 1 slot(s) for mini PCI Express full-size with optional interface plate, 1 slot(s) for M.2 not for storage, |
| Type of cooling | Fanless |
| Inrush current | 0.43 A |
| Width | 6.2 in (157 mm) |
| Height | 5.9 in (150 mm) |
| Product Weight | 2.2 lb(US) (1 kg) |
