Main
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Lexium 28 |
| Device short name | BCH2 |

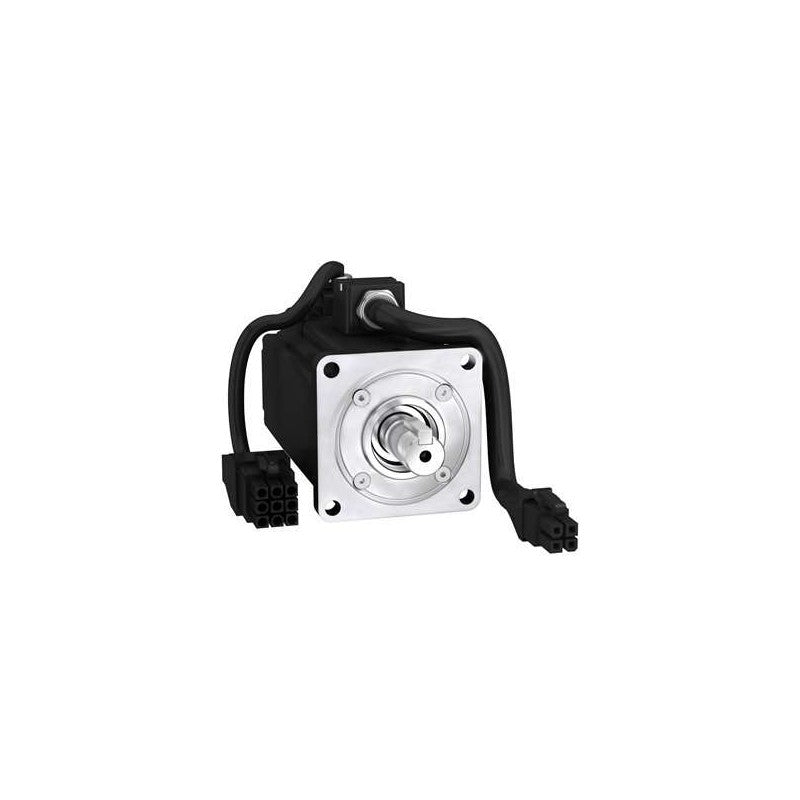

| Product or Component Type | Servo motor |
Complementary
| Characteristic | Value(s) |
|---|---|
| Maximum mechanical speed | 5000 rpm |
| [Us] rated supply voltage | 220 V 110 V |
| Phase | Three phase Single phase |
| Continuous stall current | 1.11 A |
| Continuous stall torque | 5.66 lbf.in (0.64 N.m) LXM26D 1.5 A, 220 V, single phase 5.66 lbf.in (0.64 N.m) LXM26D 1.5 A, 220 V, three phase 5.66 lbf.in (0.64 N.m) LXM28 1.5 A, 220 V, single phase 5.66 lbf.in (0.64 N.m) LXM28 1.5 A, 220 V, three phase 5.66 lbf.in (0.64 N.m) LXM28 3.6 A, 110 V, single phase |
| Continuous power | 200 W |
| Peak stall torque | 16.99 lbf.in (1.92 N.m) LXM26D 1.5 A, 220 V, single phase 16.99 lbf.in (1.92 N.m) LXM26D 1.5 A, 220 V, three phase 16.99 lbf.in (1.92 N.m) LXM28... 1.5 A, 220 V, single phase 16.99 lbf.in (1.92 N.m) LXM28... 1.5 A, 220 V, three phase 16.99 lbf.in (1.92 N.m) LXM28... 3.6 A, 110 V, single phase |
| Nominal output power | 200 W LXM26D 1.5 A, 220 V, single phase 200 W LXM26D 1.5 A, 220 V, three phase 200 W LXM28... 1.5 A, 220 V, single phase 200 W LXM28... 1.5 A, 220 V, three phase 200 W LXM28... 3.6 A, 110 V, single phase |
| Nominal torque | 5.66 lbf.in (0.64 N.m) LXM26D 1.5 A, 220 V, single phase 5.66 lbf.in (0.64 N.m) LXM26D 1.5 A, 220 V, three phase 5.66 lbf.in (0.64 N.m) LXM28... 1.5 A, 220 V, single phase 5.66 lbf.in (0.64 N.m) LXM28... 1.5 A, 220 V, three phase 5.66 lbf.in (0.64 N.m) LXM28... 3.6 A, 110 V, single phase |
| Nominal speed | 3000 rpm LXM26D 1.5 A, 220 V, single phase 3000 rpm LXM26D 1.5 A, 220 V, three phase 3000 rpm LXM28... 1.5 A, 220 V, single phase 3000 rpm LXM28... 1.5 A, 220 V, three phase 3000 rpm LXM28... 3.6 A, 110 V, single phase |
| Maximum current Irms | 4.31 A LXM28... 0.2 kW, 220 V 4.31 A LXM28... 0.2 kW, 110 V |
| Maximum permanent current | 1.3 A |
| Product compatibility | LXM26D servo drive 0.2 kW, 220 V, single phase LXM26D servo drive 0.2 kW, 220 V, three phase LXM28... servo drive 0.2 kW, 220 V, single phase LXM28... servo drive 0.2 kW, 220 V, three phase LXM28... servo drive 0.2 kW, 110 V, single phase |
| Shaft end | Keyed |
| Shaft diameter | 0.6 in (14 mm) |
| Shaft length | 1.2 in (30 mm) |
| key width | 0.2 in (5 mm) |
| Feedback type | 20 bits single turn absolute encoder |
| Holding brake | With |
| Holding torque | 11.5 lbf.in (1.3 N.m) built-in |
| Mounting Support | Asian standard flange |
| Motor flange size | 2.4 in (60 mm) |
| Electrical connection | Free lead |
| Torque constant | 0.58 N.m/A 68 °F (20 °C) |
| Back emf constant | 35 V/krpm 68 °F (20 °C) |
| Number of motor poles | 4.0 |
| Rotor inertia | 0.17 kg.cm² |
| Stator resistance | 12.2 Ohm 68 °F (20 °C) |
| Stator inductance | 22.68 mH 68 °F (20 °C) |
| Stator electrical time constant | 1.84 ms 68 °F (20 °C) |
| Maximum radial force Fr | 200 N 3000 rpm |
| Maximum axial force Fa | 70 N |
| Brake pull-in power | 11.2 W |
| type of cooling | Natural convection |
| Length | 5.5 in (140 mm) |
| Number of motor stacks | 1 |
| Centring collar diameter | 2.0 in (50 mm) |
| centring collar depth | 0.2 in (5.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Circle diameter of the mounting holes | 2.8 in (70 mm) |
| Distance shaft shoulder-flange | 0.2 in (5.5 mm) |
| Product Weight | 3.3 lb(US) (1.5 kg) |
| Sizing reference | BCH2 |
| Network number of phases | 1 |
| Accuracy error [angular] | 0.044 ° |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
