ABB Stock Image
ABB 1SAP450700R0001 ABB
€1.468,95
Only 8 units left
Buy the ABB 1SAP450700R0001 - a genuine ABB industrial automation component engineered for reliable performance in demanding manufacturing and process control environments. The ABB 1SAP450700R0001 is a direct drop-in replacement for existing installations and ships ready for integration.
1SAP507100R0001 ABB - CP607
ABB 1SAP507100R0001 ABB - CP607
€3.127,95
Only 4 units left

Ordering

CN8:
85371091
Invoice Description:
Control panel. 7" TFT touch screen, 64 K colors, 800x480 pixel (CP607)
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Selling Unit of Measure:
piece

Dimensions

Product Net Weight:
0.5 kg
Product Net Depth / Length:
34 mm
Product Net Height:
147 mm
Product Net Width:
187 mm
Gross Weight:
0.875 kg
Package Level 1 Depth / Length:
241 mm
Package Level 1 Height:
97 mm
Package Level 1 Width:
202 mm
Package Level 1 Units:
1 carton

Certificates and Declarations

REACH Date:
20241206
REACH Information:
True - contains substances > 0.1 mass percentage
RoHS Date:
2016
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function:
7" TFT touch screen, 64 K colors, 800x480 pixel
Screen Size:
7 in
Screen Color:
65536 Colors
Screen Resolution:
800 x 480 pixel
Display Type:
TFT Resistive Touch
Number of Hardware Interfaces:
Industrial Ethernet 1
Other 1
Parallel 0
RS-232 0
RS-422 0
RS-485 0
Serial TTY 0
USB 1
Wireless 0
PROFINET 0
Industrial Ethernet 1
Other 1
Parallel 0
RS-232 0
RS-422 0
RS-485 0
Serial TTY 0
USB 1
Wireless 0
PROFINET 0
Memory Size:
60000 kB
Security:
50
Input Voltage Type:
DC
Degree of Protection:
Front IP66
Supply Voltage:
18 … 32 V DC
Built-In Depth (t2):
29 mm
Ambient Air Temperature:
Operation 0 … 50 °C

Additional Information

Product Main Type:
CP607
Product Name:
Control Panels

External Classifications and Standards

eClass:
27-33-02-01
ETIM 8:
EC001412 - Graphic panel
ETIM 9:
EC001412 - Graphic panel
ETIM 10:
EC001412 - Graphic panel
UNSPSC:
32151703

Environmental

SCIP:
7b71da1c-daad-4973-9735-361608bd383d Germany
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
ABB Stock Image
ABB 1SAP535100R0001 ABB
€1.276,95
Only 1 unit left
ABB New Stock Image
ABB 1SAP540710R0001 ABB
€660,95
Only 5 units left

Ordering

CN8:
85371091
Invoice Description:
Control panel. 7" TFT touch screen, 64 K colors, 800 x 480 pixel, Chromium Browser (CP6407)
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Selling Unit of Measure:
piece

Dimensions

Product Net Weight:
0.92 kg
Product Net Depth / Length:
42 mm
Product Net Height:
147 mm
Product Net Width:
187 mm
Gross Weight:
1.425 kg
Package Level 1 Depth / Length:
280 mm
Package Level 1 Height:
120 mm
Package Level 1 Width:
210 mm
Package Level 1 Units:
1 carton

Certificates and Declarations

Declaration of Conformity - CE:
REACH Date:
20241206
REACH Information:
True - contains substances > 0.1 mass percentage
RoHS Date:
2020
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function:
7" TFT touch screen, 64 K colors, 800 x 480 pixel, Chromium Browser
Screen Size:
7 in
Screen Color:
65536 Colors
Screen Resolution:
800 x 480 pixel
Display Type:
TFT Resistive Touch
Number of Hardware Interfaces:
Industrial Ethernet 2
Other 1
Parallel 0
RS-232 0
RS-422 0
RS-485 0
Serial TTY 0
USB 2
Wireless 0
PROFINET 0
Industrial Ethernet 2
Other 1
Parallel 0
RS-232 0
RS-422 0
RS-485 0
Serial TTY 0
USB 2
Wireless 0
PROFINET 0
Memory Size:
150000 kB
Security:
50
Input Voltage Type:
DC
Degree of Protection:
Front IP66
Supply Voltage:
18 … 32 V DC
Built-In Depth (t2):
40 mm
Ambient Air Temperature:
Operation -20 … +60 °C

Additional Information

Product Main Type:
CP6407
Product Name:
Control Panels

External Classifications and Standards

eClass:
27-33-02-01
ETIM 8:
EC001412 - Graphic panel
ETIM 9:
EC001412 - Graphic panel
ETIM 10:
EC001412 - Graphic panel
UNSPSC:
32151703

Environmental

SCIP:
c7c823eb-2719-4c07-9f93-6867edb4cb5a Germany
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
1SAP550100R0001 ABB 1SAP550100R0001 ABB
ABB 1SAP550100R0001 ABB
€4.080,95
Only 3 units left

Control Panel 10.4" TFT touch screen, 64 K colors, 800 x 600 pixel, PB610 runtime license
ABB Stock Image
ABB 1SAP550200R0001 ABB
€1.631,95
Only 2 units left

PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
ABB Stock Image
ABB 1SAP551100R0001 ABB
€4.603,95
Only 3 units left
1SAP561100R0001 ABB - CP661
ABB 1SAP561100R0001 ABB - CP661
€3.682,95
Only 1 unit left

Additional Information

ABB Type Designation:
CP661
Ambient Air Temperature:
Operation 0 ... +50 °C
Storage -20 ... +70 °C
Operation 0 ... +50 °C
Storage -20 ... +70 °C
CN8:
85371091
Communication Interface:
2x Ethernet 10/100Mbit
1x RS-232/-422/-485
2x USB 2.0 Host
1x SD-card slot
2x Expansion slot
2x Ethernet 10/100Mbit
1x RS-232/-422/-485
2x USB 2.0 Host
1x SD-card slot
2x Expansion slot
Country or Territory of Origin:
Italy
Germany
Italy
Germany
Customs Tariff Number:
85371091
Degree of Protection:
acc. to IEC 60529 Front IP66
acc. to IEC 60529 Housing IP20
acc. to IEC 60529 Front IP66
acc. to IEC 60529 Housing IP20
EAN:
4013614493133
Frame Size:
Undefined
GL Certificate:
Gross Weight:
3.031 kg
Housing Material:
Front side: Aluminium
Reverse side: Aluminium
Front side: Aluminium
Reverse side: Aluminium
Invoice Description:
CP661 Control Panel 12.1" TFT touch scre
Made To Order:
No
Memory Size User Data:
256 MB
Memory Size User Program:
256 MB
Memory Type User Data:
Flash Disk
Memory Type User Program:
DDR RAM
Minimum Order Quantity:
1 piece
Mounting Type:
Front face
Order Multiple:
1 piece
Package Level 1 Depth / Length:
420 mm
Package Level 1 Height:
140 mm
Package Level 1 Units:
1 carton
Package Level 1 Width:
340 mm
Power Consumption (@Pcons):
25 W
Power Supply:
24 (18 ... 30) V DC
Product Main Type:
CP661
Product Name:
Control Panels
Product Net Depth / Length:
60 mm
Product Net Height:
267 mm
Product Net Weight:
2.65 kg
Product Net Width:
336 mm
Product Type:
PLC-CP600
Programming Software:
PB610 Panel Builder 600
Quote Only:
No
Real-time Clock:
Hardware clock, battery back-up
Replaced Product ID (OLD):
SCIP:
437c1011-b061-4596-ac17-6e05d15fd335 Germany
Screen Color:
64k colors
Screen Resolution:
800 x 600 pixel
Screen Size:
4:3 screen 12.1 in
Screen Type:
TFT color, LED backlight, touch screen
Security:
Password protection with 8 user levels
Selling Unit of Measure:
piece
Serial Port 1 Type:
RS232/RS422/RS485
Service Life:
40000 hour
Short Description:
CP661 Control Panel 12.1" TFT touch screen
Stocked At (Warehouses):
Menden, Germany
Hangzhou, China
Bairro Santo Antonio, Brazil
Menden, Germany
Hangzhou, China
Bairro Santo Antonio, Brazil
UNSPSC:
32151703
USB Port 1 Type:
Host, version 2.0
USB Port 2 Type:
Host, version 2.0
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
27-33-02-01
ABB New Stock Image
ABB 1SAP576100R0001 ABB
€2.676,95
In stock, 11 units

Additional Information

ABB Type Designation:
CP676
Ambient Air Temperature:
Operation 0 ... +50 °C
Storage -20 ... +70 °C
Operation 0 ... +50 °C
Storage -20 ... +70 °C
CN8:
85371091
Communication Interface:
2x Ethernet 10/100Mbit
1x RS-232/-422/-485
2x USB 2.0 Host
1x SD-card slot
2x Expansion slot
2x Ethernet 10/100Mbit
1x RS-232/-422/-485
2x USB 2.0 Host
1x SD-card slot
2x Expansion slot
Country or Territory of Origin:
Italy
Germany
Italy
Germany
Customs Tariff Number:
85371091
Degree of Protection:
acc. to IEC 60529 Front IP66
acc. to IEC 60529 Housing IP20
acc. to IEC 60529 Front IP66
acc. to IEC 60529 Housing IP20
EAN:
4013614493171
Frame Size:
Undefined
GL Certificate:
Gross Weight:
4.9 kg
Housing Material:
Front side: Aluminium
Reverse side: Aluminium
Front side: Aluminium
Reverse side: Aluminium
Invoice Description:
CP676 Control Panel 15" TFT touch screen
Made To Order:
No
Memory Size User Data:
256 MB
Memory Size User Program:
256 MB
Memory Type User Data:
Flash Disk
Memory Type User Program:
DDR RAM
Minimum Order Quantity:
1 piece
Mounting Type:
Front face
Order Multiple:
1 piece
Package Level 1 Depth / Length:
510 mm
Package Level 1 Height:
145 mm
Package Level 1 Units:
1 carton
Package Level 1 Width:
410 mm
Power Consumption (@Pcons):
34 W
Power Supply:
24 (18 ... 30) V DC
Product Main Type:
CP676
Product Name:
Control Panels
Product Net Depth / Length:
64 mm
Product Net Height:
307 mm
Product Net Weight:
3.3 kg
Product Net Width:
392 mm
Product Type:
PLC-CP600
Programming Software:
PB610 Panel Builder 600
Quote Only:
No
Real-time Clock:
Hardware clock, battery back-up
Replaced Product ID (OLD):
SCIP:
8ed3b3fc-07b0-437a-89a8-26d502a64d2c Germany
Screen Color:
64k colors
Screen Resolution:
1024 x 768 pixel
Screen Size:
4:3 screen 15 in
Screen Type:
TFT color, LED backlight, touch screen
Security:
Password protection with 8 user levels
Selling Unit of Measure:
piece
Serial Port 1 Type:
RS232/RS422/RS485
Service Life:
40000 hour
Short Description:
CP676 Control Panel 15" TFT touch screen
Stocked At (Warehouses):
Menden, Germany
Hangzhou, China
Bairro Santo Antonio, Brazil
Menden, Germany
Hangzhou, China
Bairro Santo Antonio, Brazil
UNSPSC:
32151703
USB Port 1 Type:
Host, version 2.0
USB Port 2 Type:
Host, version 2.0
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
27-33-02-01
ABB Stock Image
ABB 1SAP800300R0010 ABB
€592,95
Only 1 unit left

PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
ABB Stock Image
ABB 1SAR111045R8607 ABB
€347,95
Only 1 unit left

PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.

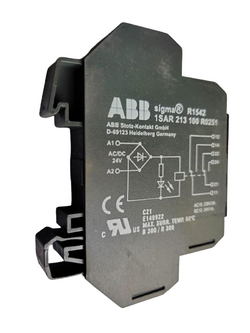

1SAR213100R0251 ABB - R1542
ABB 1SAR213100R0251 ABB - R1542
€0,00
Sold Out

R1542 - RELAY ABB SIGMA MODULE COUPLING 1SAR213100R0251
ABB Stock Image
ABB 1SAR501032R0004 ABB
€486,95
Only 3 units left

PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
1SAR503041R0003 ABB - C574
ABB 1SAR503041R0003 ABB - C574
€0,00
Sold Out

SAFETY RELAY E STOP W/DOOR 24VDC. - C574 E-STOP DOOR MON TD 24VDC
ABB Stock Image
ABB 1SAR543320R0003 ABB
€449,95
Only 1 unit left

PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
1SAR700110R0010 ABB - C513-W
ABB 1SAR700110R0010 ABB - C513-W
€0,00
Sold Out

TEMPERATURE RELAY, C513-W, -50 TO 500 C, OVER AND UNDER TEMP MONITORING, 2X C/O CONTACTS, 1X N/O CONTACT
1SAT125000R1011 ABB HF2.4-ROL-24VDC
ABB 1SAT125000R1011 ABB HF2.4-ROL-24VDC
€0,00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371098
Product Main Type:
HF
Product Name:
Electronic Starter

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
99 mm
Product Net Depth / Length:
114.5 mm
Product Net Weight:
0.219 kg

Technical

Standards:
IEC/EN 60947-1
IEC/EN 60947-4-2
UL 60947-1
UL 60947-4-2
IEC/EN 60947-1
IEC/EN 60947-4-2
UL 60947-1
UL 60947-4-2
Function:
Reversed-on-line starter with overload protection
Utilization:
Motor Protection
Rated Operational Voltage:
Main Circuit 500 V AC
Operational Voltage:
Maximum 550 V AC
Minimum 42 V AC
Maximum 550 V AC
Minimum 42 V AC
Rated Frequency (f):
Main Circuit 50 Hz
Main Circuit 60 Hz
Main Circuit 50 Hz
Main Circuit 60 Hz
Rated Control Supply Voltage (Us):
24 V DC
Rated Input Voltage (UIN):
Switching Threshold at Signal <0> -3 ... 9.6 V
Switching Threshold at Signal <1> 19.2 ... 30 V
Switching Threshold at Signal <0> -3 ... 9.6 V
Switching Threshold at Signal <1> 19.2 ... 30 V
Rated Impulse Withstand Voltage (Uimp):
Main Circuit 6 kV
Rated Insulation Voltage (Ui):
500 V
Rated Operational Current AC-51 (Ie):
2.4 A
Rated Operational Current AC-53a (Ie):
2.4 A
Rated Control Supply Current (Is):
0.04 A
Rated Uninterrupted Current (Iu):
2.4 A
Input Current:
0.003 A
Switching Frequency:
≤ 2 Hz
120 starts/min
7200 starts/h
≤ 2 Hz
120 starts/min
7200 starts/h
Rated Operational Power AC-53a (Pe):
0.75 kW
Overvoltage Category:
III
Overload Protection:
Electronic overload protection
Setting Range:
0.18 ... 2.4 A
Trip Class:
class 10A
Number of Poles:
3P
Power Loss:
Maximum 3.3 W
Minimum 1.1 W
Maximum 3.3 W
Minimum 1.1 W
Number of Protected Poles:
3
Mechanical Durability:
Nr. Operations 10000 cycle
Electrical Durability:
30000000 cycle
Delay Time (τ):
Off, Maximum, Switched Off via Supply Voltage 500 ms
Off, Typical, Switched Off via Control Input Voltage 30 ms
Off, Typical, Switched Off via Supply Voltage 25 ms
Off, Maximum, Switched Off with Pushbutton 3 second [unit of time]
Off, Minimum, Switched Off with Pushbutton 0.5 second [unit of time]
Off, Maximum, Switched Off via Supply Voltage 500 ms
Off, Typical, Switched Off via Control Input Voltage 30 ms
Off, Typical, Switched Off via Supply Voltage 25 ms
Off, Maximum, Switched Off with Pushbutton 3 second [unit of time]
Off, Minimum, Switched Off with Pushbutton 0.5 second [unit of time]
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
1
Connecting Capacity Control Circuit:
Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1x 0.5 ... 4 mm²
Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1x 0.5 ... 4 mm²
Connecting Capacity Main Circuit:
Flexible with Ferrule 1x 2 ... 2.5 mm²
Flexible 1x 2 ... 2.5 mm²
Rigid 1x 2 ... 2.5 mm²
Flexible with Ferrule 1x 2 ... 2.5 mm²
Flexible 1x 2 ... 2.5 mm²
Rigid 1x 2 ... 2.5 mm²
Recommended Screw Driver:
Control Circuit M3
Main Circuit M3
Control Circuit M3
Main Circuit M3
Terminal Type:
Screw Terminals
Tightening Torque:
Control Circuit 0.5 ... 0.6 N·m
Main Circuit 0.5 ... 0.6 N·m
Control Circuit 0.5 ... 0.6 N·m
Main Circuit 0.5 ... 0.6 N·m
Wire Stripping Length:
Control Circuit 8 mm
Main Circuit 8 mm
Control Circuit 8 mm
Main Circuit 8 mm
Response Time:
Phase Asymmetry 33% 120 second [unit of time]
Phase Asymmetry 67% 1.8 second [unit of time]
Phase Failure 1.8 second [unit of time]
Phase Asymmetry 33% 120 second [unit of time]
Phase Asymmetry 67% 1.8 second [unit of time]
Phase Failure 1.8 second [unit of time]
Pollution Degree:
2
Phase Loss Sensitive:
Yes
Degree of Protection:
Housing IP20
Main Circuit Terminals IP20
Housing IP20
Main Circuit Terminals IP20
Short-Circuit Current Rating (SCCR):
(500 V AC, 30 A Class J or CC) 100 kA

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 500 V AC
Horsepower Rating UL/CSA:
Nominal Switching Performance Full Load (power factor = 0.4) 1.2 Hp
Nominal Switching Performance Full Load (power factor = 0.8) 2.2 Hp
Nominal Switching Performance Full Load (power factor = 0.4) 1.2 Hp
Nominal Switching Performance Full Load (power factor = 0.8) 2.2 Hp
Full Load Amps Motor Use:
2.4 A
Connecting Capacity Main Circuit UL/CSA:
Flexible with Ferrule 1x 24 ... 14 AWG
Flexible 1x 24 ... 14 AWG
Solid 1x 24 ... 14 AWG
Flexible with Ferrule 1x 24 ... 14 AWG
Flexible 1x 24 ... 14 AWG
Solid 1x 24 ... 14 AWG
Connecting Capacity Control Circuit UL/CSA:
Flexible with Ferrule 1x 24 ... 14 AWG
Flexible 16-8 AWG
Solid 1x 24 ... 14 AWG
Flexible with Ferrule 1x 24 ... 14 AWG
Flexible 16-8 AWG
Solid 1x 24 ... 14 AWG
Tightening Torque UL/CSA:
Control Circuit 5 ... 7 in·lb
Main Circuit 5 ... 7 in·lb
Control Circuit 5 ... 7 in·lb
Main Circuit 5 ... 7 in·lb

Safety Information

Mean Time to Failure (MTTF):
39.6 year

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Operation Compensated -40 ... + 80 °C
Operation -25 ... +70 °C
Operation Compensated -40 ... + 80 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
150 mm
Package Level 1 Depth / Length:
115 mm
Package Level 1 Height:
34 mm
Package Level 1 Gross Weight:
0.319 kg
Package Level 1 EAN:
4013614515552

External Classifications and Standards

Object Classification Code:
B
ETIM 9:
EC001037 - Motor starter/motor starter combination
ETIM 10:
EC001037 - Motor starter/motor starter combination
eClass:
V11.0 : 27370905
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4727 >> Motor starter controls
E-Number (Finland):
3707548
E-Number (Norway):
4102014
E-Number (Sweden):
3210496
1SAT145000R1011 ABB - HF9-ROL-24VDC
ABB 1SAT145000R1011 ABB - HF9-ROL-24VDC
€659,95
Only 2 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371098
Product Main Type:
HF
Product Name:
Electronic Starter

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
99 mm
Product Net Depth / Length:
114.5 mm
Product Net Weight:
0.218 kg

Technical

Standards:
IEC/EN 60947-1
IEC/EN 60947-4-2
UL 60947-1
UL 60947-4-2
IEC/EN 60947-1
IEC/EN 60947-4-2
UL 60947-1
UL 60947-4-2
Function:
Reversed-on-line starter with overload protection
Utilization:
Motor Protection
Rated Operational Voltage:
Main Circuit 500 V AC
Operational Voltage:
Maximum 550 V AC
Minimum 42 V AC
Maximum 550 V AC
Minimum 42 V AC
Rated Frequency (f):
Main Circuit 50 Hz
Main Circuit 60 Hz
Main Circuit 50 Hz
Main Circuit 60 Hz
Rated Control Supply Voltage (Us):
24 V DC
Rated Input Voltage (UIN):
Switching Threshold at Signal <0> -3 ... 9.6 V
Switching Threshold at Signal <1> 19.2 ... 30 V
Switching Threshold at Signal <0> -3 ... 9.6 V
Switching Threshold at Signal <1> 19.2 ... 30 V
Rated Impulse Withstand Voltage (Uimp):
Main Circuit 6 kV
Rated Insulation Voltage (Ui):
500 V
Rated Operational Current AC-51 (Ie):
9 A
Rated Operational Current AC-53a (Ie):
6.5 A
Rated Control Supply Current (Is):
0.04 A
Rated Uninterrupted Current (Iu):
9 A
Input Current:
0.003 A
Switching Frequency:
≤ 2 Hz
120 starts/min
7200 starts/h
≤ 2 Hz
120 starts/min
7200 starts/h
Rated Operational Power AC-53a (Pe):
3 kW
Overvoltage Category:
III
Overload Protection:
Electronic overload protection
Setting Range:
1.5 ... 9.0 A
Trip Class:
class 10A
Number of Poles:
3P
Power Loss:
Maximum 14.6 W
Minimum 1.1 W
Maximum 14.6 W
Minimum 1.1 W
Number of Protected Poles:
3
Mechanical Durability:
Nr. Operations 10000 cycle
Electrical Durability:
30000000 cycle
Delay Time (τ):
Off, Maximum, Switched Off via Supply Voltage 500 ms
Off, Typical, Switched Off via Control Input Voltage 30 ms
Off, Typical, Switched Off via Supply Voltage 25 ms
Off, Maximum, Switched Off with Pushbutton 3 second [unit of time]
Off, Minimum, Switched Off with Pushbutton 0.5 second [unit of time]
Off, Maximum, Switched Off via Supply Voltage 500 ms
Off, Typical, Switched Off via Control Input Voltage 30 ms
Off, Typical, Switched Off via Supply Voltage 25 ms
Off, Maximum, Switched Off with Pushbutton 3 second [unit of time]
Off, Minimum, Switched Off with Pushbutton 0.5 second [unit of time]
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
1
Connecting Capacity Control Circuit:
Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1x 0.5 ... 4 mm²
Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1x 0.5 ... 4 mm²
Connecting Capacity Main Circuit:
Flexible with Ferrule 1x 2 ... 2.5 mm²
Flexible 1x 2 ... 2.5 mm²
Rigid 1x 2 ... 2.5 mm²
Flexible with Ferrule 1x 2 ... 2.5 mm²
Flexible 1x 2 ... 2.5 mm²
Rigid 1x 2 ... 2.5 mm²
Recommended Screw Driver:
Control Circuit M3
Main Circuit M3
Control Circuit M3
Main Circuit M3
Terminal Type:
Screw Terminals
Tightening Torque:
Control Circuit 0.5 ... 0.6 N·m
Main Circuit 0.5 ... 0.6 N·m
Control Circuit 0.5 ... 0.6 N·m
Main Circuit 0.5 ... 0.6 N·m
Wire Stripping Length:
Control Circuit 8 mm
Main Circuit 8 mm
Control Circuit 8 mm
Main Circuit 8 mm
Response Time:
Phase Asymmetry 33% 120 second [unit of time]
Phase Asymmetry 67% 1.8 second [unit of time]
Phase Failure 1.8 second [unit of time]
Phase Asymmetry 33% 120 second [unit of time]
Phase Asymmetry 67% 1.8 second [unit of time]
Phase Failure 1.8 second [unit of time]
Pollution Degree:
2
Phase Loss Sensitive:
Yes
Degree of Protection:
Housing IP20
Main Circuit Terminals IP20
Housing IP20
Main Circuit Terminals IP20
Short-Circuit Current Rating (SCCR):
(500 V AC, 30 A Class J or CC) 100 kA

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 500 V AC
Horsepower Rating UL/CSA:
Nominal Switching Performance Full Load (power factor = 0.4) 3 Hp
Nominal Switching Performance Full Load (power factor = 0.8) 6.1 Hp
Nominal Switching Performance Full Load (power factor = 0.4) 3 Hp
Nominal Switching Performance Full Load (power factor = 0.8) 6.1 Hp
Full Load Amps Motor Use:
6.5 A
Connecting Capacity Main Circuit UL/CSA:
Flexible with Ferrule 1x 24 ... 14 AWG
Flexible 1x 24 ... 14 AWG
Solid 1x 24 ... 14 AWG
Flexible with Ferrule 1x 24 ... 14 AWG
Flexible 1x 24 ... 14 AWG
Solid 1x 24 ... 14 AWG
Connecting Capacity Control Circuit UL/CSA:
Flexible with Ferrule 1x 24 ... 14 AWG
Flexible 16-8 AWG
Solid 1x 24 ... 14 AWG
Flexible with Ferrule 1x 24 ... 14 AWG
Flexible 16-8 AWG
Solid 1x 24 ... 14 AWG
Tightening Torque UL/CSA:
Control Circuit 5 ... 7 in·lb
Main Circuit 5 ... 7 in·lb
Control Circuit 5 ... 7 in·lb
Main Circuit 5 ... 7 in·lb

Safety Information

Mean Time to Failure (MTTF):
39.6 year

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Operation Compensated -40 ... + 80 °C
Operation -25 ... +70 °C
Operation Compensated -40 ... + 80 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
150 mm
Package Level 1 Depth / Length:
115 mm
Package Level 1 Height:
34 mm
Package Level 1 Gross Weight:
0.318 kg
Package Level 1 EAN:
4013614515569

External Classifications and Standards

Object Classification Code:
B
ETIM 9:
EC001037 - Motor starter/motor starter combination
ETIM 10:
EC001037 - Motor starter/motor starter combination
eClass:
V11.0 : 27370905
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4727 >> Motor starter controls
E-Number (Finland):
3707549
E-Number (Norway):
4102015
E-Number (Sweden):
3210497
1SAX101110R0001 ABB - DB16E
ABB 1SAX101110R0001 ABB - DB16E
€0,00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Popular Downloads

Dimensions

Product Net Width:
44.3 mm
Product Net Height:
91 mm
Product Net Depth / Length:
65.2 mm
Product Net Weight:
0.035 kg

Technical

Suitable For:
E16DU
Standards:
CSA 22.2 No. 14
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 508
CSA 22.2 No. 14
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 508

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -25 ... +70 °C
Operation -25 ... +70 °C
Storage -25 ... +70 °C
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
99 mm
Package Level 1 Height:
82 mm
Package Level 1 Depth / Length:
48 mm
Package Level 1 Gross Weight:
0.055 kg
Package Level 1 EAN:
4013614332814
Package Level 2 Units:
48 piece
Package Level 2 Width:
288 mm
Package Level 2 Height:
210 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Gross Weight:
3.026 kg
Package Level 2 EAN:
4013614442414

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10:
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass:
V11.0 : 27371392
UNSPSC:
31162313
IDEA Granular Category Code (IGCC):
2988 >> Mounting kits
E-Number (Finland):
3850489
E-Number (Norway):
4116996
1SAX101910R1001 ABB - DB19EF
ABB 1SAX101910R1001 ABB - DB19EF
€116,95
Only 9 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Popular Downloads

Dimensions

Product Net Width:
45 mm
Product Net Height:
103.5 mm
Product Net Depth / Length:
67.3 mm
Product Net Weight:
0.046 kg

Technical

Rated Operational Voltage:
Auxiliary Circuit 600 V AC/DC
Main Circuit 690 V AC
Auxiliary Circuit 600 V AC/DC
Main Circuit 690 V AC
Rated Operational Current (Ie):
18.9 A
Rated Operational Current AC-3 (Ie):
18.9 A
Rated Frequency (f):
Main Circuit 50 Hz
Main Circuit 60 Hz
Main Circuit 50 Hz
Main Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp):
Main Circuit 6 kV
Rated Insulation Voltage (Ui):
690 V
Number of Poles:
3P
Number of Protected Poles:
3
Pollution Degree:
3
Connecting Capacity Main Circuit:
Flexible with Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible 1x 0.75 ... 2.5 mm²
Rigid 1x 1 ... 4 mm²
Flexible with Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible 1x 0.75 ... 2.5 mm²
Rigid 1x 1 ... 4 mm²
Tightening Torque:
Main Circuit 0.8 ... 1.5 N·m
Wire Stripping Length:
Main Circuit 12 mm
Recommended Screw Driver:
Pozidriv 2
Suitable For:
EF19
Standards:
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Connecting Capacity Main Circuit UL/CSA:
Flexible 1/2x 18-10 AWG
Stranded 1/2x 18-10 AWG
Flexible 1/2x 18-10 AWG
Stranded 1/2x 18-10 AWG
Tightening Torque UL/CSA:
Main Circuit 7 ... 13 in·lb

Environmental

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
109 mm
Package Level 1 Height:
50 mm
Package Level 1 Depth / Length:
74 mm
Package Level 1 Gross Weight:
0.072 kg
Package Level 1 EAN:
4013614483950

External Classifications and Standards

Object Classification Code:
F
ETIM 9:
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10:
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass:
V11.0 : 27371392
UNSPSC:
31162313
IDEA Granular Category Code (IGCC):
2988 >> Mounting kits
E-Number (Finland):
3800373
E-Number (Norway):
4117837
E-Number (Sweden):
3210277
1SAX101911R1001 ABB - DRS-F-01
ABB 1SAX101911R1001 ABB - DRS-F-01
€0,00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080

Dimensions

Product Net Width:
44 mm
Product Net Height:
43 mm
Product Net Depth / Length:
60 mm
Product Net Weight:
0.077 kg

Technical

Suitable For:
TF42
TF65
TF96
EF19
EF45
EF65
EF96
EF146
EF205
EF370
EF460
EF750
EF1250
TF42
TF65
TF96
EF19
EF45
EF65
EF96
EF146
EF205
EF370

Environmental

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
65 mm
Package Level 1 Height:
51 mm
Package Level 1 Depth / Length:
49 mm
Package Level 1 Gross Weight:
0.096 kg
Package Level 1 EAN:
4013614488306

External Classifications and Standards

ETIM 9:
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10:
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass:
V11.0 : 27371392
UNSPSC:
39122221
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
1SAX101911R1004 ABB - DRS-F-04
ABB 1SAX101911R1004 ABB - DRS-F-04
€0,00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080

Dimensions

Product Net Width:
44 mm
Product Net Height:
43 mm
Product Net Depth / Length:
60 mm
Product Net Weight:
0.077 kg

Technical

Suitable For:
TF42
TF65
TF96
EF19
EF45
EF65
EF96
EF146
EF205
EF370
EF460
EF750
EF1250
TF42
TF65
TF96
EF19
EF45
EF65
EF96
EF146
EF205
EF370

Environmental

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
65 mm
Package Level 1 Height:
51 mm
Package Level 1 Depth / Length:
49 mm
Package Level 1 Gross Weight:
0.096 kg
Package Level 1 EAN:
4013614488436

External Classifications and Standards

ETIM 9:
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10:
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass:
V11.0 : 27371392
UNSPSC:
39122221
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
1SAX111001R1103 ABB - E16DU-2.7
ABB 1SAX111001R1103 ABB - E16DU-2.7
€146,95
Only 9 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Instructions and Manuals (Part 2):

Dimensions

Product Net Width:
44.4 mm
Product Net Height:
74.6 mm
Product Net Depth / Length:
57 mm
Product Net Weight:
0.15 kg

Technical

Setting Range:
0.80 ... 2.7 A
Rated Operational Voltage:
Auxiliary Circuit 600 V AC/DC
Main Circuit 690 V AC
Auxiliary Circuit 600 V AC/DC
Main Circuit 690 V AC
Rated Operational Current (Ie):
2.7 A
Rated Frequency (f):
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Main Circuit 50 Hz
Main Circuit 60 Hz
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Main Circuit 50 Hz
Main Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp):
Auxiliary Circuit 6 kV
Main Circuit 6 kV
Auxiliary Circuit 6 kV
Main Circuit 6 kV
Rated Insulation Voltage (Ui):
690 V
Number of Poles:
3P
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
1
Number of Protected Poles:
3
Conventional Free-air Thermal Current (Ith):
Auxiliary Circuit NC 6 A
Auxiliary Circuit NO 6 A
Auxiliary Circuit NC 6 A
Auxiliary Circuit NO 6 A
Rated Operational Current AC-15 (Ie):
(240 V) NC 3 A
(240 V) NO 3 A
(400 V) NC 1.1 A
(400 V) NO 1.1 A
(500 V) NC 0.72 A
(500 V) NO 0.72 A
(240 V) NC 3 A
(240 V) NO 3 A
(400 V) NC 1.1 A
(400 V) NO 1.1 A
(500 V) NC 0.72 A
(500 V) NO 0.72 A
Rated Operational Current DC-13 (Ie):
(125 V) NC 0.55 A
(125 V) NO 0.5 A
(24 V) NC 1.5 A
(24 V) NO 1.5 A
(250 V) NC 0.27 A
(250 V) NO 0.27 A
(60 V) NC 0.55 A
(60 V) NO 0.55 A
(125 V) NC 0.55 A
(125 V) NO 0.5 A
(24 V) NC 1.5 A
(24 V) NO 1.5 A
(250 V) NC 0.27 A
(250 V) NO 0.27 A
(60 V) NC 0.55 A
(60 V) NO 0.55 A
Degree of Protection:
IP20
Pollution Degree:
3
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Connecting Capacity Main Circuit:
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Tightening Torque:
Auxiliary Circuit 0.8 ... 1.2 N·m
Main Circuit 0.8 ... 1.5 N·m
Auxiliary Circuit 0.8 ... 1.2 N·m
Main Circuit 0.8 ... 1.5 N·m
Wire Stripping Length:
Auxiliary Circuit 9 mm
Main Circuit 9 mm
Auxiliary Circuit 9 mm
Main Circuit 9 mm
Recommended Screw Driver:
Auxiliary Circuit Pozidriv 2
Main Circuit Pozidriv 2
Auxiliary Circuit Pozidriv 2
Main Circuit Pozidriv 2
Mounting Position:
1 ... 6
Power Loss:
at Rated Operating Conditions per Pole 0.005 ... 0.058 W
Suitable For:
B6
B7
BC6
BC7
A09
A12
A16
AL09
AL12
AL16
VB6
VB7
VBC6
VBC7
B6
B7
BC6
BC7
A09
A12
A16
AL09
AL12
AL16
Standards:
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Contact Rating UL/CSA:
B600
Q300
B600
Q300
Connecting Capacity Main Circuit UL/CSA:
Flexible 1/2x 16-10 AWG
Stranded 1/2x 16-10 AWG
Flexible 1/2x 16-10 AWG
Stranded 1/2x 16-10 AWG
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 16-10 AWG
Stranded 1/2x 16-10 AWG
Flexible 1/2x 16-10 AWG
Stranded 1/2x 16-10 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 7 in·lb
Main Circuit 7 in·lb
Auxiliary Circuit 7 in·lb
Main Circuit 7 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Operation Compensated -25 ... +70 °C
Storage -50 ... +85 °C
Operation -25 ... +70 °C
Operation Compensated -25 ... +70 °C
Storage -50 ... +85 °C
Ambient Air Temperature Compensation:
Yes
Maximum Operating Altitude Permissible:
2000 m
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 15g
Resistance to Vibrations:
5g 3 ... 150 Hz
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Certificates and Declarations

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
65 mm
Package Level 1 Height:
46 mm
Package Level 1 Depth / Length:
76.5 mm
Package Level 1 Gross Weight:
0.17 kg
Package Level 1 EAN:
4013614395246

External Classifications and Standards

Object Classification Code:
F
ETIM 9:
EC001080 - Electronic overload relay
ETIM 10:
EC001080 - Electronic overload relay
eClass:
V11.0 : 27371502
UNSPSC:
39122330
IDEA Granular Category Code (IGCC):
5365 >> Electronic overload relay
E-Number (Finland):
3709392
E-Number (Norway):
4116947
E-Number (Sweden):
3228762
1SAX111001R1104 ABB - E16DU-6.3
ABB 1SAX111001R1104 ABB - E16DU-6.3
€0,00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Instructions and Manuals (Part 2):

Dimensions

Product Net Width:
44.4 mm
Product Net Height:
74.6 mm
Product Net Depth / Length:
57 mm
Product Net Weight:
0.15 kg

Technical

Setting Range:
2.0 ... 6.3 A
Rated Operational Voltage:
Auxiliary Circuit 600 V AC/DC
Main Circuit 690 V AC
Auxiliary Circuit 600 V AC/DC
Main Circuit 690 V AC
Rated Operational Current (Ie):
6.3 A
Rated Frequency (f):
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Main Circuit 50 Hz
Main Circuit 60 Hz
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Main Circuit 50 Hz
Main Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp):
Auxiliary Circuit 6 kV
Main Circuit 6 kV
Auxiliary Circuit 6 kV
Main Circuit 6 kV
Rated Insulation Voltage (Ui):
690 V
Number of Poles:
3P
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
1
Number of Protected Poles:
3
Conventional Free-air Thermal Current (Ith):
Auxiliary Circuit NC 6 A
Auxiliary Circuit NO 6 A
Auxiliary Circuit NC 6 A
Auxiliary Circuit NO 6 A
Rated Operational Current AC-15 (Ie):
(240 V) NC 3 A
(240 V) NO 3 A
(400 V) NC 1.1 A
(400 V) NO 1.1 A
(500 V) NC 0.72 A
(500 V) NO 0.72 A
(240 V) NC 3 A
(240 V) NO 3 A
(400 V) NC 1.1 A
(400 V) NO 1.1 A
(500 V) NC 0.72 A
(500 V) NO 0.72 A
Rated Operational Current DC-13 (Ie):
(125 V) NC 0.55 A
(125 V) NO 0.5 A
(24 V) NC 1.5 A
(24 V) NO 1.5 A
(250 V) NC 0.27 A
(250 V) NO 0.27 A
(60 V) NC 0.55 A
(60 V) NO 0.55 A
(125 V) NC 0.55 A
(125 V) NO 0.5 A
(24 V) NC 1.5 A
(24 V) NO 1.5 A
(250 V) NC 0.27 A
(250 V) NO 0.27 A
(60 V) NC 0.55 A
(60 V) NO 0.55 A
Degree of Protection:
IP20
Pollution Degree:
3
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Connecting Capacity Main Circuit:
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Tightening Torque:
Auxiliary Circuit 0.8 ... 1.2 N·m
Main Circuit 0.8 ... 1.5 N·m
Auxiliary Circuit 0.8 ... 1.2 N·m
Main Circuit 0.8 ... 1.5 N·m
Wire Stripping Length:
Auxiliary Circuit 9 mm
Main Circuit 9 mm
Auxiliary Circuit 9 mm
Main Circuit 9 mm
Recommended Screw Driver:
Auxiliary Circuit Pozidriv 2
Main Circuit Pozidriv 2
Auxiliary Circuit Pozidriv 2
Main Circuit Pozidriv 2
Mounting Position:
1 ... 6
Power Loss:
at Rated Operating Conditions per Pole 0.008 ... 0.083 W
Suitable For:
B6
B7
BC6
BC7
A09
A12
A16
AL09
AL12
AL16
VB6
VB7
VBC6
VBC7
B6
B7
BC6
BC7
A09
A12
A16
AL09
AL12
AL16
Standards:
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Contact Rating UL/CSA:
B600
Q300
B600
Q300
Connecting Capacity Main Circuit UL/CSA:
Flexible 1/2x 16-10 AWG
Stranded 1/2x 16-10 AWG
Flexible 1/2x 16-10 AWG
Stranded 1/2x 16-10 AWG
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 16-10 AWG
Stranded 1/2x 16-10 AWG
Flexible 1/2x 16-10 AWG
Stranded 1/2x 16-10 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 7 in·lb
Main Circuit 7 in·lb
Auxiliary Circuit 7 in·lb
Main Circuit 7 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Operation Compensated -25 ... +70 °C
Storage -50 ... +85 °C
Operation -25 ... +70 °C
Operation Compensated -25 ... +70 °C
Storage -50 ... +85 °C
Ambient Air Temperature Compensation:
Yes
Maximum Operating Altitude Permissible:
2000 m
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 15g
Resistance to Vibrations:
5g 3 ... 150 Hz
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Certificates and Declarations

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
65 mm
Package Level 1 Height:
46 mm
Package Level 1 Depth / Length:
76.5 mm
Package Level 1 Gross Weight:
0.17 kg
Package Level 1 EAN:
4013614395253

External Classifications and Standards

Object Classification Code:
F
ETIM 9:
EC001080 - Electronic overload relay
ETIM 10:
EC001080 - Electronic overload relay
eClass:
V11.0 : 27371502
UNSPSC:
39122330
IDEA Granular Category Code (IGCC):
5365 >> Electronic overload relay
E-Number (Finland):
3709393
E-Number (Norway):
4116948
E-Number (Sweden):
3228763

Recently viewed
