HMI - Industrial PC

344 products

Showing 145 - 168 of 344 products

Showing 145 - 168 of 344 products
View
MMPMA1400C Schneider
Schneider MMPMA1400C Schneider
€0,00
Sold Out

OPERATOR INTERFACE AEG SCHNEIDER MM-PMA1-400 PANELMATE PLUS, PM+ 2000 INTERFACE
HMIPPF7A2701 Schneider
Schneider HMIPPF7A2701 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type PC panel
Processor name Core 2 Duo P8400 2.26 GHz cache 6 MB
Chipset type Intel GM45 1.066 GHz
Display size 15 inch
Display colour 16 million colours
Luminance 32.5 fc (350 cd/m²)
Drive type DVD-RW
Video controller type Intel Graphics Media Accelerator (GMA) 4500MHD, 384 MB
Operating system Windows 7 64 bits Ultimatemulti-language
Software package Vijeo Designer run time demo
Bezel material Aluminium alloy

Complementary

Characteristic Value(s)
Terminal type Touchscreen display
Data storage equipment >= 60 GB Flash disk SSD MLC 2000000 h
Display Type Active matrix colour TFT LCD with LED backlight
Display Resolution 1024 x 768 pixels XGA
View angle horizontal x vertical 160 x 100°
Touch panel Analogue resistive
Memory type 512 KB SRAM
4 GB RAM DDR3
type of cooling Fan
Integrated connection type 2 Ethernet TCP/IP - RJ45
DVI-I video port - DVI-I
COM1 serial link - male SUB-D 9 - RS232C 115 kbit/s)
COM2 serial link - male SUB-D 9 - RS232C 115 kbit/s)
USB 2.0 type A 480 Mbit/s)front panel
4 USB 2.0 type A 480 Mbit/s)top panel
Port Ethernet 10BASE-T/100BASE-T/1000BASE-T
Number of slots 1 PCI
1 PCI express 4x
[Us] rated supply voltage 100...240 V AC power supply
Supply voltage limits 85…265 V
Network frequency 50-60 Hz
47...63 Hz
Line Rated Current 1.6 A
Inrush current 40 A
Power Consumption in W 130 W
Material Treated steel
Display material Polyethylene sheet
Fixing mode Enclosure door by fixing kit fasteners included)
Panel by fixing kit fasteners included)
Type of Installation Indoor
Control type ON/OFF push-button equipment ON and OFF)
Push-button reset)
Local signalling LED (multi-colour) for power
for accessing Flash disk SSD (DISK) LED (yellow)
Width 15.8 in (402 mm)
Height 11.9 in (301 mm)
Depth 6.6 in (168 mm)
Cut-out dimensions 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) x 1.6...10 mm
Product Weight 26.26 lb(US) (11.91 kg)
Main type Performance
HMIBUFND1PF1 Schneider
Schneider HMIBUFND1PF1 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type Operator dialogue terminal
Device short name BOX PC Universal
Range Compatibility Harmony iDisplay
Compatibility code BOX PC Universal
Processor name Atom N270 1.66 GHz cache 512 KB
Chipset type Intel 945GME
Video controller type Intel Graphics Media Accelerator 950, 224Mb
Operating system MS Windows XP Professional Edition SP3multi-language
Software package Vijeo Designer run time demo
Vijeo Citect client/server, 500 I/O

Complementary

Characteristic Value(s)
Data storage equipment 60 GB Flash disk SSD MLC 2000000 h
Port Ethernet 10BASE-T/100BASE-T/1000BASE-T
Memory description 2 GB RAM DDR2 internal not expandable)
SDRAM saved memory
Number of slots 1 slot(s) for PCI
Type of cooling Fanless
Integrated connection type Ethernet TCP/IP 2 RJ45
DVI-I video port DVI-I
COM1 serial link male SUB-D 9 RS232C 115 kbauds
COM2 serial link male SUB-D 9 RS232C 115 kbauds
DVI-I video port (optional) DVI-I
COM3 serial link (optional) male SUB-D 10 RS232/422/485 115 kbauds
USB 2.0 port USB type A 480 Mbit/s front panel
USB 2.0 port 4 USB type A 480 Mbit/s top panel
[Us] rated supply voltage 24 V DC power supply
Supply voltage limits 18…30 V
Line Rated Current 6 A
Inrush current 7 A
Control type ON/OFF push-button equipment ON and OFF)
Push-button reset)
Main type Universal
Height 10.6 in (270 mm)
Width 10.2 in (260 mm)
Product Weight 4.9 lb(US) (2.2 kg)
HMIPUC6D0E01 Schneider
Schneider HMIPUC6D0E01 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type PC panel
Processor name Intel icore 3rd generation 827E cache 3 MB
Chipset type Intel BD82HM76
Display size 12 inch
Display colour 16 million colours
Luminance 34.8 fc (375 cd/m²)
Video controller type Intel HD Graphics 3000
Operating system Windows Embedded Standard WES2009English
Windows Embedded Standard WES2009French
Windows Embedded Standard WES2009German
Windows Embedded Standard WES2009Italian
Windows Embedded Standard WES2009Spanish
Windows Embedded Standard WES2009Swedish
Windows Embedded Standard WES2009Chinese
Windows Embedded Standard WES2009Portuguese
Windows Embedded Standard WES2009Russian
Software package Vijeo Designer run time demo
.NET Framework 3.5
Acrobat Reader
Internet Explorer
Viewer Word/Excel/Power Point
Vijeo Citect web client
Bezel material Aluminium alloy

Complementary

Characteristic Value(s)
Terminal type Touchscreen display
Data storage equipment >= 4 GB CFast card SLC
Display Type Active matrix colour TFT LCD with LED backlight
Display Resolution 1024 x 768 pixels XGA
Backlight lifespan 50000 hours 77 °F (25 °C)
View angle horizontal x vertical 80 x 80°
Touch panel Analogue resistive
Memory type 2 GB, expandable to 16 GB RAM DDR3
type of cooling Fanless
Integrated connection type 2 Ethernet port - RJ45
COM1 serial link - male SUB-D 9 - RS232C 115 kbit/s)bottom
COM2 serial link - male SUB-D 9 - RS232C 115 kbit/s)bottom
DVI video portbottom
audio output - mini-jack
USB 2.0 type A 480 Mbit/s)front panel
4 USB 3.0 type A 5 Gbit/s)bottom
Port Ethernet 10BASE-T/100BASE-T/1000BASE-T
[Us] rated supply voltage 24 V DC +/- 25 % power supply
Inrush current 7 A
Power Consumption in W 130 W
Material Die cast aluminium
Display material Polyethylene sheet
Fixing mode Enclosure door by fixing kit fasteners included)
Type of Installation Indoor
Control type ON/OFF push-button equipment ON and OFF)
Push-button reset)
Local signalling buzzer
LED (multi-colour) for power
for link status LED
for RUN LED
for accessing CF system card (DISK) LED (orange)
Width 12.3 in (313 mm)
Height 9.4 in (239 mm)
Depth 2.4 in (60 mm)
Cut-out dimensions 301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) x 1.6...9 mm
Product Weight 8.8 lb(US) (4 kg)
Main type Universal
HMIPPH9A0701 Schneider
Schneider HMIPPH9A0701 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type PC panel
Processor name Core 2 Duo P8400 2.26 GHz cache 6 MB
Chipset type Intel GM45 1.066 GHz
Display size 19 inch
Display colour 16 million colours
Luminance 27.9 fc (300 cd/m²)
Video controller type Intel Graphics Media Accelerator (GMA) 4500MHD, 384 MB
Operating system Windows 7 64 bits Ultimatemulti-language
Software package Vijeo Designer run time demo
Bezel material Aluminium alloy

Complementary

Characteristic Value(s)
Terminal type Touchscreen display
Data storage equipment 500 GB enterprise hard disk
Display Type Active matrix colour TFT LCD with LED backlight
Display Resolution 1280 x 1024 pixels SXGA
View angle horizontal x vertical 160 x 100°
Touch panel Analogue resistive
Memory type 512 KB SRAM
4 GB RAM DDR3
type of cooling Fan
Integrated connection type 2 Ethernet TCP/IP - RJ45
DVI-I video port - DVI-I
COM1 serial link - male SUB-D 9 - RS232C 115 kbauds)
COM2 serial link - male SUB-D 9 - RS232C 115 kbauds)
USB 2.0 type A 480 Mbit/s)front panel
4 USB 2.0 type A 480 Mbit/s)top panel
[Us] rated supply voltage 100...240 V AC power supply
Supply voltage limits 85…265 V
Network frequency 50-60 Hz
47...63 Hz
Line Rated Current 1.6 A
Inrush current 40 A
Power Consumption in W 130 W
Display material Polyethylene sheet
Fixing mode Enclosure door by fixing kit fasteners included)
Panel by fixing kit fasteners included)
Control type ON/OFF push-button equipment ON and OFF)
Push-button reset)
Local signalling for power multi-colour LED
for accessing hard disk (DISK) LED
Width 18.9 in (480 mm)
Height 15.0 in (380 mm)
Depth 5.08 in (129 mm)
Product Weight 33.773 lb(US) (15.319 kg)
Main type Performance
HMIPPH7B2701 Schneider
Schneider HMIPPH7B2701 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type PC panel
Processor name Core 2 Duo P8400 2.26 GHz cache 6 MB
Chipset type Intel GM45 1.066 GHz
Display size 15 inch
Display colour 16 million colours
Luminance 32.5 fc (350 cd/m²)
Drive type DVD-RW
Video controller type Intel Graphics Media Accelerator (GMA) 4500MHD, 384 MB
Operating system Windows 7 64 bits Ultimatemulti-language
Software package Vijeo Designer run time demo
Bezel material Aluminium alloy

Complementary

Characteristic Value(s)
Terminal type Touchscreen display
Data storage equipment 500 GB enterprise hard disk
Display Type Active matrix colour TFT LCD with LED backlight
Display Resolution 1024 x 768 pixels XGA
View angle horizontal x vertical 160 x 100°
Touch panel Analogue resistive
Memory type 512 KB SRAM
4 GB RAM DDR3
type of cooling Fan
Integrated connection type 2 Ethernet TCP/IP - RJ45
DVI-I video port - DVI-I
COM1 serial link - male SUB-D 9 - RS232C 115 kbauds)
COM2 serial link - male SUB-D 9 - RS232C 115 kbauds)
battery slot
USB 2.0 type A 480 Mbit/s)front panel
4 USB 2.0 type A 480 Mbit/s)top panel
Number of slots 1 PCI
1 PCI express 4x
[Us] rated supply voltage 24 V DC power supply
Supply voltage limits 18…30 V
Line Rated Current 6.7 A
Inrush current 7 A
Power Consumption in W 130 W
Display material Polyethylene sheet
Fixing mode Enclosure door by fixing kit fasteners included)
Panel by fixing kit fasteners included)
Control type ON/OFF push-button equipment ON and OFF)
Push-button reset)
Local signalling for power multi-colour LED
for accessing hard disk (DISK) LED
Width 15.8 in (402 mm)
Height 11.9 in (301 mm)
Depth 6.6 in (168 mm)
Product Weight 25.07 lb(US) (11.37 kg)
Main type Performance
HMIPUH7D0P01 Schneider
Schneider HMIPUH7D0P01 Schneider
€0,00
Sold Out

Panel PC Universal - Hard Disk - 15'' - DC - 0 slot - fanless
HMIBPFDD27F1 Schneider
Schneider HMIBPFDD27F1 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type Operator dialogue terminal
Device short name BOX PC Performance
Range Compatibility Harmony iDisplay
Compatibility code BOX PC Performance
Processor name Core 2 Duo P8400 2.26 GHz cache 3 MB
Chipset type Intel GM45 1066 MHz
Video controller type Mobile Intel Graphics Media Accelerator (GMA) 4500MHD, 224 Mb
Operating system Windows 10 IoT Enterprise 64 bit switched from Windows 8.1 in Q1 2018)multi-language
Software package Vijeo Designer run time demo
Vijeo Citect client/server, 500 I/O

Complementary

Characteristic Value(s)
Data storage equipment 60 GB Flash disk SSD MLC 2000000 h
Port Ethernet 10BASE-T/100BASE-T/1000BASE-T
Memory description 4 GB RAM DDR3 internal not expandable)
SDRAM saved memory
Number of slots 1 slot(s) for PCI
1 slot(s) for PCI express 4x
Type of cooling Fan
Integrated connection type Ethernet TCP/IP 2 RJ45
DVI-I video port DVI-I
COM1 serial link male SUB-D 9 RS232C 115 kbauds
COM2 serial link male SUB-D 9 RS232C 115 kbauds
DVI-I video port (optional) DVI-I
COM3 serial link (optional) male SUB-D 10 RS232/422/485 115 kbauds
USB 2.0 port USB type A 480 Mbit/s front panel
USB 2.0 port 4 USB type A 480 Mbit/s top panel
[Us] rated supply voltage 24 V DC power supply
Supply voltage limits 18…30 V
Line Rated Current 6 A
Inrush current 7 A
Control type ON/OFF push-button equipment ON and OFF)
Push-button reset)
Main type Performance
Height 10.6 in (270 mm)
Width 10.2 in (260 mm)
Product Weight 6.2 lb(US) (2.8 kg)
HMIPPH9D0701 Schneider
Schneider HMIPPH9D0701 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type PC panel
Processor name Core 2 Duo P8400 2.26 GHz cache 6 MB
Chipset type Intel GM45 1.066 GHz
Display size 19 inch
Display colour 16 million colours
Luminance 27.9 fc (300 cd/m²)
Video controller type Intel Graphics Media Accelerator (GMA) 4500MHD, 384 MB
Operating system Windows 7 64 bits Ultimatemulti-language
Software package Vijeo Designer run time demo
Bezel material Aluminium alloy

Complementary

Characteristic Value(s)
Terminal type Touchscreen display
Data storage equipment 500 GB enterprise hard disk
Display Type Active matrix colour TFT LCD with LED backlight
Display Resolution 1280 x 1024 pixels SXGA
View angle horizontal x vertical 160 x 100°
Touch panel Analogue resistive
Memory type 512 KB SRAM
4 GB RAM DDR3
type of cooling Fan
Integrated connection type 2 Ethernet TCP/IP - RJ45
DVI-I video port - DVI-I
COM1 serial link - male SUB-D 9 - RS232C 115 kbauds)
COM2 serial link - male SUB-D 9 - RS232C 115 kbauds)
USB 2.0 type A 480 Mbit/s)front panel
4 USB 2.0 type A 480 Mbit/s)top panel
[Us] rated supply voltage 24 V DC power supply
Supply voltage limits 18…30 V
Line Rated Current 6.7 A
Inrush current 7 A
Power Consumption in W 130 W
Display material Polyethylene sheet
Fixing mode Enclosure door by fixing kit fasteners included)
Panel by fixing kit fasteners included)
Control type ON/OFF push-button equipment ON and OFF)
Push-button reset)
Local signalling for power multi-colour LED
for accessing hard disk (DISK) LED
Width 18.9 in (480 mm)
Height 15.0 in (380 mm)
Depth 5.08 in (129 mm)
Product Weight 32.54 lb(US) (14.76 kg)
Main type Performance
HMIPUC7D0E01 Schneider
Schneider HMIPUC7D0E01 Schneider
€6.246,95
Only 1 unit left

Panel PC Universal - Compact Flash - 15'' - DC - 0 slot - fanless
HMIPUF6A0701 Schneider
Schneider HMIPUF6A0701 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type PC panel
Processor name Intel icore 3rd generation 827E cache 3 MB
Chipset type Intel BD82HM76
Display size 12 inch
Display colour 16 million colours
Luminance 34.8 fc (375 cd/m²)
Video controller type Intel HD Graphics 3000
Operating system Windows 7 64 bits Ultimatemulti-language
Software package Vijeo Designer run time demo
Bezel material Aluminium alloy

Complementary

Characteristic Value(s)
Terminal type Touchscreen display
Data storage equipment >= 60 GB Flash disk SSD MLC 2000000 h
Display Type Active matrix colour TFT LCD with LED backlight
Display Resolution 1024 x 768 pixels XGA
Backlight lifespan 50000 hours 77 °F (25 °C)
View angle horizontal x vertical 80 x 80°
Touch panel Analogue resistive
Memory type 2 GB, expandable to 16 GB RAM DDR3
type of cooling Fanless
Integrated connection type 2 Ethernet port - RJ45
COM1 serial link - male SUB-D 9 - RS232C 115 kbit/s)bottom
COM2 serial link - male SUB-D 9 - RS232C 115 kbit/s)bottom
DVI video portbottom
audio output - mini-jack
USB 2.0 type A 480 Mbit/s)front panel
4 USB 3.0 type A 5 Gbit/s)bottom
Port Ethernet 10BASE-T/100BASE-T/1000BASE-T
[Us] rated supply voltage 100...240 V AC power supply
Network frequency 45...65 Hz
Line Rated Current 0.6…2 A
Inrush current 20 A
Material Die cast aluminium
Display material Polyethylene sheet
Fixing mode Enclosure door by fixing kit fasteners included)
Type of Installation Indoor
Control type ON/OFF push-button equipment ON and OFF)
Push-button reset)
Local signalling buzzer
LED (multi-colour) for power
for accessing Flash disk SSD (DISK) LED (orange)
for link status LED
for RUN LED
Width 12.3 in (313 mm)
Height 9.4 in (239 mm)
Depth 2.4 in (60 mm)
Cut-out dimensions 301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) x 1.6...9 mm
Product Weight 8.8 lb(US) (4 kg)
Main type Universal
HMIRXOHCA3001 Schneider
Schneider HMIRXOHCA3001 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type Industrial rack PC
Device short name Rack PC 2U Optimum
Range Compatibility IDisplay
Processor name Intel iCore G540, dual core 2.5 GHz L3 cache 2 MB
Chipset type Intel G540
Storage slots 1 internal slot (SATA3)
2 hot swap trays (SATA2)
Data storage equipment hard disk
Memory description 2 GB RAM DDR3 internal 1 by default)
Up to 32 GB RAM DDR3 internal 4

Complementary

Characteristic Value(s)
Number of slots 1 PCI
2 PCI express 8x
Drive type DVD-RW
Video controller type Intel HD Graphics
Display Resolution 2048 x 1536 pixels
Watchdog timer 1…255 ms
Type of cooling 3 fans with speed control
Integrated connection type 4 USB 3.0 port
2 COM1 serial link - male SUB-D 9 - RS232
1 VGA
1 DVI video port
2 USB 2.0 port
1 audio micro input
1 audio line output
4 COM1 serial link (optional) - male SUB-D 9 - RS232/RS485
2 Ethernet - RJ45 10/100/1000 Mbit/s)
Switch application Case open
Software package Vijeo Designer run time demo run time demo license not included
EcoStruxure Operator Terminal Expert run time demo license not included
Motherboard type Micro ATX
[Us] rated supply voltage 100...240 V AC power supply
Power Consumption in W 300 W
Mounting Support 19" rack
Depth 18.9 in (480 mm)
Height 3.5 in (88 mm)
Width 19.0 in (482 mm)
Product Weight 26.9 lb(US) (12.2 kg)
HMIBUFND2PF1 Schneider
Schneider HMIBUFND2PF1 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type Operator dialogue terminal
Device short name BOX PC Universal
Range Compatibility Harmony iDisplay
Compatibility code BOX PC Universal
Processor name Atom N270 1.66 GHz cache 512 KB
Chipset type Intel 945GME
Video controller type Intel Graphics Media Accelerator 950, 224Mb
Operating system MS Windows XP Professional Edition SP3multi-language
Software package Vijeo Designer run time demo
Vijeo Citect client/server, 500 I/O

Complementary

Characteristic Value(s)
Data storage equipment 60 GB Flash disk SSD MLC 2000000 h
Port Ethernet 10BASE-T/100BASE-T/1000BASE-T
Memory description 2 GB RAM DDR2 internal not expandable)
SDRAM saved memory
Number of slots 1 slot(s) for PCI
1 slot(s) for PCI express 4x
Type of cooling Fanless
Integrated connection type Ethernet TCP/IP 2 RJ45
DVI-I video port DVI-I
COM1 serial link male SUB-D 9 RS232C 115 kbauds
COM2 serial link male SUB-D 9 RS232C 115 kbauds
DVI-I video port (optional) DVI-I
COM3 serial link (optional) male SUB-D 10 RS232/422/485 115 kbauds
USB 2.0 port USB type A 480 Mbit/s front panel
USB 2.0 port 4 USB type A 480 Mbit/s top panel
[Us] rated supply voltage 24 V DC power supply
Supply voltage limits 18…30 V
Line Rated Current 6 A
Inrush current 7 A
Control type ON/OFF push-button equipment ON and OFF)
Push-button reset)
Main type Universal
Height 10.6 in (270 mm)
Width 10.2 in (260 mm)
Product Weight 6.2 lb(US) (2.8 kg)
HMIBUFND2P01 Schneider
Schneider HMIBUFND2P01 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type Operator dialogue terminal
Device short name BOX PC Universal
Range Compatibility Harmony iDisplay
Compatibility code BOX PC Universal
Processor name Atom N270 1.66 GHz cache 512 KB
Chipset type Intel 945GME
Video controller type Intel Graphics Media Accelerator 950, 224Mb
Operating system MS Windows XP Professional Edition SP3multi-language
Software package Vijeo Designer run time demo

Complementary

Characteristic Value(s)
Data storage equipment 60 GB Flash disk SSD MLC 2000000 h
Port Ethernet 10BASE-T/100BASE-T/1000BASE-T
Memory description 2 GB RAM DDR2 internal not expandable)
SDRAM saved memory
Number of slots 1 slot(s) for PCI
1 slot(s) for PCI express 4x
Type of cooling Fanless
Integrated connection type Ethernet TCP/IP 2 RJ45
DVI-I video port DVI-I
COM1 serial link male SUB-D 9 RS232C 115 kbauds
COM2 serial link male SUB-D 9 RS232C 115 kbauds
DVI-I video port (optional) DVI-I
COM3 serial link (optional) male SUB-D 10 RS232/422/485 115 kbauds
USB 2.0 port USB type A 480 Mbit/s front panel
USB 2.0 port 4 USB type A 480 Mbit/s top panel
[Us] rated supply voltage 24 V DC power supply
Supply voltage limits 18…30 V
Line Rated Current 6 A
Inrush current 7 A
Control type ON/OFF push-button equipment ON and OFF)
Push-button reset)
Main type Universal
Height 10.6 in (270 mm)
Width 10.2 in (260 mm)
Product Weight 6.2 lb(US) (2.8 kg)

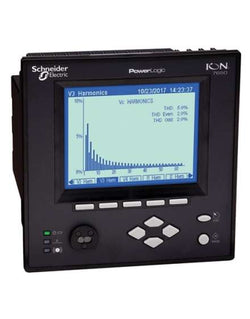

P765CE0A Schneider Electric
Schneider P765CE0A Schneider Electric
€0,00
Sold Out

Optional communications card compatible with PowerLogic ION7650 and ION7550 devices. This communications card provides 4 ports consisting of: RS232/RS485, RS485, optical (ANSI type 2) and 100BaseTX Ethernet.

Main

Characteristic Value(s)
Range PowerLogic
Device short name P765C
Product or Component Type Communication module
Range compatibility PowerLogic PowerLogic ION7550 ION7550 energy and power quality meter
PowerLogic PowerLogic ION7650 ION7650 energy and power quality meter
Port Ethernet RJ45 10/100BASE-T
Communication port support RS485/RS232
RS485

Complementary

Characteristic Value(s)
Width 8.5 in (216 mm)
Depth 6.6 in (167 mm)
Height 7.2 in (184 mm)
HMIYSSDS160S1 Schneider Electric
Schneider HMIYSSDS160S1 Schneider Electric
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type SSD disk
Accessory / separate part category Spare part
Accessory / separate part destination S-Box PC
rack PC

Complementary

Characteristic Value(s)
Data storage equipment 160 GB Flash disk SSD MLC 2000000 h
Kit composition Screws
HMIZS62 Schneider
Schneider HMIZS62 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range Compatibility Harmony STO & STU
Product or Component Type Protective film
Accessory / separate part category Protection accessory
Product Compatibility HMISTU855
Accessory / separate part destination 5.7" optimized touch screen panel

Complementary

Characteristic Value(s)
Quantity per Set Set of 5
MPCYT90NAN00N Schneider
Schneider MPCYT90NAN00N Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of product Harmony iDisplay
Product or component type Flat screen
Terminal type Touchscreen display
Integrated connection type USB or RS232C port
VGA or DVI-D port

Complementary

Characteristic Value(s)
Device mounting Flush
Provided equipment 1 cable 5 m for DVI-D
1 cable 3 m for VGA
[Us] rated supply voltage 100...240 V AC power supply conforming to EN 61131-2
Supply voltage limits 85…265 V
Network frequency 50/60 Hz
Power consumption in VA 200 VA
Display size 19 inch
Display type Active matrix colour TFT LCD
Display resolution 1280 x 1024 pixels SXGA
Display colour 16777216 colors
Luminance 200 cd/m²
Backlight lifespan 50000 hours
Touch panel Analogue resistive 35000000 cycles
Type of installation Indoor installation
Width 460 mm
Height 390 mm
Depth 65 mm
Product weight 7 kg
HMIBPFDD2701 Schneider
Schneider HMIBPFDD2701 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type Operator dialogue terminal
Device short name BOX PC Performance
Range Compatibility Harmony iDisplay
Compatibility code BOX PC Performance
Processor name Core 2 Duo P8400 2.26 GHz cache 3 MB
Chipset type Intel GM45 1066 MHz
Video controller type Mobile Intel Graphics Media Accelerator (GMA) 4500MHD, 224 Mb
Operating system Windows 10 IoT Enterprise 64 bit switched from Windows 8.1 in Q1 2018)multi-language
Software package Vijeo Designer run time demo

Complementary

Characteristic Value(s)
Data storage equipment 60 GB Flash disk SSD MLC 2000000 h
Port Ethernet 10BASE-T/100BASE-T/1000BASE-T
Memory description 4 GB RAM DDR3 internal not expandable)
SDRAM saved memory
Number of slots 1 slot(s) for PCI
1 slot(s) for PCI express 4x
Type of cooling Fan
Integrated connection type Ethernet TCP/IP 2 RJ45
DVI-I video port DVI-I
COM1 serial link male SUB-D 9 RS232C 115 kbauds
COM2 serial link male SUB-D 9 RS232C 115 kbauds
DVI-I video port (optional) DVI-I
COM3 serial link (optional) male SUB-D 10 RS232/422/485 115 kbauds
USB 2.0 port USB type A 480 Mbit/s front panel
USB 2.0 port 4 USB type A 480 Mbit/s top panel
[Us] rated supply voltage 24 V DC power supply
Supply voltage limits 18…30 V
Line Rated Current 6 A
Inrush current 7 A
Control type ON/OFF push-button equipment ON and OFF)
Push-button reset)
Main type Performance
Height 10.6 in (270 mm)
Width 10.2 in (260 mm)
Product Weight 6.2 lb(US) (2.8 kg)
HMIBUHND1P01 Schneider
Schneider HMIBUHND1P01 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Device short name BOX PC Universal
Product or Component Type Operator dialogue terminal
Range Compatibility Harmony iDisplay
Compatibility code BOX PC Universal
Chipset type Intel 945GME
Software package Vijeo Designer run time demo

Complementary

Characteristic Value(s)
Port Ethernet 10BASE-T/100BASE-T/1000BASE-T
Memory description 2 GB RAM DDR2 internal not expandable)
SDRAM saved memory
[Us] rated supply voltage 24 V DC power supply
Supply voltage limits 18…30 V
Control type ON/OFF push-button equipment ON and OFF)
Push-button reset)
Main type Universal
Number of slots 1 slot(s) for PCI
Type of cooling Fanless
Line Rated Current 6 A
Inrush current 7 A
Width 10.2 in (260 mm)
Height 10.6 in (270 mm)
Product Weight 4.9 lb(US) (2.2 kg)
HMIZLYG01 Schneider
Schneider HMIZLYG01 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony GTO
Accessory / separate part designation Set of 1 sheet of 12 changeable legends
Accessory / Separate Part Type Legend
Accessory / separate part category Marking accessories

Complementary

Characteristic Value(s)
Product Compatibility HMIGTO1300
HMIGTO1310
HMIBPFDD5701 Schneider
Schneider HMIBPFDD5701 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony iPC
Product or Component Type Operator dialogue terminal
Device short name BOX PC Performance
Range Compatibility Harmony iDisplay
Compatibility code BOX PC Performance
Processor name Core 2 Duo P8400 2.26 GHz cache 3 MB
Chipset type Intel GM45 1066 MHz
Video controller type Mobile Intel Graphics Media Accelerator (GMA) 4500MHD, 224 Mb
Operating system Windows 10 IoT Enterprise 64 bit switched from Windows 8.1 in Q1 2018)multi-language
Software package Vijeo Designer run time demo

Complementary

Characteristic Value(s)
Data storage equipment 60 GB Flash disk SSD MLC 2000000 h
Port Ethernet 10BASE-T/100BASE-T/1000BASE-T
Memory description 2 GB RAM DDR3 internal not expandable)
SDRAM saved memory
Number of slots 2 slot(s) for PCI
3 slot(s) for PCI express 1x
Drive type DVD-RW
Type of cooling Fan
Integrated connection type Ethernet TCP/IP 2 RJ45
DVI-I video port DVI-I
COM1 serial link male SUB-D 9 RS232C 115 kbauds
COM2 serial link male SUB-D 9 RS232C 115 kbauds
DVI-I video port (optional) DVI-I
COM3 serial link (optional) male SUB-D 10 RS232/422/485 115 kbauds
USB 2.0 port USB type A 480 Mbit/s front panel
USB 2.0 port 4 USB type A 480 Mbit/s top panel
[Us] rated supply voltage 24 V DC power supply
Supply voltage limits 18…30 V
Line Rated Current 6 A
Inrush current 7 A
Control type ON/OFF push-button equipment ON and OFF)
Push-button reset)
Main type Performance
Height 10.6 in (270 mm)
Width 10.2 in (260 mm)
Product Weight 8.6 lb(US) (3.9 kg)
HMIZGCO1 Schneider
Schneider HMIZGCO1 Schneider
€0,00
Sold Out

Main

Characteristic Value(s)
Range of Product Harmony GTU
Product or Component Type Adaptor
Accessory / separate part category Adaptation accessory
Range Compatibility Harmony GTU

Complementary

Characteristic Value(s)
Accessory / separate part destination 7" Harmony GTU touch advanced display
MPCST11NAJ00H Schneider
Schneider MPCST11NAJ00H Schneider
€0,00
Sold Out

MPCST11NAJ00H HMI AC Smart 8.4 Computer w Windows Xpe & Vijeo

Recently viewed
