RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Conflict Minerals Reporting Template (CMRT):

Environmental

Environmental Information:

Ordering

EAN:

8015644570156

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85362090

Dimensions

Product Net Width:

386 mm

Product Net Height:

418 mm

Product Net Depth / Length:

302 mm

Product Net Weight:

50 kg

Container Information

Package Level 1 Units:

1 piece

Package Level 1 Width:

515 mm

Package Level 1 Height:

600 mm

Package Level 1 Depth / Length:

615 mm

Package Level 1 Gross Weight:

62 kg

Package Level 1 EAN:

8015644570156

Additional Information

Product Main Type:

SACE Emax

Product Name:

Air Circuit Breaker

Product Type:

Air Circuit Breaker

Version:

F

Technical

Current Type:

AC

Electrical Durability:

Ue =< 440 V 10000 cycle

Ue = 500 ... 690 V 8000 cycle

30 cycles per hour

Ue =< 440 V 10000 cycle

Ue = 500 ... 690 V 8000 cycle

30 cycles per hour

Mechanical Durability:

25000 cycle

60 cycles per hour

25000 cycle

60 cycles per hour

Number of Poles:

4P

Power Loss:

253 W

Rated Current (I_n):

1600 A

Rated Impulse Withstand Voltage (U_imp):

12 kV

Rated Insulation Voltage (U_i):

1000 V

Rated Operational Current (I_e):

1600 A

Rated Operational Voltage:

690 V AC

Rated Service Short-Circuit Breaking Capacity (I_cs):

(220 V AC) 42 kA

(230 V AC) 42 kA

(400 V AC) 42 kA

(415 V AC) 42 kA

(440 V AC) 42 kA

(500 V AC) 42 kA

(660 V AC) 42 kA

(380 V AC) 42 kA

(690 V AC) 42 kA

(220 V AC) 42 kA

(230 V AC) 42 kA

(400 V AC) 42 kA

(415 V AC) 42 kA

(440 V AC) 42 kA

(500 V AC) 42 kA

(660 V AC) 42 kA

(380 V AC) 42 kA

(690 V AC) 42 kA

Rated Short-time Withstand Current Low Voltage (I_cw):

for 1 s 42 kA

for 3 s 36 kA

for 1 s 42 kA

for 3 s 36 kA

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(220 V AC) 42 kA

(230 V AC) 42 kA

(400 V AC) 42 kA

(415 V AC) 42 kA

(440 V AC) 42 kA

(500 V AC) 42 kA

(660 V AC) 42 kA

(380 V AC) 42 kA

(690 V AC) 42 kA

(220 V AC) 42 kA

(230 V AC) 42 kA

(400 V AC) 42 kA

(415 V AC) 42 kA

(440 V AC) 42 kA

(500 V AC) 42 kA

(660 V AC) 42 kA

(380 V AC) 42 kA

(690 V AC) 42 kA

Rated Uninterrupted Current (I_u):

1600 A

Rated Voltage (U_r):

690 V

Release:

PR122/P-LI

Release Type:

EL

Short-Circuit Performance Level:

B

Standards:

IEC

Sub-type:

E1

Terminal Connection Type:

Fixed Circuit-Breakers

Rear flat Horizontal

Fixed Circuit-Breakers

Rear flat Horizontal

Certificates and Declarations

Data Sheet, Technical Information:

Declaration of Conformity - CE:

Installation, service and maintenance instructions for low voltage air circuit-breakers Emax

Instructions and Manuals:

Installation instructions for PR122/P, PR123/P releases and modules

Installation, service and maintenance instructions for low voltage air circuit-breakers Emax

Installation instructions for PR122/P, PR123/P releases and modules

External Classifications and Standards

Object Classification Code:

Q

UNSPSC:

39120000

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

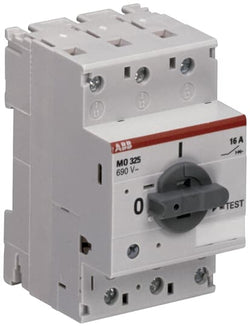

ABB 1SAM160000R1008 ABB - MO325-4

€0,00

Sold Out

MO325-4 Manual Motor Starter Magnetic Only 4 A

ABB E1N800PR122/P-LIIn=800A3pWMP ABB - 1SDA055715R1

€0,00

Sold Out

E1N 800 PR122/P-LI In=800A 3p W MP

ABB E1N1250PR122/P-LSIIn=1250A3pFHR ABB - 1SDA055732R1

€0,00

Sold Out

E1N 1250 PR122/P-LSI IN=1250A 3P F HR

ABB 1SDA055730R1 ABB - E1N1250PR121/P-LSIGIn=1250A3pFHR

€0,00

Sold Out

Material Compliance

REACH Declaration:

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Conflict Minerals Reporting Template (CMRT):

Environmental

Environmental Information:

Ordering

EAN:

8015644570705

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85362090

Dimensions

Product Net Width:

296 mm

Product Net Height:

418 mm

Product Net Depth / Length:

302 mm

Product Net Weight:

40 kg

Container Information

Package Level 1 Units:

1 piece

Package Level 1 Width:

515 mm

Package Level 1 Height:

600 mm

Package Level 1 Depth / Length:

515 mm

Package Level 1 Gross Weight:

50 kg

Package Level 1 EAN:

8015644570705

Additional Information

Product Main Type:

SACE Emax

Product Name:

Air Circuit Breaker

Product Type:

Air Circuit Breaker

Version:

F

Technical

Current Type:

AC

Electrical Durability:

Ue =< 440 V 10000 cycle

Ue = 500 ... 690 V 8000 cycle

30 cycles per hour

Ue =< 440 V 10000 cycle

Ue = 500 ... 690 V 8000 cycle

30 cycles per hour

Mechanical Durability:

25000 cycle

60 cycles per hour

25000 cycle

60 cycles per hour

Number of Poles:

3P

Power Loss:

150 W

Rated Current (I_n):

1250 A

Rated Impulse Withstand Voltage (U_imp):

12 kV

Rated Insulation Voltage (U_i):

1000 V

Rated Operational Current (I_e):

1250 A

Rated Operational Voltage:

690 V AC

Rated Service Short-Circuit Breaking Capacity (I_cs):

(220 V AC) 50 kA

(230 V AC) 50 kA

(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 50 kA

(660 V AC) 50 kA

(380 V AC) 50 kA

(690 V AC) 50 kA

(220 V AC) 50 kA

(230 V AC) 50 kA

(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 50 kA

(660 V AC) 50 kA

(380 V AC) 50 kA

(690 V AC) 50 kA

Rated Short-time Withstand Current Low Voltage (I_cw):

for 1 s 50 kA

for 3 s 36 kA

for 1 s 50 kA

for 3 s 36 kA

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(220 V AC) 50 kA

(230 V AC) 50 kA

(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 50 kA

(660 V AC) 50 kA

(380 V AC) 50 kA

(690 V AC) 50 kA

(220 V AC) 50 kA

(230 V AC) 50 kA

(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 50 kA

(660 V AC) 50 kA

(380 V AC) 50 kA

(690 V AC) 50 kA

Rated Uninterrupted Current (I_u):

1250 A

Rated Voltage (U_r):

690 V

Release:

PR121/P-LSIG

Release Type:

EL

Short-Circuit Performance Level:

N

Standards:

IEC

Sub-type:

E1

Terminal Connection Type:

Fixed Circuit-Breakers

Rear flat Horizontal

Fixed Circuit-Breakers

Rear flat Horizontal

Certificates and Declarations

Data Sheet, Technical Information:

Declaration of Conformity - CE:

Installation, service and maintenance instructions for low voltage air circuit-breakers Emax

Instructions and Manuals:

External Classifications and Standards

Object Classification Code:

Q

UNSPSC:

39120000

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB E1N800PR122/P-LIIn=800A3pFHR ABB - 1SDA055699R1

€0,00

Sold Out

E1N 800 PR122/P-LI In=800A 3p F HR

ABB E1N800PR122/P-LSIIn=800A4pWMP ABB - 1SDA055724R1

€0,00

Sold Out

E1N 800 PR122/P-LSI In=800A 4p W MP

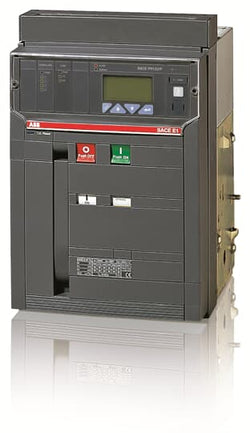

ABB 1SDA055731R1 ABB - E1N1250PR122/P-LIIn=1250A3pFHR

€0,00

Sold Out

Material Compliance

REACH Declaration:

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Conflict Minerals Reporting Template (CMRT):

Environmental

Environmental Information:

Ordering

EAN:

8015644570712

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85362090

Dimensions

Product Net Width:

296 mm

Product Net Height:

418 mm

Product Net Depth / Length:

302 mm

Product Net Weight:

40 kg

Container Information

Package Level 1 Units:

1 piece

Package Level 1 Width:

515 mm

Package Level 1 Height:

600 mm

Package Level 1 Depth / Length:

515 mm

Package Level 1 Gross Weight:

50 kg

Package Level 1 EAN:

8015644570712

Additional Information

Product Main Type:

SACE Emax

Product Name:

Air Circuit Breaker

Product Type:

Air Circuit Breaker

Version:

F

Technical

Current Type:

AC

Electrical Durability:

Ue =< 440 V 10000 cycle

Ue = 500 ... 690 V 8000 cycle

30 cycles per hour

Ue =< 440 V 10000 cycle

Ue = 500 ... 690 V 8000 cycle

30 cycles per hour

Mechanical Durability:

25000 cycle

60 cycles per hour

25000 cycle

60 cycles per hour

Number of Poles:

3P

Power Loss:

150 W

Rated Current (I_n):

1250 A

Rated Impulse Withstand Voltage (U_imp):

12 kV

Rated Insulation Voltage (U_i):

1000 V

Rated Operational Current (I_e):

1250 A

Rated Operational Voltage:

690 V AC

Rated Service Short-Circuit Breaking Capacity (I_cs):

(220 V AC) 50 kA

(230 V AC) 50 kA

(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 50 kA

(660 V AC) 50 kA

(380 V AC) 50 kA

(690 V AC) 50 kA

(220 V AC) 50 kA

(230 V AC) 50 kA

(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 50 kA

(660 V AC) 50 kA

(380 V AC) 50 kA

(690 V AC) 50 kA

Rated Short-time Withstand Current Low Voltage (I_cw):

for 1 s 50 kA

for 3 s 36 kA

for 1 s 50 kA

for 3 s 36 kA

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(220 V AC) 50 kA

(230 V AC) 50 kA

(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 50 kA

(660 V AC) 50 kA

(380 V AC) 50 kA

(690 V AC) 50 kA

(220 V AC) 50 kA

(230 V AC) 50 kA

(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 50 kA

(660 V AC) 50 kA

(380 V AC) 50 kA

(690 V AC) 50 kA

Rated Uninterrupted Current (I_u):

1250 A

Rated Voltage (U_r):

690 V

Release:

PR122/P-LI

Release Type:

EL

Short-Circuit Performance Level:

N

Standards:

IEC

Sub-type:

E1

Terminal Connection Type:

Fixed Circuit-Breakers

Rear flat Horizontal

Fixed Circuit-Breakers

Rear flat Horizontal

Certificates and Declarations

Data Sheet, Technical Information:

Declaration of Conformity - CE:

Installation, service and maintenance instructions for low voltage air circuit-breakers Emax

Instructions and Manuals:

Installation instructions for PR122/P, PR123/P releases and modules

Installation, service and maintenance instructions for low voltage air circuit-breakers Emax

Installation instructions for PR122/P, PR123/P releases and modules

External Classifications and Standards

Object Classification Code:

Q

UNSPSC:

39120000

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB E1N1250PR121/P-LSIIn=1250A3pFHR ABB - 1SDA055729R1

€0,00

Sold Out

E1N 1250 PR121/P-LSI In=1250A 3p F HR

ABB 1SAE231111R0122 ABB - ESB25-22N-01

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

36 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.245 kg

Technical

Number of Main Contacts NO:

2

Number of Main Contacts NC:

2

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

Rated Operational Current AC-7a (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

24 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 2 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 10 mm

Control Circuit 7 mm

Main Circuit 10 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

2.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(440 ... 480 V AC) Single Phase, NC 2 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(440 ... 480 V AC) Single Phase, NC 2 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-8 AWG

Stranded 16-8 AWG

Solid 16-8 AWG

Stranded 16-8 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB25, EN25 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB25-xxN, EN25-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

39 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.245 kg

Package Level 1 EAN:

4013614523946

Package Level 2 Units:

48 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12.3 kg

Package Level 2 EAN:

4013614538346

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Finland):

3707574

E-Number (Norway):

4190257

E-Number (Sweden):

3210564

ABB 1SAE231111R0113 ABB - ESB25-13N-01

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

36 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.245 kg

Technical

Number of Main Contacts NO:

1

Number of Main Contacts NC:

3

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NC 6 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NC 6 A

Rated Operational Current AC-7a (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NC 6 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NC 6 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 5.8 kW

(400 V) Three Phase, NC 17.3 kW

(230 V) Single Phase, NO 5.8 kW

(230 V) Single Phase, NC 5.8 kW

(400 V) Three Phase, NC 17.3 kW

(230 V) Single Phase, NO 5.8 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NC 2.7 kW

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NC 2.7 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NC 17.25 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NC 17.25 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NC 2.7 kW

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NC 2.7 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

24 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 2 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 10 mm

Control Circuit 7 mm

Main Circuit 10 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

2.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(220 ... 240 V AC) Three Phase, NC 3 Hp

(440 ... 480 V AC) Single Phase, NC 0.5 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

(440 ... 480 V AC) Three Phase, NC 2 Hp

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(220 ... 240 V AC) Three Phase, NC 3 Hp

(440 ... 480 V AC) Single Phase, NC 0.5 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

(440 ... 480 V AC) Three Phase, NC 2 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-8 AWG

Stranded 16-8 AWG

Solid 16-8 AWG

Stranded 16-8 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(220 ... 240 V AC) Three Phase, NC 9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

(440 ... 480 V AC) Three Phase, NC 7.6 A

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(220 ... 240 V AC) Three Phase, NC 9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

(440 ... 480 V AC) Three Phase, NC 7.6 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB25, EN25 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB25-xxN, EN25-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

39 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.245 kg

Package Level 1 EAN:

4013614523922

Package Level 2 Units:

48 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12.3 kg

Package Level 2 EAN:

4013614538322

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Finland):

3707578

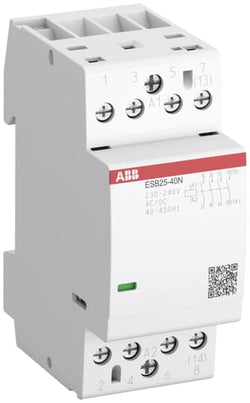

ABB 1SAE231111R0740 ABB - ESB25-40N-07

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

36 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.235 kg

Technical

Number of Main Contacts NO:

4

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NO) 25 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

Rated Operational Current AC-7a (I_e):

(NO) 25 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NO) 130000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NO) 500000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NO) 500000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

400 ... 415 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 2 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 10 mm

Control Circuit 7 mm

Main Circuit 10 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

2.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NO  1 Hp

(220 ... 240 V AC) Three Phase, NO 3 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

(440 ... 480 V AC) Three Phase, NO 5 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(220 ... 240 V AC) Three Phase, NO 3 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

(440 ... 480 V AC) Three Phase, NO 5 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-8 AWG

Stranded 16-8 AWG

Solid 16-8 AWG

Stranded 16-8 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NO  9.6 A

(220 ... 240 V AC) Three Phase, NO 9.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

(440 ... 480 V AC) Three Phase, NO 7.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(220 ... 240 V AC) Three Phase, NO 9.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

(440 ... 480 V AC) Three Phase, NO 7.6 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB25, EN25 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB25-xxN, EN25-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

NF Certificate - ESB25-N, EN25-N ,ESB40-N, EN40-N, ESB63-N, ESB100-N - Installation Contactor

NF Certificate:

RINA Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

39 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.235 kg

Package Level 1 EAN:

4013614524325

Package Level 2 Units:

48 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

11.8 kg

Package Level 2 EAN:

4013614538728

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Norway):

4190250

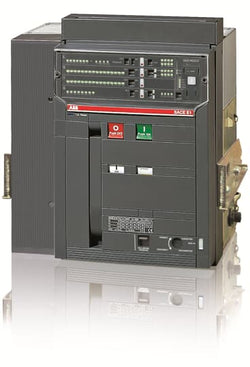

ABB 1SDA055721R1 ABB - E1N800PR121/P-LSIIn=800A4pWMP

€0,00

Sold Out

Material Compliance

REACH Declaration:

RoHS Information:

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Conflict Minerals Reporting Template (CMRT):

Environmental

Environmental Information:

Ordering

EAN:

8015644570613

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85362090

Dimensions

Product Net Width:

414 mm

Product Net Height:

461 mm

Product Net Depth / Length:

396.5 mm

Product Net Weight:

54 kg

Container Information

Package Level 1 Units:

1 piece

Package Level 1 Width:

515 mm

Package Level 1 Height:

600 mm

Package Level 1 Depth / Length:

615 mm

Package Level 1 Gross Weight:

67 kg

Package Level 1 EAN:

8015644570613

Additional Information

Product Main Type:

SACE Emax

Product Name:

Air Circuit Breaker

Product Type:

Air Circuit Breaker

Version:

W

Technical

Current Type:

AC

Electrical Durability:

Ue =< 440 V 10000 cycle

Ue = 500 ... 690 V 10000 cycle

30 cycles per hour

Ue =< 440 V 10000 cycle

Ue = 500 ... 690 V 10000 cycle

30 cycles per hour

Mechanical Durability:

25000 cycle

60 cycles per hour

25000 cycle

60 cycles per hour

Number of Poles:

4P

Power Loss:

95 W

Rated Current (I_n):

800 A

Rated Impulse Withstand Voltage (U_imp):

12 kV

Rated Insulation Voltage (U_i):

1000 V

Rated Operational Current (I_e):

800 A

Rated Operational Voltage:

690 V AC

Rated Service Short-Circuit Breaking Capacity (I_cs):

(220 V AC) 50 kA

(230 V AC) 50 kA

(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 50 kA

(660 V AC) 50 kA

(380 V AC) 50 kA

(690 V AC) 50 kA

(220 V AC) 50 kA

(230 V AC) 50 kA

(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 50 kA

(660 V AC) 50 kA

(380 V AC) 50 kA

(690 V AC) 50 kA

Rated Short-time Withstand Current Low Voltage (I_cw):

for 1 s 50 kA

for 3 s 36 kA

for 1 s 50 kA

for 3 s 36 kA

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(220 V AC) 50 kA

(230 V AC) 50 kA

(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 50 kA

(660 V AC) 50 kA

(380 V AC) 50 kA

(690 V AC) 50 kA

(220 V AC) 50 kA

(230 V AC) 50 kA

(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 50 kA

(660 V AC) 50 kA

(380 V AC) 50 kA

(690 V AC) 50 kA

Rated Uninterrupted Current (I_u):

800 A

Rated Voltage (U_r):

690 V

Release:

PR121/P-LSI

Release Type:

EL

Short-Circuit Performance Level:

N

Standards:

IEC

Sub-type:

E1

Terminal Connection Type:

Withdrawable Circuit-Breakers

Certificates and Declarations

Data Sheet, Technical Information:

Declaration of Conformity - CE:

Installation, service and maintenance instructions for low voltage air circuit-breakers Emax

Instructions and Manuals:

External Classifications and Standards

Object Classification Code:

Q

UNSPSC:

39120000

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

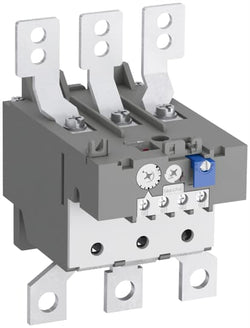

ABB 1SAZ421201R1004 ABB - TA200DU-150

€512,95

Only 1 unit left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85364900

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating instructions - Thermal overload relay TA200DU

Instructions and Manuals (Part 2):

Contactors and Overload relays guide

Time-Current Characteristic Curve:

Tripping characteristic - Thermal overload relay TA200DU-150, TA200DU-150 V1000

CAD Dimensional Drawing:

Dimension Drawing - TA200DU Thermal Overload Relay

Dimension Diagram:

Dimensions

Product Net Width:

104 mm

Product Net Height:

151 mm

Product Net Depth / Length:

126 mm

Product Net Weight:

0.76 kg

Technical

Setting Range:

110 ... 150 A

Rated Operational Voltage:

Auxiliary Circuit 440 V DC

Auxiliary Circuit 500 V AC

Main Circuit 690 V AC

Main Circuit 440 V DC

Auxiliary Circuit 440 V DC

Auxiliary Circuit 500 V AC

Main Circuit 690 V AC

Main Circuit 440 V DC

Rated Operational Current (I_e):

150 A

Rated Frequency (f):

Auxiliary Circuit 50 Hz

Auxiliary Circuit 60 Hz

Auxiliary Circuit DC

Main Circuit 60 Hz

Main Circuit 50 Hz

Main Circuit DC

Auxiliary Circuit 50 Hz

Auxiliary Circuit 60 Hz

Auxiliary Circuit DC

Main Circuit 60 Hz

Main Circuit 50 Hz

Main Circuit DC

Rated Impulse Withstand Voltage (U_imp):

Auxiliary Circuit 6 kV

Main Circuit 6 kV

Auxiliary Circuit 6 kV

Main Circuit 6 kV

Rated Insulation Voltage (U_i):

690 V

Number of Poles:

3P

Number of Auxiliary Contacts NC:

1

Number of Auxiliary Contacts NO:

1

Number of Protected Poles:

3

Conventional Free-air Thermal Current (I_th):

Auxiliary Circuit NC 5 A

Auxiliary Circuit NO 5 A

Auxiliary Circuit NC 5 A

Auxiliary Circuit NO 5 A

Rated Operational Current AC-15 (I_e):

(120 V) NC 3 A

(120 V) NO 1.5 A

(240 V) NC 3 A

(240 V) NO 1.2 A

(400 V) NC 0.75 A

(400 V) NO 0.37 A

(440 V) NC 0.75 A

(440 V) NO 0.37 A

(500 V) NC 0.3 A

(500 V) NO 0.25 A

(120 V) NC 3 A

(120 V) NO 1.5 A

(240 V) NC 3 A

(240 V) NO 1.2 A

(400 V) NC 0.75 A

(400 V) NO 0.37 A

(440 V) NC 0.75 A

(440 V) NO 0.37 A

(500 V) NC 0.3 A

(500 V) NO 0.25 A

Rated Operational Current DC-13 (I_e):

(125 V) NC 0.25 A

(125 V) NO 0.25 A

(24 V) NC 1.25 A

(24 V) NO 1.25 A

(250 V) NC 0.12 A

(250 V) NO 0.04 A

(60 V) NC 0.25 A

(60 V) NO 0.25 A

(125 V) NC 0.25 A

(125 V) NO 0.25 A

(24 V) NC 1.25 A

(24 V) NO 1.25 A

(250 V) NC 0.12 A

(250 V) NO 0.04 A

(60 V) NC 0.25 A

(60 V) NO 0.25 A

Degree of Protection:

Housing IP20

Main Circuit Terminals IP00

Housing IP20

Main Circuit Terminals IP00

Pollution Degree:

3

Connecting Capacity Auxiliary Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible 1/2x 0.75 ... 2.5 mm²

Rigid 1/2x 0.75 ... 4 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible 1/2x 0.75 ... 2.5 mm²

Rigid 1/2x 0.75 ... 4 mm²

Connecting Capacity Main Circuit:

Hole Diameter > 10 mm²

Rigid or Flexible with Cable Lug 1x 25 ... 120 mm²

Hole Diameter > 10 mm²

Rigid or Flexible with Cable Lug 1x 25 ... 120 mm²

Tightening Torque:

Auxiliary Circuit 1 ... 1.3 N·m

Main Circuit 25 N·m

Auxiliary Circuit 1 ... 1.3 N·m

Main Circuit 25 N·m

Wire Stripping Length:

Auxiliary Circuit 9 mm

Recommended Screw Driver:

Auxiliary Circuit Pozidriv 1

Main Circuit Open Bars

Auxiliary Circuit Pozidriv 1

Main Circuit Open Bars

Mounting Position:

1 ... 6

Power Loss:

at Rated Operating Conditions per Pole 3.2 ... 6.0 W

Suitable For:

A145

A185

AF145

AF185

AF190

AF205

A145

A185

AF145

AF185

AF190

AF205

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 60947-5-1

UL 60947-1

UL 60947-4-1

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 60947-5-1

UL 60947-1

UL 60947-4-1

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V AC

Contact Rating UL/CSA:

(NC:) B600

(NO:) C600

(NC:) B600

(NO:) C600

Connecting Capacity Main Circuit UL/CSA:

Flexible 1x 4-0000 AWG

Stranded 1x 4-0000 AWG

Flexible 1x 4-0000 AWG

Stranded 1x 4-0000 AWG

Connecting Capacity Auxiliary Circuit UL/CSA:

Flexible 1/2x 18-14 AWG

Stranded 1/2x 18-14 AWG

Flexible 1/2x 18-14 AWG

Stranded 1/2x 18-14 AWG

Tightening Torque UL/CSA:

Auxiliary Circuit 12 in·lb

Main Circuit 220 in·lb

Auxiliary Circuit 12 in·lb

Main Circuit 220 in·lb

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Operation Compensated -25 ... +55 °C

Storage -40 ... +70 °C

Operation -25 ... +55 °C

Operation Compensated -25 ... +55 °C

Storage -40 ... +70 °C

Ambient Air Temperature Compensation:

Yes

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 12g

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

End Of Life Disassembling Instructions:

End of life instruction TA200

Environmental Information:

Product Environmental Information TA200DU thermal overload relays

Environmental Product Declaration - EPD:

Environmental Product Declaration PEP TA200DU

Certificates and Declarations

ABS Certificate:

ABS Certificate - TA25DU, TA42DU, TA75DU, TA80DU, TA110DU, TA200DU, T450DU - Overload Relays

BV Certificate:

1SAA941000-0201

CB Certificate:

CB Certificate - TA110, TA200DU - Thermal Overload Relays

CCC Certificate:

CCC Certificate, Thermal overload relay, TA110DU, TA200DU, Made in Bulgaria

CQC Certificate:

CQC Certificate, Thermal overload relay, TA110DU, TA200DU, Made in Bulgaria

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Thermal overload relay, TA110DU, TA200DU, Made in Bulgaria

Declaration of Conformity - CE:

EU Declaration of Conformity - TA25DU-x, TA42DU-x, TA75DU-x, TA80DU-x, TA110DU-x, TA200DU-x - Overload Relays

Declaration of Conformity - UKCA:

UK Declaration of Conformity - TA25DU-x, TA42DU-x, TA75DU-x, TA80DU-x, TA110DU-x, TA200DU-x - Overload Relays

DNV Certificate:

DNV Certificate - TA25DU, TA42DU, TA75DU, TA80DU, TA110DU, TA200DU - Overload Relay

DNV GL Certificate:

DNV Certificate - TA25DU, TA42DU, TA75DU, TA80DU, TA110DU, TA200DU - Overload Relay

EAC Certificate:

EAC Certificate - TA25DU, TA42DU, TA75DU, TA85DU, TA110DU, TA200DU, T16, TF42, TF65, TF96, TF140DU - Overload Relays

GL Certificate:

DNV Certificate - TA25DU, TA42DU, TA75DU, TA80DU, TA110DU, TA200DU - Overload Relay

LR Certificate:

LR Certificate - TA25DU, T42DU, T75DU, TA80DU, TA110DU, TA200DU, TA450DU, TA450SU - Overload Relays

RMRS Certificate:

RMRS Certificate - T16, TF42, T7DU, TA25DU, TA42DU, TA75DU, TA80DU, TA110DU, TA200DU,TA450DU, TA450SU, T900DU, T900SU - Overload Relays

UL Certificate:

UL Certificate of Compliance - TA200DU - Thermal Overload Relays

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

165 mm

Package Level 1 Height:

133 mm

Package Level 1 Depth / Length:

151 mm

Package Level 1 Gross Weight:

1.01 kg

Package Level 1 EAN:

4013614286049

Package Level 2 Units:

4 piece

Package Level 2 Width:

280 mm

Package Level 2 Height:

210 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Gross Weight:

8.786 kg

Package Level 2 EAN:

4013614494260

External Classifications and Standards

Object Classification Code:

F

ETIM 9:

EC000106 - Thermal overload relay

ETIM 10:

EC000106 - Thermal overload relay

eClass:

V11.0 : 27371501

UNSPSC:

39122330

IDEA Granular Category Code (IGCC):

5366 >> Thermal overload relay

E-Number (Finland):

3709360

E-Number (Sweden):

3228706

ABB 1SAE231111R0131 ABB - ESB25-31N-01

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

36 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.245 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

1

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

Rated Operational Current AC-7a (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

24 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 2 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 10 mm

Control Circuit 7 mm

Main Circuit 10 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

2.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(220 ... 240 V AC) Three Phase, NO 3 Hp

(440 ... 480 V AC) Single Phase, NC 2 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

(440 ... 480 V AC) Three Phase, NO 5 Hp

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(220 ... 240 V AC) Three Phase, NO 3 Hp

(440 ... 480 V AC) Single Phase, NC 2 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

(440 ... 480 V AC) Three Phase, NO 5 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-8 AWG

Stranded 16-8 AWG

Solid 16-8 AWG

Stranded 16-8 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(220 ... 240 V AC) Three Phase, NO 9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

(440 ... 480 V AC) Three Phase, NO 7.6 A

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(220 ... 240 V AC) Three Phase, NO 9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

(440 ... 480 V AC) Three Phase, NO 7.6 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB25, EN25 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB25-xxN, EN25-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

39 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.245 kg

Package Level 1 EAN:

4013614523960

Package Level 2 Units:

48 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12.3 kg

Package Level 2 EAN:

4013614538360

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Finland):

3707576

E-Number (Norway):

4190265

E-Number (Sweden):

3210566

ABB E1N800PR122/P-LIIn=800A4pWMP ABB - 1SDA055723R1

€0,00

Sold Out

E1N 800 PR122/P-LI IN=800A 4P W MP

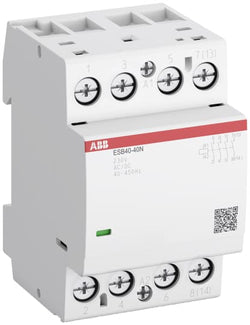

ABB 1SAE341111R0130 ABB - ESB40-30N-01

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

EPLAN EDZ ESB40..N

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

54 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.385 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

3P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NO) 40 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

Rated Operational Current AC-7a (I_e):

(NO) 40 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

(230 V) Single Phase, NO 22 A

(400 V) Three Phase, NO 22 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

(230 V) Single Phase, NO 9.2 kW

(400 V) Three Phase, NO 27.7 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

(230 V) Single Phase, NO 3.7 kW

(400 V) Three Phase, NO 11 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 176 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NO) 150000 cycle

AC-3 (NO) 100000 cycle

AC-7a (NO) 150000 cycle

AC-7b (NO) 100000 cycle

AC-1 (NO) 150000 cycle

AC-3 (NO) 100000 cycle

AC-7a (NO) 150000 cycle

AC-7b (NO) 100000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

24 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 4.5 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 5 W

Average Holding Value 50 / 60 Hz 4.5 V·A

Average Holding Value DC 5 W

Average Pull-in Value 50 Hz 4.5 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 5 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 3 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Flexible 2x 1.5 ... 10 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Flexible with Ferrule 1x 1.5 ... 16 mm²

Flexible with Ferrule 2x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²

Flexible with Insulated Ferrule 2x 1.5 ... 10 mm²

Flexible 1x 1.5 ... 16 mm²

Flexible 2x 1.5 ... 10 mm²

Rigid 1x 1.5 ... 25 mm²

Rigid 2x 1.5 ... 10 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 13 mm

Control Circuit 7 mm

Main Circuit 13 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Control Circuit Pozidriv 1

Main Circuit Pozidriv 2

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Control Circuit 0.9 N·m

Main Circuit 2.5 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

3.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 40 A

(acc. to UL 480 V) 40 A

(acc. to UL 240 V) 40 A

(acc. to UL 480 V) 40 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NO  3 Hp

(220 ... 240 V AC) Three Phase, NO 7.5 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(440 ... 480 V AC) Three Phase, NO 15 Hp

(220 ... 240 V AC) Single Phase, NO  3 Hp

(220 ... 240 V AC) Three Phase, NO 7.5 Hp

(440 ... 480 V AC) Single Phase, NO 7.5 Hp

(440 ... 480 V AC) Three Phase, NO 15 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-4 AWG

Stranded 16-4 AWG

Solid 16-4 AWG

Stranded 16-4 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Control Circuit 8 in·lb

Main Circuit 20 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NO  22 A

(220 ... 240 V AC) Three Phase, NO 22 A

(440 ... 480 V AC) Single Phase, NO 21 A

(440 ... 480 V AC) Three Phase, NO 21 A

(220 ... 240 V AC) Single Phase, NO  22 A

(220 ... 240 V AC) Three Phase, NO 22 A

(440 ... 480 V AC) Single Phase, NO 21 A

(440 ... 480 V AC) Three Phase, NO 21 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

End Of Life Instruction ESB40-xxN, EN40-xxN

Environmental Product Declaration - EPD:

Environmental Product Declaration PEP ESB40, EN40, ESB63 (EN)

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB63-xxN, ESB40-xxN, EN40-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CQC Certificate, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB40-xxN, ESB63-xxN, EN40-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

57 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.385 kg

Package Level 1 EAN:

4013614524615

Package Level 2 Units:

32 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12.32 kg

Package Level 2 EAN:

4013614539008

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Finland):

3707586

ABB 1SAE231111R0722 ABB - ESB25-22N-07

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

36 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.235 kg

Technical

Number of Main Contacts NO:

2

Number of Main Contacts NC:

2

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

Rated Operational Current AC-7a (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

400 ... 415 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 2 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 10 mm

Control Circuit 7 mm

Main Circuit 10 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

2.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(440 ... 480 V AC) Single Phase, NC 2 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(440 ... 480 V AC) Single Phase, NC 2 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-8 AWG

Stranded 16-8 AWG

Solid 16-8 AWG

Stranded 16-8 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB25, EN25 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB25-xxN, EN25-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

39 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.235 kg

Package Level 1 EAN:

4013614524295

Package Level 2 Units:

48 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

11.8 kg

Package Level 2 EAN:

4013614538698

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Norway):

4190261

ABB 1SAE231111R0204 ABB - ESB25-04N-02

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

36 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.245 kg

Technical

Number of Main Contacts NO:

0

Number of Main Contacts NC:

4

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 25 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NC 6 A

Rated Operational Current AC-7a (I_e):

(NC) 25 A

Rated Operational Current AC-7b (I_e):

(400 V) Three Phase, NC 6 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 5.8 kW

(400 V) Three Phase, NC 17.3 kW

(230 V) Single Phase, NC 5.8 kW

(400 V) Three Phase, NC 17.3 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NC 0.9 kW

(400 V) Three Phase, NC 2.7 kW

(230 V) Single Phase, NC 0.9 kW

(400 V) Three Phase, NC 2.7 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 5.8 kW

(400 V) Three Phase, NC 17.25 kW

(230 V) Single Phase, NC 5.8 kW

(400 V) Three Phase, NC 17.25 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NC 2.7 kW

(400 V) Three Phase, NC 2.7 kW

(230 V) Single Phase, NC 2.7 kW

(400 V) Three Phase, NC 2.7 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NC) 50000 cycle

AC-3 (NC) 340000 cycle

AC-7a (NC) 50000 cycle

AC-7b (NC) 340000 cycle

AC-1 (NC) 50000 cycle

AC-3 (NC) 340000 cycle

AC-7a (NC) 50000 cycle

AC-7b (NC) 340000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

42 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 2 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 10 mm

Control Circuit 7 mm

Main Circuit 10 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

2.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Three Phase, NC 3 Hp

(440 ... 480 V AC) Single Phase, NC 0.5 Hp

(440 ... 480 V AC) Three Phase, NC 2 Hp

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Three Phase, NC 3 Hp

(440 ... 480 V AC) Single Phase, NC 0.5 Hp

(440 ... 480 V AC) Three Phase, NC 2 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-8 AWG

Stranded 16-8 AWG

Solid 16-8 AWG

Stranded 16-8 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Three Phase, NC 9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Three Phase, NC 7.6 A

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Three Phase, NC 9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Three Phase, NC 7.6 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB25, EN25 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB25-xxN, EN25-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

39 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.245 kg

Package Level 1 EAN:

4013614523984

Package Level 2 Units:

48 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12.3 kg

Package Level 2 EAN:

4013614538384

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

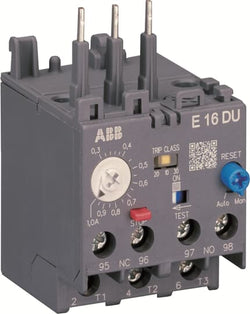

ABB 1SAX111001R1105 ABB - E16DU-18.9

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85364900

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Operating instructions - Thermal overload relay E16DU

Instructions and Manuals (Part 2):

Contactors and Overload relays guide

Time-Current Characteristic Curve:

Tripping characteristic - Electronic overload relay E16DU, E45DU E80DU, E140DU, E200DU, E320DU, E500DU, E800DU from cold state. Valid for production date from week 49/07 (0497)

Tripping characteristic - Electronic overload relay E16DU, E45DU E80DU, E140DU, E200DU, E320DU, E500DU, E800DU from warm state. Valid for production date from week 13/10 (1350)

Tripping characteristic - Electronic overload relay E16DU, E45DU E80DU, E140DU, E200DU, E320DU, E500DU, E800DU from cold state. Valid for production date from week 49/07 (0497)

Tripping characteristic - Electronic overload relay E16DU, E45DU E80DU, E140DU, E200DU, E320DU, E500DU, E800DU from warm state. Valid for production date from week 13/10 (1350)

CAD Dimensional Drawing:

Dimension Drawing - E16DU for A 9 ... A 16 contactors (.dxf)

Dimension Diagram:

Dimension Drawing - Mini Contactor B6 / B7 / BC6 / BC7 with Electronic Overload Relay E16DU

Dimension Drawing - E16DU for A 9 ... A 16 contactors (.dxf)

Dimension Drawing - Mini Contactor B6 / B7 / BC6 / BC7 with Electronic Overload Relay E16DU

Dimensions

Product Net Width:

44.4 mm

Product Net Height:

74.6 mm

Product Net Depth / Length:

57 mm

Product Net Weight:

0.15 kg

Technical

Setting Range:

5.7 ... 18.9 A

Rated Operational Voltage:

Auxiliary Circuit 600 V AC/DC

Main Circuit 690 V AC

Auxiliary Circuit 600 V AC/DC

Main Circuit 690 V AC

Rated Operational Current (I_e):

18.9 A

Rated Frequency (f):

Auxiliary Circuit 50 Hz

Auxiliary Circuit 60 Hz

Auxiliary Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Auxiliary Circuit 50 Hz

Auxiliary Circuit 60 Hz

Auxiliary Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Rated Impulse Withstand Voltage (U_imp):

Auxiliary Circuit 6 kV

Main Circuit 6 kV

Auxiliary Circuit 6 kV

Main Circuit 6 kV

Rated Insulation Voltage (U_i):

690 V

Number of Poles:

3P

Number of Auxiliary Contacts NC:

1

Number of Auxiliary Contacts NO:

1

Number of Protected Poles:

3

Conventional Free-air Thermal Current (I_th):

Auxiliary Circuit NC 6 A

Auxiliary Circuit NO 6 A

Auxiliary Circuit NC 6 A

Auxiliary Circuit NO 6 A

Rated Operational Current AC-15 (I_e):

(240 V) NC 3 A

(240 V) NO 3 A

(400 V) NC 1.1 A

(400 V) NO 1.1 A

(500 V) NC 0.72 A

(500 V) NO 0.72 A

(240 V) NC 3 A

(240 V) NO 3 A

(400 V) NC 1.1 A

(400 V) NO 1.1 A

(500 V) NC 0.72 A

(500 V) NO 0.72 A

Rated Operational Current DC-13 (I_e):

(125 V) NC 0.55 A

(125 V) NO 0.5 A

(24 V) NC 1.5 A

(24 V) NO 1.5 A

(250 V) NC 0.27 A

(250 V) NO 0.27 A

(60 V) NC 0.55 A

(60 V) NO 0.55 A

(125 V) NC 0.55 A

(125 V) NO 0.5 A

(24 V) NC 1.5 A

(24 V) NO 1.5 A

(250 V) NC 0.27 A

(250 V) NO 0.27 A

(60 V) NC 0.55 A

(60 V) NO 0.55 A

Degree of Protection:

IP20

Pollution Degree:

3

Connecting Capacity Auxiliary Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible 1/2x 0.75 ... 2.5 mm²

Rigid 1/2x 1 ... 4 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible 1/2x 0.75 ... 2.5 mm²

Rigid 1/2x 1 ... 4 mm²

Connecting Capacity Main Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible 1/2x 0.75 ... 2.5 mm²

Rigid 1/2x 1 ... 4 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible 1/2x 0.75 ... 2.5 mm²

Rigid 1/2x 1 ... 4 mm²

Tightening Torque:

Auxiliary Circuit 0.8 ... 1.2 N·m

Main Circuit 0.8 ... 1.5 N·m

Auxiliary Circuit 0.8 ... 1.2 N·m

Main Circuit 0.8 ... 1.5 N·m

Wire Stripping Length:

Auxiliary Circuit 9 mm

Main Circuit 9 mm

Auxiliary Circuit 9 mm

Main Circuit 9 mm

Recommended Screw Driver:

Auxiliary Circuit Pozidriv 2

Main Circuit Pozidriv 2

Auxiliary Circuit Pozidriv 2

Main Circuit Pozidriv 2

Mounting Position:

1 ... 6

Power Loss:

at Rated Operating Conditions per Pole 0.028 ... 0.304 W

Suitable For:

B6

B7

BC6

BC7

A09

A12

A16

AL09

AL12

AL16

VB6

VB7

VBC6

VBC7

B6

B7

BC6

BC7

A09

A12

A16

AL09

AL12

AL16

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 60947-5-1

UL 60947-1

UL 60947-4-1

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 60947-5-1

UL 60947-1

UL 60947-4-1

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V AC

Contact Rating UL/CSA:

B600

Q300

B600

Q300

Connecting Capacity Main Circuit UL/CSA:

Flexible 1/2x 16-10 AWG

Stranded 1/2x 16-10 AWG

Flexible 1/2x 16-10 AWG

Stranded 1/2x 16-10 AWG

Connecting Capacity Auxiliary Circuit UL/CSA:

Flexible 1/2x 16-10 AWG

Stranded 1/2x 16-10 AWG

Flexible 1/2x 16-10 AWG

Stranded 1/2x 16-10 AWG

Tightening Torque UL/CSA:

Auxiliary Circuit 7 in·lb

Main Circuit 7 in·lb

Auxiliary Circuit 7 in·lb

Main Circuit 7 in·lb

Environmental

Ambient Air Temperature:

Operation -25 ... +70 °C

Operation Compensated -25 ... +70 °C

Storage -50 ... +85 °C

Operation -25 ... +70 °C

Operation Compensated -25 ... +70 °C

Storage -50 ... +85 °C

Ambient Air Temperature Compensation:

Yes

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Resistance to Vibrations:

5g 3 ... 150 Hz

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:

CB Certificate - E16DU, EF19 - Electronic Overload Relay

CQC Certificate:

CQC Certificate, Electronic Overload Relay, E16DU, EF19, Made in China

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electronic Overload Relay, E16DU, EF19, Made in China

Declaration of Conformity - CE:

EU Declaration of Conformity - Electronic Overload Relay - E16DU, E45DU, E80DU, E140DU, DB16E, DB45E, DB80E, DB140E

Declaration of Conformity - UKCA:

UK Declaration of Conformity - Electronic Overload Relay - E16DU, E45DU, E80DU, E140DU, DB16E, DB45E, DB80E, DB140E

EAC Certificate:

EAC Certificate -EF19, EF45, EF65. EF96, EF146, EF205, EF370,EF460, EF750, E16DU - Electronic Overload Relay

RMRS Certificate:

RMRS Certificate - E16DU, EF19, E45DU, EF45, E80DU, E140DU, E200DU, E320DU, E500DU, E800DU, E1250DU - Electronic Overload Relays

UL Certificate:

UL Certificate of Compliance - ExxDU, EFxxx, DBxxxE, DBxxEF, DTxxx - Electronic Overload Relays

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

65 mm

Package Level 1 Height:

46 mm

Package Level 1 Depth / Length:

76.5 mm

Package Level 1 Gross Weight:

0.17 kg

Package Level 1 EAN:

4013614395260

External Classifications and Standards

Object Classification Code:

F

ETIM 9:

EC001080 - Electronic overload relay

ETIM 10:

EC001080 - Electronic overload relay

eClass:

V11.0 : 27371502

UNSPSC:

39122330

IDEA Granular Category Code (IGCC):

5365 >> Electronic overload relay

E-Number (Finland):

3709394

E-Number (Norway):

4116949

E-Number (Sweden):

3228764

ABB 1SAE231111R0104 ABB - ESB25-04N-01

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

36 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.245 kg

Technical

Number of Main Contacts NO:

0

Number of Main Contacts NC:

4

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 25 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NC 6 A

Rated Operational Current AC-7a (I_e):

(NC) 25 A

Rated Operational Current AC-7b (I_e):

(400 V) Three Phase, NC 6 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 5.8 kW

(400 V) Three Phase, NC 17.3 kW

(230 V) Single Phase, NC 5.8 kW

(400 V) Three Phase, NC 17.3 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NC 0.9 kW

(400 V) Three Phase, NC 2.7 kW

(230 V) Single Phase, NC 0.9 kW

(400 V) Three Phase, NC 2.7 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 5.8 kW

(400 V) Three Phase, NC 17.25 kW

(230 V) Single Phase, NC 5.8 kW

(400 V) Three Phase, NC 17.25 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NC 2.7 kW

(400 V) Three Phase, NC 2.7 kW

(230 V) Single Phase, NC 2.7 kW

(400 V) Three Phase, NC 2.7 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NC) 50000 cycle

AC-3 (NC) 340000 cycle

AC-7a (NC) 50000 cycle

AC-7b (NC) 340000 cycle

AC-1 (NC) 50000 cycle

AC-3 (NC) 340000 cycle

AC-7a (NC) 50000 cycle

AC-7b (NC) 340000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

24 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 2 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 10 mm

Control Circuit 7 mm

Main Circuit 10 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

2.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Three Phase, NC 3 Hp

(440 ... 480 V AC) Single Phase, NC 0.5 Hp

(440 ... 480 V AC) Three Phase, NC 2 Hp

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Three Phase, NC 3 Hp

(440 ... 480 V AC) Single Phase, NC 0.5 Hp

(440 ... 480 V AC) Three Phase, NC 2 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-8 AWG

Stranded 16-8 AWG

Solid 16-8 AWG

Stranded 16-8 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Three Phase, NC 9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Three Phase, NC 7.6 A

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Three Phase, NC 9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Three Phase, NC 7.6 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB25, EN25 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB25-xxN, EN25-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

39 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.245 kg

Package Level 1 EAN:

4013614523915

Package Level 2 Units:

48 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12.3 kg

Package Level 2 EAN:

4013614538315

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Finland):

3707572

E-Number (Norway):

4190252

E-Number (Sweden):

3210562

ABB 1SAE231111R0231 ABB - ESB25-31N-02

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

36 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.245 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

1

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

Rated Operational Current AC-7a (I_e):

(NC) 25 A

(NO) 25 A

(NC) 25 A

(NO) 25 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

(230 V) Single Phase, NC 6 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

(230 V) Single Phase, NC 1.3 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

(230 V) Single Phase, NC 5.8 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

(230 V) Single Phase, NC 0.9 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

6 kV

Electrical Durability:

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

AC-1 (NC) 50000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NC) 340000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NC) 50000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NC) 340000 cycle

AC-7b (NO) 500000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

42 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4 V·A

Average Pull-in Value DC 4 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 2 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 4.0 mm²

Flexible 2x 1 ... 2.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 10 mm

Control Circuit 7 mm

Main Circuit 10 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

2.0

Product Name:

Installation Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 480 V AC

General Use Rating UL/CSA:

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

(acc. to UL 240 V) 25 A

(acc. to UL 480 V) 25 A

Horsepower Rating UL/CSA:

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(220 ... 240 V AC) Three Phase, NO 3 Hp

(440 ... 480 V AC) Single Phase, NC 2 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

(440 ... 480 V AC) Three Phase, NO 5 Hp

(220 ... 240 V AC) Single Phase, NC 1 Hp

(220 ... 240 V AC) Single Phase, NO  1 Hp

(220 ... 240 V AC) Three Phase, NO 3 Hp

(440 ... 480 V AC) Single Phase, NC 2 Hp

(440 ... 480 V AC) Single Phase, NO 2 Hp

(440 ... 480 V AC) Three Phase, NO 5 Hp

Connecting Capacity Main Circuit UL/CSA:

Solid 16-8 AWG

Stranded 16-8 AWG

Solid 16-8 AWG

Stranded 16-8 AWG

Connecting Capacity Control Circuit UL/CSA:

Solid 16-10 AWG

Stranded 16-10 AWG

Solid 16-10 AWG

Stranded 16-10 AWG

Tightening Torque UL/CSA:

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Control Circuit 8 in·lb

Main Circuit 9 in·lb

Full Load Amps Motor Use:

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(220 ... 240 V AC) Three Phase, NO 9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

(440 ... 480 V AC) Three Phase, NO 7.6 A

(220 ... 240 V AC) Single Phase, NC 9.6 A

(220 ... 240 V AC) Single Phase, NO  9.6 A

(220 ... 240 V AC) Three Phase, NO 9.6 A

(440 ... 480 V AC) Single Phase, NC 7.6 A

(440 ... 480 V AC) Single Phase, NO 7.6 A

(440 ... 480 V AC) Three Phase, NO 7.6 A

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB25, EN25 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

ABS Certificate:

ABS Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB25-xxN, EN25-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CQC Certificate, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

CCC Declaration of Conformity, Contactor, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

DNV Certificate:

DNV Certificate - ESB100-N, ESB63, ESB63-N, ESB40, ESB40-N, ESB24, ESB25-N, ESB16-N, ESB20-N, EH04, EH04-N - Installation Contactor

EAC Certificate:

Rina Certificate - ESB100-N, ESB63-N, ESB40-N, ESB25-N, ESB16-N, ESB20-N, EH04-N - Installation Contactor

RINA Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

UL Certificate:

UL Certificate of Compliance - ESBxx, ESBxxx-N, EH04, EH04-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

39 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.245 kg

Package Level 1 EAN:

4013614524035

Package Level 2 Units:

48 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12.3 kg

Package Level 2 EAN:

4013614538438

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

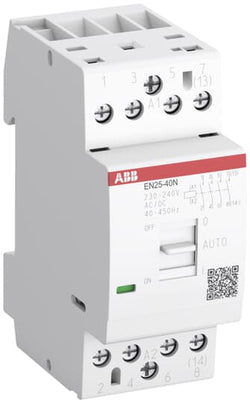

ABB 1SAE232111R0640 ABB - EN25-40N-06

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

EPLAN Data:

EPLAN EDZ EN25..N

Data Sheet, Technical Information:

Instructions and Manuals:

CAD Dimensional Drawing:

Dimensions

Product Net Width:

36 mm

Product Net Depth / Length:

65 mm

Product Net Height:

85 mm

Product Net Weight:

0.24 kg

Technical

Number of Main Contacts NO:

4

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

0

Number of Auxiliary Contacts NC:

0

Number of Poles:

4P

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 61095

UL 60947-1

UL 60947-4-1

IEC 60335-2-40 A2L

Rated Operational Voltage:

Main Circuit 220 V DC

Main Circuit 400 V AC

Main Circuit 220 V DC

Main Circuit 400 V AC

Rated Frequency (f):

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Control Circuit 400 Hz

Control Circuit 50 Hz

Control Circuit 60 Hz

Control Circuit DC

Main Circuit 50 Hz

Main Circuit 60 Hz

Main Circuit DC

Rated Operational Current AC-1 (I_e):

(NO) 25 A

Rated Operational Current AC-3 (I_e):

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

Rated Operational Current AC-7a (I_e):

(NO) 25 A

Rated Operational Current AC-7b (I_e):

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

(230 V) Single Phase, NO 9 A

(400 V) Three Phase, NO 9 A

Rated Operational Power AC-1 (P_e):

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

Rated Operational Power AC-3 (P_e):

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

Rated Operational Power AC-7a (P_e):

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

(230 V) Single Phase, NO 5.8 kW

(400 V) Three Phase, NO 17.3 kW

Rated Operational Power AC-7b (P_e):

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

(230 V) Single Phase, NO 1.3 kW

(400 V) Three Phase, NO 4 kW

Rated Breaking Capacity AC-3:

8 x Ie / AC-3

Rated Making Capacity AC-3:

10 x Ie / AC-3

Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A

Rated Insulation Voltage (U_i):

500 V

Rated Impulse Withstand Voltage (U_imp):

4 kV

Electrical Durability:

AC-1 (NO) 130000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NO) 500000 cycle

AC-1 (NO) 130000 cycle

AC-3 (NO) 500000 cycle

AC-7a (NO) 130000 cycle

AC-7b (NO) 500000 cycle

Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

(AC-1) 300 cycles per hour

(AC-3) 600 cycles per hour

(AC-7a) 300 cycles per hour

(AC-7b) 600 cycles per hour

Mechanical Durability:

Nr. Operations 1000000 cycle

Coil Operating Limits:

(acc. to IEC 60947-4-1)  0.85 ... 1.1 x Uc (at θ ≤ 55 °C)

Rated Control Circuit Voltage (U_c):

230 ... 240 V

Coil Consumption:

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 4 W

Average Holding Value 50 / 60 Hz 4 V·A

Average Holding Value DC 4 W

Average Pull-in Value 50 Hz 4 V·A

Average Pull-in Value 60 Hz 4.5 V·A

Average Pull-in Value DC 4 W

Power Loss:

at Rated Operating Conditions AC-1 per Pole 2 W

Mounting on DIN Rail:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Flexible with Ferrule 1x 1.5 ... 10 mm²

Flexible with Ferrule 2x 1.5 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²

Flexible with Insulated Ferrule 2x 1.5 mm²

Flexible 1x 1.5 ... 10 mm²

Flexible 2x 1.5 ... 4 mm²

Rigid 1x 1.5 ... 10 mm²

Rigid 2x 1.5 ... 4 mm²

Connecting Capacity Control Circuit:

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 2.5 mm²

Flexible 2x 1 ... 1.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Flexible with Ferrule 1x 1 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²

Flexible 1x 1 ... 2.5 mm²

Flexible 2x 1 ... 1.5 mm²

Rigid 1x 1 ... 4 mm²

Rigid 2x 1 ... 2.5 mm²

Wire Stripping Length:

Control Circuit 7 mm

Main Circuit 10 mm

Control Circuit 7 mm

Main Circuit 10 mm

Degree of Protection:

IP20

Recommended Screw Driver:

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Control Circuit Pozidriv 1

Main Circuit Pozidriv 1

Tightening Torque:

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Control Circuit 0.9 N·m

Main Circuit 1 N·m

Terminal Type:

Screw Terminals

Width in Number of Modular Spacings:

2.0

Product Name:

Installation Contactor

Environmental

Ambient Air Temperature:

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Operation -25 ... +55 °C

Storage -40 ... +80 °C

Maximum Operating Altitude Permissible:

2000 m

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Pollution Degree:

3

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

REACH Declaration:

RoHS Information:

RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

Toxic Substances Control Act (TSCA) declaration for Contactors

WEEE B2C / B2B:

Business To Consumer

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions:

Yes

ABB Site Meeting Group Waste To Landfill Target:

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

No non-hazardous waste is sent to a landfill

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions:

Environmental Product Declaration PEP ESB25, EN25 (EN)

Environmental Product Declaration - EPD:

Certificates and Declarations

A2L Certificate – IEC:

A2L Certificate - ESB63-N, ESB40-N, EN40-N, ESB25-N, EN25-N, ESB16-N, ESB20-N, EN20-N, EH04-N - Installation Contactor

CB Certificate:

CB Certificate - ESB25-xxN, EN25-xxN - Installation Contactor

CQC Certificate:

CQC Certificate, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Electromechanical contactors for household and similar purposes, ESB25-xxN, EN25-xxN, Made in Germany

Declaration of Conformity - CE:

EU Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

Declaration of Conformity - UKCA:

UK Declaration of Conformity - ESB63-xN, ESB40-xN, ESB25-xN, ESB20-xN, ESB16-xN, ESB100-xN, EH04-xN, EN20-xN, EN25-xN, EN40-xN - Installation Contactors

EAC Certificate:

NF Certificate - ESB25-N, EN25-N ,ESB40-N, EN40-N, ESB63-N, ESB100-N - Installation Contactor

NF Certificate:

RMRS Certificate:

RMRS Certificate - ESB20, ESB24, ESB40, ESB63, ESB20-N, ESB25-N,ESB40-N, ESB63-N, ESB100-N - Installation Contactors

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

92 mm

Package Level 1 Depth / Length:

39 mm

Package Level 1 Height:

69.5 mm

Package Level 1 Gross Weight:

0.24 kg

Package Level 1 EAN:

4013614524554

Package Level 2 Units:

48 piece

Package Level 2 Width:

280 mm

Package Level 2 Depth / Length:

395 mm

Package Level 2 Height:

210 mm

Package Level 2 Gross Weight:

12 kg

Package Level 2 EAN:

4013614538940

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC001653 - Installation contactor for distribution board

ETIM 8:

EC001653 - Installation contactor for distribution board

ETIM 9:

EC001653 - Installation contactor for distribution board

eClass:

V11.0 : 27142308

UNSPSC:

39121529

IDEA Granular Category Code (IGCC):

4759 >> Installation contactor for distribution board

E-Number (Finland):

3707806

E-Number (Norway):

4190244

ABB 1SAM201910R1004 ABB - AA1-400

€0,00

Sold Out

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85365080

Popular Downloads

Data Sheet, Technical Information:

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

Instructions and Manuals:

Installation instructions - Manual Motor Starter MS116

Installation Instructions - Manual Motor Starter magnetic only MO132 MO132-B

Installation Instructions - Manual Motor Starter MS132 MS132-B

Installation Instructions - MS132-K, MS132-KB Manual Motor Starter

Installation Instructions - Manual Motor Starter MS165 MS165-B

Installation Instructions - Manual Motor Starter magnetic only MO165 MO165-B

Installation instructions - Manual Motor Starter MS116

Installation Instructions - Manual Motor Starter magnetic only MO132 MO132-B

Installation Instructions - Manual Motor Starter MS132 MS132-B

Installation Instructions - MS132-K, MS132-KB Manual Motor Starter

Installation Instructions - Manual Motor Starter MS165 MS165-B

Installation Instructions - Manual Motor Starter magnetic only MO165 MO165-B

Instructions and Manuals (Part 3):

1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024

CAD Dimensional Drawing:

Dimensions

Product Net Width:

18 mm

Product Net Height:

90 mm

Product Net Depth / Length:

75.5 mm

Product Net Weight:

0.1 kg

Technical

Rated Frequency (f):

Auxiliary Circuit 50 Hz

Auxiliary Circuit 60 Hz

Auxiliary Circuit DC

Auxiliary Circuit 50 Hz

Auxiliary Circuit 60 Hz

Auxiliary Circuit DC

Rated Impulse Withstand Voltage (U_imp):

Auxiliary Circuit 6 kV

Rated Insulation Voltage (U_i):

690 V

Power Loss:

29.5 W

Terminal Type:

Screw Terminals

Connecting Capacity Auxiliary Circuit:

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Flexible 1/2x 0.75 ... 2.5 mm²

Rigid 1/2x 1 ... 4 mm²

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Flexible 1/2x 0.75 ... 2.5 mm²

Rigid 1/2x 1 ... 4 mm²

Tightening Torque:

Auxiliary Circuit 0.8 ... 1.2 N·m

Wire Stripping Length:

Auxiliary Circuit 10 mm

Recommended Screw Driver:

Pozidriv 2

Mounting Position:

1 ... 6

Standards:

CSA 22.2 No. 14

IEC/EN 60947-1

IEC/EN 60947-4-1

UL 508

UL 60947-1

UL 60947-4-1

CSA 22.2 No. 14

IEC/EN 60947-1

IEC/EN 60947-4-1

UL 508

UL 60947-1

UL 60947-4-1

Remarks:

Please consider 15 min OFF-period after 5s ON-period.

The mechanical and electrical durability of manual motor starters in combination with UA1/AA1 is reduced. Values are provided on request.

Please consider 15 min OFF-period after 5s ON-period.

The mechanical and electrical durability of manual motor starters in combination with UA1/AA1 is reduced. Values are provided on request.

Technical UL/CSA

Connecting Capacity Auxiliary Circuit UL/CSA:

Flexible 1/2x 16-12 AWG

Stranded 1/2x 16-12 AWG

Flexible 1/2x 16-12 AWG

Stranded 1/2x 16-12 AWG

Tightening Torque UL/CSA:

Auxiliary Circuit 7 in·lb

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -50 ... +80 °C

Operation -25 ... +60 °C

Storage -50 ... +80 °C

Resistance to Shock acc. to IEC 60068-2-27:

11 ms Pulse 15g

Material Compliance

Conflict Minerals Reporting Template (CMRT):
