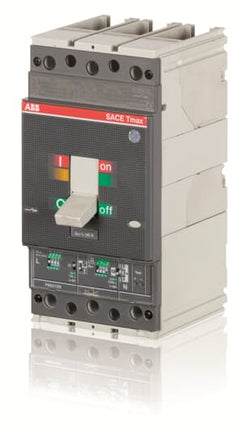

1SDA054117R1 ABB - T4N 320 PR221DS-LS/I In=320 3p F F
ABB 1SDA054117R1 ABB - T4N 320 PR221DS-LS/I In=320 3p F F
€0,00
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
c8261068-2394-4e97-b79c-4aa8dfdf22fd Italy

Environmental

Environmental Information:

Ordering

E-Number (Finland):
3655174
E-Number (Sweden):
3180305
EAN:
8015644552169
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
105 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
3.639 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
250 mm
Package Level 1 Height:
246 mm
Package Level 1 Depth / Length:
290 mm
Package Level 1 Gross Weight:
3.83 kg
Package Level 1 EAN:
8015644552169

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T4
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
6000 cycle
120 cycles per hour
6000 cycle
120 cycles per hour
Gross Volume:
17,835 cm³
Mechanical Durability:
20000 cycle
240 cycles per hour
20000 cycle
240 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 17.6 W
Rated Current (In):
320 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V) 20 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V) 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
Rated Uninterrupted Current (Iu):
320 A
Release:
PR221DS-LS/I
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
T4
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3500 V
Test Voltage at Industrial Frequency for 1 Minute:
3500 V

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
T5D 630 4p F F ABB - 1SDA054602R1
ABB T5D 630 4p F F ABB - 1SDA054602R1
€1.548,95
Only 5 units left

Tmax T - Switch box-switch-disconnector, fixed, with front terminals T5D 630 F F (4-pole)

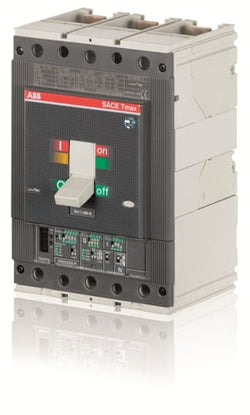

1SDA054553R1 ABB - T5S 400 Ekip M-LRIU In=320 3p F
ABB 1SDA054553R1 ABB - T5S 400 Ekip M-LRIU In=320 3p F
€0,00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
24fb276d-6d2b-4368-8ce1-561969782445 Italy
Simplified SCIP:
7d38119f-8add-4a64-b0b0-137d338605d3 Sweden
111956af-49c5-4ec2-968a-a0f252de71d1 Denmark
61cfec67-5698-464a-bdd2-716007303bb4 Germany
1482d962-84d3-4439-af57-73d108a5acd5 Germany
c0c953c7-ff57-4834-b3da-89ec972bf05a Croatia
4081fe05-ae4b-46f1-9c96-f4c82a989d92 Spain
3648c7f4-fd6a-41cf-a042-1865106a2409 Belgium
3cf9cb50-86b4-4228-9e45-e73fd0856486 Hungary
1b547b4d-7b79-4815-bf74-1708c742d997 France
d7f209dc-070b-438f-bf27-bc74187da746 Germany
98a1c7ca-8b11-4205-bbce-43e677a72265 Germany
260fa513-cb92-4cc4-b994-fa70c8ac51eb Czech Republic
5533c32e-5226-417f-ae8b-6be8c5518a7d Portugal
53b4872b-88d4-4961-aa6c-cd38ee455f2d Netherlands
de06b4b5-ebd7-4aea-bf17-291ec2a92517 Norway
0dd82eff-0b28-48d0-b9eb-f406a446af87 Bulgaria
cbee264c-dd9c-443f-bedb-ec1dbad8bd57 Poland
9ade7365-c3f0-4e83-90f9-2fbc8a78cb9b Poland
765c4b14-3ba3-4fa3-85be-7eb97c4cc1f0 France
5ec759f5-245a-4346-a6c6-9cf23739e149 Greece
7343e509-a1d5-468a-807d-eaf9f9ffda0a Germany
fb263312-59c1-48d9-bc96-abb0a017ef46 Sweden
35c8d77e-3cfc-4d7c-8404-bf29021a728e Hungary
99b3611c-16de-46e2-a7f9-65cda3a6ed47 Poland
9147a8bc-7a80-4229-b076-236847fb0c86 Finland
0d5820ad-1589-4ade-a37b-6517de2058fa Belgium
615e07fb-88a5-49e2-a025-d2e809053505 Estonia
7d38119f-8add-4a64-b0b0-137d338605d3 Sweden
111956af-49c5-4ec2-968a-a0f252de71d1 Denmark
61cfec67-5698-464a-bdd2-716007303bb4 Germany
1482d962-84d3-4439-af57-73d108a5acd5 Germany
c0c953c7-ff57-4834-b3da-89ec972bf05a Croatia
4081fe05-ae4b-46f1-9c96-f4c82a989d92 Spain
3648c7f4-fd6a-41cf-a042-1865106a2409 Belgium
3cf9cb50-86b4-4228-9e45-e73fd0856486 Hungary
1b547b4d-7b79-4815-bf74-1708c742d997 France
d7f209dc-070b-438f-bf27-bc74187da746 Germany

Ordering

E-Number (Finland):
3655553
E-Number (Sweden):
3180440
EAN:
8015644556549
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
5.1 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
5.1 kg
Package Level 1 EAN:
8015644556549

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T5
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
7000 cycle
60 cycles per hour
7000 cycle
60 cycles per hour
Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 10.6 W
Rated Current (In):
320 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V AC) 25 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V AC) 25 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V AC) 25 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V AC) 25 kA
Rated Uninterrupted Current (Iu):
400 A
Release:
Ekip M-LRIU
Release Type:
EL
Short-Circuit Performance Level:
S
Standards:
IEC
Sub-type:
T5
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3500 V
Test Voltage at Industrial Frequency for 1 Minute:
3500 V

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
1SDA054599R1 ABB - T5D 400 3p F F
ABB 1SDA054599R1 ABB - T5D 400 3p F F
€0,00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
3a155678-128e-49f8-8288-802c23ae6159 Italy
Simplified SCIP:
d5496f97-7048-4464-abf4-27e3ecdfd600 Germany
7a2b463c-b131-4d3a-8c87-7081a16d9cfe Poland
7401cc63-fa85-43b5-a79c-549d3960c1ea Norway
643e7965-9057-4dbb-a0cf-49fa81b24340 Greece
6ef7a8c3-e1db-4be2-b204-b00d91b599d6 Germany
f1279a38-90a3-4a0d-80e7-5a39625336bb Netherlands
71cdea13-c0de-4927-aa8a-1e246ed4a3f2 Germany
1db8fc72-1b9f-45ea-9660-ecc8c0fac625 Bulgaria
061f4998-cf6e-4f3e-bfdd-ef806eeae4b7 Germany
c836e3bc-f611-465c-95ce-649fb648edc5 Croatia
c9dbe0b1-8447-42a6-9fa9-2844b2dc2a08 Netherlands
792bcf0c-f5ec-4b0f-8791-55a7998030bf Finland
20ae6b77-ba3e-4075-8da7-509850c5c9be France
8a325227-08e1-4fd6-85af-a806fd813217 Poland
eebfa5df-6b34-4050-b406-70ab328ac5d6 Sweden
305d187c-6dc2-4e71-b80b-56445585ae2e Netherlands
d150dd98-cf1a-4354-babf-1b9b2d45e19f Poland
fb22339d-2eb0-41fd-9489-3ca15651cd7b Czech Republic
095ae62a-b8a9-4238-b61b-146f3e398661 Estonia
9c1f20cb-21fa-4c23-abbe-699c48386f0f Portugal
1994b35c-122f-4815-8f5a-4e8d48a1f655 Denmark
328815d0-d209-4976-a920-17528e0de5c5 Sweden
58757622-a7f2-4b87-8a16-ff9e0cdaee31 France
68541c78-c8bc-4188-8f65-0a44b2a042e2 Germany
eb8cdaf9-b8ba-4255-9d6a-ef7b127cc204 Netherlands
354183ae-308b-4928-8197-23d83e7b4b61 Spain
abadb034-14e6-4477-a190-ab48bbd9a06e Netherlands
d5496f97-7048-4464-abf4-27e3ecdfd600 Germany
7a2b463c-b131-4d3a-8c87-7081a16d9cfe Poland
7401cc63-fa85-43b5-a79c-549d3960c1ea Norway
643e7965-9057-4dbb-a0cf-49fa81b24340 Greece
6ef7a8c3-e1db-4be2-b204-b00d91b599d6 Germany
f1279a38-90a3-4a0d-80e7-5a39625336bb Netherlands
71cdea13-c0de-4927-aa8a-1e246ed4a3f2 Germany
1db8fc72-1b9f-45ea-9660-ecc8c0fac625 Bulgaria
061f4998-cf6e-4f3e-bfdd-ef806eeae4b7 Germany
c836e3bc-f611-465c-95ce-649fb648edc5 Croatia

Ordering

E-Number (Finland):
3655613
E-Number (Norway):
4383617
EAN:
8015644556976
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
3.25 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
4.53 kg
Package Level 1 EAN:
8015644556976

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Switch Disconnector
Suitable For:
T5
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 16.5 W
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
750 V DC
690 V AC
750 V DC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 6 A
Rated Uninterrupted Current (Iu):
400 A
Short-Circuit Performance Level:
D
Standards:
IEC
Sub-type:
T5
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3000 V
Test Voltage at Industrial Frequency for 1 Minute:
3000 V

Certificates and Declarations

ATEX Certificate:
Data Sheet, Technical Information:
Declaration of Conformity - CE:
UL Certificate:
VDE Certificate:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371403

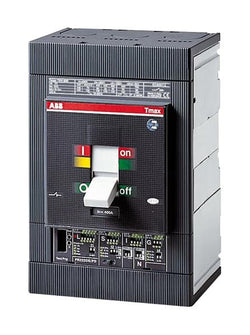

1SDA054749R1 ABB - T5 400 P FP 3p EF
ABB 1SDA054749R1 ABB - T5 400 P FP 3p EF
€0,00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT5PFEF
E-Number (Finland):
3655563
E-Number (Norway):
4383623
E-Number (Sweden):
3180874
EAN:
8015644558703
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
171 mm
Product Net Height:
209 mm
Product Net Depth / Length:
50 mm
Product Net Weight:
1.5 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
131 mm
Package Level 1 Height:
131 mm
Package Level 1 Depth / Length:
313 mm
Package Level 1 Gross Weight:
1.708 kg
Package Level 1 EAN:
8015644558703

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Fixed Part
Suitable For:
T5
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
P

Technical

Device:
Fixed Part
Number of Poles:
3P
Rated Operational Voltage:
690 V AC
750 V DC
690 V AC
750 V DC
Rated Uninterrupted Current (Iu):
400 A
Standards:
IEC
Sub-type:
T5
Terminal Connection Type:
Plug-In Circuit-Breakers
Front Extended
Plug-In Circuit-Breakers
Front Extended
Test Voltage at Industrial Frequency for 1 Minute:
not applicable V

Certificates and Declarations

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

ETIM 9:
EC002043 - Chassis part power circuit breaker
ETIM 10:
EC002043 - Chassis part power circuit breaker
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
Object Classification Code:
Q
UNSPSC:
39122221
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370422
1SDA054600R1 ABB - T5D 400 4p F F
ABB 1SDA054600R1 ABB - T5D 400 4p F F
€1.275,95
Only 1 unit left

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
589159d5-0945-415f-8498-665412027854 Italy
Simplified SCIP:
aa73c34b-fd1b-4137-853b-6aab5474bba0 Germany
bcb09c46-4b46-425f-9db8-951888f274a6 Poland
1a4acb0f-173b-4f15-9df6-63979fe0cb7b Germany
bb1fb6f8-1e39-409b-bc4c-b7aaf94d9b9a Poland
e2f43e0a-04a8-437d-816a-5dc709ec73b0 Norway
1201cb38-5614-4f57-b49e-1cc7c9873aed France
b07bd7f3-3f88-4107-b8e6-223622229815 Sweden
e8f46076-d043-4b25-887b-9b7b0bf7597b Germany
af39ee33-d129-4d8d-97bd-23a75c6cf39c France
80ed9396-d3c0-4898-ae06-fb2bd4e6fe11 Netherlands
55bfe880-90d4-4340-9ab8-d9b6d4c44de0 Spain
46f71b8d-7b71-4e43-8dbc-d0f22d2bea84 Netherlands
54ef9ea8-d92f-4348-8ab3-a0c69ee38e78 Finland
440853a0-f494-4fe3-8fc8-481d8807702c Netherlands
3fd445d0-de8f-47be-951a-16b6fd797b2a Germany
94305b50-34f0-4b00-8d9a-52cd83bf5fcf Germany
c17a6f49-3c47-4d48-89a9-06cb72ab0d82 Croatia
7f76282f-4cc7-42c0-9bdf-48aa3a5aa52a Czech Republic
ed7aca7e-0ff0-4ddd-aa06-50caa3eee911 Poland
3189dfc3-cab5-40fd-b865-898df3ff479d Netherlands
328e1385-c6fb-4339-a37e-d397e571ca75 Netherlands
4e9f5e44-6edb-451e-8ca4-2fe1c653349b Estonia
41ce5e52-aa69-4787-9961-c5b7b9b0a260 Portugal
5667a9d9-ac36-419e-9dbd-08550fb3e584 Sweden
ce7c75e6-1358-465b-b96a-f753940497b3 Denmark
66a76ad5-468b-48c7-a398-6d831820764d Greece
848360e4-0160-424d-919d-9d2a64e9b1fd Bulgaria
aa73c34b-fd1b-4137-853b-6aab5474bba0 Germany
bcb09c46-4b46-425f-9db8-951888f274a6 Poland
1a4acb0f-173b-4f15-9df6-63979fe0cb7b Germany
bb1fb6f8-1e39-409b-bc4c-b7aaf94d9b9a Poland
e2f43e0a-04a8-437d-816a-5dc709ec73b0 Norway
1201cb38-5614-4f57-b49e-1cc7c9873aed France
b07bd7f3-3f88-4107-b8e6-223622229815 Sweden
e8f46076-d043-4b25-887b-9b7b0bf7597b Germany
af39ee33-d129-4d8d-97bd-23a75c6cf39c France
80ed9396-d3c0-4898-ae06-fb2bd4e6fe11 Netherlands

Ordering

E-Number (Finland):
3655614
E-Number (Norway):
4383618
EAN:
8015644556983
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
186 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
5.472 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
5.76 kg
Package Level 1 EAN:
8015644556983

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Switch Disconnector
Suitable For:
T5
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
4P
Power Loss:
at Rated Operating Conditions per Pole 16.5 W
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
750 V DC
690 V AC
750 V DC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 6 A
Rated Uninterrupted Current (Iu):
400 A
Short-Circuit Performance Level:
D
Standards:
IEC
Sub-type:
T5
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3000 V
Test Voltage at Industrial Frequency for 1 Minute:
3000 V

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371403
1SDA054601R1 ABB - T5D 630 3p F F
ABB 1SDA054601R1 ABB - T5D 630 3p F F
€1.099,95
Only 1 unit left

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
1fdc593c-e498-4bfe-afc0-e0ed9c1122af Italy
Simplified SCIP:
10db32a5-70f3-4cae-8d54-8495976cb8cb Germany
b165941e-51ab-4239-9fc5-ee48f0c9fae4 Poland
3a5a5b6a-5983-4da6-8b69-eaf0947dc165 Germany
e87f90ee-d4cb-40a2-9528-2500796ada6c Norway
4259d9a1-1aae-4ee0-b0c5-7cda50e4e643 Finland
548eebc7-f802-4941-a5ca-030463f4dade Denmark
48244e27-964d-42d8-bea3-4cb32325bd3f Greece
4db5401f-03a1-4259-8366-4638e79ef561 Bulgaria
84e42664-daf9-4cb7-aaf2-0dc73e564183 Netherlands
6a96e2e0-9629-4727-bdcf-28562b26683f Germany
e3e7e710-2be2-4971-a794-f0159820c05a Germany
0b44202b-b1ae-4dc3-8b9b-7dcb4a413ab8 Croatia
d6dae9c3-7eed-437b-ad5c-6274ade8f77d Czech Republic
a17f0b1f-80ba-4793-8b81-2398539189aa Poland
23009673-c4b0-459d-a9ad-f89336ebb7e4 Netherlands
0e11b245-e027-492e-afaf-2177ba2d02fb Netherlands
dce2cc52-def2-436d-af6f-3712fd8f539a Estonia
de84e64e-1633-4bf0-a0de-42938fd5b505 Portugal
2465f06c-973e-4f43-bf9d-43314b76825b Sweden
51dab352-11d8-4ab0-9049-624a6e8fc96e Poland
36bcc96b-1ad4-4158-bc73-61101d037450 France
66b8db6d-5a1e-44bf-8907-e468389d718c Sweden
14388075-4bcd-43e2-8d01-737c41cd450b Germany
c9c11825-054b-44db-a623-4fea3b191a5c France
381ff290-0419-42f8-9b4f-b980a619f420 Netherlands
1aec8987-71c4-43bb-bbf1-c1e36e7f6147 Spain
0d02963b-0754-418e-a2ca-47cdb7e656ee Netherlands
10db32a5-70f3-4cae-8d54-8495976cb8cb Germany
b165941e-51ab-4239-9fc5-ee48f0c9fae4 Poland
3a5a5b6a-5983-4da6-8b69-eaf0947dc165 Germany
e87f90ee-d4cb-40a2-9528-2500796ada6c Norway
4259d9a1-1aae-4ee0-b0c5-7cda50e4e643 Finland
548eebc7-f802-4941-a5ca-030463f4dade Denmark
48244e27-964d-42d8-bea3-4cb32325bd3f Greece
4db5401f-03a1-4259-8366-4638e79ef561 Bulgaria
84e42664-daf9-4cb7-aaf2-0dc73e564183 Netherlands
6a96e2e0-9629-4727-bdcf-28562b26683f Germany

Ordering

E-Number (Finland):
3655615
E-Number (Norway):
4383619
EAN:
8015644556990
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
3.25 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
4.585 kg
Package Level 1 EAN:
8015644556990

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Switch Disconnector
Suitable For:
T5
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 41 W
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
750 V DC
690 V AC
750 V DC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 6 kA
Rated Uninterrupted Current (Iu):
630 A
Short-Circuit Performance Level:
D
Standards:
IEC
Sub-type:
T5
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3000 V
Test Voltage at Industrial Frequency for 1 Minute:
3000 V

Certificates and Declarations

ATEX Certificate:
Data Sheet, Technical Information:
Declaration of Conformity - CE:
UL Certificate:
VDE Certificate:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371403
1SDA054926R1 ABB - RHD T4-T5 F/P STAND. DIRECT
ABB 1SDA054926R1 ABB - RHD T4-T5 F/P STAND. DIRECT
€148,95
Only 8 units left

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT5RH
E-Number (Finland):
3655658
E-Number (Norway):
4383644
E-Number (Sweden):
3180997
EAN:
8015644557089
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.3 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
145 mm
Package Level 1 Height:
168 mm
Package Level 1 Depth / Length:
128 mm
Package Level 1 Gross Weight:
0.408 kg
Package Level 1 EAN:
8015644557089

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T4, T5
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC000229 - Handle for power circuit breaker
ETIM 10:
EC000229 - Handle for power circuit breaker
IDEA Granular Category Code (IGCC):
3038 >> Handles or knobs
Object Classification Code:
Q
UNSPSC:
31162801
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370414
RC222/5 T5 4p F ABB - 1SDA054955R1
ABB RC222/5 T5 4p F ABB - 1SDA054955R1
€0,00
Sold Out

Tmax T - Shunt differential RC222 / 5 T5 fixed (4 poles)
E1B800PR122/P-LIIn=800A4pFHR ABB - 1SDA055611R1
ABB E1B800PR122/P-LIIn=800A4pFHR ABB - 1SDA055611R1
€0,00
Sold Out

E1B 800 PR122/P-LI In=800A 4p F HR
1SDA054889R1 ABB - UVR-C T4-T5-T6 60 Vac/dc
ABB 1SDA054889R1 ABB - UVR-C T4-T5-T6 60 Vac/dc
€0,00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT6U5
E-Number (Finland):
3655636
EAN:
8015644560171
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.12 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.15 kg
Package Level 1 EAN:
8015644560171

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T4, T5, T6
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Current Type:
AC/DC
Rated Voltage (Ur):
60 V AC
60 V DC
60 V AC
60 V DC
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC001022 - Under voltage coil
ETIM 10:
EC001022 - Under voltage coil
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370417
1SDA054870R1 ABB - SOR-C T4-T5-T6 24...30 Vac/dc
ABB 1SDA054870R1 ABB - SOR-C T4-T5-T6 24...30 Vac/dc
€0,00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT5S8
E-Number (Finland):
3655621
E-Number (Norway):
4383726
EAN:
8015644559984
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.12 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.171 kg
Package Level 1 EAN:
8015644559984

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T4, T5, T6
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Current Type:
AC/DC
Rated Voltage (Ur):
24 ... 30 V AC
24 ... 30 V DC
24 ... 30 V AC
24 ... 30 V DC
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC002483 - Switch spool for power circuit breaker
ETIM 10:
EC002483 - Switch spool for power circuit breaker
IDEA Granular Category Code (IGCC):
4879 >> Shunt release (for power circuit breaker)
Object Classification Code:
Q
UNSPSC:
39121601
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370421
1SDA054879R1 ABB - PS-SOR-C T4-T5-T6 110..120Vac xPERM.SERV
ABB 1SDA054879R1 ABB - PS-SOR-C T4-T5-T6 110..120Vac xPERM.SERV
€0,00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT5SB
E-Number (Finland):
3655628
E-Number (Norway):
4383733
EAN:
8015644560072
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.17 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.2 kg
Package Level 1 EAN:
8015644560072

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T4, T5, T6
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Current Type:
AC
Rated Voltage (Ur):
110 ... 120 V AC
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC002483 - Switch spool for power circuit breaker
ETIM 10:
EC002483 - Switch spool for power circuit breaker
IDEA Granular Category Code (IGCC):
4879 >> Shunt release (for power circuit breaker)
Object Classification Code:
Q
UNSPSC:
39121601
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370421
1SDA054956R1 ABB - RC223/4 T4 250 4p F
ABB 1SDA054956R1 ABB - RC223/4 T4 250 4p F
€0,00
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

E-Number (Finland):
3655735
EAN:
8015644560959
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
1.6 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
15 mm
Package Level 1 Height:
17 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Gross Weight:
1.7 kg
Package Level 1 EAN:
8015644560959

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T4
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Number of Poles:
4P
Standards:
IEC

Certificates and Declarations

Data Sheet, Technical Information:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC002498 - Accessories/spare parts for low-voltage switch technology
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371390
RHE T7 F/W NORM. RETURNED ABB - 1SDA062122R1
ABB RHE T7 F/W NORM. RETURNED ABB - 1SDA062122R1
€918,95
Only 2 units left

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT7VD
E-Number (Norway):
4383591
EAN:
8015644646615
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
1.234 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
160 mm
Package Level 1 Height:
100 mm
Package Level 1 Depth / Length:
500 mm
Package Level 1 Gross Weight:
1.299 kg
Package Level 1 EAN:
8015644646615

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T7
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC000229 - Handle for power circuit breaker
ETIM 10:
EC000229 - Handle for power circuit breaker
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
eClass:
V11.1 : 27370414
1SDA055023R1 ABB - KIT FC CuAl 1x300mm2 T5 400 8pcs
ABB 1SDA055023R1 ABB - KIT FC CuAl 1x300mm2 T5 400 8pcs
€0,00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KIA3400-8
EAN:
8015644561680
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.6 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Gross Weight:
0.6 kg
Package Level 1 EAN:
8015644561680

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T5
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Number of Poles:
4P
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC002019 - Connection vane/phase spreader
ETIM 10:
EC002019 - Connection vane/phase spreader
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371305
1SDA054500R1 ABB - T4V250 TMA100-1000 4p FFC1150/1000VAC/DC
ABB 1SDA054500R1 ABB - T4V250 TMA100-1000 4p FFC1150/1000VAC/DC
€0,00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Ordering

EAN:
8015644556020
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
3.05 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
3.5 kg
Package Level 1 EAN:
8015644556020

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T4
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
8000 cycle
120 cycles per hour
8000 cycle
120 cycles per hour
Mechanical Durability:
20000 cycle
240 cycles per hour
20000 cycle
240 cycles per hour
Number of Poles:
4P
Power Loss:
at Rated Operating Conditions per Pole 5.2 W
Rated Current (In):
100 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1150 V
Rated Operational Voltage:
1150 V AC
1000 V DC
1150 V AC
1000 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(1000 V AC) 12 kA
(1150 V AC) 6 kA
(1000 V DC) 20 kA
(1000 V AC) 12 kA
(1150 V AC) 6 kA
(1000 V DC) 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(1000 V AC) 20 kA
(1150 V AC) 12 kA
(1000 V DC) 40 kA
(1000 V AC) 20 kA
(1150 V AC) 12 kA
(1000 V DC) 40 kA
Rated Uninterrupted Current (Iu):
250 A
Release:
TMA
Release Type:
TM
Short-Circuit Performance Level:
V
Standards:
IEC
Sub-type:
T4
Terminal Connection Type:
Fixed Circuit-Breakers
Front for Copper Cables
Fixed Circuit-Breakers
Front for Copper Cables
Test Voltage Max (Utest):
3500 V

Certificates and Declarations

Declaration of Conformity - CE:
GL Certificate:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
1SDA054873R1 ABB - SOR-C T4-T5-T6 220..240Vac - 220..250Vdc
ABB 1SDA054873R1 ABB - SOR-C T4-T5-T6 220..240Vac - 220..250Vdc
€525,95
Only 1 unit left

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT5S2
E-Number (Finland):
3655624
E-Number (Norway):
4383634
E-Number (Sweden):
3180968
EAN:
8015644560010
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Weight:
0.369 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
120 mm
Package Level 1 Height:
160 mm
Package Level 1 Depth / Length:
188 mm
Package Level 1 Gross Weight:
0.388 kg
Package Level 1 EAN:
8015644560010

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T4, T5, T6
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Current Type:
AC/DC
Rated Voltage (Ur):
220 ... 240 V AC
220 ... 250 V DC
220 ... 240 V AC
220 ... 250 V DC
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC002483 - Switch spool for power circuit breaker
ETIM 10:
EC002483 - Switch spool for power circuit breaker
IDEA Granular Category Code (IGCC):
4879 >> Shunt release (for power circuit breaker)
Object Classification Code:
Q
UNSPSC:
39121601
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370421
MIR-V T3 MECH,LOCK REAR VER. 2 C.BREAKER ABB - 1SDA063325R1
ABB MIR-V T3 MECH,LOCK REAR VER. 2 C.BREAKER ABB - 1SDA063325R1
€0,00
Sold Out

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT3MI-V
EAN:
8015644659011
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
2.7 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Gross Weight:
3 kg
Package Level 1 EAN:
8015644659011

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
ACC
Suitable For:
T3
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Standards:
IEC

Certificates and Declarations

Data Sheet, Technical Information:
Instructions and Manuals:

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39121600
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
1SDA054911R1 ABB - AUX-C T4-T5-T6 3Q 1SY 250 Vac/dc
ABB 1SDA054911R1 ABB - AUX-C T4-T5-T6 3Q 1SY 250 Vac/dc
€0,00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT5AS3
E-Number (Finland):
3655642
E-Number (Norway):
4383640
EAN:
8015644560409
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.226 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.238 kg
Package Level 1 EAN:
8015644560409

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T4, T5, T6
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Number of Auxiliary Contacts CO (SPDT):
4
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC000041 - Auxiliary contact block
ETIM 10:
EC000041 - Auxiliary contact block
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
Object Classification Code:
Q
UNSPSC:
39121522
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371302

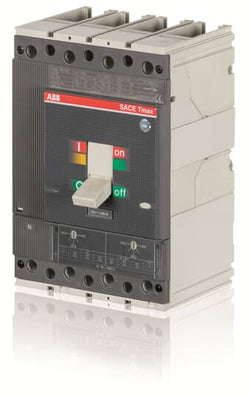

1SDA054501R1 ABB - T4V250 TMA125-1250 4pFFC1150VAC/DC N100%
ABB 1SDA054501R1 ABB - T4V250 TMA125-1250 4pFFC1150VAC/DC N100%
€0,00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Ordering

EAN:
8015644556037
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85352100

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
3.05 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
3.5 kg
Package Level 1 EAN:
8015644556037

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T4
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
8000 cycle
120 cycles per hour
8000 cycle
120 cycles per hour
Mechanical Durability:
20000 cycle
240 cycles per hour
20000 cycle
240 cycles per hour
Number of Poles:
4P
Power Loss:
at Rated Operating Conditions per Pole 6.2 W
Rated Current (In):
125 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1150 V
Rated Operational Voltage:
1150 V AC
1000 V DC
1150 V AC
1000 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(1000 V AC) 12 kA
(1150 V AC) 6 kA
(1000 V DC) 20 kA
(1000 V AC) 12 kA
(1150 V AC) 6 kA
(1000 V DC) 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(1000 V AC) 20 kA
(1150 V AC) 12 kA
(1000 V DC) 40 kA
(1000 V AC) 20 kA
(1150 V AC) 12 kA
(1000 V DC) 40 kA
Rated Uninterrupted Current (Iu):
250 A
Release:
TMA
Release Type:
TM
Short-Circuit Performance Level:
V
Standards:
IEC
Sub-type:
T4
Terminal Connection Type:
Fixed Circuit-Breakers
Front for Copper Cables
Fixed Circuit-Breakers
Front for Copper Cables
Test Voltage Max (Utest):
3500 V

Certificates and Declarations

Declaration of Conformity - CE:
GL Certificate:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
1SDA054896R1 ABB - MOE T4-T5 110...125 Vac/dc
ABB 1SDA054896R1 ABB - MOE T4-T5 110...125 Vac/dc
€2.517,95
Only 2 units left

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT5M4
E-Number (Finland):
3655652
EAN:
8015644560249
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
2.155 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
131 mm
Package Level 1 Height:
136 mm
Package Level 1 Depth / Length:
163 mm
Package Level 1 Gross Weight:
2.268 kg
Package Level 1 EAN:
8015644560249

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T4, T5
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Current Type:
AC/DC
Rated Voltage (Ur):
100 ... 125 V AC
100 ... 125 V DC
100 ... 125 V AC
100 ... 125 V DC
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC001030 - Motor operator for power circuit-breaker
ETIM 10:
EC001030 - Motor operator for power circuit-breaker
IDEA Granular Category Code (IGCC):
4872 >> Motor operator for power circuit-breaker
Object Classification Code:
Q
UNSPSC:
39121601
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370412
1SDA054902R1 ABB - MOE-E T4-T5 220...250 Vac/dc X REM.CONT.
ABB 1SDA054902R1 ABB - MOE-E T4-T5 220...250 Vac/dc X REM.CONT.
€0,00
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT5M2-E
EAN:
8015644559854
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
2.2 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
153 mm
Package Level 1 Height:
189 mm
Package Level 1 Depth / Length:
158 mm
Package Level 1 Gross Weight:
2.34 kg
Package Level 1 EAN:
8015644559854

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T4, T5
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Current Type:
AC/DC
Rated Voltage (Ur):
220 ... 250 V AC
220 ... 250 V DC
220 ... 250 V AC
220 ... 250 V DC
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC001030 - Motor operator for power circuit-breaker
ETIM 10:
EC001030 - Motor operator for power circuit-breaker
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370412
1SDA055030R1 ABB - KIT FC CuAl 2x240mm2 T5 630 6pcs
ABB 1SDA055030R1 ABB - KIT FC CuAl 2x240mm2 T5 630 6pcs
€618,95
Only 1 unit left

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

E-Number (Sweden):
3180925
EAN:
8015644561758
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
1.8 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
120 mm
Package Level 1 Height:
155 mm
Package Level 1 Depth / Length:
190 mm
Package Level 1 Gross Weight:
1.9 kg
Package Level 1 EAN:
8015644561758

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T5
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Number of Poles:
3P
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC002019 - Connection vane/phase spreader
ETIM 10:
EC002019 - Connection vane/phase spreader
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371305

Recently viewed
