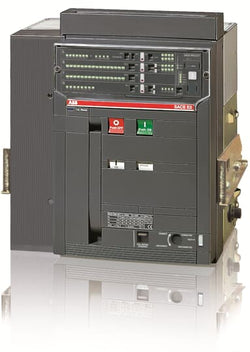

ABB 1SDA055880R1 ABB - E2N1250PR121/P-LIIn=1250A4pWMP

€0,00

Sold Out

Material Compliance

REACH Declaration:

REACh Declaration ABB Sace circuit breakers

RoHS Information:

RoHS Declaration ABB Sace circuit breakers

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Conflict Minerals Reporting Template (CMRT):

Document availability on demand

Environmental

Environmental Information:

Product Environmental Information Emax

Ordering

EAN:

8015644572204

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85362090

Dimensions

Product Net Width:

414 mm

Product Net Height:

461 mm

Product Net Depth / Length:

396.5 mm

Product Net Weight:

61 kg

Container Information

Package Level 1 Units:

1 piece

Package Level 1 Width:

515 mm

Package Level 1 Height:

600 mm

Package Level 1 Depth / Length:

615 mm

Package Level 1 Gross Weight:

73 kg

Package Level 1 EAN:

8015644572204

Additional Information

Product Main Type:

SACE Emax

Product Name:

Air Circuit Breaker

Product Type:

Air Circuit Breaker

Version:

W

Technical

Current Type:

AC

Electrical Durability:

Ue =< 440 V 15000 cycle

Ue = 500 ... 690 V 15000 cycle

30 cycles per hour

Ue =< 440 V 15000 cycle

Ue = 500 ... 690 V 15000 cycle

30 cycles per hour

Mechanical Durability:

25000 cycle

60 cycles per hour

25000 cycle

60 cycles per hour

Number of Poles:

4P

Power Loss:

130 W

Rated Current (I_n):

1250 A

Rated Impulse Withstand Voltage (U_imp):

12 kV

Rated Insulation Voltage (U_i):

1000 V

Rated Operational Current (I_e):

1250 A

Rated Operational Voltage:

690 V AC

Rated Service Short-Circuit Breaking Capacity (I_cs):

(220 V AC) 65 kA

(230 V AC) 65 kA

(380 V AC) 65 kA

(400 V AC) 65 kA

(415 V AC) 65 kA

(440 V AC) 65 kA

(500 V AC) 55 kA

(660 V AC) 55 kA

(690 V AC) 55 kA

(220 V AC) 65 kA

(230 V AC) 65 kA

(380 V AC) 65 kA

(400 V AC) 65 kA

(415 V AC) 65 kA

(440 V AC) 65 kA

(500 V AC) 55 kA

(660 V AC) 55 kA

(690 V AC) 55 kA

Rated Short-time Withstand Current Low Voltage (I_cw):

for 1 s 55 kA

for 3 s 42 kA

for 1 s 55 kA

for 3 s 42 kA

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

(220 V AC) 65 kA

(230 V AC) 65 kA

(380 V AC) 65 kA

(400 V AC) 65 kA

(415 V AC) 65 kA

(440 V AC) 65 kA

(500 V AC) 55 kA

(660 V AC) 55 kA

(690 V AC) 55 kA

(220 V AC) 65 kA

(230 V AC) 65 kA

(380 V AC) 65 kA

(400 V AC) 65 kA

(415 V AC) 65 kA

(440 V AC) 65 kA

(500 V AC) 55 kA

(660 V AC) 55 kA

(690 V AC) 55 kA

Rated Uninterrupted Current (I_u):

1250 A

Rated Voltage (U_r):

690 V

Release:

PR121/P-LI

Release Type:

EL

Short-Circuit Performance Level:

N

Standards:

IEC

Sub-type:

E2

Terminal Connection Type:

Withdrawable Circuit-Breakers

Certificates and Declarations

Data Sheet, Technical Information:

New Emax - Low voltage air circuit-breakers

Declaration of Conformity - CE:

1SDL000165R0014

Instructions and Manuals:

Installation, service and maintenance instructions for low voltage air circuit-breakers Emax

External Classifications and Standards

Object Classification Code:

Q

UNSPSC:

39120000

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)
