Showing 361 - 384 of 16438 products

Showing 361 - 384 of 16438 products
View
1SAM101903R0415 ABB - UAF-415
ABB 1SAM101903R0415 ABB - UAF-415
0.00 kr
Sold Out

UAF-415 Undervoltage Release
1SAM101904R0003 ABB - SK-11
ABB 1SAM101904R0003 ABB - SK-11
0.00 kr
Sold Out

SK-11 Signaling Contact
1SAM101923R0002 ABB - MSMN
ABB 1SAM101923R0002 ABB - MSMN
0.00 kr
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
10 mm
Product Net Height:
12.5 mm
Product Net Depth / Length:
31.2 mm
Product Net Weight:
1.7 g

Technical

Tightening Torque:
0.12 N·m

Technical UL/CSA

Tightening Torque UL/CSA:
1.06 in·lb

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE Category:
Product Not in WEEE Scope

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
70 mm
Package Level 1 Depth / Length:
118 mm
Package Level 1 Height:
11 mm
Package Level 1 Gross Weight:
2 g
Package Level 1 EAN:
4013614405334
Package Level 2 Units:
10 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
0.02 kg
Package Level 2 EAN:
4013614409813

External Classifications and Standards

Object Classification Code:
X
ETIM 9:
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10:
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass:
V11.0 : 27371392
UNSPSC:
39122221
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
E-Number (Finland):
3705870
E-Number (Norway):
4364254
E-Number (Sweden):
3112084
1SAM101923R0012 ABB - MSMNO
ABB 1SAM101923R0012 ABB - MSMNO
0.00 kr
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
10 mm
Product Net Height:
12.5 mm
Product Net Depth / Length:
31.2 mm
Product Net Weight:
1.7 g

Technical

Tightening Torque:
0.12 N·m

Technical UL/CSA

Tightening Torque UL/CSA:
1.06 in·lb

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE Category:
Product Not in WEEE Scope

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
70 mm
Package Level 1 Depth / Length:
118 mm
Package Level 1 Height:
11 mm
Package Level 1 Gross Weight:
2 g
Package Level 1 EAN:
4013614405341
Package Level 2 Units:
10 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
0.02 kg
Package Level 2 EAN:
4013614409820

External Classifications and Standards

Object Classification Code:
X
ETIM 9:
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10:
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass:
V11.0 : 27371392
UNSPSC:
39122221
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
E-Number (Finland):
3705871
E-Number (Norway):
4364255
E-Number (Sweden):
3112085
1SAM101928R0001 ABB - HKF-11
ABB 1SAM101928R0001 ABB - HKF-11
0.00 kr
Sold Out

HKF-11 Auxiliary Contact
1SAM101928R0002 ABB - HKF-20
ABB 1SAM101928R0002 ABB - HKF-20
0.00 kr
Sold Out

HKF-20 Auxiliary Contact
1SAM101937R0012 ABB - PS3-2-0
ABB 1SAM101937R0012 ABB - PS3-2-0
3,798.00 kr
Only 1 unit left

PS3-2-0 Busbar for 2 devices

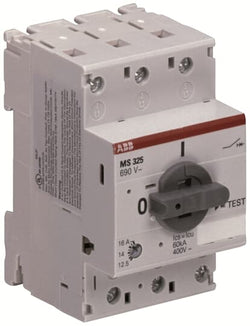

1SAM150000R1003 ABB - MS325-0.4
ABB 1SAM150000R1003 ABB - MS325-0.4
0.00 kr
Sold Out

MS325-0.4 Manual Motor Starter 0.25 ... 0.40 A
1SAM150000R1005 ABB - MS325-1
ABB 1SAM150000R1005 ABB - MS325-1
0.00 kr
Sold Out

MS325-1 Manual Motor Starter 0.63 ... 1.0 A. The MS325-1 manual motor starter is a 54 mm width devices with a rated operational current of Ie = 1.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures.
1SAM150000R1007 ABB - MS325-2.5
ABB 1SAM150000R1007 ABB - MS325-2.5
1,256.00 kr
In stock, 12 units

MS325-2.5 Manual Motor Starter 1.6 ... 2.5 A
1SAM150000R1011 ABB - MS325-12.5
ABB 1SAM150000R1011 ABB - MS325-12.5
3,603.00 kr
Only 2 units left

MS325-12.5 Manual Motor Starter
1SAM150000R1012 ABB - MS325-16
ABB 1SAM150000R1012 ABB - MS325-16
0.00 kr
Sold Out

MS325-16 Manual Motor Starter
1SAM150000R1013 ABB - MS325-20
ABB 1SAM150000R1013 ABB - MS325-20
6,918.00 kr
Only 3 units left

MS325-20 Manual Motor Starter
ABB New Stock Image
ABB 1SAM150000R1014 ABB
1,120.00 kr
Only 6 units left
PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
ABB Stock Image
ABB 1SAM151000R1009 ABB
5,073.00 kr
Only 1 unit left

PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
1SAM160000R1008 ABB - MO325-4
ABB 1SAM160000R1008 ABB - MO325-4
0.00 kr
Sold Out

MO325-4 Manual Motor Starter Magnetic Only 4 A
1SAM160000R1012 ABB - MO325-16
ABB 1SAM160000R1012 ABB - MO325-16
0.00 kr
Sold Out

MO325-16 Manual Motor Starter Magnetic Only 16 A. The MO325-16 manual motor starter magnetic only is a 54 mm width device with a rated operational current of Ie = 16.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits.
1SAM160000R1014 ABB - MO325-25
ABB 1SAM160000R1014 ABB - MO325-25
0.00 kr
Sold Out

MO325-25 Manual Motor Starter Magnetic Only. The MO325-25 manual motor starter magnetic only is a 54 mm width device with a rated operational current of Ie = 25.0 A.
1SAM201901R1001 ABB - HKF1-11
ABB 1SAM201901R1001 ABB - HKF1-11
906.00 kr
Only 10 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080

Popular Downloads

Instructions and Manuals:

Dimensions

Product Net Width:
45 mm
Product Net Height:
12.5 mm
Product Net Depth / Length:
26.5 mm
Product Net Weight:
0.015 kg

Technical

Rated Operational Voltage:
250 V
Rated Frequency (f):
Auxiliary Circuit DC
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp):
Auxiliary Circuit 6 kV
Rated Insulation Voltage (Ui):
250 V
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
1
Degree of Protection:
IP20
Electrical Durability:
100000 cycle
Mechanical Durability:
Nr. Operations 100000 cycle
Terminal Type:
Screw Terminals
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1.0 ... 2.5 mm²
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1.0 ... 2.5 mm²
Tightening Torque:
Auxiliary Circuit 0.8 ... 1.2 N·m
Wire Stripping Length:
Auxiliary Circuit 8 mm
Recommended Screw Driver:
M3
Pozidriv 2
M3
Pozidriv 2
Mounting Position:
1 ... 6

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 250 V AC
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 7 in·lb
Contact Rating UL/CSA:
B300
R300
B300
R300

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
Resistance to Vibrations:
5g 3 ... 150 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

cUL Certificate:
UL Certificate:

Container Information

Package Level 1 Units:
box 10 piece
Package Level 1 Width:
148 mm
Package Level 1 Depth / Length:
36 mm
Package Level 1 Height:
50 mm
Package Level 1 Gross Weight:
0.195 kg
Package Level 1 EAN:
4013614481413
Package Level 2 Units:
carton 500 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
10.125 kg
Package Level 2 EAN:
4013614522727

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000041 - Auxiliary contact block
ETIM 10:
EC000041 - Auxiliary contact block
eClass:
V11.0 : 27371302
UNSPSC:
39121522
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
E-Number (Finland):
3706015
E-Number (Norway):
4364278
E-Number (Sweden):
3112001
1SAM201901R1002 ABB - HKF1-20
ABB 1SAM201901R1002 ABB - HKF1-20
906.00 kr
In stock, 11 units

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080

Popular Downloads

Instructions and Manuals:

Dimensions

Product Net Width:
45 mm
Product Net Height:
12.5 mm
Product Net Depth / Length:
26.5 mm
Product Net Weight:
0.015 kg

Technical

Rated Operational Voltage:
250 V
Rated Frequency (f):
Auxiliary Circuit DC
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp):
Auxiliary Circuit 6 kV
Rated Insulation Voltage (Ui):
250 V
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
2
Degree of Protection:
IP20
Electrical Durability:
100000 cycle
Mechanical Durability:
Nr. Operations 100000 cycle
Terminal Type:
Screw Terminals
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1.0 ... 2.5 mm²
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1.0 ... 2.5 mm²
Tightening Torque:
Auxiliary Circuit 0.8 ... 1.2 N·m
Wire Stripping Length:
Auxiliary Circuit 8 mm
Recommended Screw Driver:
M3
Pozidriv 2
M3
Pozidriv 2
Mounting Position:
1 ... 6

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 250 V AC
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 7 in·lb
Contact Rating UL/CSA:
B300
R300
B300
R300

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
Resistance to Vibrations:
5g 3 ... 150 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

BV Certificate:
cUL Certificate:
DNV Certificate:
UL Certificate:

Container Information

Package Level 1 Units:
box 10 piece
Package Level 1 Width:
148 mm
Package Level 1 Depth / Length:
36 mm
Package Level 1 Height:
50 mm
Package Level 1 Gross Weight:
0.195 kg
Package Level 1 EAN:
4013614481420
Package Level 2 Units:
500 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
10.125 kg
Package Level 2 EAN:
4013614522734

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000041 - Auxiliary contact block
ETIM 10:
EC000041 - Auxiliary contact block
eClass:
V11.0 : 27371302
UNSPSC:
39121522
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
E-Number (Finland):
3705898
E-Number (Norway):
4364493
1SAM201902R1001 ABB - HK1-11
ABB 1SAM201902R1001 ABB - HK1-11
904.00 kr
Only 6 units left

Ordering

Minimum Order Quantity:
2 piece
Customs Tariff Number:
85365080

Popular Downloads

Instructions and Manuals:

Dimensions

Product Net Width:
9 mm
Product Net Height:
90 mm
Product Net Depth / Length:
78.5 mm
Product Net Weight:
0.035 kg

Technical

Rated Operational Voltage:
690 V AC
600 V DC
Main Circuit 690 V
690 V AC
600 V DC
Main Circuit 690 V
Rated Impulse Withstand Voltage (Uimp):
Auxiliary Circuit 6 kV
Rated Insulation Voltage (Ui):
690 V
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
1
Degree of Protection:
IP20
Electrical Durability:
100000 cycle
Mechanical Durability:
Nr. Operations 100000 cycle
Terminal Type:
Screw Terminals
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 1.5 mm²
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 1.5 mm²
Tightening Torque:
Auxiliary Circuit 0.8 ... 1.2 N·m
Wire Stripping Length:
Auxiliary Circuit 8 mm
Recommended Screw Driver:
M3
Pozidriv 2
M3
Pozidriv 2
Mounting Position:
1 ... 6

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 7 in·lb
Contact Rating UL/CSA:
B600
Q600
B600
Q600

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
Resistance to Vibrations:
5g 3 ... 150 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

cUL Certificate:
UL Certificate:

Container Information

Package Level 1 Units:
box 2 piece
Package Level 1 Width:
25 mm
Package Level 1 Depth / Length:
80 mm
Package Level 1 Height:
93 mm
Package Level 1 Gross Weight:
0.08 kg
Package Level 1 EAN:
4013614481437
Package Level 2 Units:
carton 160 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
6.775 kg
Package Level 2 EAN:
4013614522772

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000041 - Auxiliary contact block
ETIM 10:
EC000041 - Auxiliary contact block
eClass:
V11.0 : 27371302
UNSPSC:
39121522
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
E-Number (Finland):
3706016
E-Number (Norway):
4364279
E-Number (Sweden):
3112005
1SAM201902R1002 ABB - HK1-20
ABB 1SAM201902R1002 ABB - HK1-20
0.00 kr
Sold Out

Ordering

Minimum Order Quantity:
2 piece
Customs Tariff Number:
85365080

Popular Downloads

Instructions and Manuals:

Dimensions

Product Net Width:
9 mm
Product Net Height:
90 mm
Product Net Depth / Length:
78.5 mm
Product Net Weight:
0.035 kg

Technical

Rated Operational Voltage:
690 V AC
600 V DC
Main Circuit 690 V
690 V AC
600 V DC
Main Circuit 690 V
Rated Impulse Withstand Voltage (Uimp):
Auxiliary Circuit 6 kV
Rated Insulation Voltage (Ui):
690 V
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
2
Degree of Protection:
IP20
Electrical Durability:
100000 cycle
Mechanical Durability:
Nr. Operations 100000 cycle
Terminal Type:
Screw Terminals
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 1.5 mm²
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 1.5 mm²
Tightening Torque:
Auxiliary Circuit 0.8 ... 1.2 N·m
Wire Stripping Length:
Auxiliary Circuit 8 mm
Recommended Screw Driver:
M3
Pozidriv 2
M3
Pozidriv 2
Mounting Position:
1 ... 6

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 7 in·lb
Contact Rating UL/CSA:
B600
Q600
B600
Q600

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
Resistance to Vibrations:
5g 3 ... 150 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

cUL Certificate:
UL Certificate:

Container Information

Package Level 1 Units:
box 2 piece
Package Level 1 Width:
25 mm
Package Level 1 Depth / Length:
93 mm
Package Level 1 Height:
80 mm
Package Level 1 Gross Weight:
0.08 kg
Package Level 1 EAN:
4013614481468
Package Level 2 Units:
carton 160 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
6.775 kg
Package Level 2 EAN:
4013614522789

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000041 - Auxiliary contact block
ETIM 10:
EC000041 - Auxiliary contact block
eClass:
V11.0 : 27371302
UNSPSC:
39121522
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
E-Number (Finland):
3706017
E-Number (Norway):
4364280
E-Number (Sweden):
3112007
1SAM201902R1003 ABB - HK1-02
ABB 1SAM201902R1003 ABB - HK1-02
906.00 kr
Only 10 units left

Ordering

Minimum Order Quantity:
2 piece
Customs Tariff Number:
85365080

Popular Downloads

Instructions and Manuals:

Dimensions

Product Net Width:
9 mm
Product Net Height:
90 mm
Product Net Depth / Length:
78.5 mm
Product Net Weight:
0.035 kg

Technical

Rated Operational Voltage:
690 V AC
600 V DC
Main Circuit 690 V
690 V AC
600 V DC
Main Circuit 690 V
Rated Impulse Withstand Voltage (Uimp):
Auxiliary Circuit 6 kV
Rated Insulation Voltage (Ui):
690 V
Number of Auxiliary Contacts NC:
2
Number of Auxiliary Contacts NO:
0
Degree of Protection:
IP20
Electrical Durability:
100000 cycle
Mechanical Durability:
Nr. Operations 100000 cycle
Terminal Type:
Screw Terminals
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 1.5 mm²
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 1.5 mm²
Tightening Torque:
Auxiliary Circuit 0.8 ... 1.2 N·m
Wire Stripping Length:
Auxiliary Circuit 8 mm
Recommended Screw Driver:
M3
Pozidriv 2
M3
Pozidriv 2
Mounting Position:
1 ... 6

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 7 in·lb
Contact Rating UL/CSA:
B600
Q600
B600
Q600

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
Resistance to Vibrations:
5g 3 ... 150 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

cUL Certificate:
UL Certificate:

Container Information

Package Level 1 Units:
box 2 piece
Package Level 1 Width:
25 mm
Package Level 1 Depth / Length:
80 mm
Package Level 1 Height:
93 mm
Package Level 1 Gross Weight:
0.08 kg
Package Level 1 EAN:
4013614481475
Package Level 2 Units:
carton 160 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
6.775 kg
Package Level 2 EAN:
4013614522796

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000041 - Auxiliary contact block
ETIM 10:
EC000041 - Auxiliary contact block
eClass:
V11.0 : 27371302
UNSPSC:
39121522
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
E-Number (Finland):
3706018
E-Number (Norway):
4364281
E-Number (Sweden):
3112009
1SAM201902R1004 ABB - HK1-20L
ABB 1SAM201902R1004 ABB - HK1-20L
0.00 kr
Sold Out

Ordering

Minimum Order Quantity:
2 piece
Customs Tariff Number:
85365080

Popular Downloads

Dimensions

Product Net Width:
9 mm
Product Net Height:
90 mm
Product Net Depth / Length:
78.5 mm
Product Net Weight:
0.035 kg

Technical

Rated Operational Voltage:
690 V AC
600 V DC
Main Circuit 690 V
690 V AC
600 V DC
Main Circuit 690 V
Rated Impulse Withstand Voltage (Uimp):
Auxiliary Circuit 6 kV
Rated Insulation Voltage (Ui):
690 V
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
2
Degree of Protection:
IP20
Electrical Durability:
100000 cycle
Mechanical Durability:
Nr. Operations 100000 cycle
Terminal Type:
Screw Terminals
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 1.5 mm²
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 1.5 mm²
Tightening Torque:
Auxiliary Circuit 0.8 ... 1.2 N·m
Wire Stripping Length:
Auxiliary Circuit 8 mm
Recommended Screw Driver:
M3
Pozidriv 2
M3
Pozidriv 2
Mounting Position:
1 ... 6

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 7 in·lb
Contact Rating UL/CSA:
B600
Q600
B600
Q600

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
Resistance to Vibrations:
5g 3 ... 150 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

BV Certificate:
cUL Certificate:
UL Certificate:

Container Information

Package Level 1 Units:
box 2 piece
Package Level 1 Width:
25 mm
Package Level 1 Depth / Length:
80 mm
Package Level 1 Height:
93 mm
Package Level 1 Gross Weight:
0.08 kg
Package Level 1 EAN:
4013614481482
Package Level 2 Units:
carton 160 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
6.775 kg
Package Level 2 EAN:
4013614522802

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000041 - Auxiliary contact block
ETIM 10:
EC000041 - Auxiliary contact block
eClass:
V11.0 : 27371302
UNSPSC:
39121522
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
E-Number (Norway):
4364296

Recently viewed
