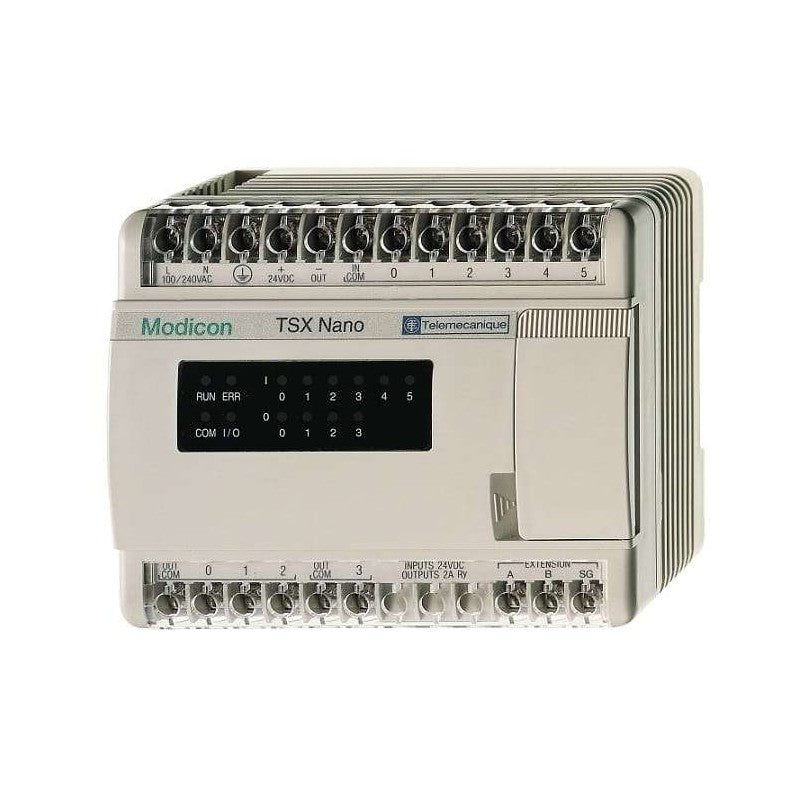

Extendable PLC base TSX Nano 100..240 V - 6 Input 24 V DC - 4 Output relay

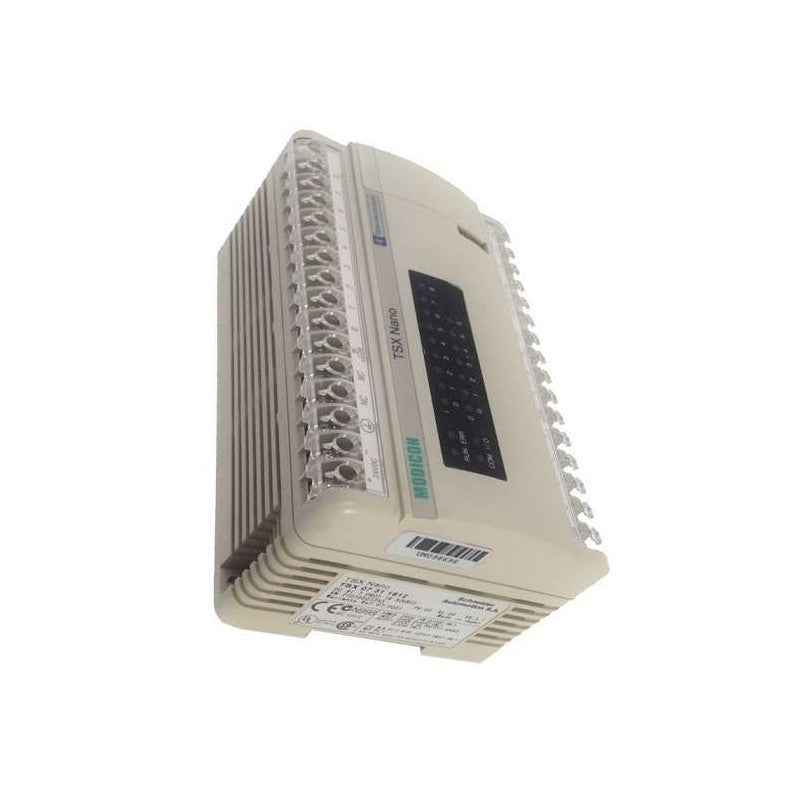

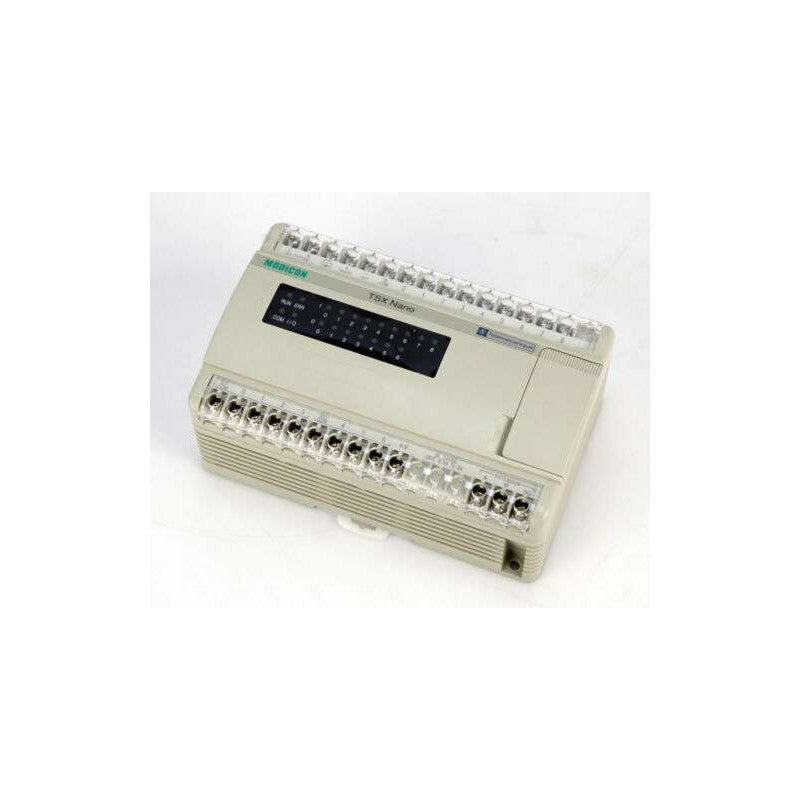

TSX-07 BRICK PLC, Nano, 9 Inputs 7 Outputs transistors to log. neg.
PLC MICRO 120/240VAC 9 analog inputs, 1 analog outputs, serial port
BRICK PLC RELAY 24VDC OUTPUT

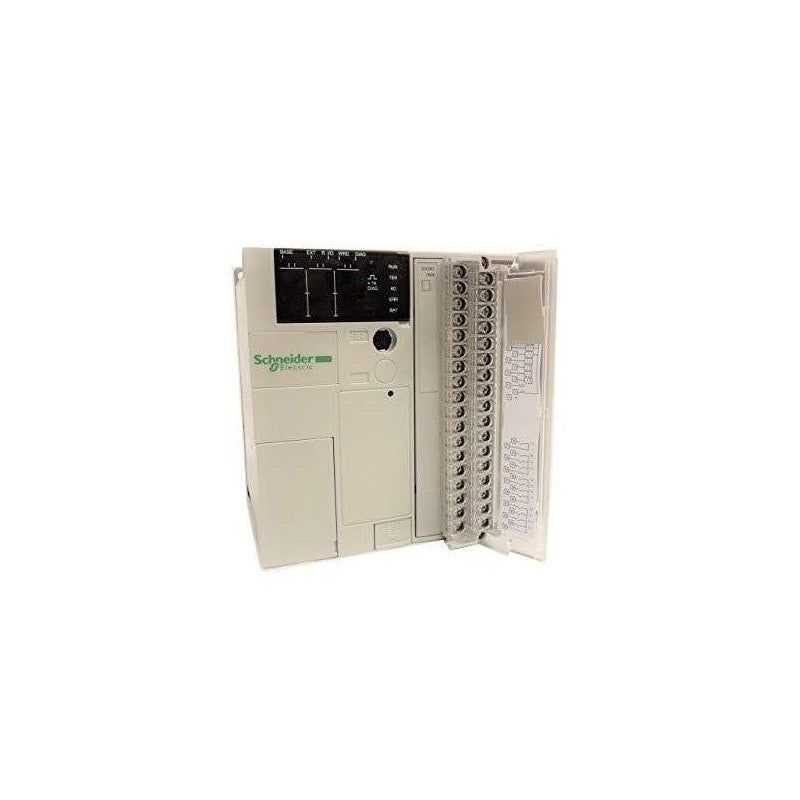

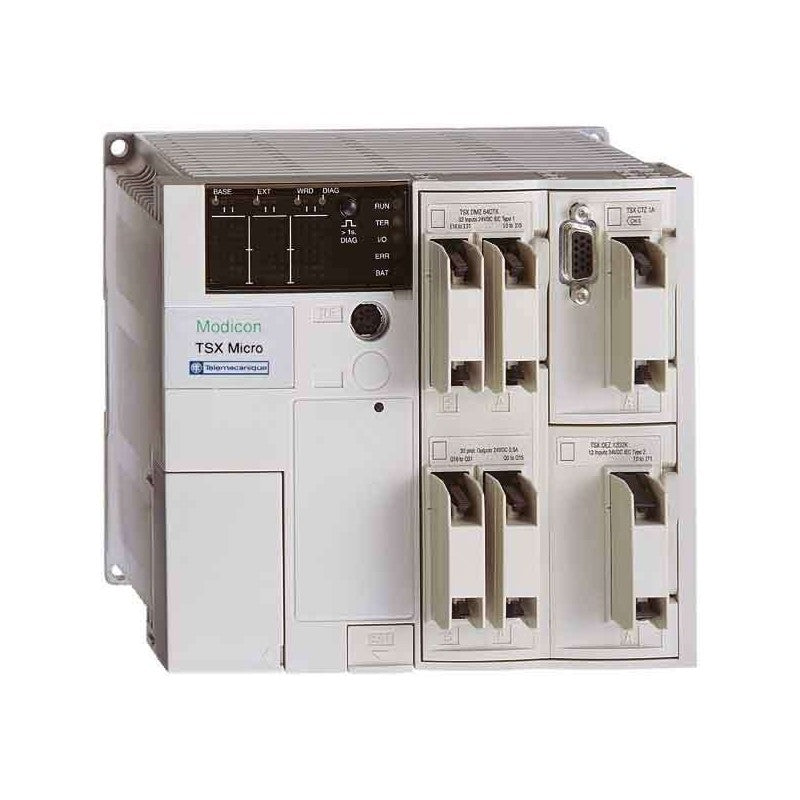

3710-AC Micro CPU
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 100...240 V 90â¦264 V AC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 20 ms |
| Number output current | 0.5 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of slots | 2 |
| Module type | Screw terminal discrete I/O |
| Discrete input number | 16 discrete input(s) at 115 V for AC |
| Discrete output number | 12 for relay |
| Integrated connection type | 1 serial link Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s |
| Realtime clock | With |
| Memory description | Internal RAM 14 Kwords data Flash 15 Kwords data |
| Maximum size of object areas | 256 %Mi 1 %MWi internal words 128 %KWi constant words |
| Execution time per instruction | 0.25 µs Boolean without PCMCIA card 4.81 µs arithmetic REAL floating without PCMCIA card |
| Execution time for 1 Kinstruction | 3.03 100 % Boolean without PCMCIA card 0.25 65 % Boolean and 35 % numerical without PCMCIA card |
| Application structure | 8 event tasks 1 master task 1 fast task |
| System overhead | 1.9 ms for master task |
| Protection type | Short-circuit Overload protection |
| Network frequency | 50...60 Hz |
| Total useful secondary power | 24 W |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 1000-4-2 level 3 Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 Resistance to fast transient conforming to IEC 1000-4-4 level 3 Immunity to impulse waves conforming to IEC 1000-4-5 Damped oscillatory wave conforming to IEC 1000-4-12 Immunity to electromagnetic interference conforming to IEC 61131-2 |

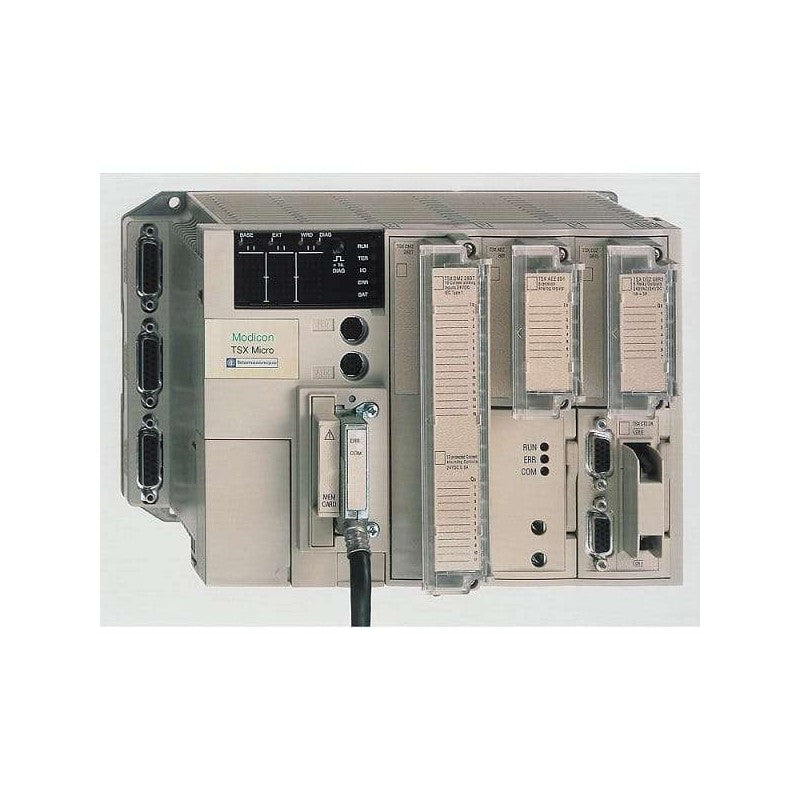

PLC MICRO 120/240VAC W/INTGRTD COUNT/ALF
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 100...240 V 90â¦264 V AC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 20 ms |
| Number output current | 0.5 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of slots | 3 |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s |
| Realtime clock | With |
| Memory description | Flash 15 Kwords data Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage |
| Maximum size of object areas | 128 %KWi constant words 256 %Mi 1 %MWi internal words |
| Execution time per instruction | 0.13 µs Boolean without PCMCIA card 4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card |
| Execution time for 1 Kinstruction | 5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card |
| Application structure | 16 event tasks 1 master task 1 fast task |
| System overhead | 1.6 ms for master task |
| Protection type | Overload protection Short-circuit |
| Total useful secondary power | 16 W |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 1000-4-2 level 3 Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 Resistance to fast transient conforming to IEC 1000-4-4 level 3 Immunity to impulse waves conforming to IEC 1000-4-5 Damped oscillatory wave conforming to IEC 1000-4-12 Immunity to electromagnetic interference conforming to IEC 61131-2 |
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 24 V 19.2â¦30 V DC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 10 ms |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of slots | 3 |
| Analogue input type | 0...10 V 8 |
| Analogue output type | 0...10 V 1 |
| Counting input type | Discrete incremental counter 1 10 Hz Incremental 1 10 Hz |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s |
| Realtime clock | With |
| Memory description | Flash 15 Kwords data Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage |
| Maximum size of object areas | 1 %MWi internal words 128 %KWi constant words 256 %Mi |
| Execution time per instruction | 0.13 µs Boolean without PCMCIA card 4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card |
| Execution time for 1 Kinstruction | 5.88 100 % Boolean without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card |
| Application structure | 1 master task 16 event tasks 1 fast task |
| System overhead | 2.3 ms for master task |
| Protection type | Short-circuit Overload protection |
| Total useful secondary power | 16 W |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 1000-4-2 level 3 Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 Resistance to fast transient conforming to IEC 1000-4-4 level 3 Immunity to impulse waves conforming to IEC 1000-4-5 Damped oscillatory wave conforming to IEC 1000-4-12 Immunity to electromagnetic interference conforming to IEC 61131-2 |

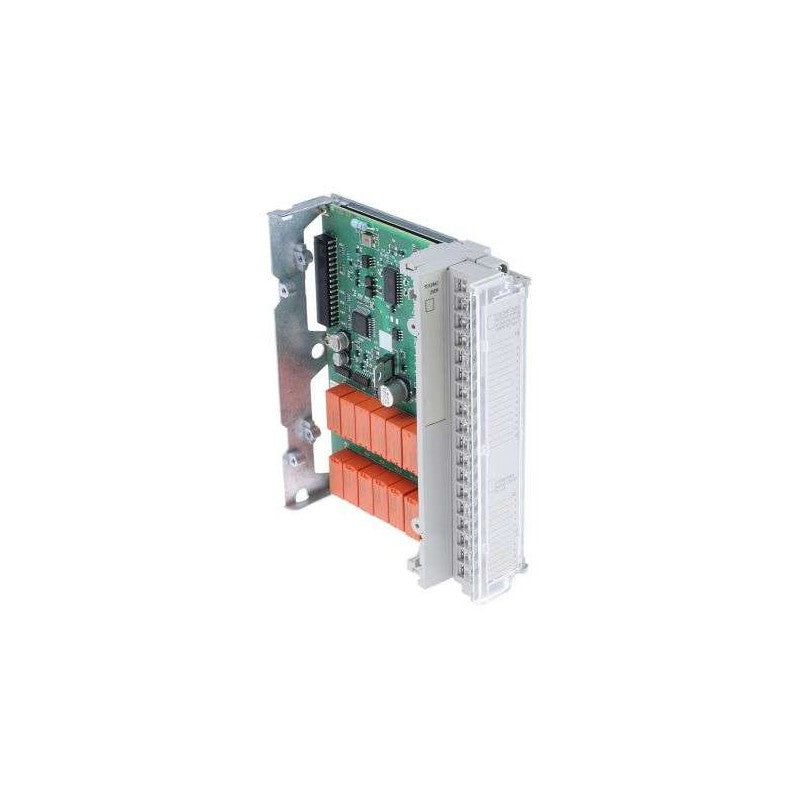

Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Discrete relay I/O base |
| Discrete input number | 16 screw terminal block |
| Discrete input voltage | 24 V DC, discrete input logic: negative |
| Discrete input current | 9 mA |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | <= 8 V at state 1 |
| Current state 0 guaranteed | <= 1.5 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Input impedance | 4 Ohm |
| Response time | 0.1...7.5 ms input at state 0 to state 1 0.1...7.5 ms input at state 1 to state 0 < 10 ms output |
| Input compatibility | 2-wire/3-wire proximity sensor |
| Load type | Resistive |
| Current consumption | 160 mA positive 131 mA negative |
| Power dissipation in W | 4.5 W |
| Output voltage limits | 19â¦264 V AC 10...34 V DC |
| Contacts type and composition | NO |
| Power consumption in VA | 50 VA 24 V AC-12 resistive 110 VA 48 V AC-12 resistive 220 VA 110 V AC-12 resistive 220 VA 220 V AC-12 resistive 24 VA 24 V AC-15 inductive 24 VA 48 V AC-15 inductive 220 VA 220 V AC-15 inductive 110 VA 110 V AC-15 inductive |
| Power consumption in W | 40 W 24 V DC-12 resistive 24 W 24 V DC-13 inductive |
| Isolation voltage | 1500 V for 1 s |
| Insulation resistance | >= 10 mOhm |
| Product weight | 0.5 kg |

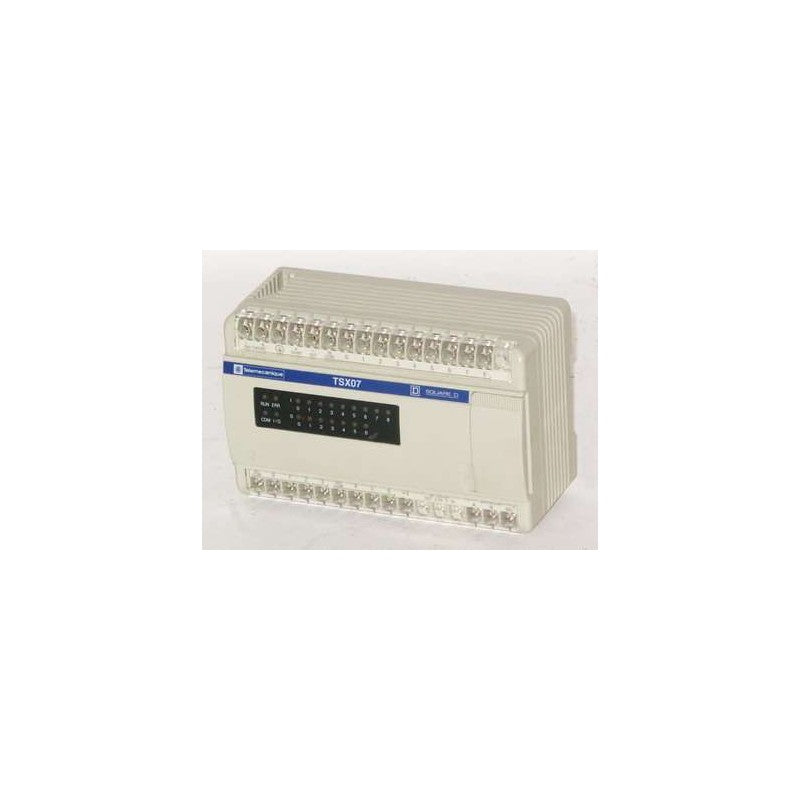

Nano Controller BRICK TSX 07 AC 9I 7 TR O

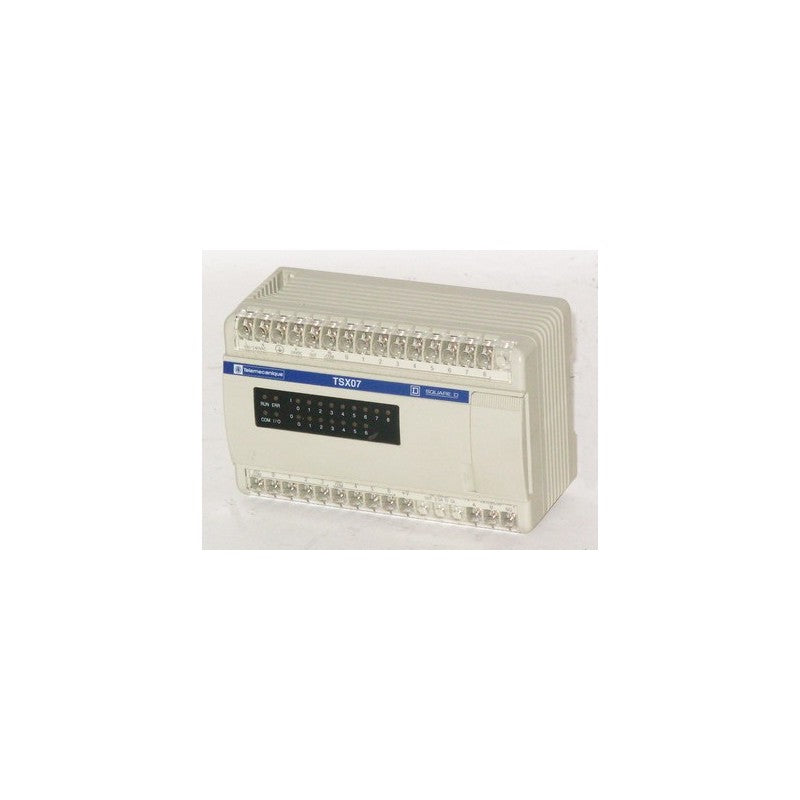

BRICK PLC Nano,Type TSX07, Input 24VDC Output 0.5AMP 24VDC 14W

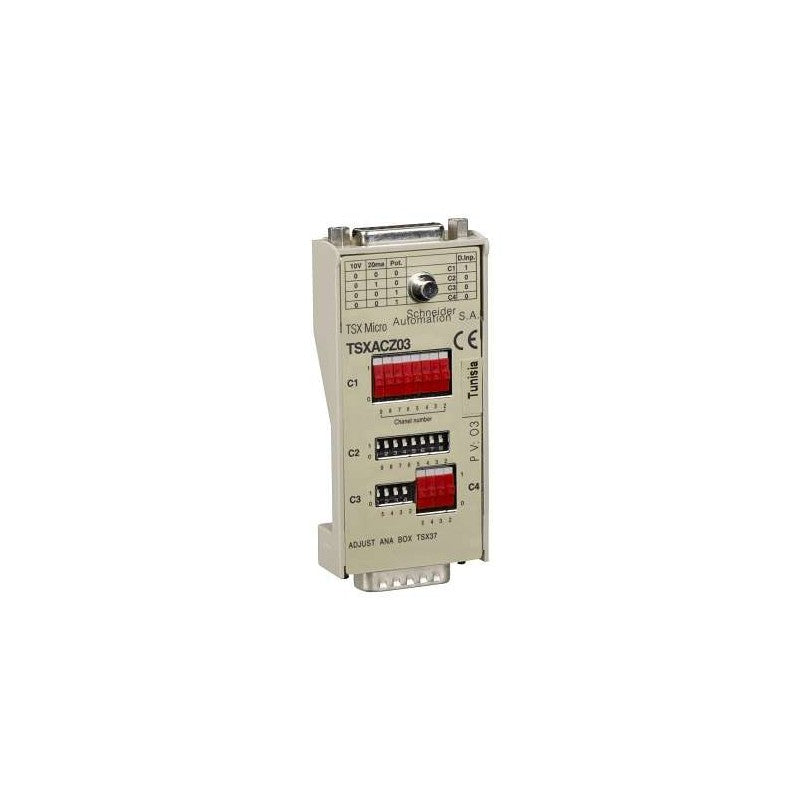

Analog input adjustment box for Micro TSX37

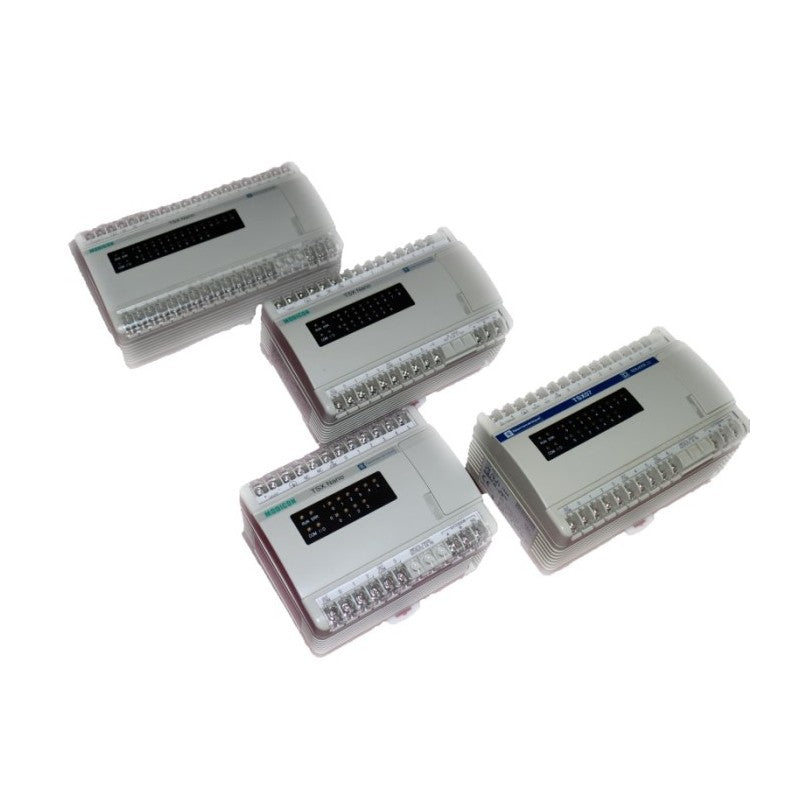

PLC MODULE NANO 24VDC

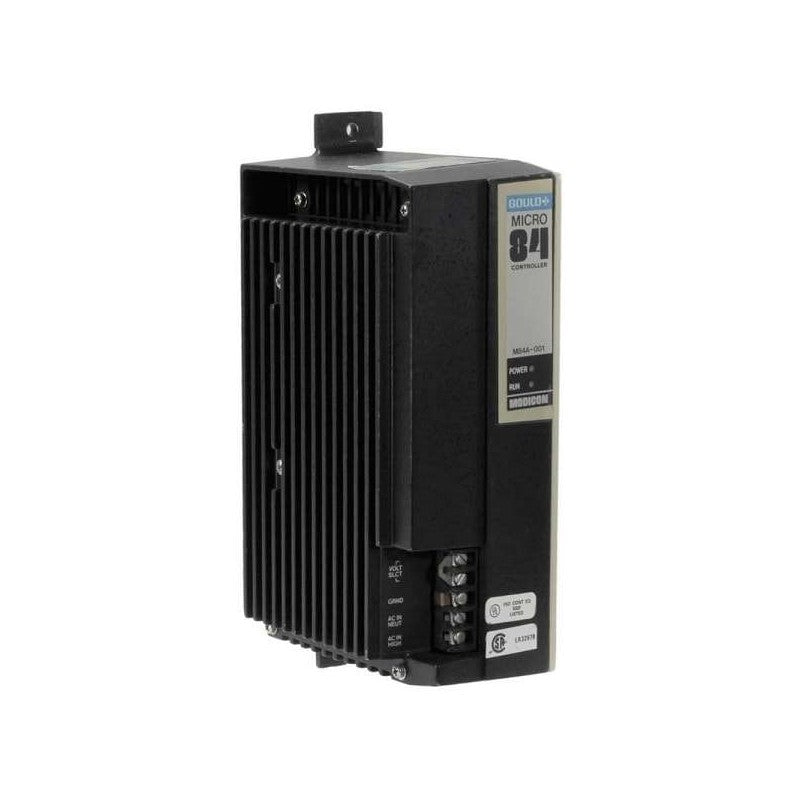

MICRO-84 PROGRAMMABLE CONTROLLER, 1AMP, 120/240V, 50/60HZ, 64 BIT
CONTROLLER 120/240VAC, 50/60HZ, 1AMP
Micro CPU AC I/O 115V with DC Interrupt
Main category name:PLC Systems Sub category name:Modicon Micro Vendor:Schneider
