Switch disconnector with fuse 400 A, Size 4, 3-pole for LV HRC fuse Sz. 1 and 2 Front operating mechanism left Basic unit without handle flat terminal
Switch disconnector with fuse 250 A, Size 3, 3-pole for LV HRC fuse Sz. 0 and 1 Front operating mechanism left Basic unit without handle flat terminal
Switch disconnector with fuse 160 A, Size 2, 4-pole for LV HRC fuse Sz. 000 and 00 Front operating mechanism left Complete unit with direct operating mechanism gray flat terminal

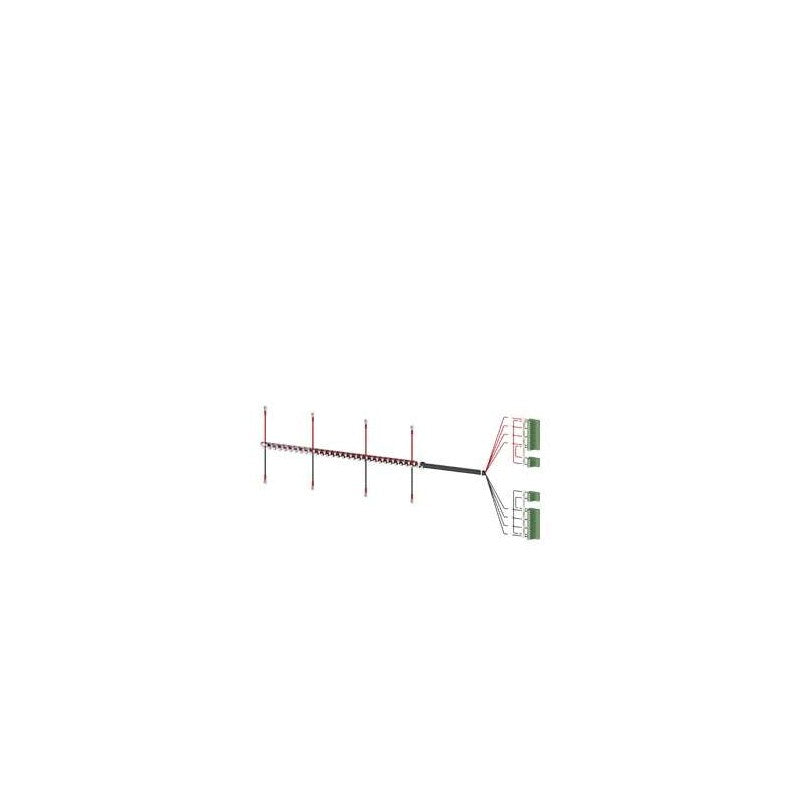

Accessory for 3KC8 Power supply cable for connection at the bottom 4-pole for 800-1000 A contains 1 unit

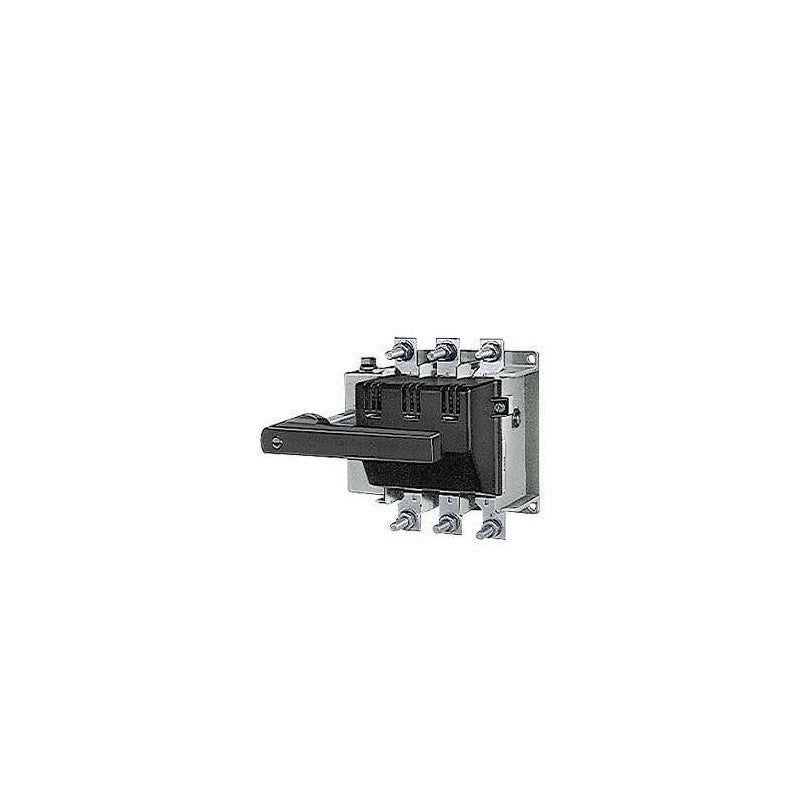

switch disconnector, 3-pole I=630A, U=690V front mounted rotary operator with black handle
switch disconnector, 3-pole I=1000A, U=690V front mounted rotary operator with black handle

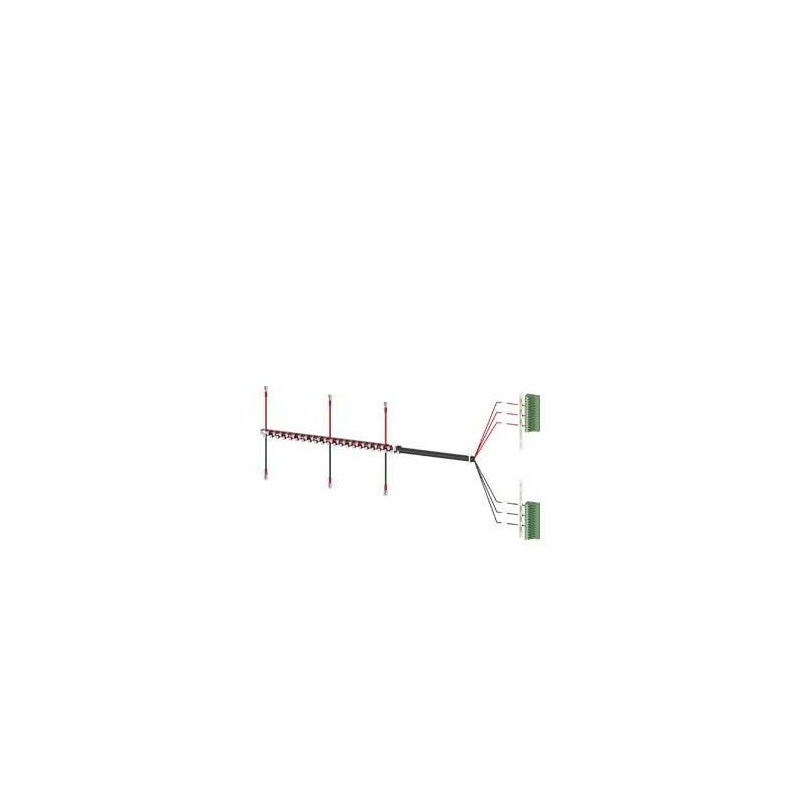

Accessory for 3KC8 Auxiliary conductor terminals, kit for connection at the top 3-pole for 800-1000 A contains 1 unit
Accessory for 3KC8 Power supply cable for connection at the bottom 4-pole for 1600 A contains 1 unit
Accessory for 3KC8 Auxiliary conductor terminals, kit for connection at the top 3-pole for 1250 A contains 1 unit
Accessory for 3KC8 Auxiliary conductor terminals, kit for connection at the top 3-pole for 1600 A contains 1 unit
Accessory for 3KC8 Auxiliary conductor terminals, kit for connection at the bottom 3-pole for 1250 A contains 1 unit
Accessory for 3KC8 Power supply cable for connection at the bottom 4-pole for 1250 A contains 1 unit
Accessory for 3KC8 Auxiliary conductor terminals, kit for connection at the bottom 3-pole for 1600 A contains 1 unit
Accessory for 3KC8 Auxiliary conductor terminals, kit for connection at the bottom 3-pole for 800-1000 A contains 1 unit
ATC6 USB front interface Accessory for ATC6300 and ATC6500 pluggable for front-side parameter assignment contains USB adapter and mini USB cable Cable length 1.8 m
Transfer control device ATC 3100 EN
SENTRON 3KC ATC6300; LCD; 144x144 mm; Transfer control device for control of MCCB, ACB, LBS; for load transfer between main and standby power supply Control panel instrument; Un 100...240 V AC 50/60 Hz, 110...250 V DC; Un 12...24 V DC Rated voltage Ue: 100...480 V AC 50/60 Hz; screw terminal connection Expandable by maximum 2 additional modules
SIMOTICS GP Only Ex version! Low-voltage motor, squirrel-cage rotor, IP55 4-pole*Size 80M* temperature class 155(F), aluminum housing 3 AC 50 Hz 230 VD/400 VY * 0.55 kW 3 AC 60 Hz 460 VY * 0.63 kW 220-240/380-420 (50); 440-480 (60) IM B14, IM V19 IM V18 without canopy Standard flange: FT100 (C120)
SIMOTICS S Synchronous servomotor 1FT6 13Nm, 100K, 3000 rpm naturally cooled, IP65 IM B5 (IM V1, IM V3) Absolute encoder EnDat 2048 S/R (encoder A-2048) for power/signal connectors: Outlet direction transverse right without holding brake
