Disconnecting link for terminal size 4
connection bar f. 4 terminals, size 2.5
connection bar f. 2 terminals, size 16
connection bar f. 2 terminals, size 35

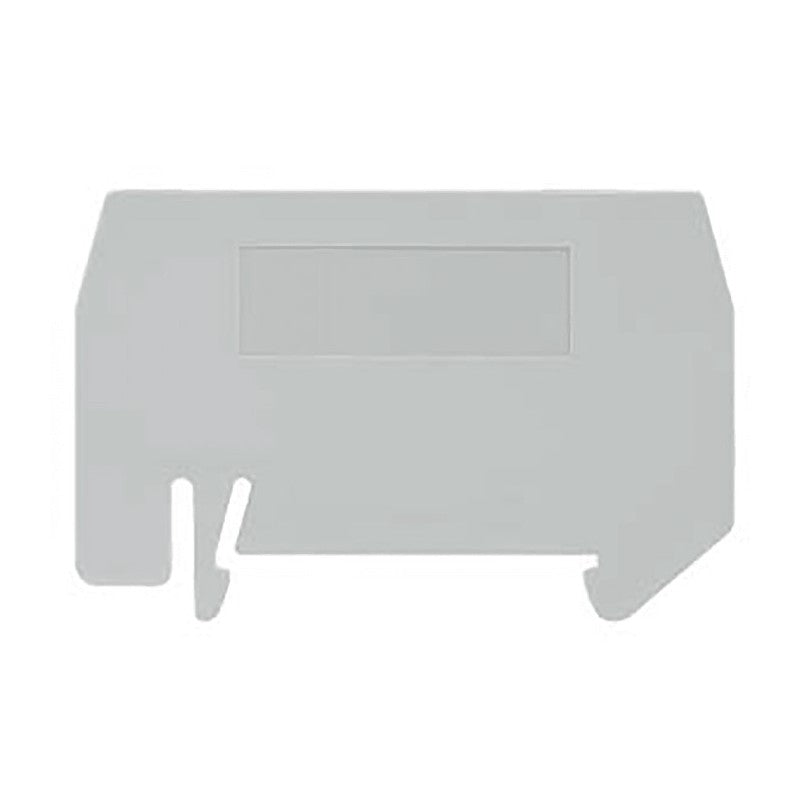

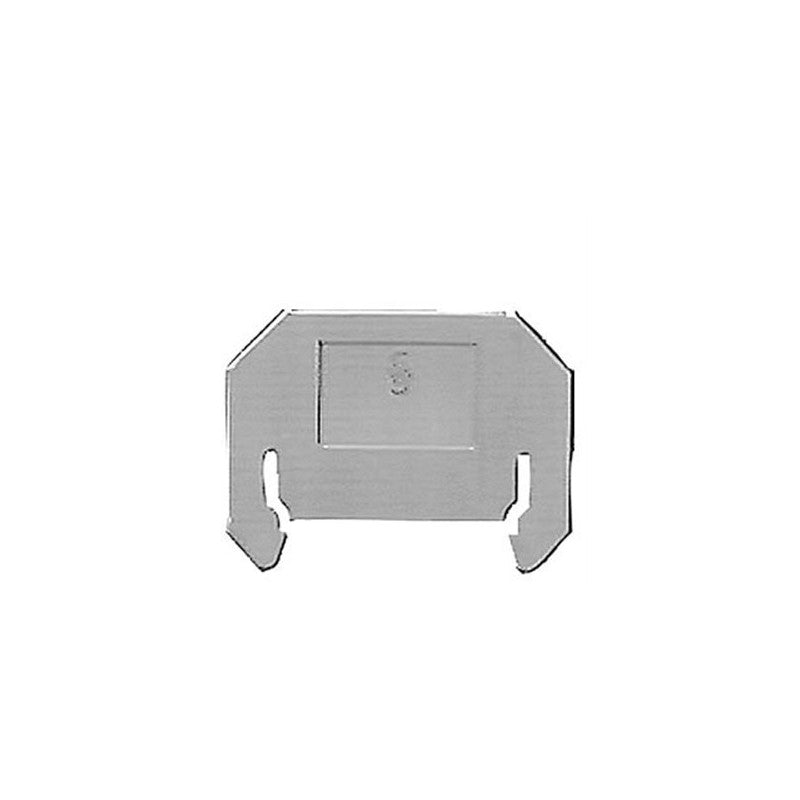

End plate for Two-tier terminals
End retainer thermoplast, 10 mm

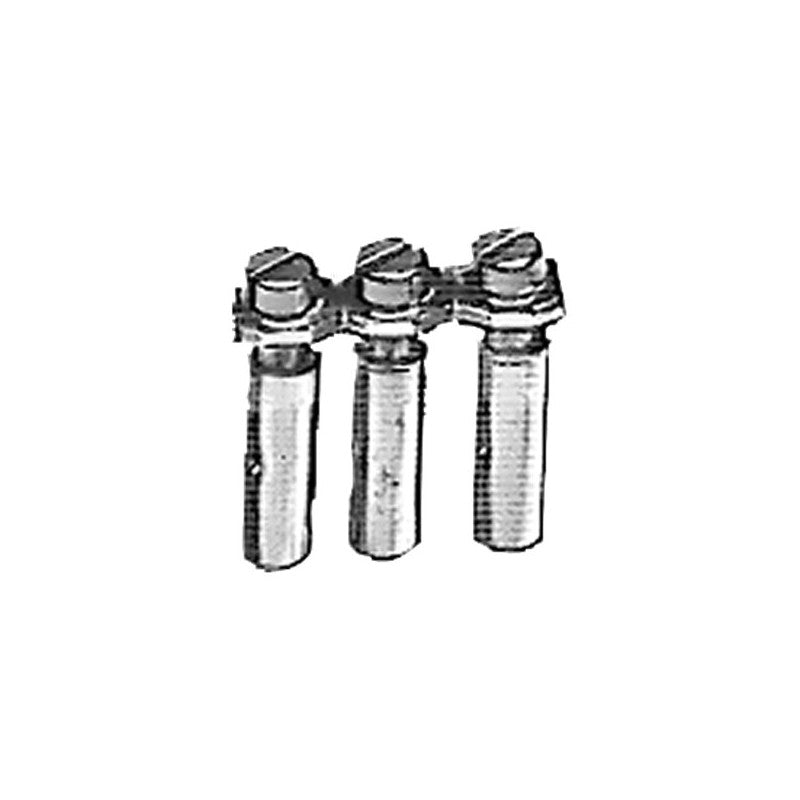

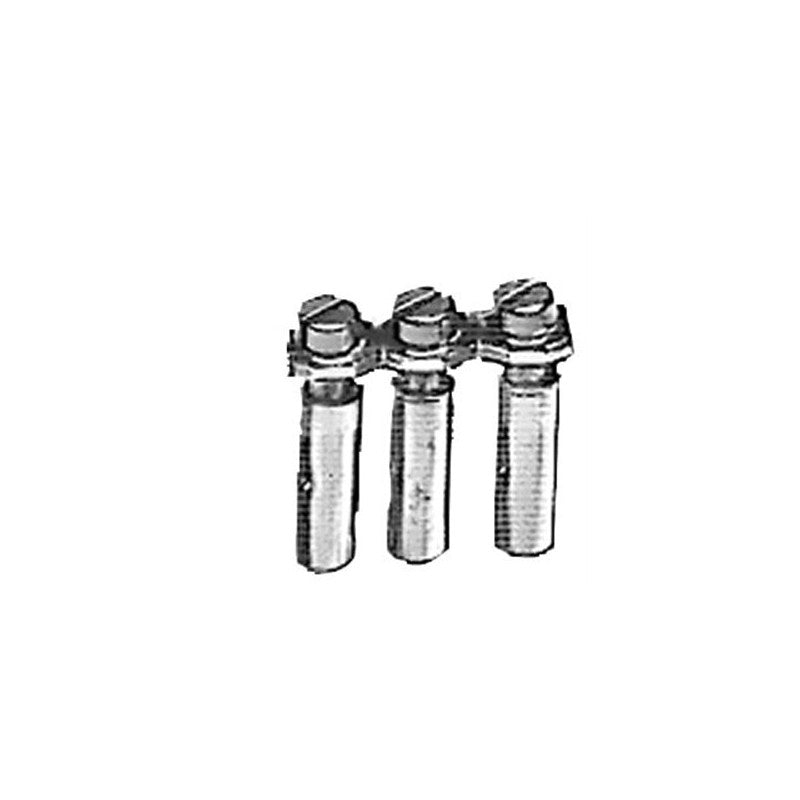

Link rail for 3 terminals Sz. 35

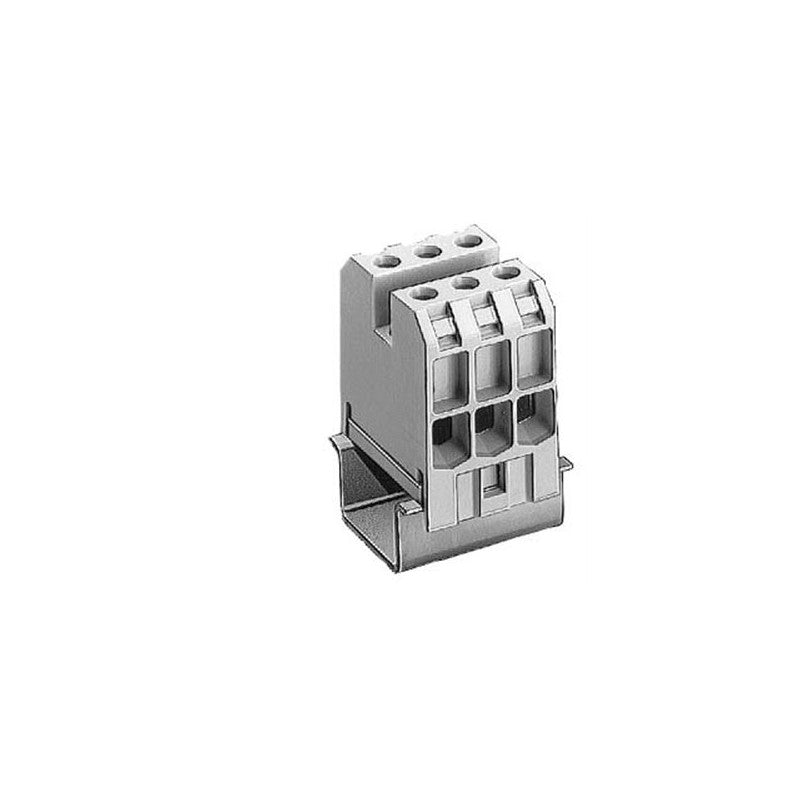

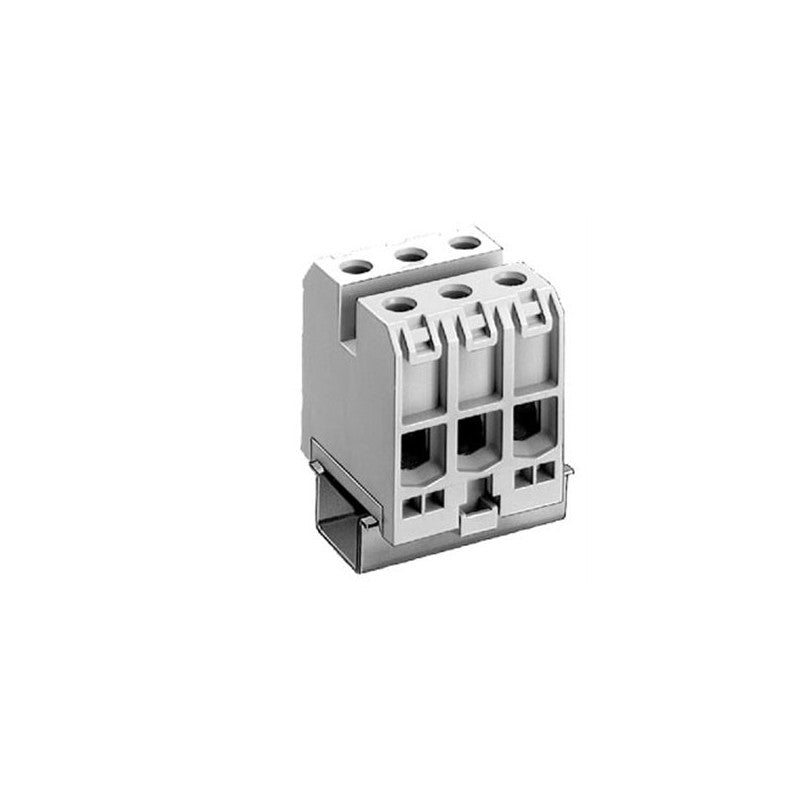

Through-type terminal thermoplast Screw terminal on both sides Block 3 terminals 30.2 mm, Size 16

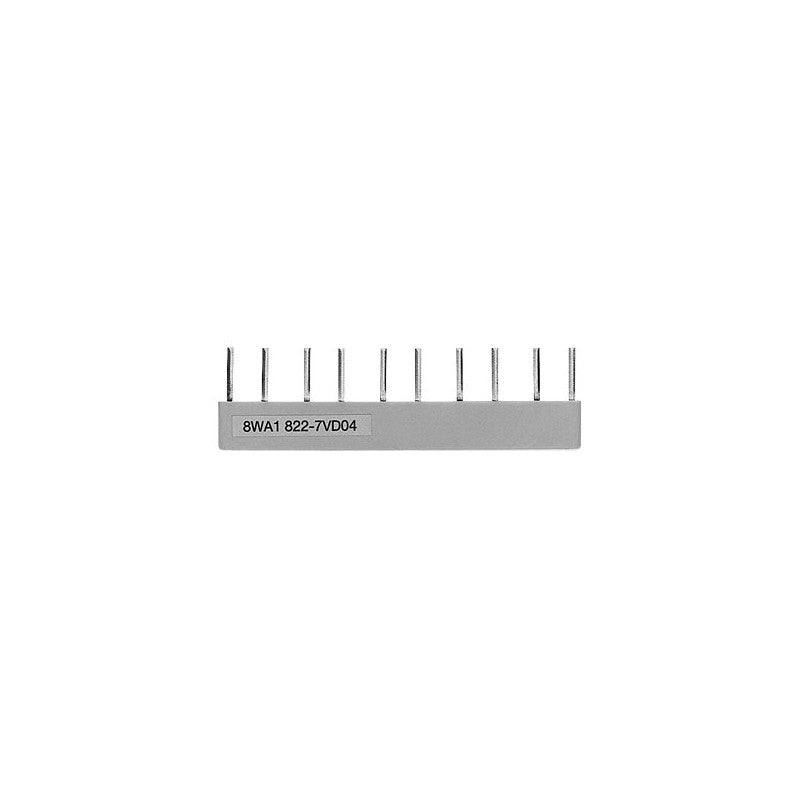

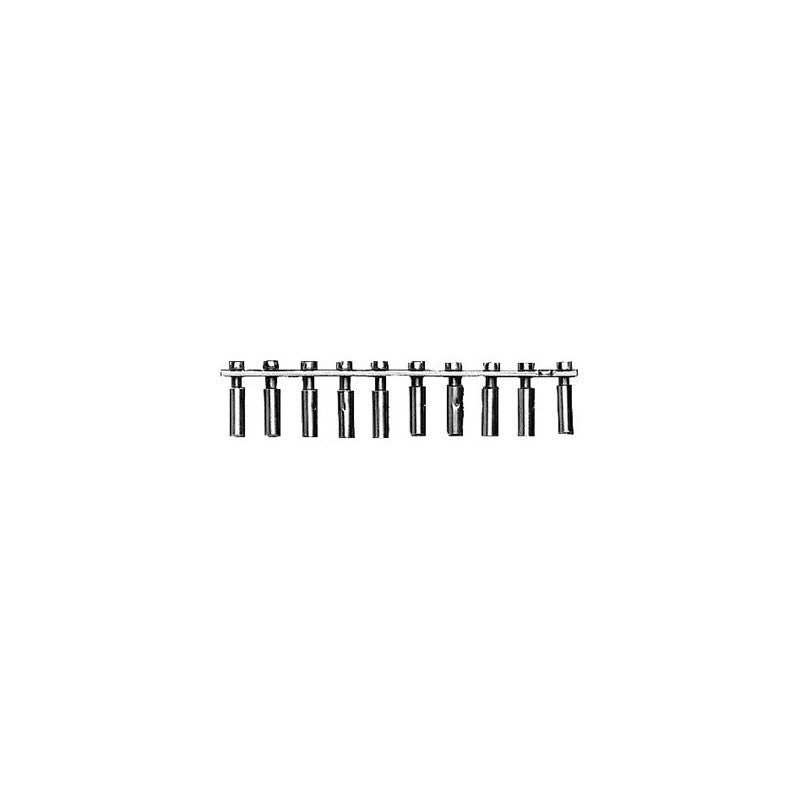

Link rail for 10 terminals Sz. 35

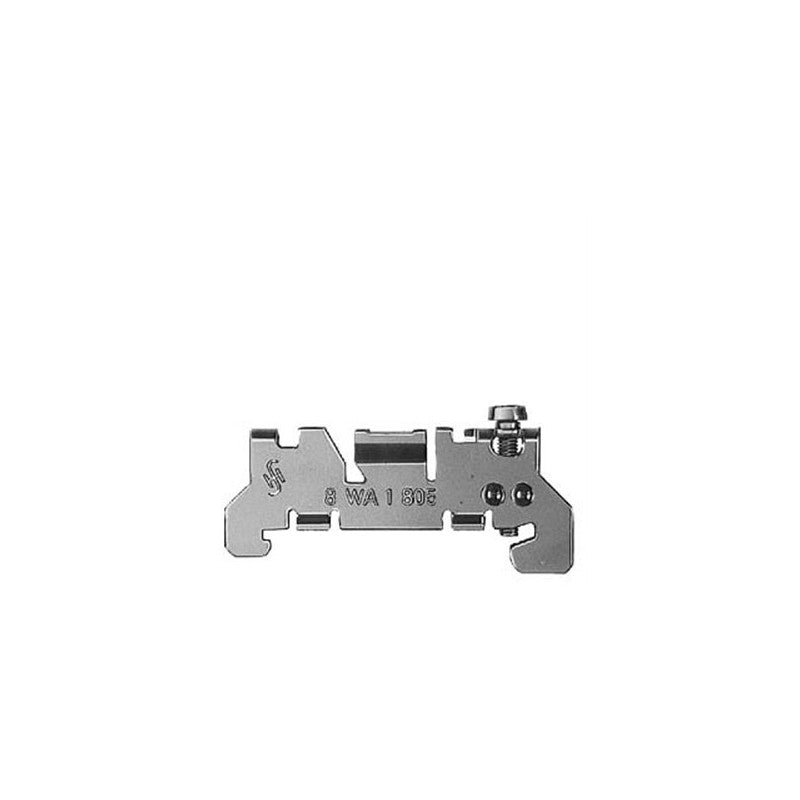

End retainer steel, 10.3 mm

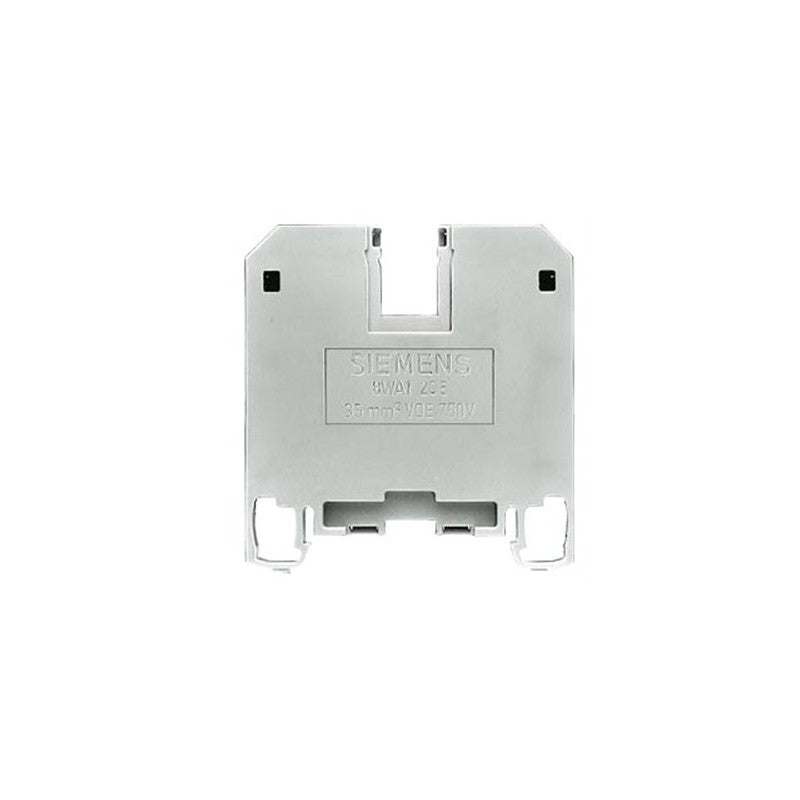

Through-type terminal thermoplast Screw terminal on both sides Single terminal 16 mm, Sz. 35

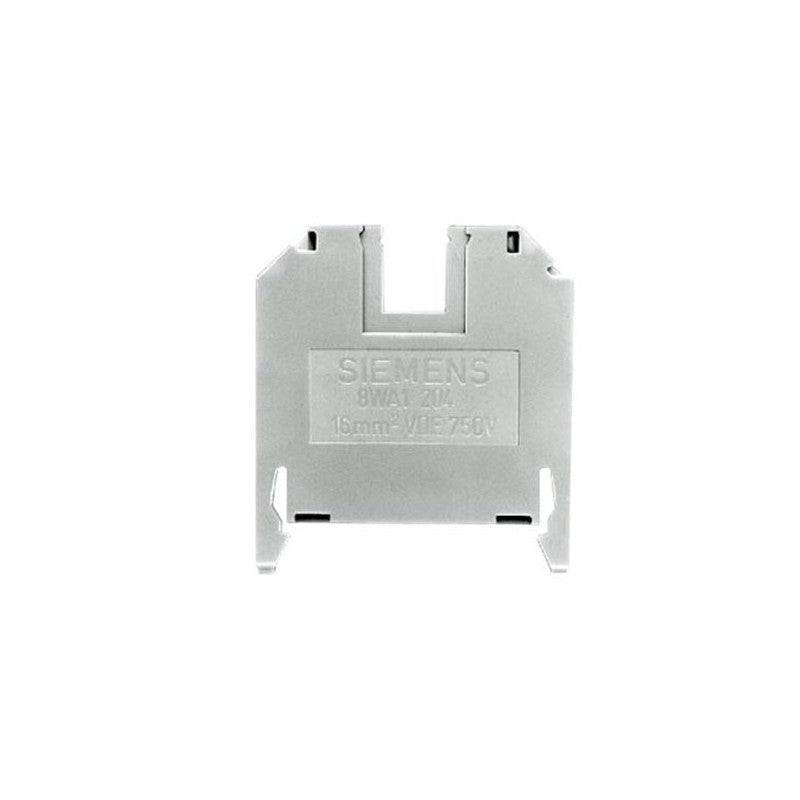

Through-type terminal thermoplast Screw terminal on both sides Single terminal 10 mm, Sz. 16
Operating mechanism for fixed mounting for switch 3KE44, 3KE45 for actuating shaft 12x 12 mm Size 4, Handle black Notes Sucessor:For further information please contact: www.siemens.com/lowvoltage/contact
Busbar system, accessories Busbar center-to-center spacing 60 mm TT profile busbar, 1600A Length 2400 mm E-CU tin-coated
Device adapter MCCB, 3-pole, 590 A Busbar center-to-center spacing 60 mm for 3VA53/54/23/24/63/64 300 x 140 mm Contacting elements for the adapter are provided
60 mm busbar adapter System IEC for circuit breaker 3VL5 IEC with pipe contacting Rated voltage: Ue 690 V Rated current: IE 580A! ! Adapter length 325 mm Adapter width 184 mm for flat bars, Thickness 5/10 mm for flat bar 12-30 mm for TT profile for cable outlet bottom
busbar adapter 60 mm SYS. UL 508 Busbar system 60 mm Bar thickness: TT profile UL rating 240-600V/540A Can be used in spring circuits for 3VL circuit breaker with pipe contacting for cable outlet top/bottom Adapter length 296 mm Adapter width 140 mm for VL400 UL, JG-FRAME for VL400X UL, LG-FRAME
Operating mechanism for fixed mounting for switch 3KA50, 3KL50, 3KM50 for actuating shaft 6x 6 mm Size 2, Black knob Notes Sucessor:For further information please contact: www.siemens.com/lowvoltage/contact
Spare part for rotary operating mechanism 8UC6 Coupling driver shortened with reduced tolerance compensation for shaft 8 mm
Reducer 8 mm/6 mm Spare part for Door-coupling rotary mechanism 8UC7 for extension shafts 6x 6 mm
Spare part for rotary operating mechanism 8UC6 Coupling driver for shaft 12 mm
adapter for shaft profiles 12 x 12 mm for drives 8UC6 Notes Sucessor:For further information please contact: www.siemens.com/lowvoltage/contact
Spare part for rotary operating mechanism 8UC6 Extension shaft 600 mm long 8x 8 mm
