1SDA054954R1 ABB - RC222/4 T4 4p F
ABB 1SDA054954R1 ABB - RC222/4 T4 4p F
0.00 kr
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
RC222-T44
E-Number (Finland):
3655734
EAN:
8015644560935
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
1.6 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
15 mm
Package Level 1 Height:
17 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Gross Weight:
1.7 kg
Package Level 1 EAN:
8015644560935

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T4
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Number of Poles:
4P
Standards:
IEC

Certificates and Declarations

Data Sheet, Technical Information:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC002498 - Accessories/spare parts for low-voltage switch technology
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371390
1SDA054504R1 ABB - T4V250 TMA250-2500 4pFFC1150VAC/DC N100%
ABB 1SDA054504R1 ABB - T4V250 TMA250-2500 4pFFC1150VAC/DC N100%
0.00 kr
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Ordering

EAN:
8015644556068
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85352100

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
3.05 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
3.5 kg
Package Level 1 EAN:
8015644556068

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F

Technical

Electrical Durability:
8000 cycle
120 cycles per hour
8000 cycle
120 cycles per hour
Mechanical Durability:
20000 cycle
240 cycles per hour
20000 cycle
240 cycles per hour
Number of Poles:
4P
Power Loss:
at Rated Operating Conditions per Pole 13.7 W
Rated Current (In):
250 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
1150 V AC
1000 V DC
1150 V AC
1000 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(1000 V AC) 12 kA
(1150 V AC) 6 kA
(1000 V DC) 20 kA
(1000 V AC) 12 kA
(1150 V AC) 6 kA
(1000 V DC) 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(1000 V AC) 20 kA
(1150 V AC) 12 kA
(1000 V DC) 40 kA
(1000 V AC) 20 kA
(1150 V AC) 12 kA
(1000 V DC) 40 kA
Rated Uninterrupted Current (Iu):
250 A
Release:
TMA
Release Type:
TM
Short-Circuit Performance Level:
V
Standards:
IEC
Sub-type:
T4
Terminal Connection Type:
Fixed Circuit-Breakers
Front for Copper Cables
Fixed Circuit-Breakers
Front for Copper Cables
Test Voltage Max (Utest):
3500 V

Certificates and Declarations

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC):
4927 >> Molded case circuit breakers
Object Classification Code:
Q
UNSPSC:
39121616
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
E1B800PR121/P-LIIn=800A4pFHR ABB - 1SDA055608R1
ABB E1B800PR121/P-LIIn=800A4pFHR ABB - 1SDA055608R1
0.00 kr
Sold Out

E1B 800 PR121/P-LI In=800A 4p F HR
1SDA055029R1 ABB - KIT FC CuAl 2x120mm2 T5 400 4pcs
ABB 1SDA055029R1 ABB - KIT FC CuAl 2x120mm2 T5 400 4pcs
0.00 kr
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT5400-4
E-Number (Finland):
3655680
E-Number (Norway):
4383682
EAN:
8015644561741
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.9 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Gross Weight:
0.933 kg
Package Level 1 EAN:
8015644561741

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T5
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Number of Poles:
4P
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC002019 - Connection vane/phase spreader
ETIM 10:
EC002019 - Connection vane/phase spreader
IDEA Granular Category Code (IGCC):
4603 >> Electrical terminals
Object Classification Code:
Q
UNSPSC:
39121432
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371305

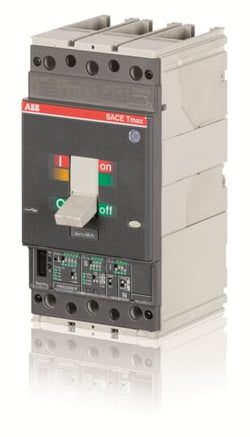

1SDA054526R1 ABB - T4S 250 Ekip M-LRIU In=160 3p F F
ABB 1SDA054526R1 ABB - T4S 250 Ekip M-LRIU In=160 3p F F
0.00 kr
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

E-Number (Finland):
3655546
E-Number (Sweden):
3180431
EAN:
8015644556273
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
105 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
3.5 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
3.5 kg
Package Level 1 EAN:
8015644556273

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T4
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
8000 cycle
120 cycles per hour
8000 cycle
120 cycles per hour
Mechanical Durability:
20000 cycle
240 cycles per hour
20000 cycle
240 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 4.4 W
Rated Current (In):
160 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V) 25 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V) 25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V AC) 25 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V AC) 25 kA
Rated Uninterrupted Current (Iu):
250 A
Release:
Ekip M-LRIU
Release Type:
EL
Short-Circuit Performance Level:
S
Standards:
IEC
Sub-type:
T4
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3500 V
Test Voltage at Industrial Frequency for 1 Minute:
3500 V

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
GL Certificate:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
1SDA054498R1 ABB - T4V250 TMD50-500 4p FFC 1150/1000VAC/DC
ABB 1SDA054498R1 ABB - T4V250 TMD50-500 4p FFC 1150/1000VAC/DC
0.00 kr
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Ordering

EAN:
8015644556006
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
3.05 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
3.5 kg
Package Level 1 EAN:
8015644556006

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T4
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
8000 cycle
120 cycles per hour
8000 cycle
120 cycles per hour
Mechanical Durability:
20000 cycle
240 cycles per hour
20000 cycle
240 cycles per hour
Number of Poles:
4P
Power Loss:
at Rated Operating Conditions per Pole 3.9 W
Rated Current (In):
50 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1150 V
Rated Operational Voltage:
1150 V AC
1000 V DC
1150 V AC
1000 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(1000 V AC) 12 kA
(1150 V AC) 6 kA
(1000 V DC) 20 kA
(1000 V AC) 12 kA
(1150 V AC) 6 kA
(1000 V DC) 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(1000 V AC) 20 kA
(1150 V AC) 12 kA
(1000 V DC) 40 kA
(1000 V AC) 20 kA
(1150 V AC) 12 kA
(1000 V DC) 40 kA
Rated Uninterrupted Current (Iu):
250 A
Release:
TMD
Release Type:
TM
Short-Circuit Performance Level:
V
Standards:
IEC
Sub-type:
T4
Terminal Connection Type:
Fixed Circuit-Breakers
Front for Copper Cables
Fixed Circuit-Breakers
Front for Copper Cables
Test Voltage Max (Utest):
3500 V

Certificates and Declarations

Declaration of Conformity - CE:
GL Certificate:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
1SDA054523R1 ABB - T4N 250 PR222MP In=160 3p F F
ABB 1SDA054523R1 ABB - T4N 250 PR222MP In=160 3p F F
0.00 kr
Sold Out

MOULDED CASE CIRCUIT BREAKER, 3 POLES, 160 A, 690 V AC, 70 KA @ 220 V AC, THERMAL MAGNETIC TRIP, 103.5 X 105 X 205 MM
E1B800PR121/P-LIIn=800A3pFHR ABB - 1SDA055600R1
ABB E1B800PR121/P-LIIn=800A3pFHR ABB - 1SDA055600R1
0.00 kr
Sold Out

E1B 800 PR121/P-LI IN=800A 3P F HR

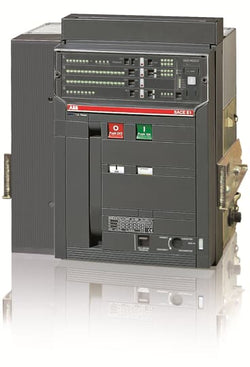

1SDA055626R1 ABB - E1B800PR121/P-LSIGIn=800A4pWMP
ABB 1SDA055626R1 ABB - E1B800PR121/P-LSIGIn=800A4pWMP
0.00 kr
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):

Environmental

Environmental Information:

Ordering

EAN:
8015644569662
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
414 mm
Product Net Height:
461 mm
Product Net Depth / Length:
396.5 mm
Product Net Weight:
54 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
600 mm
Package Level 1 Depth / Length:
615 mm
Package Level 1 Gross Weight:
67 kg
Package Level 1 EAN:
8015644569662

Additional Information

Product Main Type:
SACE Emax
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 10000 cycle
Ue = 500 ... 690 V 10000 cycle
30 cycles per hour
Ue =< 440 V 10000 cycle
Ue = 500 ... 690 V 10000 cycle
30 cycles per hour
Mechanical Durability:
25000 cycle
60 cycles per hour
25000 cycle
60 cycles per hour
Number of Poles:
4P
Power Loss:
95 W
Rated Current (In):
800 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current (Ie):
800 A
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 42 kA
for 3 s 36 kA
for 1 s 42 kA
for 3 s 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu):
800 A
Rated Voltage (Ur):
690 V
Release:
PR121/P-LSIG
Release Type:
EL
Short-Circuit Performance Level:
B
Standards:
IEC
Sub-type:
E1
Terminal Connection Type:
Withdrawable Circuit-Breakers

Certificates and Declarations

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
1SDA054515R1 ABB - T4V250 PR222DS/P-LSI In100 3p FFC1150VAC
ABB 1SDA054515R1 ABB - T4V250 PR222DS/P-LSI In100 3p FFC1150VAC
0.00 kr
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Ordering

EAN:
8015644556174
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85352100

Dimensions

Product Net Width:
105 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
3.5 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
3.5 kg
Package Level 1 EAN:
8015644556174

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T4
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
8000 cycle
120 cycles per hour
8000 cycle
120 cycles per hour
Mechanical Durability:
20000 cycle
240 cycles per hour
20000 cycle
240 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 1.7 W
Rated Current (In):
100 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1150 V
Rated Operational Voltage:
1150 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(1000 V AC) 12 kA
(1150 V AC) 6 kA
(1000 V AC) 12 kA
(1150 V AC) 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(1000 V AC) 20 kA
(1150 V AC) 12 kA
(1000 V AC) 20 kA
(1150 V AC) 12 kA
Rated Uninterrupted Current (Iu):
250 A
Release:
PR222DS/P-LSI
Release Type:
EL
Short-Circuit Performance Level:
V
Standards:
IEC
Sub-type:
T4
Terminal Connection Type:
Fixed Circuit-Breakers
Front for Copper Cables
Fixed Circuit-Breakers
Front for Copper Cables
Test Voltage Max (Utest):
3500 V

Certificates and Declarations

Declaration of Conformity - CE:
GL Certificate:
Instructions and Manuals:
Instructions and Manuals (Part 2):
Instructions and Manuals (Part 3):

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
1SDA054511R1 ABB - T4L250 PR222DS/P-LSI In250 3pFFC 1000VAC
ABB 1SDA054511R1 ABB - T4L250 PR222DS/P-LSI In250 3pFFC 1000VAC
0.00 kr
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Ordering

EAN:
8015644556136
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
105 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
3.5 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
3.5 kg
Package Level 1 EAN:
8015644556136

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T4
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
8000 cycle
120 cycles per hour
8000 cycle
120 cycles per hour
Mechanical Durability:
20000 cycle
240 cycles per hour
20000 cycle
240 cycles per hour
Number of Poles:
3P
Power Loss:
at Rated Operating Conditions per Pole 10.7 W
Rated Current (In):
250 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1150 V
Rated Operational Voltage:
1000 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(1000 V AC) 12 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(1000 V AC) 12 kA
Rated Uninterrupted Current (Iu):
250 A
Rated Voltage (Ur):
1000 V AC
Release:
PR222DS/P-LSI
Release Type:
EL
Short-Circuit Performance Level:
L
Standards:
IEC
Sub-type:
T4
Terminal Connection Type:
Fixed Circuit-Breakers
Front for Copper Cables
Fixed Circuit-Breakers
Front for Copper Cables
Test Voltage Max (Utest):
3500 V

Certificates and Declarations

Declaration of Conformity - CE:
GL Certificate:
Instructions and Manuals:
Instructions and Manuals (Part 2):
Instructions and Manuals (Part 3):

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
E1B800PR122/P-LIIn=800A3pWMP ABB - 1SDA055619R1
ABB E1B800PR122/P-LIIn=800A3pWMP ABB - 1SDA055619R1
0.00 kr
Sold Out

E1B 800 PR122/P-LI In=800A 3p W MP
1SDA054503R1 ABB - T4V250 TMA200-2000 4pFFC1150VAC/DC N100%
ABB 1SDA054503R1 ABB - T4V250 TMA200-2000 4pFFC1150VAC/DC N100%
11,145.00 kr
Only 1 unit left

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Ordering

EAN:
8015644556051
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85352100

Dimensions

Product Net Width:
140 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
3.05 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
3.5 kg
Package Level 1 EAN:
8015644556051

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable For:
T4
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Electrical Durability:
8000 cycle
120 cycles per hour
8000 cycle
120 cycles per hour
Mechanical Durability:
20000 cycle
240 cycles per hour
20000 cycle
240 cycles per hour
Number of Poles:
4P
Power Loss:
at Rated Operating Conditions per Pole 9.9 W
Rated Current (In):
200 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1150 V
Rated Operational Voltage:
1150 V AC
1000 V DC
1150 V AC
1000 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(1000 V AC) 12 kA
(1150 V AC) 6 kA
(1000 V DC) 20 kA
(1000 V AC) 12 kA
(1150 V AC) 6 kA
(1000 V DC) 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(1000 V AC) 20 kA
(1150 V AC) 12 kA
(1000 V DC) 40 kA
(1000 V AC) 20 kA
(1150 V AC) 12 kA
(1000 V DC) 40 kA
Rated Uninterrupted Current (Iu):
250 A
Release:
TMA
Release Type:
TM
Short-Circuit Performance Level:
V
Standards:
IEC
Sub-type:
T4
Terminal Connection Type:
Fixed Circuit-Breakers
Front for Copper Cables
Fixed Circuit-Breakers
Front for Copper Cables
Test Voltage Max (Utest):
3500 V

Certificates and Declarations

Declaration of Conformity - CE:
GL Certificate:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

ETIM 9:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409
1SDA054878R1 ABB - PS-SOR-C T4-T5-T6 24 Vac/dc xPERM.SERV.
ABB 1SDA054878R1 ABB - PS-SOR-C T4-T5-T6 24 Vac/dc xPERM.SERV.
0.00 kr
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT5SA
E-Number (Finland):
3655627
E-Number (Norway):
4383732
EAN:
8015644560065
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.17 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.173 kg
Package Level 1 EAN:
8015644560065

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T4, T5, T6
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Current Type:
AC/DC
Rated Voltage (Ur):
24 V AC
24 V DC
24 V AC
24 V DC
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC002483 - Switch spool for power circuit breaker
ETIM 10:
EC002483 - Switch spool for power circuit breaker
IDEA Granular Category Code (IGCC):
4879 >> Shunt release (for power circuit breaker)
Object Classification Code:
Q
UNSPSC:
39121601
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370421
1SDA054850R1 ABB - KIT MP T5 630 W 4p
ABB 1SDA054850R1 ABB - KIT MP T5 630 W 4p
0.00 kr
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

E-Number (Finland):
3655608
E-Number (Norway):
4383704
EAN:
8015644559755
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
1.1 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
158 mm
Package Level 1 Height:
158 mm
Package Level 1 Depth / Length:
188 mm
Package Level 1 Gross Weight:
1.1 kg
Package Level 1 EAN:
8015644559755

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T5
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Number of Poles:
4P
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC002049 - Modification set for power circuit breaker
ETIM 10:
EC002049 - Modification set for power circuit breaker
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370402
E1B1600PR121/P-LIIn=1600A3pWMP ABB - 1SDA055680R1
ABB E1B1600PR121/P-LIIn=1600A3pWMP ABB - 1SDA055680R1
0.00 kr
Sold Out

E1B 1600 PR121 / P-LI In = 1600A 3p W MP

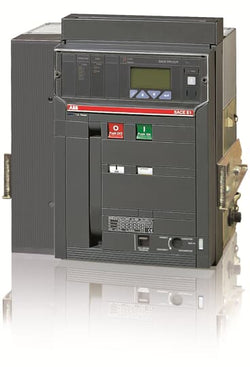

1SDA055660R1 ABB - E1B1250PR122/P-LSIIn=1250A4pWMP
ABB 1SDA055660R1 ABB - E1B1250PR122/P-LSIIn=1250A4pWMP
0.00 kr
Sold Out

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):

Environmental

Environmental Information:

Ordering

EAN:
8015644570002
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
414 mm
Product Net Height:
461 mm
Product Net Depth / Length:
396.5 mm
Product Net Weight:
54 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
600 mm
Package Level 1 Depth / Length:
615 mm
Package Level 1 Gross Weight:
67 kg
Package Level 1 EAN:
8015644570002

Additional Information

Product Main Type:
SACE Emax
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
W

Technical

Current Type:
AC
Electrical Durability:
Ue =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Ue =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability:
25000 cycle
60 cycles per hour
25000 cycle
60 cycles per hour
Number of Poles:
4P
Power Loss:
230 W
Rated Current (In):
1250 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current (Ie):
1250 A
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 42 kA
for 3 s 36 kA
for 1 s 42 kA
for 3 s 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu):
1250 A
Rated Voltage (Ur):
690 V
Release:
PR122/P-LSI
Release Type:
EL
Short-Circuit Performance Level:
B
Standards:
IEC
Sub-type:
E1
Terminal Connection Type:
Withdrawable Circuit-Breakers

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
1SDA054893R1 ABB - UVR-C T4-T5-T6 480...500 Vac
ABB 1SDA054893R1 ABB - UVR-C T4-T5-T6 480...500 Vac
0.00 kr
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT5U1
EAN:
8015644560218
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.12 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.15 kg
Package Level 1 EAN:
8015644560218

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T4, T5, T6
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Current Type:
AC
Rated Voltage (Ur):
480 ... 500 V AC
Standards:
IEC

External Classifications and Standards

ETIM 9:
EC001022 - Under voltage coil
ETIM 10:
EC001022 - Under voltage coil
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27370417
MIR-HB T6-S6 ABB - 1SDA060685R1
ABB MIR-HB T6-S6 ABB - 1SDA060685R1
8,633.00 kr
Only 2 units left

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT6MI-H
EAN:
8015644631963
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
5.6 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
460 mm
Package Level 1 Height:
80 mm
Package Level 1 Depth / Length:
670 mm
Package Level 1 Gross Weight:
5.9 kg
Package Level 1 EAN:
8015644631963

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T6
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Standards:
IEC

Certificates and Declarations

Data Sheet, Technical Information:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC001044 - Mechanic interlock for switch
ETIM 10:
EC001044 - Mechanic interlock for switch
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
eClass:
V11.1 : 27371303
1SDA054524R1 ABB - T4N250
ABB 1SDA054524R1 ABB - T4N250
0.00 kr
Sold Out

Boxed automatic circuit breaker for motor protection T4N - Icu breaking capacity (415V) = 36kA - 250A PR222MP In = 200 3-pole - fixed with front terminals.
E1B800PR122/P-LSIIn=800A4pFHR ABB - 1SDA055612R1
ABB E1B800PR122/P-LSIIn=800A4pFHR ABB - 1SDA055612R1
0.00 kr
Sold Out

E1B 800 PR122/P-LSI In=800A 4p F HR
1SDA054951R1 ABB - MIR-P tipo D (T5-T5)
ABB 1SDA054951R1 ABB - MIR-P tipo D (T5-T5)
0.00 kr
Sold Out

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:

Environmental

Environmental Information:

Ordering

Order Code US and Canada:
KT5MIR-PD
E-Number (Finland):
3655730
E-Number (Norway):
4383648
EAN:
8015644560904
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
1.9 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
230 mm
Package Level 1 Height:
20 mm
Package Level 1 Depth / Length:
330 mm
Package Level 1 Gross Weight:
1.9 kg
Package Level 1 EAN:
8015644560904

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
Accessory
Suitable For:
T4, T5
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Standards:
IEC

Certificates and Declarations

Data Sheet, Technical Information:
Instructions and Manuals:

External Classifications and Standards

ETIM 9:
EC001044 - Mechanic interlock for switch
ETIM 10:
EC001044 - Mechanic interlock for switch
IDEA Granular Category Code (IGCC):
4416 >> Enclosure plates or covers
Object Classification Code:
Q
UNSPSC:
39121302
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371303
1SDA055158R1 ABB - KIT FC CuAl 2x150mm2 T3 4pcs
ABB 1SDA055158R1 ABB - KIT FC CuAl 2x150mm2 T3 4pcs
0.00 kr
Sold Out

Environmental

Environmental Information:

Ordering

EAN:
8015644563028
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.7 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Gross Weight:
0.76 kg
Package Level 1 EAN:
8015644563028

Additional Information

Product Main Type:
Accessories for Tmax T
Product Name:
Accessory
Product Type:
ACC
Suitable For:
T3
Suitable for Product Class:
SACE Tmax T

Technical

Configuration Type:
Loose or configurable
Number of Poles:
4P
Standards:
IEC

Certificates and Declarations

Data Sheet, Technical Information:
Instructions and Manuals:

External Classifications and Standards

Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E1B800PR121/P-LSIIn=800A3pFHR ABB - 1SDA055601R1
ABB E1B800PR121/P-LSIIn=800A3pFHR ABB - 1SDA055601R1
0.00 kr
Sold Out

E1B 800 PR121/P-LSI In=800A 3p F HR

Recently viewed
