2 safe digital inputs
2 pulse outputs
Sink circuit
Software input filter configurable for each channel
This module is equipped with 2 safe digital inputs. It is designed for a nominal voltage of 24 VDC.
The module can be used to read various digital signals in safety-related applications up to PL e or SIL 3.
The module is equipped with filters that are individually configurable for switch-on and switch-off behavior. The module also provides pulse signals for diagnosing the sensor line.
This module is designed for X20 12-pin terminal blocks.
6 safe digital inputs, sink circuit
6 pulse outputs
Software input filter configurable for each channel
2 safe digital outputs, output type B with 0.5 A, source circuit
Integrated output protection
The module is equipped with 6 safe digital inputs and 2 safe digital outputs. It is designed for a nominal voltage of 24 VDC.
The module can be used to read in digital signals and to control actuators in safety-related applications up to PL e or SIL 3.
The module is equipped with filters that are individually configurable for switch-on and switch-off behavior. The module also provides pulse signals for diagnosing the sensor line.
The outputs are designed using semiconductor technology so that the safety-related characteristics do not depend on the number of operating cycles. The "high-side high-side" variant (output type B) is required for actuators with reference potential (e.g. Enable inputs on frequency inverters). It is important to observe the special notices for the cabling in this case. Safe digital output channels provide protection against automatic restart when network errors occur.
This module is designed for X20 12-pin terminal blocks.
2 safe analog input pairs for current measurement 0.5 to 25 mA
24-bit digital converter resolution
Channels individually galvanically isolated
Sensor power supplies galvanically isolated
Input filter configurable
The module is equipped with 2 safe analog input pairs for current measurement. Each input pair has its own sensor power supply. The channels with their respective sensor supplies are electrically isolated from each other. It can be used to capture current signals in the range from 0.5 to 25 mA.
The safe analog input module is suitable for safely acquiring current signals for safety-related applications up to PL e or SIL 3.
This module is designed for X20 16-pin terminal blocks.
Supply for Compact-S CPU, X2X Link and internal I/O power supply
Galvanic isolation of supply and CPU / X2X Link power supply
Redundancy of the CPU / X2X Link power supply possible through parallel operation of multiple power supply modules
RS232 configurable as an online interface
CAN bus
The power supply module is used together with an X20 Compact-S CPU. It has a feed for the Compact-S CPU, X2X Link and the internal I/O power supply.

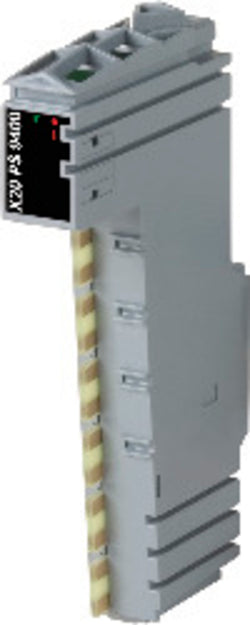

Supply for Compact or Fieldbus CPU, X2X Link network and internal I/O power supply
Electrical isolation of supply and CPU / X2X Link power supply
Redundancy of CPU / X2X Link supply possible by operating multiple supply modules simultaneously
RS232 configurable as an online interface
CAN bus
The power supply module is used together with an X20 Compact or Fieldbus CPU. It is equipped with a supply for the Compact or Fieldbus CPU, X2X Link network and internal I/O power supply.
The supply module is used together with an X20 bus controller. It is equipped with a feed for the bus controller, the X2X Link and the internal I/O supply. The module is designed to supply power for smaller X20 systems. Potential groups are able to be formed. An expansion or redundancy of the X2X Link with the X20PS3300 or X20PS3310 supply module is not possible. Expansion of the X20 system with a bus transmitter is not permitted either.
24 VDC supply module for internal I/O supply
The supply module is used for the internal I/O supply.
Dual CAN bus connection
Integrated terminating resistors
The interface module can be used to expand the X20 CPU for specific applications. It is equipped with 2 CAN bus interfaces.
POWERLINK V2 for real-time Ethernet communication
Integrated link selector function (preconfigured)
Redundant Managing Node for controller redundancy
Integrated hub for efficient cabling (configurable)
Configurable ring redundancy
Poll response chaining
Dynamic Node Allocation (DNA)
The interface module is used to expand the X20 CPU for specific applications. It is equipped with an POWERLINK interface.
POWERLINK is a standard protocol for Fast Ethernet equipped with hard real-time characteristics. The POWERLINK Standardization Group (EPSG, see www.ethernet-powerlink.org) ensures its openness and continual development.
Systems with redundant cabling can be implemented easily using POWERLINK. Unlike ring redundancy, cable redundancy does not require cable looping, which can sometimes be problematic. This allows the creation of all types of tree structures. When using a device with the link selector function, data is always transferred via the highest quality network lines. The link selector function is integrated in the X20IF2181-2 module.
Controller-Controller data synchronization module for controller redundancy system
Interface module for redundant operation of controllers.
PROFINET IO device
Integrated switch for efficient cabling
The interface module is equipped with a PROFINET IO device interface. This allows the B&R system (I/O modules, POWERLINK, etc.) to be connected to systems from other manufacturers and makes it possible to quickly and easily transfer data in both directions.
The interface module can be operated in X20 CPUs or in the expandable POWERLINK bus controller X20BC1083.
The interface is equipped with 2 RJ45 connections. Both connections result in an integrated switch. This makes it easy to implement daisy chain cabling.
X20 interface module, 1 PROFIBUS DP V0 slave interface, max. 12 Mbit/s, electrically isolated
RS485/RS422 connection
The interface module can be used to expand the X20 CPU for specific applications. It is equipped with an RS485/RS422 interface.
2x / 4x / 6x Fast Ethernet hub
Modular construction
Easily expandable
The X20 hub is a device that can be used universally in standard Ethernet networks or POWERLINK networks. It is suitable for 100 Mbit/s (Fast Ethernet) networks.
The bus modules expanded to the left allow connection of up to 2 hub expansion modules in addition to the hub base module. This means that a single base device provides up to 6 hub interfaces.
EnDat 2.1 and EnDat 2.2 encoder interface
Encoder input monitoring
5 VDC and GND for encoder supply
NetTime timestamp: Position time
The module is equipped with an EnDat encoder interface. The module automatically detects whether an encoder is connected with EnDat 2.1 or EnDat 2.2. This module can be used to evaluate encoders installed in B&R servo motors as well as encoders for external axes (encoders that scan any machine movement). The input signals are monitored. This makes it possible to detect open or shorted lines as well as encoder supply failures.
4 digital input channels
4 digital channels, configurable as inputs or outputs
1 universal counter pair (2 event counters, AB counters or up/down counters)
Linear movement generator (A/B, direction/frequency) with up to 2 reference pulses
SSI absolute encoder
NetTime timestamp: Input data, target position, position change, edge change, counter change
This module is a multifunction digital signal processor module. It can be used extremely flexibly for a wide variety of tasks involving digital signal processing or digital signal generation. Two primary example applications include controlling stepper output stages with pulse and direction signals or using as encoder emulation. In this application, for example, frequency inverters or servo axes with the speed follow function can follow a real or virtual master axis.
An additional essential feature is the module's integrated timestamp function. It allows counter ramps curves to be generated virtually independently of bus cycle times during encoder emulation, for example. Only the target counter value and moment when it should be reached are transferred. The module automatically generates the corresponding counter values at the appropriate time, precisely in microsecond resolution and independently of the bus clock.
6 digital outputs
Source connection
2-wire connections
GND for signal supply
Integrated output protection
1-wire connection type with 6-pin terminal block
Diagnostic functions (open line, short circuit and overload/overtemperature)
OSP mode
The module is equipped with six outputs for 1 or 2-wire connections with diagnostic functions. The X20 6-pin terminal block can be used for universal 1-line wiring. Two-line wiring can be implemented using the 12-pin terminal block. The outputs on the module are designed for source connections.
8 digital inputs, sink connections
4 digital outputs, source connections
1-wire connections
Configurable software input filter for entire module
Integrated output protection
This module is equipped with 8 inputs and 4 outputs for 1-wire connections. The inputs are designed for sink connections, the outputs for source connections.
8 digital inputs
Sink connection
1-wire connections
Software input filter can be configured for entire module
The module is equipped with eight inputs for 1-wire connections. The module is designed for sink input wiring.
6 digital inputs
Sink connection
2-wire connections
24 VDC for sensor supply
Software input filter can be configured for entire module
1-wire connection type with 6-pin terminal block
4 digital inputs
Input module for NAMUR encoders
Open line and short circuit detection
Each input can be used as a counter input
The module is used to transfer digital signals from NAMUR encoders according to EN 60947-5-6. In addition to NAMUR encoders, normal switches can also be used.
4 digital inputs
Sink connection
3-wire connections
4 counter inputs with 1 kHz counter frequency
24 VDC and GND for sensor supply
Software input filter can be configured for entire module
The module is equipped with 4 inputs for 3-wire connections.
2 digital inputs
Sink connection
3-wire connections
2 counter inputs with 50 kHz counter frequency
Gate measurement
24 VDC and GND for sensor supply
Software input filter can be configured for entire module
The module is equipped with two inputs for 3-wire connections. Both inputs can be configured as event counters. Gate measurement is only ever possible on one channel.
This module is designed for X20 6-pin terminal blocks. If needed (e.g. for logistical reasons), the 12-pin terminal block can also be used.
1 ABR incremental encoder 24 V
1 additional input e.g. for home enable switch
24 VDC and GND for encoder supply
The module is equipped with 1 input for an ABR incremental encoder with 24 V encoder signal.
