Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 100...240 V 90â¦264 V AC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 20 ms |
| Number output current | 0.5 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of slots | 3 |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s |
| Realtime clock | With |
| Memory description | Flash 15 Kwords data Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage |
| Maximum size of object areas | 128 %KWi constant words 256 %Mi 1 %MWi internal words |
| Execution time per instruction | 0.13 µs Boolean without PCMCIA card 4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card |
| Execution time for 1 Kinstruction | 5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card |
| Application structure | 16 event tasks 1 master task 1 fast task |
| System overhead | 1.6 ms for master task |
| Protection type | Overload protection Short-circuit |
| Total useful secondary power | 16 W |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 1000-4-2 level 3 Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 Resistance to fast transient conforming to IEC 1000-4-4 level 3 Immunity to impulse waves conforming to IEC 1000-4-5 Damped oscillatory wave conforming to IEC 1000-4-12 Immunity to electromagnetic interference conforming to IEC 61131-2 |
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 100...240 V 90â¦264 V AC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 20 ms |
| Number output current | 0.5 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of slots | 3 |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s |
| Realtime clock | With |
| Memory description | Flash 15 Kwords data Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage |
| Maximum size of object areas | 128 %KWi constant words 256 %Mi 1 %MWi internal words |
| Execution time per instruction | 0.13 µs Boolean without PCMCIA card 4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card |
| Execution time for 1 Kinstruction | 5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card |
| Application structure | 16 event tasks 1 master task 1 fast task |
| System overhead | 1.6 ms for master task |
| Protection type | Overload protection Short-circuit |
| Total useful secondary power | 16 W |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 1000-4-2 level 3 Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 Resistance to fast transient conforming to IEC 1000-4-4 level 3 Immunity to impulse waves conforming to IEC 1000-4-5 Damped oscillatory wave conforming to IEC 1000-4-12 Immunity to electromagnetic interference conforming to IEC 61131-2 |
Advanced touchscreen panel 320 x 240 pixels QVGA- 5.7" TFT - 64 MB
The M340 processor module has a maximum of 1024 discrete and 256 analog I/O (Modbus or Ethernet). 36 application specific channels, product or component type. The processor module can do monitoring, diagnostic counters Modbus, event counters Modbus, is transparent ready, has 4 CANopen racks and 11 slots. It also has 1024 I/O multirack configuration, 704 I/O single rack configuration, analog I/O processor capacity, 256 I/O multirack configuration and 66 I/O single rack configuration. The Modicon M340 offers in a small form factor flexibility and integrated functions. In the heart of your process, it provides plug-and-play solutions with both Schneider Electric and third party devices. The large capacity of Unity Pro SoCollaborative software will ease and shorten programming and commissioning time. Modicon M340 Programmable Automation Controllers (PACs) are built to suit the needs of the process industry and a wide range of demanding automation applications. Modicon M340 PACs can be used individually, but are also the perfect companion to the Modicon M580. Together they can increase the performance, quality, and the profitability of your machine production. M340 PACs have an all in one CPU. It operates at 7 Kinst/ms. By using a multitasking system, it has reflex time. This PAC is programmed with Unity⢠Pro software. The M340 has a USB port for programming and HMI. Two additional Ethernet, CANopen® or Modbus⢠ports are available as required. The memory can process programming code up to 70 Kinst. Application back up is in a supplied memory card. Additional file storage is available up to 128 MB with FTP access. Additional file storage is available up to 128 MB with FTP access. The M340 range doesnât require a battery. It has extended temperature (-25°C +70°C) and conformal coating for operation in harsh environments. Protection for SI and OEM know how by using a SD card technology. Replace or hot swap I/O modules without stopping process. Configuration change on the fly (CCOTF) is used. No need to stop the process to expand system. FTD/DTM configuration tools for plug and play device integration. This simplifies configuration, commissioning, and maintenance. The M340 range is used in process industries, renewable energy applications (Solar, Wind power, etc.), water and cement applications, in manufacturing, in infrastructures and on machines.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon M340 automation platform |
| Product or Component Type | Processor module |
| Concept | Transparent Ready CANopen |
| Number of racks | 4 |
| Number of slots | 11 |
| Discrete I/O processor capacity | 1024 I/O multi-rack configuration 704 I/O single-rack configuration |
| Analogue I/O processor capacity | 256 I/O multi-rack configuration 66 I/O single-rack configuration |
| Number of application specific channel | 36 |
| Monitoring | Diagnostic counters Modbus Event counters Modbus |
Complementary
| Characteristic | Value(s) |
|---|---|
| Control channels | Programmable loops |
| Integrated connection type | Non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex Non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex USB port 12 Mbit/s Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s |
| Communication module processor capacity | 2 Ethernet communication module 4 AS-Interface module |
| embedded communication service | Bandwidth management, Ethernet TCP/IP Data Editor, Ethernet TCP/IP Modbus TCP messaging, Ethernet TCP/IP Rack Viewer, Ethernet TCP/IP SNMP network administrator, Ethernet TCP/IP |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Number of devices per segment | 0â¦32character mode) 0â¦32Modbus) |
| Number of devices | 2 point-to-point character mode 2 point-to-point Modbus |
| Bus length | 0.0000000000â¦32.8 ft (0â¦10 m) serial link non isolated character mode segment 0.0000000000â¦32.8 ft (0â¦10 m) serial link non isolated Modbus segment 0.0000000000â¦3280.8 ft (0â¦1000 m) serial link isolated character mode segment 0.0000000000â¦3280.8 ft (0â¦1000 m) serial link isolated Modbus segment 0.0000000000â¦49.2 ft (0â¦15 m) character mode point-to-point 0.0000000000â¦49.2 ft (0â¦15 m) Modbus point-to-point |
| Maximum tap links length | <49.2 ft (15 m) serial link non isolated character mode segment <49.2 ft (15 m) serial link non isolated Modbus segment <131.2 ft (40 m) serial link isolated character mode segment <131.2 ft (40 m) serial link isolated Modbus segment |
| Number of addresses | 0â¦248 character mode 0â¦248 Modbus |
| Requests | 1 K data bytes per request character mode 252 data bytes per RTU request Modbus 504 data bytes per ASCII request Modbus |
| Control parameter | One CRC on each frame (RTU) Modbus One LRC on each frame (ASCII) character mode One LRC on each frame (ASCII) Modbus |
| Memory description | Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data Internal RAM 4096 kB Internal RAM 256 kB data Internal RAM 3584 kB program constants and symbols Supplied memory card (BMXRMS008MP) activation of standard web server, class B10 |
| Maximum size of object areas | 256 kB unlocated internal data 32634 %Mi located internal bits |
| Default size of object areas | 1024 %MWi internal words located internal data 256 %KWi constant words located internal data 512 %Mi located internal bits |
| Application structure | 1 cyclic/periodic master task 1 periodic fast task No auxiliary task 64 event tasks |
| Execution time per instruction | 0.12 µs Boolean 0.17 µs double-length words 0.25 µs single-length words 1.16 µs floating points |
| Number of instructions per ms | 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 8.1 Kinst/ms 100 % Boolean |
| System overhead | 0.13 ms fast task 0.7 ms master task |
| Current consumption | 95 mA 24 V DC |
| Supply | Internal power supply via rack |
| Marking | CE |
| Status LED | 1 LED (Green) activity on Ethernet network (ETH ACT) 1 LED (Green) processor running (RUN) 1 LED (Green) status of Ethernet network (ETH STS) 1 LED (Red) data rate (ETH 100) 1 LED (Red) I/O module fault (I/O) 1 LED (Red) memory card fault (CARD ERR) 1 LED (Red) processor or system fault (ERR) 1 LED (Yellow) activity on Modbus (SER COM) |
| Product Weight | 0.452 lb(US) (0.205 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Discrete output module |
| Discrete output number | 64 |
| Discrete output type | Solid state protected |
| Discrete output voltage | 24 V DC positive EN/IEC 61131-2 19...30 V |
Complementary
| Characteristic | Value(s) |
|---|---|
| Current per channel | 0.1 A |
| Maximum current per module | 5 A |
| Maximum leakage current | 0.1 mA 30 V |
| Maximum tungsten load | 1.2 W |
| [Ures] residual voltage | 1.5 V |
| Response time | 1.2 ms |
| Paralleling of outputs | Yes : 3 maximum |
| Output overvoltage protection | By transil diode |
| Reverse polarity protection | Reverse mounted diode |
| Output overload protection | Automatic trip |
| Short-circuit protection | Automatic trip |
| Minimum load impedance | 220 W at state 1 |
| isalotion resistance | > 10 MOhm 500 V |
| Power dissipation | (2.4 W + 0.1 W x No of outputs) |
| Product Compatibility | Dial and Power |
| Marking | CE |
| Electrical connection | 4 connectors HE-10 |
| Current consumption | 155 mA 5 V DC |
| Module format | Standard |
| Product Weight | 0.79 lb(US) (0.36 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Power supply module |
| Power supply type | Redundant |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage | 115 V 93...138 V) AC 47â¦63 Hz 230 V 170...276 V) AC |
| Input current | 1100 mA 115 V 600 mA 230 V |
| Inrush current | 19 A 230 V 38 A 115 V |
| Rated power in VA | 130 VA |
| Associated fuse rating | 2 A, slow-blow |
| Harmonic distortion | <= 10 % of fundamental rms value |
| Output voltage | 5.1 V DC |
| Power supply output current | 11 A 140 °F (60 °C) standalone 10 A 140 °F (60 °C) redundant |
| Output overvoltage protection | Internal |
| Output overload protection | Internal |
| Power dissipation | 6 + (1.5 x Iout) where Iout is in A |
| Alarm output | 1 NC 6 A 220 V power supply fault |
| Local signalling | 1 LED (green) for power (PWR OK) |
| Marking | CE |
| Module format | Standard |
| Product Weight | 1.43 lb(US) (0.65 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | High-speed counter module |
| Number of channels | 2 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Addressing requirement | 6 output words 6 input words |
| Data format | 2147483647 dec 32 bits 65535 dec 16 bits |
| Counting input type | Incremental or quadrature |
| Counting frequency | 500000 Hz |
| Discrete input voltage | < 30 V |
| Operating mode | Incremental or quadrature discrete input |
| Input resistance | 10 kOhm discrete input |
| Operating threshold | 0...11 V single ended mode 24 V DC at state off 0...2 V single ended mode 5 V DC at state on 0 V single ended mode 12 V DC at state on 13...24 V single ended mode 24 V DC at state on 2...7 V single ended mode 12 V DC at state off >= 1.8 V differential mode 3.5...5 V single ended mode 5 V DC at state off |
| Discrete output number | 4 |
| Discrete output type | Field Effect Transistor (FET) |
| Discrete output voltage | 0 V switch off DC 0.4 V switch on DC |
| Load current | 0.5 A |
| Maximum leakage current | 0.4 mA state off |
| Maximum voltage drop | <0.4 V state on |
| Protection type | 36 V transorb discrete output |
| Isolation between channels and bus | 1780 Vrms 60 s |
| Fault type | Loss of output field power |
| Output short-circuit protection | Blown fuse 2.5 A |
| Power dissipation | 4 + (0.4 x total module load current) |
| Bus current requirement | 650 mA |
| External power requirement | 19.2...30 V |
| Rack type | Local Remote Distributed |
| Local signalling | for channel status 2 LEDs |
| Marking | CE |
| Current consumption | <= 1050 mA 24 V DC external power supply |
| Module format | Standard |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | High-speed counter module |
| Number of channels | 2 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Addressing requirement | 6 output words 6 input words |
| Data format | 2147483647 dec 32 bits 65535 dec 16 bits |
| Counting input type | Incremental or quadrature |
| Counting frequency | 500000 Hz |
| Discrete input voltage | < 30 V |
| Operating mode | Incremental or quadrature discrete input |
| Input resistance | 10 kOhm discrete input |
| Operating threshold | 0...11 V single ended mode 24 V DC at state off 0...2 V single ended mode 5 V DC at state on 0 V single ended mode 12 V DC at state on 13...24 V single ended mode 24 V DC at state on 2...7 V single ended mode 12 V DC at state off >= 1.8 V differential mode 3.5...5 V single ended mode 5 V DC at state off |
| Discrete output number | 4 |
| Discrete output type | Field Effect Transistor (FET) |
| Discrete output voltage | 0 V switch off DC 0.4 V switch on DC |
| Load current | 0.5 A |
| Maximum leakage current | 0.4 mA state off |
| Maximum voltage drop | <0.4 V state on |
| Protection type | 36 V transorb discrete output |
| Isolation between channels and bus | 1780 Vrms 60 s |
| Fault type | Loss of output field power |
| Output short-circuit protection | Blown fuse 2.5 A |
| Power dissipation | 4 + (0.4 x total module load current) |
| Bus current requirement | 650 mA |
| External power requirement | 19.2...30 V |
| Rack type | Local Remote Distributed |
| Local signalling | for channel status 2 LEDs |
| Marking | CE |
| Current consumption | <= 1050 mA 24 V DC external power supply |
| Module format | Standard |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Analogue input module |
| Type of filter | Single pole low pass - 3 dB at 847 Hz +/- 20 % |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue input number | 8 |
| Input type | Differential |
| Addressing requirement | 9 input words |
| Analogue input type | Bipolar current 20 mA Bipolar voltage +/- 10 V Bipolar voltage +/- 5 V Unipolar current 0...20 mA Unipolar voltage 0...10 V Unipolar voltage 0...5 V |
| Analogue input resolution | 16 bits +/- 10 V 16 bits +/- 5 V 16 bits 0...10 V 16 bits 0...20 mA 16 bits 0...5 V 16 bits 20 mA |
| Linear measuring range | (input range) x 1.024 mA (input range) x 1.024 V |
| Absolute maximum input | 50 V DC 25 mA |
| Input impedance | > 20 Ohm voltage 250 MOhm +/- 0.03 % |
| Absolute accuracy error | +/- 0.03 % +/- 0.05 % of full scale maximum |
| Linearity error | +/- 0.008 % |
| Accuracy drift according to temperature | +/- 0.0015 % of full scale/°C <= 0.004 % of full scale /°C |
| Common mode rejection | > - 80 dB 60 Hz |
| Isolation between channels and bus | 500 Vrms AC 60 s 750 V DC |
| Isolation between channels | 135 Vrms AC 200 V DC |
| Update time | 10 ms |
| Fault type | Broken wire 4...20 mA Overtacking scale 1...5 V |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 8 LEDs (green) for channel is turned on 8 LEDs (red) for channel fault |
| Bus current requirement | 280 mA |
| Power dissipation in W | 2.2 W |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Analogue input module |
| Type of filter | Single pole low pass - 3 dB at 847 Hz +/- 20 % |
Complementary
| Characteristic | Value(s) |
|---|---|
| Analogue input number | 8 |
| Input type | Differential |
| Addressing requirement | 9 input words |
| Analogue input type | Bipolar current 20 mA Bipolar voltage +/- 10 V Bipolar voltage +/- 5 V Unipolar current 0...20 mA Unipolar voltage 0...10 V Unipolar voltage 0...5 V |
| Analogue input resolution | 16 bits +/- 10 V 16 bits +/- 5 V 16 bits 0...10 V 16 bits 0...20 mA 16 bits 0...5 V 16 bits 20 mA |
| Linear measuring range | (input range) x 1.024 mA (input range) x 1.024 V |
| Absolute maximum input | 50 V DC 25 mA |
| Input impedance | > 20 Ohm voltage 250 MOhm +/- 0.03 % |
| Absolute accuracy error | +/- 0.03 % +/- 0.05 % of full scale maximum |
| Linearity error | +/- 0.008 % |
| Accuracy drift according to temperature | +/- 0.0015 % of full scale/°C <= 0.004 % of full scale /°C |
| Common mode rejection | > - 80 dB 60 Hz |
| Isolation between channels and bus | 500 Vrms AC 60 s 750 V DC |
| Isolation between channels | 135 Vrms AC 200 V DC |
| Update time | 10 ms |
| Fault type | Broken wire 4...20 mA Overtacking scale 1...5 V |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 8 LEDs (green) for channel is turned on 8 LEDs (red) for channel fault |
| Bus current requirement | 280 mA |
| Power dissipation in W | 2.2 W |
| Module format | Standard |
| Product Weight | 0.7 lb(US) (0.3 kg) |
Magelis GXO - 7'' wide, 7 inch. Display Type, Colour TFT LCD. Display Colour, 65536 colors.
This connection sub-base is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. It is for distribution of 8 analog input channels. It is a sub-base with a control circuit voltage of 24V DC. The distributed analog input channels are isolated from one another. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.41kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. It meets CSA C22.2, IEC 61131 and UL 508 standards. This connection sub-base is suitable for use with Modicon X80 IO modules such as BMXAMI0800, BMXAMI0810 and BMEAHI0812. It is delivered in 1 package (PCE type). It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Connection sub-base for counter and analogue channels |
| Number of channels | 8 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| Function of module | Isolated analogue input Premium |
| [Uc] control circuit voltage | 24 V DC |
| Connection to PLC | SUB-D 25 |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 0.90 lb(US) (0.41 kg) |
This connection sub-base is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. It is for distribution of 8 analog input channels. It is a sub-base with a control circuit voltage of 24V DC. The distributed analog input channels are isolated from one another. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.41kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. It meets CSA C22.2, IEC 61131 and UL 508 standards. This connection sub-base is suitable for use with Modicon X80 IO modules such as BMXAMI0800, BMXAMI0810 and BMEAHI0812. It is delivered in 1 package (PCE type). It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon ABE7 |
| Product or Component Type | Connection sub-base for counter and analogue channels |
| Number of channels | 8 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
Complementary
| Characteristic | Value(s) |
|---|---|
| Function of module | Isolated analogue input Premium |
| [Uc] control circuit voltage | 24 V DC |
| Connection to PLC | SUB-D 25 |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat à 3.5 mm |
| Product Weight | 0.90 lb(US) (0.41 kg) |
Schneider
ATV71H075N4 Schneider Electric Altivar 71 Variable speed drive
Sale price
€500,95
In stock, 13 unitsVariable Speed Drive Altivar 71 - 0.75kW-1hp - 480V - with EMC filter and Graphic Terminal

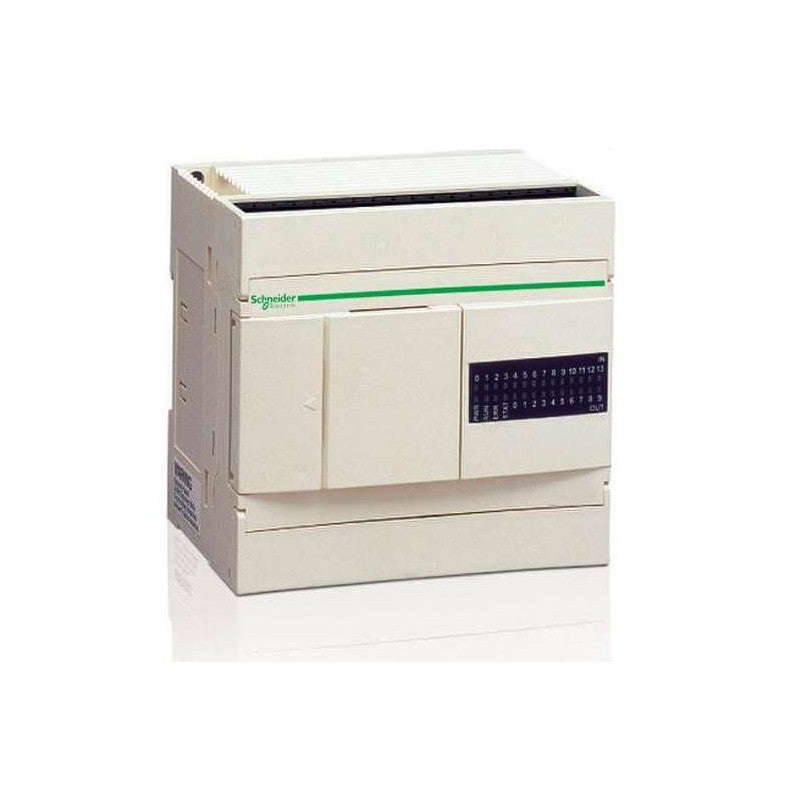

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Twido |
| Product or Component Type | Compact base controller |
| Discrete I/O number | 24 |
| Discrete input number | 14 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete output number | 10 relay |
| [Us] rated supply voltage | 100...240 V AC |
| Maximum Number of I/O Expansion Module | 4 |
| Use of slot | Memory cartridge or realtime clock cartridge |
| Data backed up | Internal RAM lithium, 30 days 10 h 10 year(s) |
| Integrated connection type | Power supply Non isolated serial link mini DIN, Modbus/character mode master/slave RTU/ASCII RS485) half duplex, 38.4 kbit/s Serial link interface adaptor RS232C/RS485) |
| Complementary function | Event processing PID |
| Range Compatibility | Twido |
Complementary
| Characteristic | Value(s) |
|---|---|
| Discrete input logic | Sink or source |
| Input voltage limits | 20.4...28.8 V |
| Discrete input current | 11 mA I0.0 to I0.1 7 mA I0.2 to I0.13 |
| Input impedance | 2100 Ohm I0.0 to I0.1 3400 Ohm I0.2 to I0.13 |
| Filter time | 150 µs + programmed filter time for I0.6 to I0.13 at state 0 35 µs + programmed filter time for I0.0 to I0.5 at state 1 40 µs + programmed filter time for I0.6 to I0.13 at state 1 45 µs + programmed filter time for I0.0 to I0.5 at state 0 |
| Insulation between channel and internal logic | 1500 Vrms for 1 minute |
| Insulation resistance between channel | None |
| Minimum load | 0.1 mA |
| Contact resistance | 30000 µOhm |
| Load current | 2 A 240 V AC inductive 30 cyc/mn relay output 2 A 240 V AC resistive 30 cyc/mn relay output 2 A 30 V DC inductive 30 cyc/mn relay output 2 A 30 V DC resistive 30 cyc/mn relay output |
| Mechanical durability | 20000000 cycles relay output |
| Electrical durability | 100000 cycles relay output |
| Current consumption | 36 mA 5 V DC at state 1 5 mA 5 V DC at state 0 55 mA 24 V DC at state 1 |
| I/O connection | Non-removable screw terminal block |
| Maximum input/output number | 120 spring terminal block with I/O expansion module 152 HE-10 connector with I/O expansion module 88 removable screw terminal block with I/O expansion module |
| Network Frequency | 50/60 Hz |
| Supply voltage limits | 85â¦264 V |
| Network frequency limits | 47â¦63 Hz |
| Power supply output current | 0.25 A 24 V DC sensors |
| Input current | 450 mA |
| Inrush current | 40 A |
| Protection type | Power protection internal fuse |
| Power consumption in VA | 33 VA 100 V 40 VA 264 V |
| Insulation resistance | > 10 MOhm at 500 V, between I/O and earth terminals > 10 MOhm at 500 V, between supply and earth terminals |
| Program memory | 3000 instructions |
| Exact time for 1 Kinstruction | 1 ms |
| System overhead | 0.5 ms |
| Memory description | Internal RAM, 128 counters, no floating, no trigonometrical Internal RAM, 128 timers, no floating, no trigonometrical Internal RAM, 256 internal bits, no floating, no trigonometrical Internal RAM, 3000 internal words, no floating, no trigonometrical Internal RAM, double words, no floating, no trigonometrical |
| Free slots | 1 |
| Realtime clock | Without |
| Counting input number | 1 20000 Hz 32 bits 3 5000 Hz 16 bits |
| Analogue adjustment points | 1 point adjustable from 0 to 511 points 1 point adjustable from 0...1023 |
| Status LED | 1 LED (Green) PWR 1 LED (Green) RUN 1 LED per channel (Green) I/O status 1 LED (Red) module error (ERR) 1 LED user pilot light (STAT) |
| Depth | 2.8 in (70 mm) |
| Height | 3.7 in (95 mm) |
| Width | 3.5 in (90 mm) |
| Terminals description PLC n°1 | (6)IN_DIS#6 COM_NEG#0-13 (-)PW_OUT_NEG (4)IN_DIS#4 ALT (0)IN_DIS#0 (13)IN_DIS#13 (5)IN_DIS#5 (8)IN_DIS#8 (10)IN_DIS#10 (11)IN_DIS#11 TB_TOP (+)PW_OUT_POS (9)IN_DIS#9 (3)IN_DIS#3 (7)IN_DIS#7 (12)IN_DIS#12 (1)IN_DIS#1 (2)IN_DIS#2 |
| Terminals description PLC n°2 | (11)IN_DIS#10 (9)IN_DIS#9 (2)IN_DIS#2 (1)IN_DIS#1 (7)IN_DIS#7 (3)IN_DIS#3 (8)IN_DIS#8 (+)PW_OUT_POS ALT_1 COM_POS#0-13 (12)IN_DIS#12 (-)PW_OUT_NEG (4)IN_DIS#4 (13)IN_DIS#13 TB_TOP (6)IN_DIS#6 (10)IN_DIS#10 (0)IN_DIS#0 (5)IN_DIS#5 |
| Terminals description PLC n°3 | (COM0)COM#0-3 (9)OUT_DIS#9 (7)OUT_DIS#7 (3)OUT_DIS#3 (1)OUT_DIS#1 (GND)GROUND (6)OUT_DIS#6 (-)PW_NEG (COM2)COM#8 TB_BOTTOM (COM1)COM#4-7 (8)OUT_DIS#8 (COM3)COM#9 (5)OUT_DIS#5 (4)OUT_DIS#4 (2)OUT_DIS#2 (0)OUT_DIS#0 (+)PW_POS |
| Product Weight | 0.672 lb(US) (0.305 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Ethernet network TCP/IP module |
| Concept | Transparent Ready |
| Web server | Class C20 |
| Web services | Data editor Rack viewer FactoryCast configurable |
| Communication Service | SNMP network management Modbus TCP messaging |
| Communication Port Protocol | Ethernet Modbus TCP/IP |
| Physical interface | MT/RJ - 100BASE-FX fiber optic RJ45 - 10BASE-T/100BASE-TX twisted pair |
| Transmission Rate | 10/100 Mbit/s |
Complementary
| Characteristic | Value(s) |
|---|---|
| Redundancy | Yes hot standby redundant architecture |
| Supply | Via the power supply of the rack |
| Marking | CE |
| Local signalling | 1 LED for 10 Mbps or 100 Mbps data rate (10 MB/100 MB) 1 LED for collision detection (Coll) 1 LED for download mode (Kernel) 1 LED for Ethernet module fault (Fault) 1 LED for Ethernet network status (RUN) 1 LED for full-duplex mode (Fduplex) 1 LED for module ready (Ready) 1 LED for network active (Link) 1 LED for rack operational (Active) 1 LED for transmission/reception activity (TxAct/RxAct) |
| Current consumption | 750 mA 5 V DC |
| Module format | Standard |
| Product Weight | 0.761 lb(US) (0.345 kg) |
Discrete input module Modicon Quantum - 32 I - 115 V AC
Main

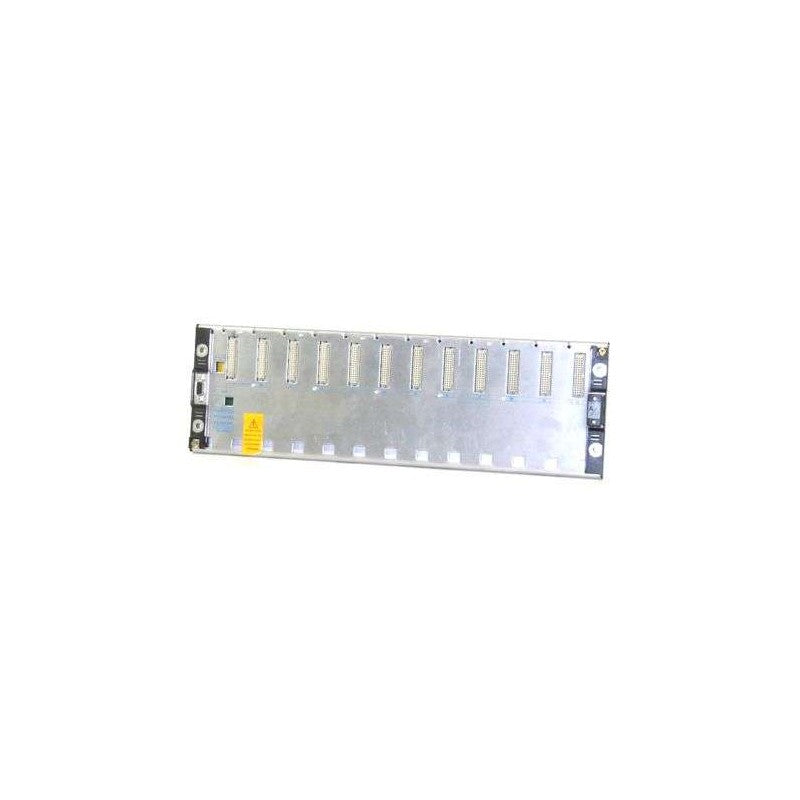

| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Extendable rack |
| Product Specific Application | For multi-racks configuration |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of slots | 12 |
| Product Compatibility | TSXP57 processor I/O module Specific application module TSXPSY power supply |
| Electrical connection | 2 connectors female SUB-D 9 remote connection of bus X) |
| Fixing mode | By 4 M6 screws (panel) By clips (35 mm symmetrical DIN rail) |
| Marking | CE |
| Product Weight | 5.16 lb(US) (2.34 kg) |

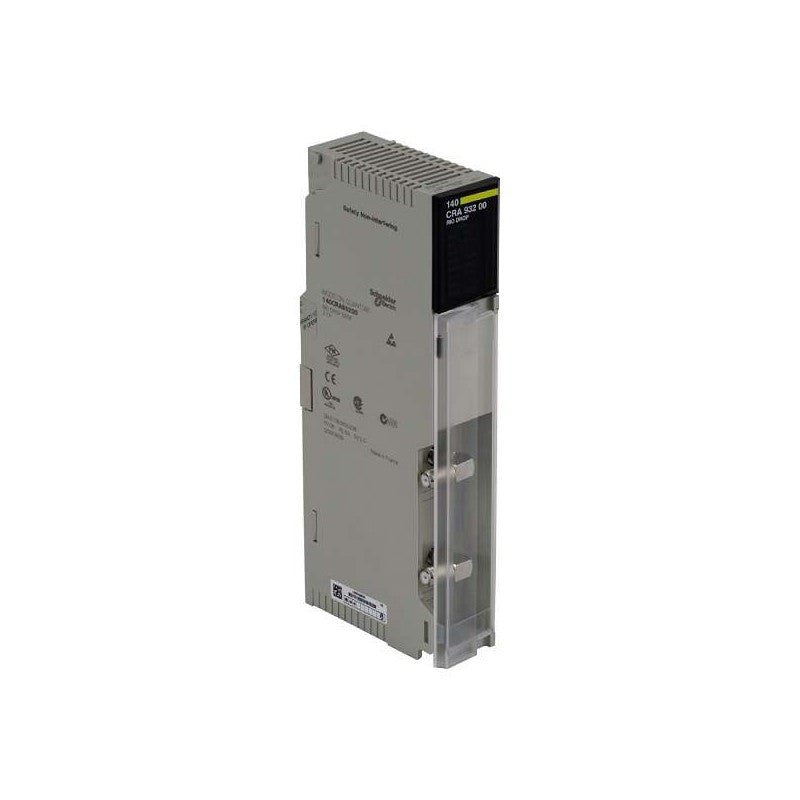

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | RIO drop adaptor module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | Quantum |
| Maximum Number of I/O Expansion Module | 27 |
| Type of cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 2 female connectors F, elbowed with redundant cable |
| Diagnostics startup | Power up and runtime RAM address/data Executive checksum |
| Power dissipation in W | 3.8 W 2 channels |
| Bus current requirement | 750 mA 2 channels |
| Module format | Standard |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | RIO drop adaptor module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | Quantum |
| Maximum Number of I/O Expansion Module | 27 |
| Type of cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 2 female connectors F, elbowed with redundant cable |
| Diagnostics startup | Power up and runtime RAM address/data Executive checksum |
| Power dissipation in W | 3.8 W 2 channels |
| Bus current requirement | 750 mA 2 channels |
| Module format | Standard |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | RIO head-end adaptor module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | Symax (any mix) Quantum 200/500/800 series |
| Maximum drops/network | 31 |
| I/O words/drop | 64 I/64 O |
| Type of cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 2 female connectors F, elbowed with redundant cable |
| Diagnostics startup | Memory check LAN controller check Power up |
| Power dissipation in W | 3 W 2 channels |
| Marking | CE |
| Bus current requirement | 750 mA 2 channels |
| Module format | Standard |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | RIO head-end adaptor module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | Symax (any mix) Quantum 200/500/800 series |
| Maximum drops/network | 31 |
| I/O words/drop | 64 I/64 O |
| Type of cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 2 female connectors F, elbowed with redundant cable |
| Diagnostics startup | Memory check LAN controller check Power up |
| Power dissipation in W | 3 W 2 channels |
| Marking | CE |
| Bus current requirement | 750 mA 2 channels |
| Module format | Standard |

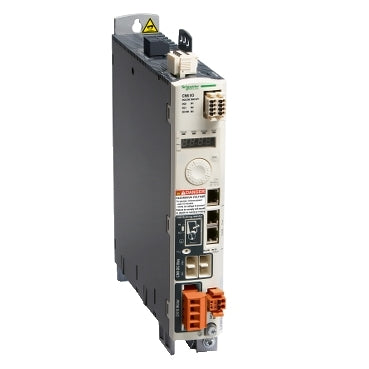

This Product Is Part Of The Lexium 32 Range, An Offer Of Motion Servo Drives For Machines From 0.15Kw To 7Kw. The Ac Motion Servo Drive For One Axis, Features With An Integrated Emc Filter, Compact Drive With Analogue Inputs And Pulse Train. It Provides 1 Capture, 2 Safety, 4 Logic Discrete Inputs And 2 Discrete Outputs. Thanks To Its Compact Design This Servo Drive Enables To Save On Cabinet Space And Size, Reduces The Machine Footprint And Decreases Costs. It Is A Motion Servo Drive With A Rated Supply Voltage Of 200V To 240V, 380V To 480V (Three Phase), A Continuous Output Current Of 3A At 8Khz And A Continuous Power Of 1600W At 400V. It Is Furnished With Terminal For Electrical Connection And Three Rj45 Connectors For Canmotion, Canopen, And Modbus, Integrated Communication Interfaces. It Is An Ip20 Rated Product. Its Dimensions Are 48Mm (Width) X 237Mm (Depth) X 270Mm (Height). It Weighs 1.8Kg. This Product Is Certified By Ce, Csa, Rohs, Tuv And Ul. It Meets En/Iec 61800-3 And En/Iec 61800-5-1 Standards. This Product Is Compatible With Servo Motors Bmh And Bsh. Servo Drive Range With Four Servo Drive Models And Two Servo Motor Families Plus An Intelligent Selection Of Options. It Provides You With The Drive And Motor Combination That Has Exactly The Right Power, Performance And Functionality.
When it comes to maximizing your industrial automation capabilities, it’s important that you utilize products from a brand that puts this need at the top of the priority list. Schneider PLCs are a leading product line in the manufacturing world thanks to its advanced automation solutions and constant innovation. Schneider Electric parts can save you time and money while optimizing your equipment in the best possible ways. Schneider PLCs are also incredibly customizable, with ample ways to adjust your system to best correspond to your unique equipment setup.
We at PLC Direct offer a series of these Schneider Electric PLCs, including outdated models, to ensure that you have access to the exact products you need. So whether you’re running a newer or an older model, you can rest assured that we have something that’ll help you replace or repair your existing system. This way, you won’t need to perform a full overhaul of your automation devices before you’re good and ready to. Additionally, we make it a point to be transparent about Schneider spare part availability so that you always know the potential lead times. Shop below to learn more about this as well as our other industrial automation products for sale. We’ll be your number one resource for all your PLC needs.
We at PLC Direct offer a series of these Schneider Electric PLCs, including outdated models, to ensure that you have access to the exact products you need. So whether you’re running a newer or an older model, you can rest assured that we have something that’ll help you replace or repair your existing system. This way, you won’t need to perform a full overhaul of your automation devices before you’re good and ready to. Additionally, we make it a point to be transparent about Schneider spare part availability so that you always know the potential lead times. Shop below to learn more about this as well as our other industrial automation products for sale. We’ll be your number one resource for all your PLC needs.
