CPU 984-PC-F984-485
CPU 115/220 VOLT 50/60 HZ .6/.3 AMP 984-PC-F984-685

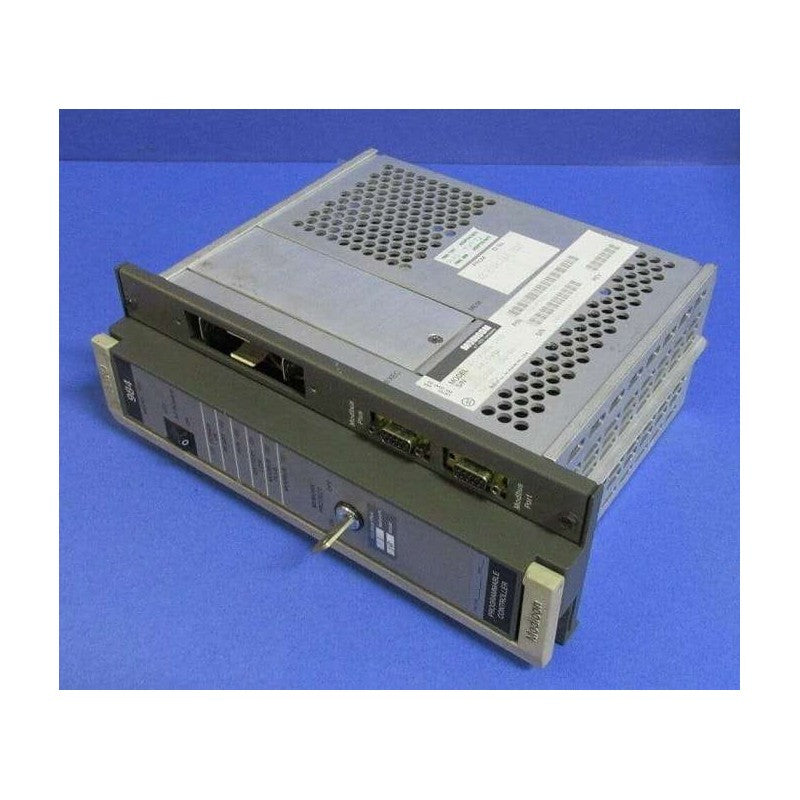

CPU 984-PC-F984-785
MODICON CPU MODULE 984-PC-K984-485
PROGRAMMABLE CONTROLLER 984 CPU 38/48K, 16 POINT, 24 VDC, 984-PC-K984-785

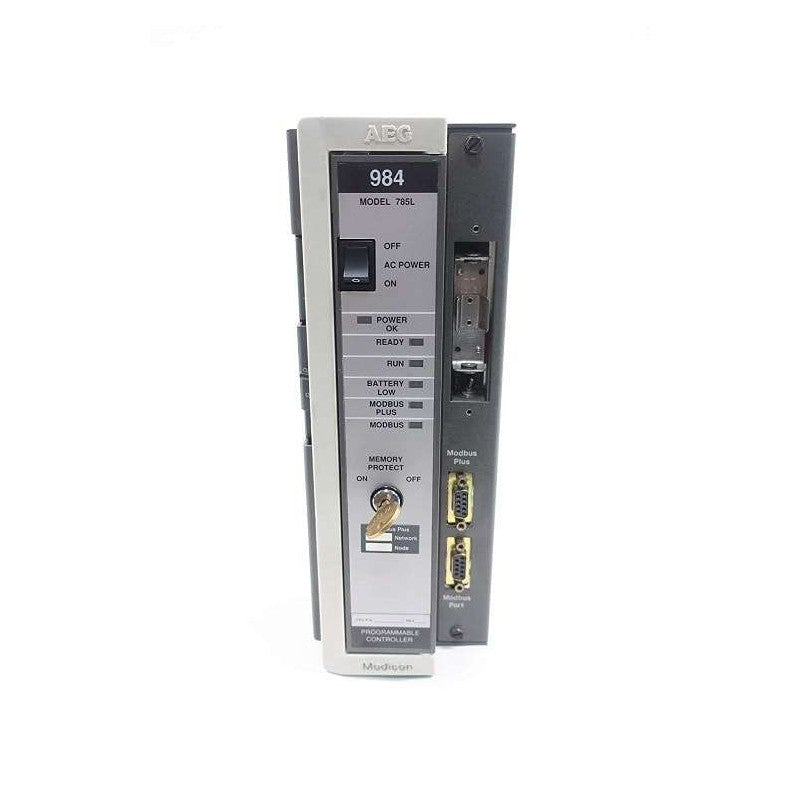

CPU 16 POINT 230VAC 984-PC-L984-785
PROGRAMMABLE CONTROLLER 1150/220VAC, 50/60HZ, 1.5A, 984-PC-M984-230
PC X984 785 PCX984785 MAXIMUM FOR LOCAL I-O 65535 DISCRETE I-O, 512-512 TOTAL I-O BITS.

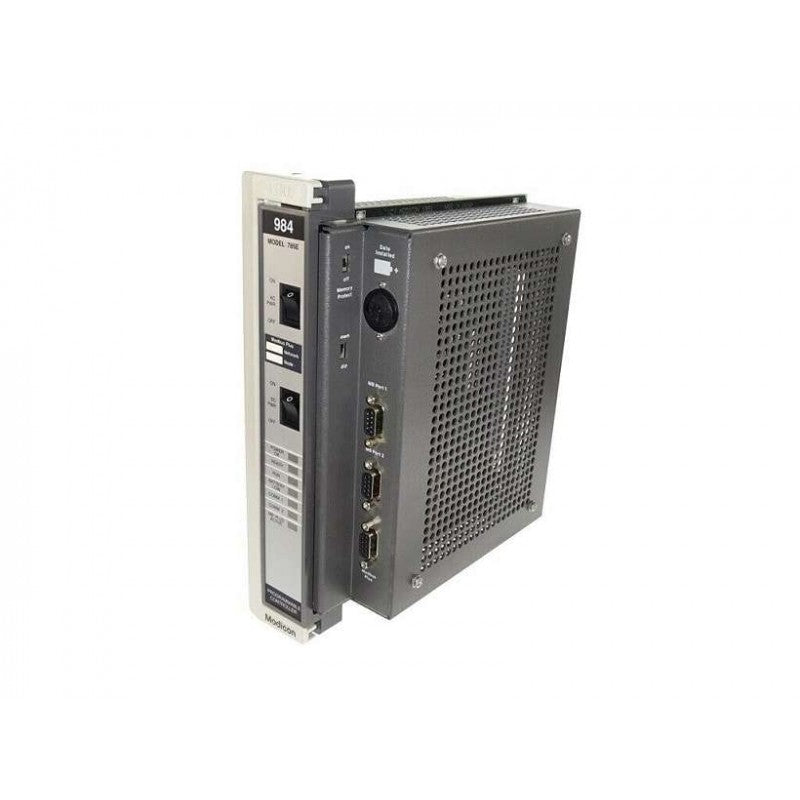

CPU 16 POINT 24VDC 984-PC-Z984-785
PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.

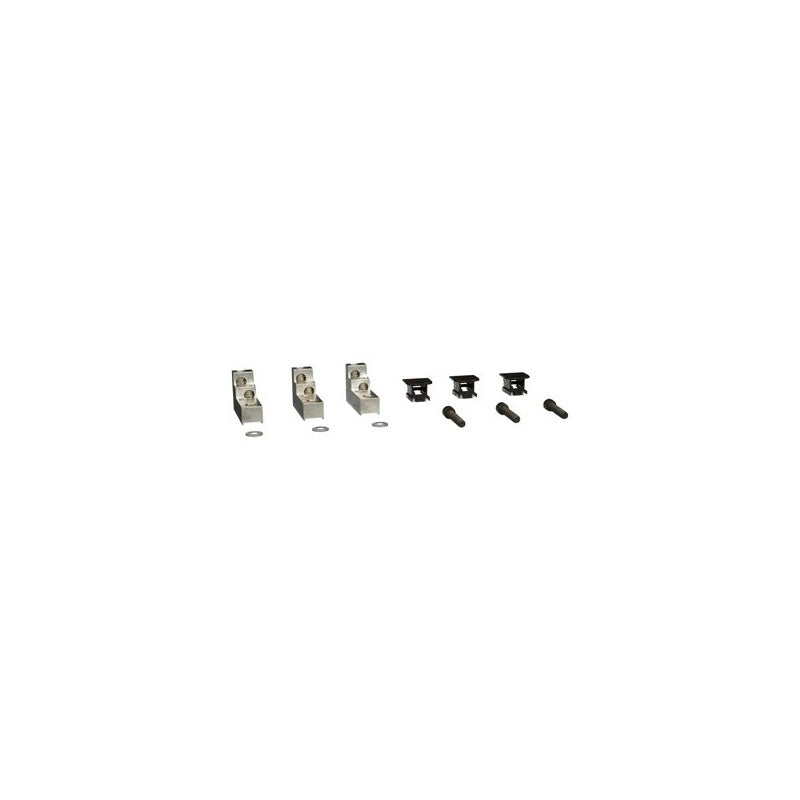

Square D PowerPact family is industry leading innovation and protection for heavy duty commercial and industrial appliacations PowerPact B-frame circuit breakers provides economical thermal-magnetic circuit protection in a compact size Power distribution connectors can be used for multiple load wire connections on one circuit breaker in place of standard distribution block to save space and time. The connectors are attached to circuit breaker terminals equipped with separately provided terminal nut connectors. This power distribution connectors are used for PowerPact B-frame breakers with current rating up to 125A and has height as 1.2in. Kit contents mounting hardware and lugs, comes as 3 pieces in kit. Wire terminal data is performed as (3) AWG 14 - AWG 2
Main
| Characteristic | Value(s) |
|---|---|
| Product or Component Type | Cable connector |
| Accessory / Separate Part Type | Connection kit |
Complementary
| Characteristic | Value(s) |
|---|---|
| Provided Equipment | Interphase barriers |
| Quantity per Set | Set of 3 |
| Line Rated Current | 15â¦125 A |
| Conductor material | Aluminium Copper |
| Connections - terminals | Screw terminal 0.004â¦0.05 in² (2.5â¦35 mm²) AWG 14...AWG 2) |

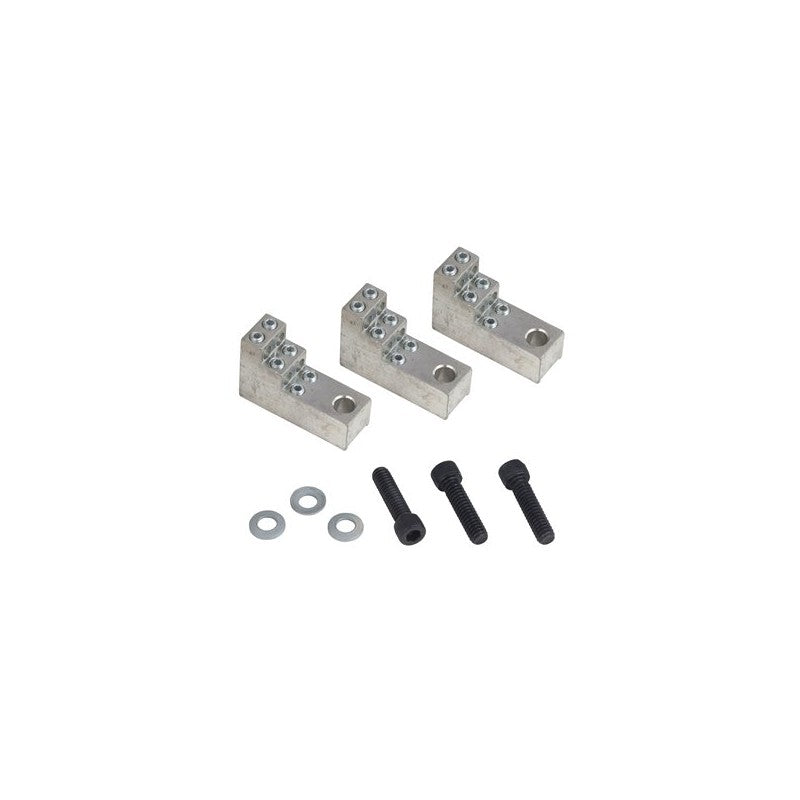

Square D PowerPact family is industry leading innovation and protection for heavy duty commercial and industrial appliacations PowerPact B-frame circuit breakers provides economical thermal-magnetic circuit protection in a compact size Power distribution connectors can be used for multiple load wire connections on one circuit breaker in place of standard distribution block to save space and time. The connectors are attached to circuit breaker terminals equipped with separately provided terminal nut connectors. This power distribution connectors are used for PowerPact B-frame breakers with current rating up to 125A and has height as 1in. Kit contents mounting hardware and lugs, comes as 3 pieces in kit. Wire terminal data is performed as (6) AWG 14 - AWG 6
Main
| Characteristic | Value(s) |
|---|---|
| Product or Component Type | Cable connector |
| Accessory / Separate Part Type | Connection kit |
Complementary
| Characteristic | Value(s) |
|---|---|
| Provided Equipment | Interphase barriers |
| Quantity per Set | Set of 3 |
| Line Rated Current | 15â¦125 A |
| Conductor material | Aluminium Copper |
| Connections - terminals | Screw terminal 0.004â¦0.02 in² (2.5â¦16 mm²) AWG 14...AWG 6) |
PE-0001-000 PE 0001 CPS POWER SUPPLIES SERVO AC 984-PE-0001-000
PLC Direct is not an authorized distributor. We offer a broad range of in-stock products with minimal lead time.
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 800A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Main
| Characteristic | Value(s) |
|---|---|
| Range | PowerPact |
| product name | PowerPact P |
| Product or Component Type | Circuit breaker |
| Device Application | Distribution |
Complementary
| Characteristic | Value(s) |
|---|---|
| Line Rated Current | 800 A |
| Number of Poles | 3P |
| Control Type | Toggle |
| Breaking capacity code | G |
| Breaking capacity | AIR 65 kA 240 V AC 50/60 Hz UL 489 AIR 35 kA 480 V AC 50/60 Hz UL 489 AIR 18 kA 600 V AC 50/60 Hz UL 489 Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| [Ue] rated operational voltage | 600 V AC 50/60 Hz UL 489 |
| Network Frequency | 50/60 Hz |
| [Ics] rated service breaking capacity | 25 kA 240 V AC 50/60 Hz IEC 60947-2 20 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Trip unit technology | Electronic, standard, MicroLogic 3.0, LI |
| Continuous current rating | 80 % |
| [Ui] rated insulation voltage | 750 V IEC 60947-2 |
| Trip unit name | MicroLogic 3.0 |
| AWG gauge | 3 x AWG 3/0...500 kcmil aluminium/copper |
| Local signalling | Overload 1 1 LED amber) 1 trip indicator green) |
| Mounting mode | I-Line bracket) |
| Mounting Support | Bracket |
| Electrical connection | I-Line connection, line Lugs, load |
| Terminal identifier | AL800M23K |
| Long time pick-up adjustment range | 0.4...1 x Ir |
| Mounting Height | 9 in (228.6 mm) |
| Tightening torque | 442.5 lbf.in (50 N.m) 0.1â¦0.4 in² (95â¦240 mm²) (3 x AWG 3/0...500 kcmil) 8.9â¦11.5 lbf.in (1.0â¦1.3 N.m) |
| Number of slots | 2 auxiliary switch OF plug-in) 1 alarm switch SD plug-in) 1 overcurrent trip switch SDE plug-in) 1 voltage release MN or MX plug-in) |
| Power wire stripping length | 1.0 in (25 mm) |
| Height | 12.86 in (326.64 mm) |
| Width | 8.27 in (210.06 mm) |
| Depth | 8.05 in (204.47 mm) |
| Product Weight | 32 lb(US) (14.5 kg) |
| Quantity per Set | 1 |
| Phase connection | ABC |
| Circuit breaker application | HACR rated |
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has an electronic trip unit, ET 1.0I. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Main
| Characteristic | Value(s) |
|---|---|
| Range | PowerPact |
| product name | PowerPact P |
| Product or Component Type | Circuit breaker |
| Device Application | Distribution |
Complementary
| Characteristic | Value(s) |
|---|---|
| Line Rated Current | 1200 A |
| Number of Poles | 3P |
| Control Type | Toggle |
| Breaking capacity code | G |
| Breaking capacity | AIR 65 kA 240 V AC 50/60 Hz UL 489 AIR 35 kA 480 V AC 50/60 Hz UL 489 AIR 18 kA 600 V AC 50/60 Hz UL 489 Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| [Ue] rated operational voltage | 600 V AC 50/60 Hz UL 489 |
| Network Frequency | 50/60 Hz |
| [Ics] rated service breaking capacity | 25 kA 240 V AC 50/60 Hz IEC 60947-2 20 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Trip unit technology | Electronic, basic, ET 1.0I, I |
| Continuous current rating | 80 % |
| [Ui] rated insulation voltage | 750 V IEC 60947-2 |
| Trip unit name | ET 1.0I |
| AWG gauge | 4 x AWG 3/0...500 kcmil aluminium/copper |
| Local signalling | 1 trip indicator green) |
| Mounting mode | I-Line bracket) |
| Mounting Support | Bracket |
| Electrical connection | I-Line connection, line Lugs, load |
| Terminal identifier | AL1200P25K |
| Long time pick-up adjustment range | 1 In |
| Mounting Height | 9 in (228.6 mm) |
| Tightening torque | 442.5 lbf.in (50 N.m) 0.1â¦0.4 in² (95â¦240 mm²) (4 x AWG 3/0...500 kcmil) 8.9â¦11.5 lbf.in (1.0â¦1.3 N.m) |
| Number of slots | 2 auxiliary switch OF plug-in) 1 alarm switch SD plug-in) 1 overcurrent trip switch SDE plug-in) 1 voltage release MN or MX plug-in) |
| Power wire stripping length | 1.2 in (30 mm) |
| Height | 16.16 in (410.46 mm) |
| Width | 8.27 in (210.06 mm) |
| Depth | 8.05 in (204.47 mm) |
| Product Weight | 32 lb(US) (14.5 kg) |
| Quantity per Set | 1 |
| Phase connection | ABC |
| Circuit breaker application | HACR rated |
