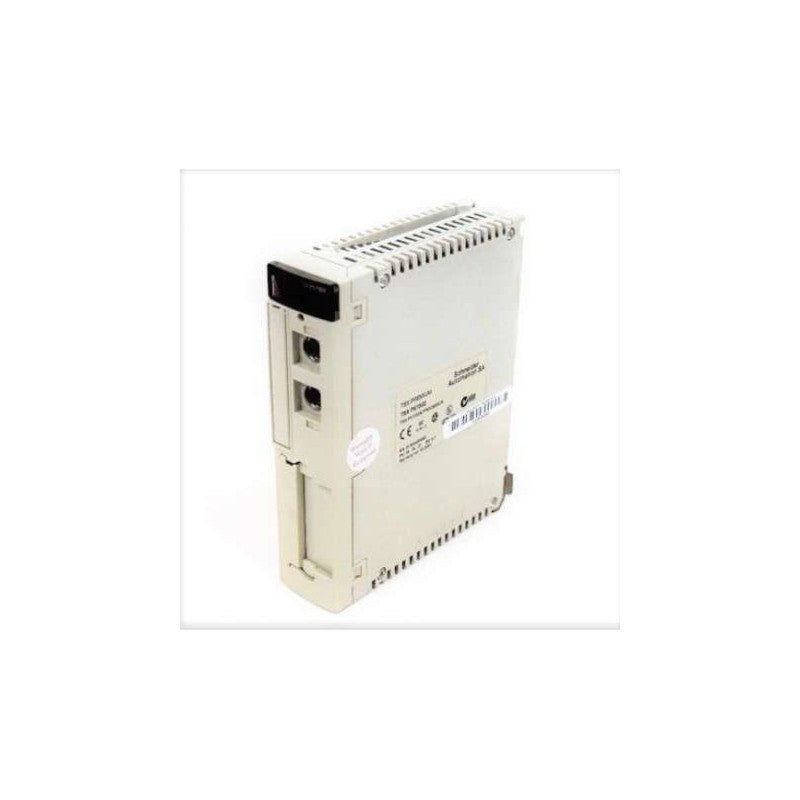

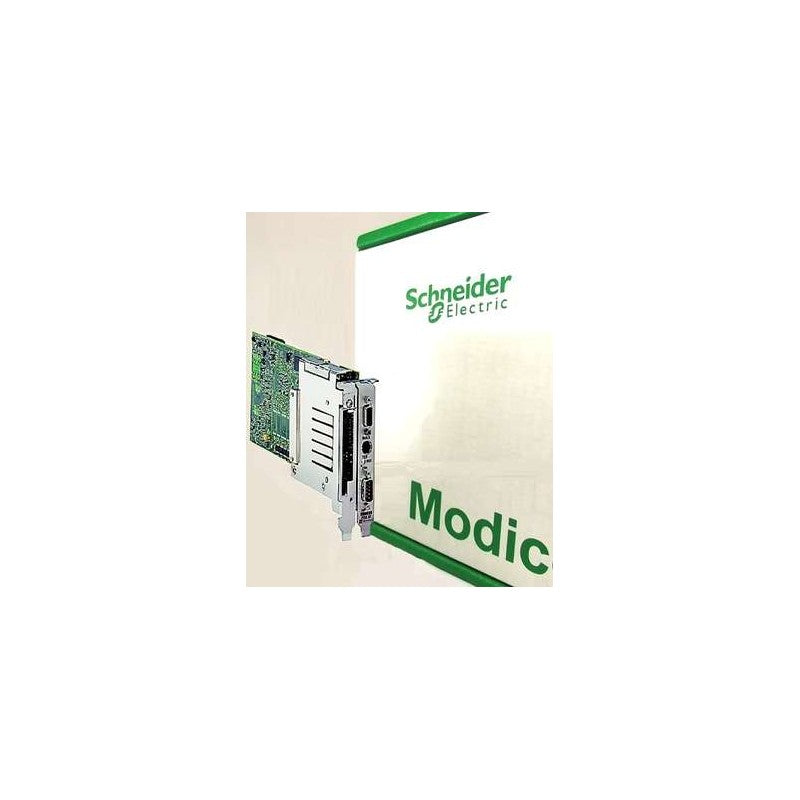

Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Premium Automation platform |
| Product or component type | Atrium slot PLCs Unity |
| Software designation | Unity Pro |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of racks | 16 4/6/8 slots 8 12 slots |
| Number of slots | 128 64 96 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 128 I/O |
| Number of process control channel | 15 up to 60 simple loops |
| Number of application specific channel | 32 |
| Integrated connection type | 1 serial link (TER/AUX) 2 female mini DIN 19.2/115 kbit/s 1 Ethernet TCP/IP 1 Fipio manager (127 agents) male SUB-D 9 |
| Communication module processor capacity | 1 CANopen bus or Modbus Plus bus 3 Interbus or Profibus DP bus 4 ntwrk (1 Ethernet TCP/IP + 3 Fipway or Modbus Plus or Ethway or Ethernet TCP/IP) 8 AS-Interface bus modules |
| Memory description | Internal RAM 1792 kB - program without PCMCIA card Internal RAM 208 kB - data without PCMCIA card Internal RAM 208 kB - program and data without PCMCIA card PCMCIA card 16384 kB - additional data storage with PCMCIA card |
| Maximum size of object areas | 64 %KWi constant words located internal data 64 %MWi internal words located internal data 8132 %Mi located internal bits Unlimited unlocated internal data |
| Application structure | 1 fast task 64 event tasks 1 master task |
| Execution time per instruction | 1.75...2.6 µs floating points with PCMCIA card 1.75...2.6 µs floating points without PCMCIA card 0.12 µs Boolean without PCMCIA card 0.17 µs Boolean with PCMCIA card 0.17 µs word or fixed-point arithmetic without PCMCIA card 0.32 µs word or fixed-point arithmetic with PCMCIA card |
| Number of instructions per ms | 3.12 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card 4.59 Kinst/ms 100 % Boolean with PCMCIA card 5.11 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 6.72 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.25 ms for fast task 1 ms for master task |
| Local signalling | 1 LED (red) for system fault (ERR) 1 LED for RUN 1 LED for BAT 1 LED for I/O 1 LED for TER 1 LED for activity on Fipio bus (FIP) |
| Product weight | 0.34 kg |

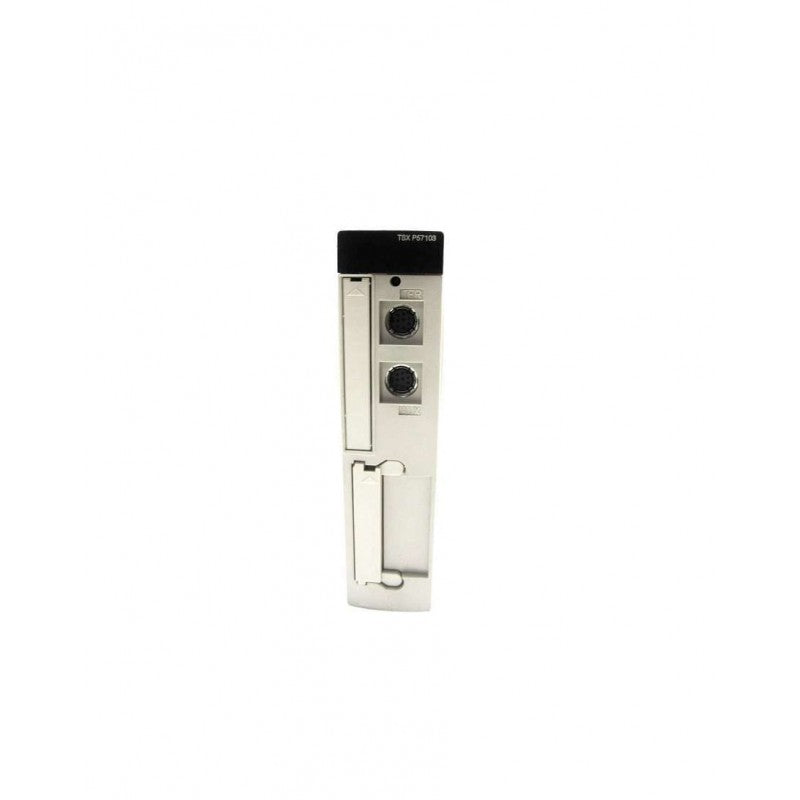

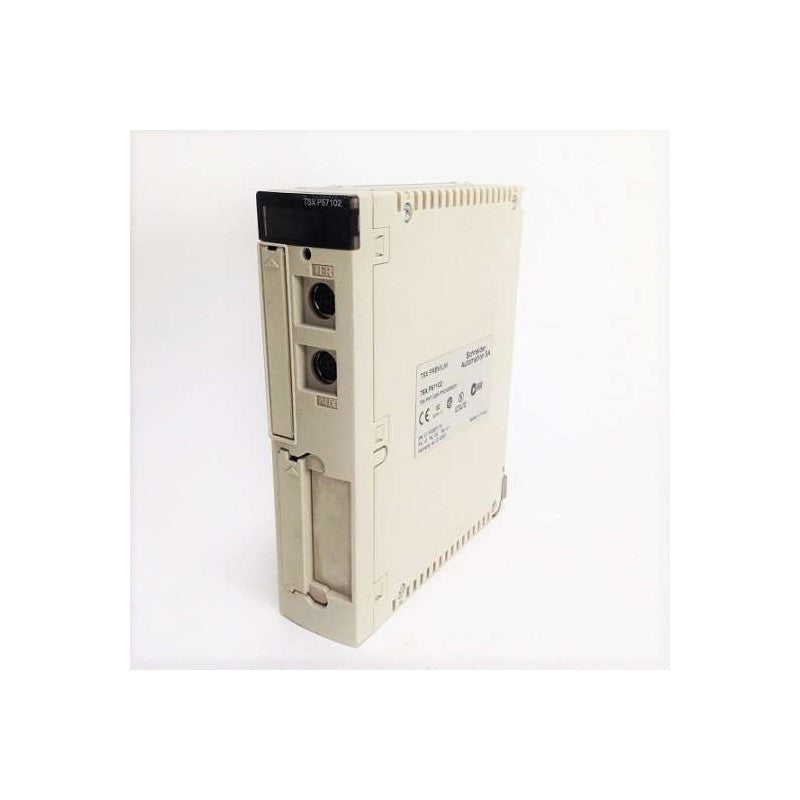

Double-format PL7 processor - 1080 mA
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Single-format PL7 processor |
| Software Designation | PL7 Junior/Pro |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of racks | 2 12 slots 4 4/6/8 slots |
| Number of slots | 24 32 16 |
| Discrete I/O processor capacity | 512 I/O |
| Analogue I/O processor capacity | 24 I/O |
| Number of application specific channel | 8 |
| Integrated connection type | Non isolated serial link 2 female mini DIN19.2 kbit/s) Fipio manager (63 agents) SUB-D 9 |
| Communication module processor capacity | 1 network module 2 AS-Interface bus modules |
| Memory description | Internal RAM (with PCMCIA card) 32 Kwords data Internal RAM (without PCMCIA card) 32 Kwords program and data PCMCIA card 128 Kwords additional data storage PCMCIA card 64 Kwords program |
| Maximum size of object areas | 30.5 %MWi internal words located internal data 32 %KWi constant words located internal data 4096 %Mi located internal bits |
| Application structure | 1 fast task 1 master task 32 event tasks |
| Execution time per instruction | 0.5 µs Boolean without PCMCIA card 0.6 µs Boolean with PCMCIA card 0.62 µs word or fixed-point arithmetic without PCMCIA card 0.87 µs word or fixed-point arithmetic with PCMCIA card 44 µs floating points with PCMCIA card 44 µs floating points without PCMCIA card |
| Number of instructions per ms | 0.85 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card 1.05 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 1.18 Kinst/ms 100 % Boolean with PCMCIA card 1.52 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.8 ms fast task 3.1 ms master task |
| Marking | CE |
| Local signalling | 1 LED (green) for processor running (RUN) 1 LED (red) for activity on Fipio bus (FIP) 1 LED (red) for I/O module or configuration fault (I/O) 1 LED (red) for processor or system fault (ERR) 1 LED (yellow) for activity on the terminal port (TER) |
| Current consumption | 8530 mA 5 V DC |
| Module format | Standard |
| Product Weight | 0.93 lb(US) (0.42 kg) |
Modicon - Unity processor - 8 racks-12 empl./16 racks-4/6/8 empl.- 1180mA- 5VDC

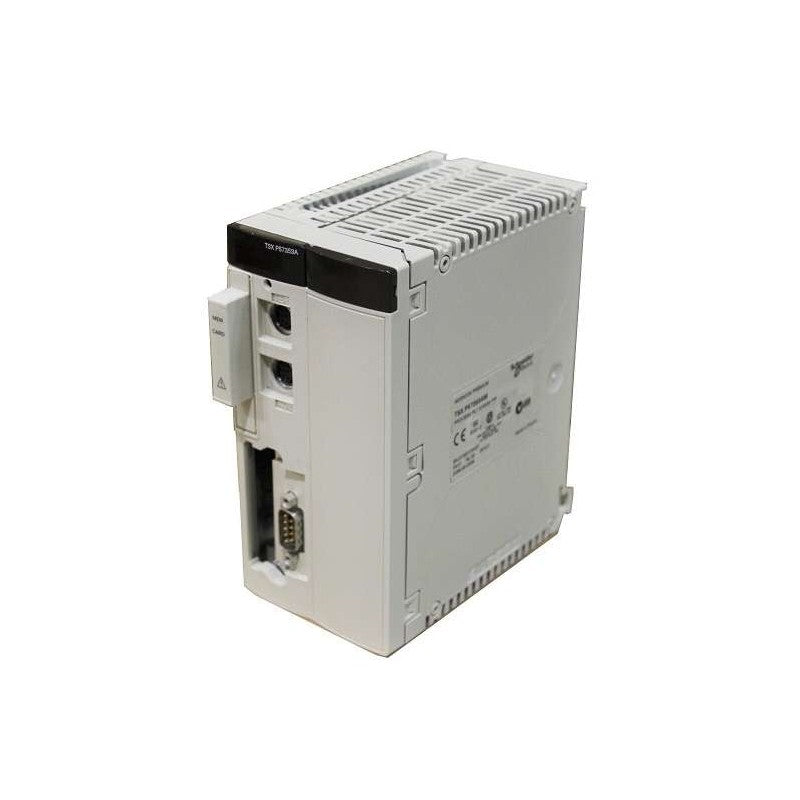

Double-format PL7 processor - 1160 mA

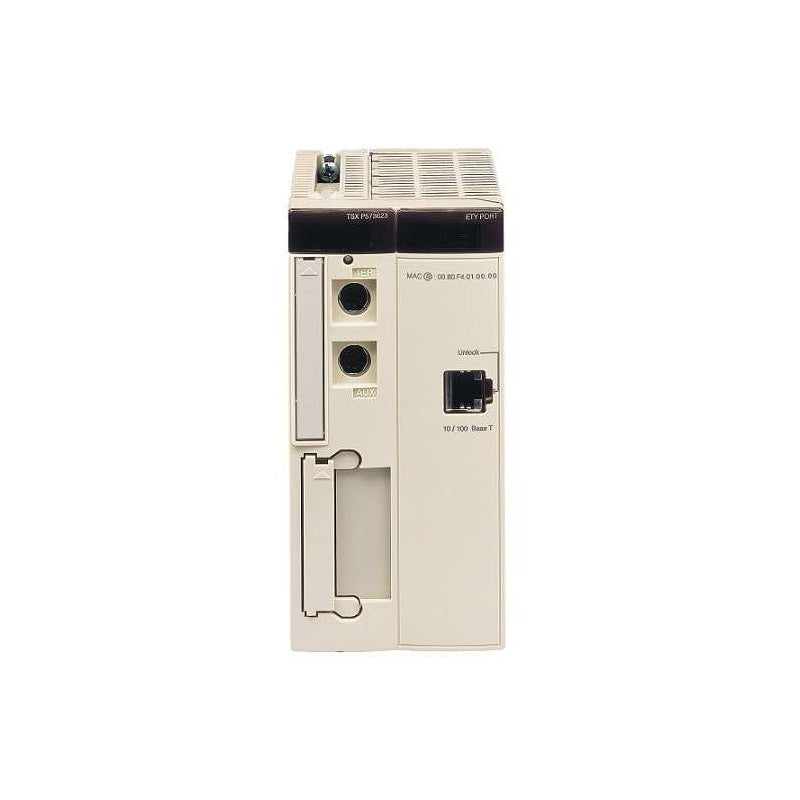

Double-format PL7 processor - Transparent Ready - 1360 mA

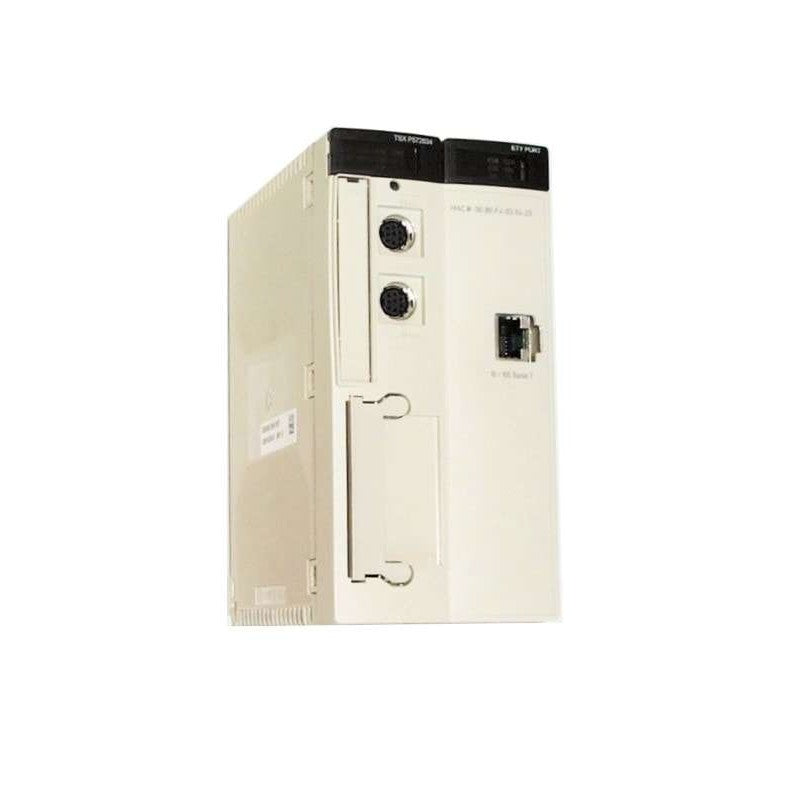

Unity processor, 8 rack (12 slot) / 16 rack (4/6/8 slot) - 1650 mA, 5 V CC
PLC LEVEL 2 WITH INTEGRATED PIPIO MASTER 64K MEM

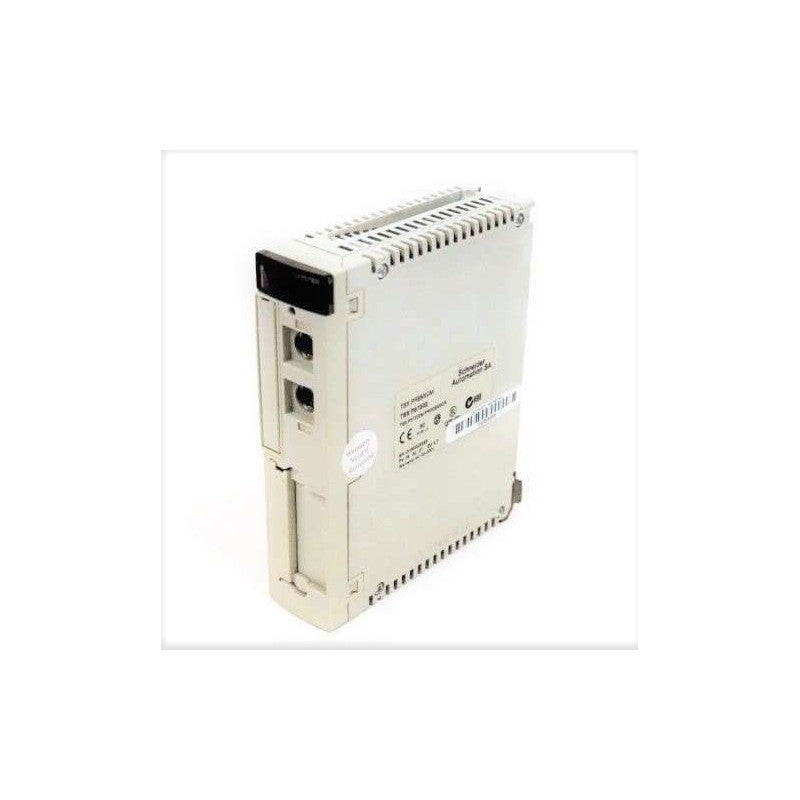

PROCESSOR MODULE FOR MODICON TSX 57, 32 CHANNELS MANAGED

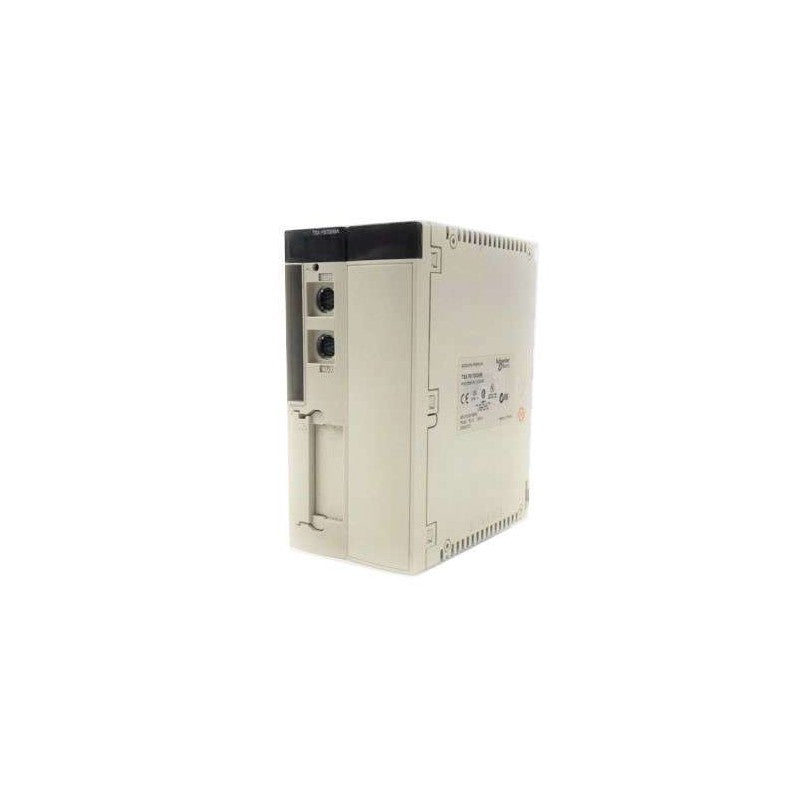

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Unity processor |
| Software Designation | Unity Pro |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of racks | 16 4/6/8 slots 8 12 slots |
| Number of slots | 64 96 128 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 128 I/O |
| Number of application specific channel | 32 |
| Number of process control channel | 15 up to 45 simple loops |
| Integrated connection type | Non isolated serial link 2 female mini DIN RS485)19.2/115 kbit/s) |
| Communication module processor capacity | 1 3 8 |
| Memory description | Internal RAM (with PCMCIA card) 1792 kB program Internal RAM (with PCMCIA card) 192 kB data Internal RAM (without PCMCIA card) 192 kB program and data PCMCIA card 16384 kB additional data storage |
| Maximum size of object areas | 16384 %Mi located internal bits 64 %KWi constant words located internal data 64 %MWi internal words located internal data 64 kB (DFB and EFB function blocks) unlocated internal data 64 kB (elementary and derived data) unlocated internal data |
| Application structure | 1 master task 1 fast task 64 event tasks |
| Execution time per instruction | 0.12 µs Boolean without PCMCIA card 0.17 µs Boolean with PCMCIA card 0.17 µs word or fixed-point arithmetic without PCMCIA card 0.32 µs word or fixed-point arithmetic with PCMCIA card 1.75...3 µs floating points with PCMCIA card 1.75...3 µs floating points without PCMCIA card |
| Number of instructions per ms | 3.11 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card 4.59 Kinst/ms 100 % Boolean with PCMCIA card 5.11 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 6.72 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.35 ms fast task 1 ms master task |
| Marking | CE |
| Local signalling | 1 LED (green) for processor running (RUN) 1 LED (red) for I/O module or configuration fault (I/O) 1 LED (red) for processor or system fault (ERR) 1 LED (yellow) for activity on TER or AUX terminal port (TER) |
| Current consumption | 1100 mA 5 V DC |
| Module format | Double |
| Product Weight | 1.15 lb(US) (0.52 kg) |

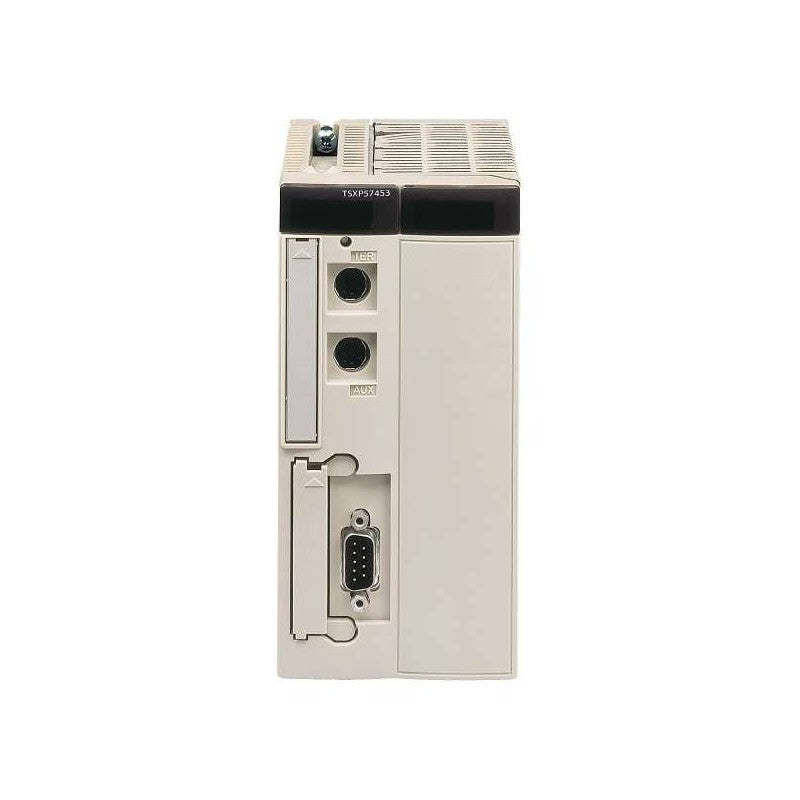

Unity processor - 8 racks (12 slots) / 16 racks (4/6/8 slots) - 1180 mA, 5 V DC

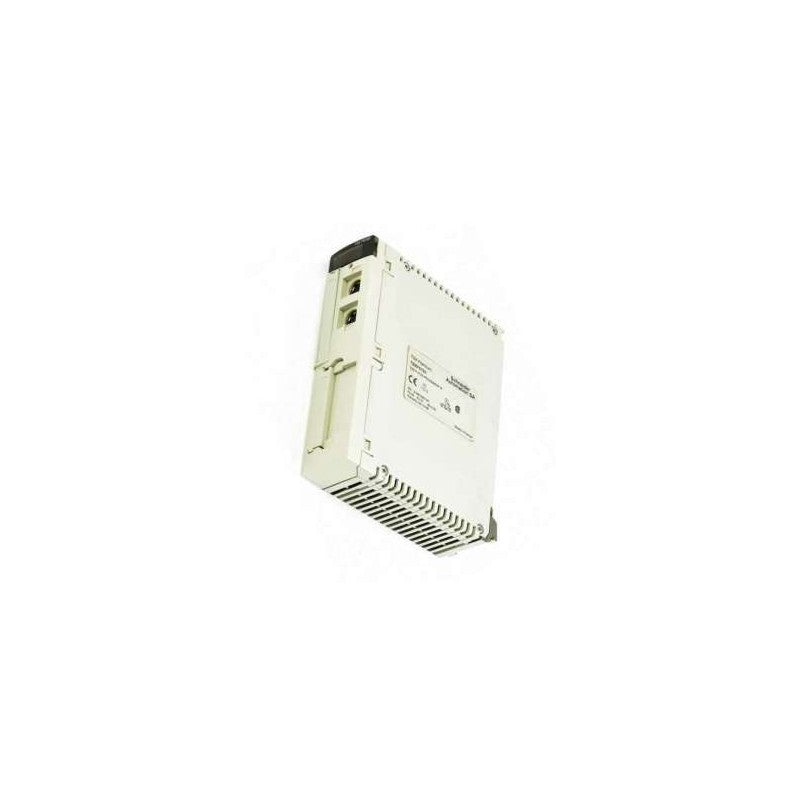

PLC PROCESSOR 32K 16MRAM

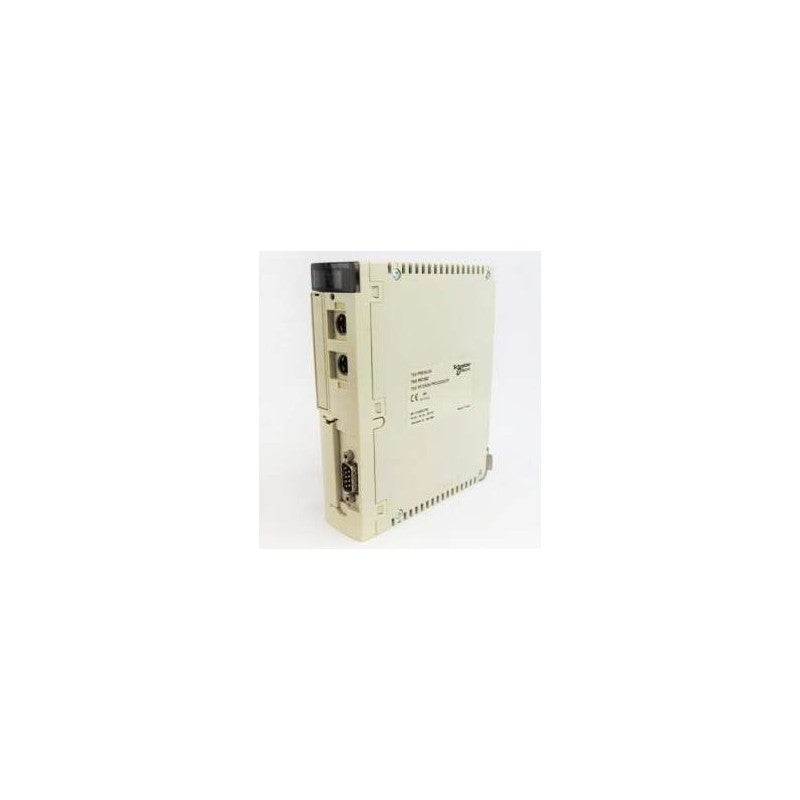

PROCESSOR MODULE FOR MODICON TSX 57, W/2 FIPWAY CONNECTONS, V2, MAX 1024 I/O CHANNELS, 48K WORDS RAM
PLC MODULE TSX PREMIUM 32K
