Siemens All

25001 products

Showing 1441 - 1464 of 25001 products

Showing 1441 - 1464 of 25001 products
View
DO524 ABB
ABB DO524 ABB
€384,95
In stock, 11 units

DO524: S500 Digital output module. 32 DO: 24VDC 0.5A. 1-wire.
ACS150-03E-04A1-4 ABB
ABB ACS150-03E-04A1-4 ABB
€276,95
In stock, 12 units

ACS150 1.5kW 400V 3ph AC Inverter Drive, DBr, C3 EMC
ACS150-03E-03A3-4 ABB
ABB ACS150-03E-03A3-4 ABB
€256,95
Only 6 units left

ACS150 1.1kW 400V 3ph AC Inverter Drive, DBr, C3 EMC
1SFA897112R7001 ABB - PSE210-600-70-1
ABB 1SFA897112R7001 ABB - PSE210-600-70-1
€1.538,95
Only 2 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
190 mm
Product Net Height:
435 mm
Product Net Depth / Length:
237 mm
Product Net Weight:
8.5 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 250 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 59 kW
(400 V) 110 kW
(500 V) 132 kW
(230 V) 59 kW
(400 V) 110 kW
(500 V) 132 kW
Rated Operational Current - In-Line Connection (Ie):
210 A
Service Factor Percentage:
100 %
Overload Protection:
Built-in electronic overload protection
Integrated Electronic Overload:
Yes
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Ramp Time:
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
Initial Voltage During Start:
30 ... 70 %
Step Down Voltage Special Ramp:
No %
Current Limit Function:
1.5 ... 7xIe
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
Yes
Overload Signal Relay:
Yes
Analog Outputs:
4…20 mA
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Signal Indication Protection (LED):
Yellow
Signal Indication Fault (LED):
Red
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
Modbus-RTU
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:
Main Circuit: Bars
Connecting Capacity Main Circuit:
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 28 N·m
Supply Circuit 0.5 N·m
Control Circuit 0.5 N·m
Main Circuit 28 N·m
Supply Circuit 0.5 N·m
Product Main Type:
PSE210
Function:
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Protection Function:
Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 60 Hp
(220 ... 240 V AC) Three Phase 75 Hp
(440 ... 480 V AC) Three Phase 150 Hp
(550 ... 600 V AC) Three Phase 200 Hp
(200 ... 208 V AC) Three Phase 60 Hp
(220 ... 240 V AC) Three Phase 75 Hp
(440 ... 480 V AC) Three Phase 150 Hp
(550 ... 600 V AC) Three Phase 200 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 4.4 in·lb
Main Circuit 247.8
Supply Circuit 4.4 in·lb
Control Circuit 4.4 in·lb
Main Circuit 247.8
Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
261 mm
Package Level 1 Depth / Length:
325 mm
Package Level 1 Height:
510 mm
Package Level 1 Gross Weight:
11.2 kg
Package Level 1 EAN:
7320500515020
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
1SFA898111R7000 ABB - PSTX170-600-70
ABB 1SFA898111R7000 ABB - PSTX170-600-70
€1.646,95
In stock, 12 units

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 2):
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
199 mm
Product Net Height:
377 mm
Product Net Depth / Length:
283 mm
Product Net Weight:
8.9 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 250 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 45 kW
(400 V) 90 kW
(500 V) 110 kW
(230 V) 45 kW
(400 V) 90 kW
(500 V) 110 kW
Rated Operational Current - In-Line Connection (Ie):
170 A
Rated Operational Power - Inside Delta Connection:
at 230 V 90 kW
at 400 V 160 kW
at 500 V 200 kW
at 230 V 90 kW
at 400 V 160 kW
at 500 V 200 kW
Rated Operational Current - Inside Delta Connection:
300 A
Service Factor Percentage:
100 %
Overload Protection:
Built-in electronic overload protection
Integrated Electronic Overload:
Yes
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Ramp Time:
1 ... 120 second [unit of time]
Initial Voltage During Start:
10 ... 99 %
Step Down Voltage Special Ramp:
100 ... 10 %
Current Limit Function:
1.5 ... 7.5 xle
Switch for Inside Delta Connection:
Yes
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
Yes
Overload Signal Relay:
Yes
Analog Outputs:
0…10 V, 0…20 mA, 4…20 mA
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Protection (LED):
Yellow
Signal Indication Fault (LED):
Red
Communication:
Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:
Main Circuit: Bars
Connecting Capacity Main Circuit:
Hole Diameter 8.5 mm
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5
Tightening Torque:
Main Circuit 14 N·m
Product Main Type:
PSTX170
Function:
Auto phase sequence detection
Automatic restart
Current limit
Current limit ramp
Dual current limit
Dynamic brake
Electricity metering
Electronic overload Time-to-cool
Emergency mode
Event log
Full voltage start
Jog with slow speed, forward and reverse
Keypad password
Kick start
Limp mode with two-phase motor control if one set of thyristors is shorted
Motor heating
Pre-start function
Pump cleaning
Real time clock
Sequence start
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Stand still brake
Start reverse (external contactors)
Thyristor runtime measurement
Torque limit
Voltage sags detection
Auto phase sequence detection
Automatic restart
Current limit
Current limit ramp
Dual current limit
Dynamic brake
Electricity metering
Electronic overload Time-to-cool
Emergency mode
Event log
Protection Function:
Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection
Warning Details:
Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 50 Hp
(220 ... 240 V AC) Three Phase 60 Hp
(440 ... 480 V AC) Three Phase 125 Hp
(550 ... 600 V AC) Three Phase 150 Hp
(200 ... 208 V AC) Three Phase 50 Hp
(220 ... 240 V AC) Three Phase 60 Hp
(440 ... 480 V AC) Three Phase 125 Hp
(550 ... 600 V AC) Three Phase 150 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Main Circuit 123.9

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

Container Information

Package Level 1 Width:
263 mm
Package Level 1 Depth / Length:
323 mm
Package Level 1 Height:
454 mm
Package Level 1 Gross Weight:
10.4 kg
Package Level 1 EAN:
7320500501436
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
ACS880-01-414A-5 ABB
ABB ACS880-01-414A-5 ABB
€10.716,95
Only 2 units left

AC DRIVE, ACS880 SERIES, 3 PHASE, 380-500 VAC, 350 HP, 414 AMP, 250 KW, 6000 WATT, 50/60 HZ, IP21
ACS880-01-260A-5 ABB
ABB ACS880-01-260A-5 ABB
€6.954,95
Only 5 units left

AC Drive, Voltage: Three-phase 380-500VAC. Power: 160 kW. Frame: R8. Degrees of Protection: IP21
ACS880-01-096A-5 ABB
ABB ACS880-01-096A-5 ABB
€3.811,95
Only 9 units left

AC DRIVE, ACS880 SERIES, 3-PHASE, WALL MOUNTED, 96 AMP, 55 KW, 380-500 VAC, 50/60 HZ, FRAME SIZE R6
ACS880-01-034A-5 ABB
ABB ACS880-01-034A-5 ABB
€1.946,95
In stock, 13 units

AC DRIVE, ACS880 SERIES, 3-PHASE, WALL MOUNTED, 34 AMP, 18.5 KW, 380-500 VAC, 50/60 HZ, FRAME SIZE R3
ACS880-01-12A6-3 ABB
ABB ACS880-01-12A6-3 ABB
€972,95
In stock, 15 units

AC Drive, 3-Phase, 380 to 415V at 50/60 Hz, IP21, 5HP, 10A, 400V
ACS580-01-206A-4 ABB
ABB ACS580-01-206A-4 ABB
€4.529,95
Only 8 units left

IP21 General Purpose Drives, 110 kw (147 Hp), 3 phase supply AC Voltage range 380-480V, Frame R7
ACS580-01-033A-4 ABB
ABB ACS580-01-033A-4 ABB
€953,95
In stock, 14 units

ACS580 IP21 11kW/15kW 400V 3ph AC Inverter, HMI, DBr, STO, C2 EMC
ACS580-01-07A3-4 ABB
ABB ACS580-01-07A3-4 ABB
€424,95
Only 10 units left

AC Inverter for 2.2kW (3HP) 400V 3 Ph motor to 5.6A at high overload or 3kW (4HP) to 6.8A when Fan/Pump rated.
ACS550-01-157A-4 ABB
ABB ACS550-01-157A-4 ABB
€3.569,95
Only 9 units left

AC DRIVE ACS550 SERIES, IEC INSTALLATION AND COMPLIANCE, THREE-PHASE, 380-480 VAC, 50/60 HZ, 157 A, 75 KW, UL TYPE/NEMA 1
ACS550-01-012A-4 ABB
ABB ACS550-01-012A-4 ABB
€555,95
In stock, 16 units

ACS550 4kW/5.5kW 400V 3ph AC Inverter Drive, HMI, DBr, C2 EMC
ACS510-01-072A-4 ABB
ABB ACS510-01-072A-4 ABB
€1.440,95
Only 7 units left

ACS510,72A,380V; ACS510-01-072A-4

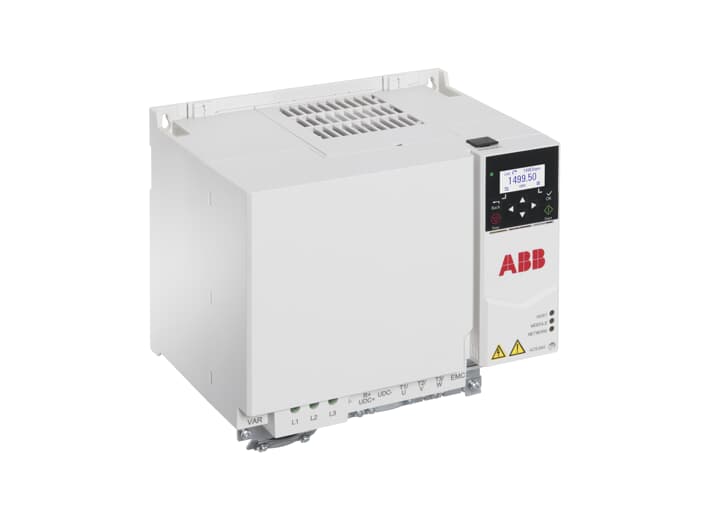

ACS380-040S-045A-4 ABB
ABB ACS380-040S-045A-4 ABB
€1.269,95
Only 6 units left

ACS380-040S-045A-4 PN: 22kW, IN: 45A; The ACS380 machinery drive comes in several variants, ensuring seamless integration into machines and connecting perfectly to automation systems. It’s a great fit for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, EOT and tower cranes, extruders, and textile machinery. With the integrated functional safety features, the ACS380 drive can be also part of the machine’s safety system via PROFIsafe over PROFINET, ensuring the motor is safely stopped when required. In addition, the drive’s software can be easily customized with adaptive programming to match any specific application requirements.
ACS380-040S-12A6-4 ABB
ABB ACS380-040S-12A6-4 ABB
€540,95
Only 6 units left

ACS380-040S-12A6-4 PN: 5.5kW, IN: 12.6A; The ACS380 machinery drive comes in several variants, ensuring seamless integration into machines and connecting perfectly to automation systems. It’s a great fit for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, EOT and tower cranes, extruders, and textile machinery. With the integrated functional safety features, the ACS380 drive can be also part of the machine’s safety system via PROFIsafe over PROFINET, ensuring the motor is safely stopped when required. In addition, the drive’s software can be easily customized with adaptive programming to match any specific application requirements.

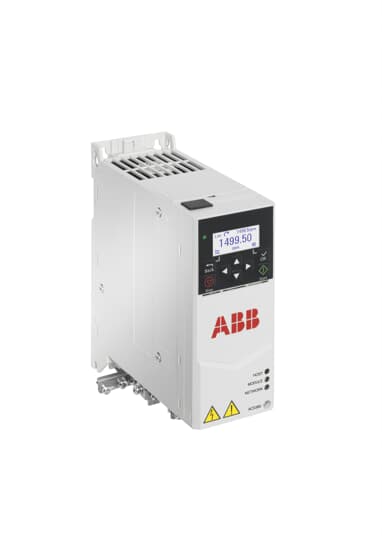

ACS380-040S-09A4-4 ABB
ABB ACS380-040S-09A4-4 ABB
€489,95
Only 9 units left

ACS380-040S-09A4-4 PN: 4kW, IN: 9.4A; The ACS380 machinery drive comes in several variants, ensuring seamless integration into machines and connecting perfectly to automation systems. It’s a great fit for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, EOT and tower cranes, extruders, and textile machinery. With the integrated functional safety features, the ACS380 drive can be also part of the machine’s safety system via PROFIsafe over PROFINET, ensuring the motor is safely stopped when required. In addition, the drive’s software can be easily customized with adaptive programming to match any specific application requirements.
ACS355-03E-23A1-4 ABB
ABB ACS355-03E-23A1-4 ABB
€1.025,95
In stock, 23 units

ACS355 11kW 400V 3ph AC Inverter Drive, STO, C3 EMC
ACS355-03E-08A8-4 ABB
ABB ACS355-03E-08A8-4 ABB
€602,95
In stock, 17 units

ACS355 4kW 400V 3ph AC Inverter Drive, STO, C3 EMC
ACS355-03E-02A4-4 ABB
ABB ACS355-03E-02A4-4 ABB
€349,95
In stock, 17 units

ACS355 0.75kW 400V 3ph AC Inverter Drive, STO, C3 EMC
ACS355-03E-24A4-2 ABB
ABB ACS355-03E-24A4-2 ABB
€0,00
Sold Out

AC Frequency Inverter for 5.5kW (7.5HP) 230V 3 Phase motor in VxF or Sensorless Vector control to 24.4A. Simple to set-up for use with 3 phase 230V input and a three phase 230V standard AC Induction motor or permanent magnet synchronous motor.
ACS355-01E-02A4-2 - ABB
ABB ACS355-01E-02A4-2 - ABB
€378,95
In stock, 12 units

AC Inverter Drive ACS355, IP20, 0.37kW, 230V, 1ph to 3ph, STO, C3 EMC

Recently viewed
