Instructions and Manuals:

Softstarters PSE18...PSE370 Installation and commissioning manual

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSE370

Wiring Diagram:

Dimensions

Product Net Width:

190 mm

Product Net Height:

435 mm

Product Net Depth / Length:

237 mm

Product Net Weight:

10.6 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 110 kW

(400 V) 200 kW

(500 V) 250 kW

(230 V) 110 kW

(400 V) 200 kW

(500 V) 250 kW

Rated Operational Current - In-Line Connection (Ie):

370 A

Service Factor Percentage:

100 %

Overload Protection:

Built-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

Initial Voltage During Start:

30 ... 70 %

Step Down Voltage Special Ramp:

No %

Current Limit Function:

1.5 ... 7xIe

Switch for Inside Delta Connection:

No

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

4…20 mA

Signal Indication Completed Start Ramp (LED):

Green

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Ramping Up/Down (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:

10

Communication:

Modbus-RTU

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Main Circuit: Bars

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Control Circuit 0.5 N·m

Main Circuit 28 N·m

Supply Circuit 0.5 N·m

Control Circuit 0.5 N·m

Main Circuit 28 N·m

Supply Circuit 0.5 N·m

Product Main Type:

PSE370

Function:

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Protection Function:

Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 125 Hp

(220 ... 240 V AC) Three Phase 150 Hp

(440 ... 480 V AC) Three Phase 300 Hp

(550 ... 600 V AC) Three Phase 350 Hp

(200 ... 208 V AC) Three Phase 125 Hp

(220 ... 240 V AC) Three Phase 150 Hp

(440 ... 480 V AC) Three Phase 300 Hp

(550 ... 600 V AC) Three Phase 350 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Control Circuit 4.4 in·lb

Main Circuit 247.8

Supply Circuit 4.4 in·lb

Control Circuit 4.4 in·lb

Main Circuit 247.8

Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

CQC Certificate, Softstarters, PSE210-600-70-1, PSE250-600-70-1, PSE300-600-70-1, PSE370-600-70-1, Made in Sweden

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Softstarters, PSE210-600-70-1, PSE250-600-70-1, PSE300-600-70-1, PSE370-600-70-1, Made in Sweden

Declaration of Conformity - CE:

DNV Certificate:

Container Information

Package Level 1 Width:

261 mm

Package Level 1 Depth / Length:

325 mm

Package Level 1 Height:

510 mm

Package Level 1 Gross Weight:

13.3 kg

Package Level 1 EAN:

7320500515051

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

ABB 1SFA897114R7001 ABB

€1.751,95

Only 1 unit left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Softstarters PSE18...PSE370 Installation and commissioning manual

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSE300

Wiring Diagram:

Dimensions

Product Net Width:

190 mm

Product Net Height:

435 mm

Product Net Depth / Length:

237 mm

Product Net Weight:

10.6 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 90 kW

(400 V) 160 kW

(500 V) 200 kW

(230 V) 90 kW

(400 V) 160 kW

(500 V) 200 kW

Rated Operational Current - In-Line Connection (Ie):

300 A

Service Factor Percentage:

100 %

Overload Protection:

Built-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

Initial Voltage During Start:

30 ... 70 %

Step Down Voltage Special Ramp:

No %

Current Limit Function:

1.5 ... 7xIe

Switch for Inside Delta Connection:

No

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

4…20 mA

Signal Indication Completed Start Ramp (LED):

Green

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Ramping Up/Down (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:

10

Communication:

Modbus-RTU

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Main Circuit: Bars

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Control Circuit 0.5 N·m

Main Circuit 28 N·m

Supply Circuit 0.5 N·m

Control Circuit 0.5 N·m

Main Circuit 28 N·m

Supply Circuit 0.5 N·m

Product Main Type:

PSE300

Function:

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Protection Function:

Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 100 Hp

(220 ... 240 V AC) Three Phase 100 Hp

(440 ... 480 V AC) Three Phase 250 Hp

(550 ... 600 V AC) Three Phase 300 Hp

(200 ... 208 V AC) Three Phase 100 Hp

(220 ... 240 V AC) Three Phase 100 Hp

(440 ... 480 V AC) Three Phase 250 Hp

(550 ... 600 V AC) Three Phase 300 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Control Circuit 4.4 in·lb

Main Circuit 247.8

Supply Circuit 4.4 in·lb

Control Circuit 4.4 in·lb

Main Circuit 247.8

Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

CQC Certificate, Softstarters, PSE210-600-70-1, PSE250-600-70-1, PSE300-600-70-1, PSE370-600-70-1, Made in Sweden

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Softstarters, PSE210-600-70-1, PSE250-600-70-1, PSE300-600-70-1, PSE370-600-70-1, Made in Sweden

Declaration of Conformity - CE:

DNV Certificate:

Container Information

Package Level 1 Width:

261 mm

Package Level 1 Depth / Length:

325 mm

Package Level 1 Height:

510 mm

Package Level 1 Gross Weight:

13.3 kg

Package Level 1 EAN:

7320500515044

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

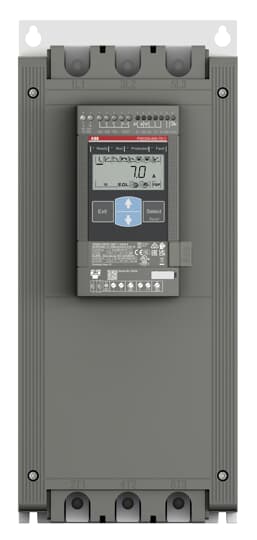

ABB 1SFA897113R7001 ABB

€1.599,95

Only 2 units left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Softstarters PSE18...PSE370 Installation and commissioning manual

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSE250

Wiring Diagram:

Dimensions

Product Net Width:

190 mm

Product Net Height:

435 mm

Product Net Depth / Length:

237 mm

Product Net Weight:

10.6 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 75 kW

(400 V) 132 kW

(500 V) 160 kW

(230 V) 75 kW

(400 V) 132 kW

(500 V) 160 kW

Rated Operational Current - In-Line Connection (Ie):

250 A

Service Factor Percentage:

100 %

Overload Protection:

Built-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

Initial Voltage During Start:

30 ... 70 %

Step Down Voltage Special Ramp:

No %

Current Limit Function:

1.5 ... 7xIe

Switch for Inside Delta Connection:

No

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

4…20 mA

Signal Indication Completed Start Ramp (LED):

Green

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Ramping Up/Down (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:

10

Communication:

Modbus-RTU

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Main Circuit: Bars

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Control Circuit 0.5 N·m

Main Circuit 28 N·m

Supply Circuit 0.5 N·m

Control Circuit 0.5 N·m

Main Circuit 28 N·m

Supply Circuit 0.5 N·m

Product Main Type:

PSE250

Function:

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Protection Function:

Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 75 Hp

(220 ... 240 V AC) Three Phase 100 Hp

(440 ... 480 V AC) Three Phase 200 Hp

(550 ... 600 V AC) Three Phase 250 Hp

(200 ... 208 V AC) Three Phase 75 Hp

(220 ... 240 V AC) Three Phase 100 Hp

(440 ... 480 V AC) Three Phase 200 Hp

(550 ... 600 V AC) Three Phase 250 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Control Circuit 4.4 in·lb

Main Circuit 247.8

Supply Circuit 4.4 in·lb

Control Circuit 4.4 in·lb

Main Circuit 247.8

Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

CQC Certificate, Softstarters, PSE210-600-70-1, PSE250-600-70-1, PSE300-600-70-1, PSE370-600-70-1, Made in Sweden

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Softstarters, PSE210-600-70-1, PSE250-600-70-1, PSE300-600-70-1, PSE370-600-70-1, Made in Sweden

Declaration of Conformity - CE:

DNV Certificate:

ABB 1SFA897112R7001 ABB - PSE210-600-70-1

Container Information

Package Level 1 Width:

261 mm

Package Level 1 Depth / Length:

325 mm

Package Level 1 Height:

510 mm

Package Level 1 Gross Weight:

13.3 kg

Package Level 1 EAN:

7320500515037

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

€1.538,95

Only 2 units left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Softstarters PSE18...PSE370 Installation and commissioning manual

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSE210

Wiring Diagram:

Dimensions

Product Net Width:

190 mm

Product Net Height:

435 mm

Product Net Depth / Length:

237 mm

Product Net Weight:

8.5 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 59 kW

(400 V) 110 kW

(500 V) 132 kW

(230 V) 59 kW

(400 V) 110 kW

(500 V) 132 kW

Rated Operational Current - In-Line Connection (Ie):

210 A

Service Factor Percentage:

100 %

Overload Protection:

Built-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

Initial Voltage During Start:

30 ... 70 %

Step Down Voltage Special Ramp:

No %

Current Limit Function:

1.5 ... 7xIe

Switch for Inside Delta Connection:

No

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

4…20 mA

Signal Indication Completed Start Ramp (LED):

Green

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Ramping Up/Down (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:

10

Communication:

Modbus-RTU

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Main Circuit: Bars

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Control Circuit 0.5 N·m

Main Circuit 28 N·m

Supply Circuit 0.5 N·m

Control Circuit 0.5 N·m

Main Circuit 28 N·m

Supply Circuit 0.5 N·m

Product Main Type:

PSE210

Function:

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Protection Function:

Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 60 Hp

(220 ... 240 V AC) Three Phase 75 Hp

(440 ... 480 V AC) Three Phase 150 Hp

(550 ... 600 V AC) Three Phase 200 Hp

(200 ... 208 V AC) Three Phase 60 Hp

(220 ... 240 V AC) Three Phase 75 Hp

(440 ... 480 V AC) Three Phase 150 Hp

(550 ... 600 V AC) Three Phase 200 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Control Circuit 4.4 in·lb

Main Circuit 247.8

Supply Circuit 4.4 in·lb

Control Circuit 4.4 in·lb

Main Circuit 247.8

Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

CQC Certificate, Softstarters, PSE210-600-70-1, PSE250-600-70-1, PSE300-600-70-1, PSE370-600-70-1, Made in Sweden

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Softstarters, PSE210-600-70-1, PSE250-600-70-1, PSE300-600-70-1, PSE370-600-70-1, Made in Sweden

Declaration of Conformity - CE:

DNV Certificate:

Container Information

Package Level 1 Width:

261 mm

Package Level 1 Depth / Length:

325 mm

Package Level 1 Height:

510 mm

Package Level 1 Gross Weight:

11.2 kg

Package Level 1 EAN:

7320500515020

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

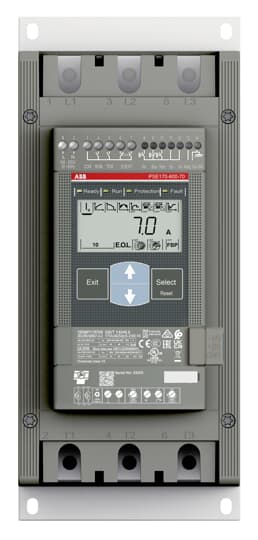

ABB 1SFA897111R7000 ABB

€1.354,95

Only 1 unit left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Softstarters PSE18...PSE370 Installation and commissioning manual

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSE170

Wiring Diagram:

Dimensions

Product Net Width:

130 mm

Product Net Height:

295 mm

Product Net Depth / Length:

220 mm

Product Net Weight:

4.4 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 45 kW

(400 V) 90 kW

(500 V) 110 kW

(230 V) 45 kW

(400 V) 90 kW

(500 V) 110 kW

Rated Operational Current - In-Line Connection (Ie):

171 A

Service Factor Percentage:

100 %

Overload Protection:

Build-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

Initial Voltage During Start:

30 ... 70 %

Step Down Voltage Special Ramp:

No %

Current Limit Function:

1.5 ... 7xIe

Switch for Inside Delta Connection:

No

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

4…20 mA

Signal Indication Completed Start Ramp (LED):

Green

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Ramping Up/Down (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:

10

Communication:

Modbus-RTU

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Main Circuit: Bars

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Control Circuit 0.5 N·m

Main Circuit 18 N·m

Supply Circuit 0.5 N·m

Control Circuit 0.5 N·m

Main Circuit 18 N·m

Supply Circuit 0.5 N·m

Product Main Type:

PSE170

Function:

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Protection Function:

Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 60 Hp

(220 ... 240 V AC) Three Phase 60 Hp

(440 ... 480 V AC) Three Phase 125 Hp

(550 ... 600 V AC) Three Phase 150 Hp

(200 ... 208 V AC) Three Phase 60 Hp

(220 ... 240 V AC) Three Phase 60 Hp

(440 ... 480 V AC) Three Phase 125 Hp

(550 ... 600 V AC) Three Phase 150 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Control Circuit 4.4 in·lb

Main Circuit 159.3

Supply Circuit 4.4 in·lb

Control Circuit 4.4 in·lb

Main Circuit 159.3

Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

CQC Certificate, Softstarters, PSE142-600-70, PSE170-600-70, Made in Sweden

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Softstarters, PSE142-600-70, PSE170-600-70, Made in Sweden

Declaration of Conformity - CE:

DNV Certificate:

Container Information

Package Level 1 Width:

203 mm

Package Level 1 Depth / Length:

282 mm

Package Level 1 Height:

363 mm

Package Level 1 Gross Weight:

5.4 kg

Package Level 1 EAN:

7320500400692

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

ABB 1SFA897110R7000 ABB

€1.154,95

Only 8 units left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Softstarters PSE18...PSE370 Installation and commissioning manual

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSE142

Wiring Diagram:

Dimensions

Product Net Width:

130 mm

Product Net Height:

295 mm

Product Net Depth / Length:

220 mm

Product Net Weight:

4.4 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 40 kW

(400 V) 75 kW

(500 V) 90 kW

(230 V) 40 kW

(400 V) 75 kW

(500 V) 90 kW

Rated Operational Current - In-Line Connection (Ie):

143 A

Service Factor Percentage:

100 %

Overload Protection:

Build-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

Initial Voltage During Start:

30 ... 70 %

Step Down Voltage Special Ramp:

No %

Current Limit Function:

1.5 ... 7xIe

Switch for Inside Delta Connection:

No

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

4…20 mA

Signal Indication Completed Start Ramp (LED):

Green

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Ramping Up/Down (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:

10

Communication:

Modbus-RTU

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Main Circuit: Bars

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Control Circuit 0.5 N·m

Main Circuit 18 N·m

Supply Circuit 0.5 N·m

Control Circuit 0.5 N·m

Main Circuit 18 N·m

Supply Circuit 0.5 N·m

Product Main Type:

PSE142

Function:

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Protection Function:

Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 40 Hp

(220 ... 240 V AC) Three Phase 50 Hp

(440 ... 480 V AC) Three Phase 100 Hp

(550 ... 600 V AC) Three Phase 125 Hp

(200 ... 208 V AC) Three Phase 40 Hp

(220 ... 240 V AC) Three Phase 50 Hp

(440 ... 480 V AC) Three Phase 100 Hp

(550 ... 600 V AC) Three Phase 125 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Control Circuit 4.4 in·lb

Main Circuit 159.3

Supply Circuit 4.4 in·lb

Control Circuit 4.4 in·lb

Main Circuit 159.3

Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

CQC Certificate, Softstarters, PSE142-600-70, PSE170-600-70, Made in Sweden

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Softstarters, PSE142-600-70, PSE170-600-70, Made in Sweden

Declaration of Conformity - CE:

DNV Certificate:

Container Information

Package Level 1 Width:

203 mm

Package Level 1 Depth / Length:

282 mm

Package Level 1 Height:

363 mm

Package Level 1 Gross Weight:

5.4 kg

Package Level 1 EAN:

7320500400685

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

ABB 1SFA897109R7000 ABB

€1.443,95

Only 9 units left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Softstarters PSE18...PSE370 Installation and commissioning manual

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSE105

Wiring Diagram:

Dimensions

Product Net Width:

90 mm

Product Net Height:

245 mm

Product Net Depth / Length:

184 mm

Product Net Weight:

2.9 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 30 kW

(400 V) 55 kW

(500 V) 75 kW

(230 V) 30 kW

(400 V) 55 kW

(500 V) 75 kW

Rated Operational Current - In-Line Connection (Ie):

106 A

Service Factor Percentage:

100 %

Overload Protection:

Build-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

Initial Voltage During Start:

30 ... 70 %

Step Down Voltage Special Ramp:

No %

Current Limit Function:

1.5 ... 7xIe

Switch for Inside Delta Connection:

No

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

4…20 mA

Signal Indication Completed Start Ramp (LED):

Green

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Ramping Up/Down (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:

10

Communication:

Modbus-RTU

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Screw Terminals

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Control Circuit 0.5 N·m

Main Circuit 9 N·m

Supply Circuit 0.5 N·m

Control Circuit 0.5 N·m

Main Circuit 9 N·m

Supply Circuit 0.5 N·m

Product Main Type:

PSE105

Function:

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Protection Function:

Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 30 Hp

(220 ... 240 V AC) Three Phase 40 Hp

(440 ... 480 V AC) Three Phase 75 Hp

(550 ... 600 V AC) Three Phase 100 Hp

(200 ... 208 V AC) Three Phase 30 Hp

(220 ... 240 V AC) Three Phase 40 Hp

(440 ... 480 V AC) Three Phase 75 Hp

(550 ... 600 V AC) Three Phase 100 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Control Circuit 4.4 in·lb

Main Circuit 79.7

Supply Circuit 4.4 in·lb

Control Circuit 4.4 in·lb

Main Circuit 79.7

Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

CQC Certificate, Softstarters, PSE18-600-70, PSE25-600-70, PSE30-600-70, PSE37-600-70, PSE45-600-70, PSE60-600-70, PSE72-600-70, PSE85-600-70, PSE105-600-70, Made in Sweden

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Softstarters, PSE18-600-70,PSE25-600-70,PSE30-600-70,PSE37-600-70,PSE45-600-70,PSE60-600-70,PSE72-600-70,PSE85-600-70,PSE105-600-70, Made in Sweden

Declaration of Conformity - CE:

DNV Certificate:

Container Information

Package Level 1 Width:

178 mm

Package Level 1 Depth / Length:

257 mm

Package Level 1 Height:

288 mm

Package Level 1 Gross Weight:

3.6 kg

Package Level 1 EAN:

7320500400678

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

ABB 1SFA897108R7000 ABB

€872,95

Only 6 units left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Softstarters PSE18...PSE370 Installation and commissioning manual

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSE85

Wiring Diagram:

Dimensions

Product Net Width:

90 mm

Product Net Height:

245 mm

Product Net Depth / Length:

184 mm

Product Net Weight:

2.6 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 22 kW

(400 V) 45 kW

(500 V) 55 kW

(230 V) 22 kW

(400 V) 45 kW

(500 V) 55 kW

Rated Operational Current - In-Line Connection (Ie):

85 A

Service Factor Percentage:

100 %

Overload Protection:

Build-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

0 ... 30 second [unit of time]

1 ... 30 second [unit of time]

Initial Voltage During Start:

30 ... 70 %

Step Down Voltage Special Ramp:

No %

Current Limit Function:

1.5 ... 7xIe

Switch for Inside Delta Connection:

No

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

4…20 mA

Signal Indication Completed Start Ramp (LED):

Green

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Ramping Up/Down (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:

10

Communication:

Modbus-RTU

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Screw Terminals

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Hole Diameter 8.5 mm

Rigid 1/2 x 2.5 ... 70 mm²

Width and Thickness 17.5x5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Rigid 1 x 2.5 mm²

Rigid 2 x 1.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Control Circuit 0.5 N·m

Main Circuit 9 N·m

Supply Circuit 0.5 N·m

Control Circuit 0.5 N·m

Main Circuit 9 N·m

Supply Circuit 0.5 N·m

Product Main Type:

PSE85

Function:

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Kick start

Sequence start

Current limit

Start reverse (external contactors)

Automatic restart

Event log

Protection Function:

Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 25 Hp

(220 ... 240 V AC) Three Phase 30 Hp

(440 ... 480 V AC) Three Phase 60 Hp

(550 ... 600 V AC) Three Phase 75 Hp

(200 ... 208 V AC) Three Phase 25 Hp

(220 ... 240 V AC) Three Phase 30 Hp

(440 ... 480 V AC) Three Phase 60 Hp

(550 ... 600 V AC) Three Phase 75 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Control Circuit 4.4 in·lb

Main Circuit 79.7

Supply Circuit 4.4 in·lb

Control Circuit 4.4 in·lb

Main Circuit 79.7

Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

32f0bc4b-0f5e-4dac-a58e-324c4057cde6 Sweden

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

CQC Certificate, Softstarters, PSE18-600-70, PSE25-600-70, PSE30-600-70, PSE37-600-70, PSE45-600-70, PSE60-600-70, PSE72-600-70, PSE85-600-70, PSE105-600-70, Made in Sweden

Declaration of Conformity - CCC:

CCC Declaration of Conformity, Softstarters, PSE18-600-70,PSE25-600-70,PSE30-600-70,PSE37-600-70,PSE45-600-70,PSE60-600-70,PSE72-600-70,PSE85-600-70,PSE105-600-70, Made in Sweden

Declaration of Conformity - CE:

DNV Certificate:

Container Information

Package Level 1 Width:

178 mm

Package Level 1 Depth / Length:

257 mm

Package Level 1 Height:

288 mm

Package Level 1 Gross Weight:

3.3 kg

Package Level 1 EAN:

7320500400661

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

ABB 1SFA898112R7000 ABB

€1.811,95

In stock, 15 units

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSTX210

Wiring Diagram:

Dimensions

Product Net Width:

258 mm

Product Net Height:

470 mm

Product Net Depth / Length:

279 mm

Product Net Weight:

13.3 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 59 kW

(400 V) 110 kW

(500 V) 132 kW

(230 V) 59 kW

(400 V) 110 kW

(500 V) 132 kW

Rated Operational Current - In-Line Connection (Ie):

210 A

Rated Operational Power - Inside Delta Connection:

at 230 V 102 kW

at 400 V 184 kW

at 500 V 250 kW

at 230 V 102 kW

at 400 V 184 kW

at 500 V 250 kW

Rated Operational Current - Inside Delta Connection:

360 A

Service Factor Percentage:

100 %

Overload Protection:

Built-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

1 ... 120 second [unit of time]

Initial Voltage During Start:

10 ... 99 %

Step Down Voltage Special Ramp:

100 ... 10 %

Current Limit Function:

1.5 ... 7.5 xle

Switch for Inside Delta Connection:

Yes

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

0…10 V, 0…20 mA, 4…20 mA

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Communication:

Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Main Circuit: Bars

Connecting Capacity Main Circuit:

Hole Diameter 10.2 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Main Circuit 25 N·m

Product Main Type:

PSTX210

Function:

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Full voltage start

Jog with slow speed, forward and reverse

Keypad password

Kick start

Limp mode with two-phase motor control if one set of thyristors is shorted

Motor heating

Pre-start function

Pump cleaning

Real time clock

Sequence start

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Stand still brake

Start reverse (external contactors)

Thyristor runtime measurement

Torque limit

Voltage sags detection

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Protection Function:

Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection

Warning Details:

Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 60 Hp

(220 ... 240 V AC) Three Phase 75 Hp

(440 ... 480 V AC) Three Phase 150 Hp

(550 ... 600 V AC) Three Phase 200 Hp

(200 ... 208 V AC) Three Phase 60 Hp

(220 ... 240 V AC) Three Phase 75 Hp

(440 ... 480 V AC) Three Phase 150 Hp

(550 ... 600 V AC) Three Phase 200 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Main Circuit 221.3

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

CN: CQC2014010304744408 / SE: CQC2014010304724384

Declaration of Conformity - CCC:

CN: 2020980304001093 / SE: 2020980304001490

Declaration of Conformity - CE:

CE Declaration of Conformity - Softstarters - PSTX30...PSTX1250

DNV Certificate:

ABB 1SFA898111R7000 ABB - PSTX170-600-70

Container Information

Package Level 1 Width:

352 mm

Package Level 1 Depth / Length:

379 mm

Package Level 1 Height:

564 mm

Package Level 1 Gross Weight:

16.3 kg

Package Level 1 EAN:

7320500501504

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

€1.646,95

In stock, 12 units

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSTX170

Wiring Diagram:

Dimensions

Product Net Width:

199 mm

Product Net Height:

377 mm

Product Net Depth / Length:

283 mm

Product Net Weight:

8.9 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 45 kW

(400 V) 90 kW

(500 V) 110 kW

(230 V) 45 kW

(400 V) 90 kW

(500 V) 110 kW

Rated Operational Current - In-Line Connection (Ie):

170 A

Rated Operational Power - Inside Delta Connection:

at 230 V 90 kW

at 400 V 160 kW

at 500 V 200 kW

at 230 V 90 kW

at 400 V 160 kW

at 500 V 200 kW

Rated Operational Current - Inside Delta Connection:

300 A

Service Factor Percentage:

100 %

Overload Protection:

Built-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

1 ... 120 second [unit of time]

Initial Voltage During Start:

10 ... 99 %

Step Down Voltage Special Ramp:

100 ... 10 %

Current Limit Function:

1.5 ... 7.5 xle

Switch for Inside Delta Connection:

Yes

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

0…10 V, 0…20 mA, 4…20 mA

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Communication:

Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Main Circuit: Bars

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Main Circuit 14 N·m

Product Main Type:

PSTX170

Function:

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Full voltage start

Jog with slow speed, forward and reverse

Keypad password

Kick start

Limp mode with two-phase motor control if one set of thyristors is shorted

Motor heating

Pre-start function

Pump cleaning

Real time clock

Sequence start

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Stand still brake

Start reverse (external contactors)

Thyristor runtime measurement

Torque limit

Voltage sags detection

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Protection Function:

Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection

Warning Details:

Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 50 Hp

(220 ... 240 V AC) Three Phase 60 Hp

(440 ... 480 V AC) Three Phase 125 Hp

(550 ... 600 V AC) Three Phase 150 Hp

(200 ... 208 V AC) Three Phase 50 Hp

(220 ... 240 V AC) Three Phase 60 Hp

(440 ... 480 V AC) Three Phase 125 Hp

(550 ... 600 V AC) Three Phase 150 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Main Circuit 123.9

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

CN: CQC2014010304744407 / SE: CQC2014010304724379

Declaration of Conformity - CCC:

CN: 2020980304001092 / SE: 2020980304001485

Declaration of Conformity - CE:

CE Declaration of Conformity - Softstarters - PSTX30...PSTX1250

DNV Certificate:

ABB 1SFA898108R7000 ABB - PSTX85-600-70

Container Information

Package Level 1 Width:

263 mm

Package Level 1 Depth / Length:

323 mm

Package Level 1 Height:

454 mm

Package Level 1 Gross Weight:

10.4 kg

Package Level 1 EAN:

7320500501436

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

€1.205,95

Only 5 units left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSTX85

Wiring Diagram:

Dimensions

Product Net Width:

150 mm

Product Net Height:

314 mm

Product Net Depth / Length:

198 mm

Product Net Weight:

4.7 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 22 kW

(400 V) 45 kW

(500 V) 55 kW

(230 V) 22 kW

(400 V) 45 kW

(500 V) 55 kW

Rated Operational Current - In-Line Connection (Ie):

85 A

Rated Operational Power - Inside Delta Connection:

at 230 V 40 kW

at 400 V 75 kW

at 500 V 90 kW

at 230 V 40 kW

at 400 V 75 kW

at 500 V 90 kW

Rated Operational Current - Inside Delta Connection:

147 A

Service Factor Percentage:

100 %

Overload Protection:

Built-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

1 ... 120 second [unit of time]

Initial Voltage During Start:

10 ... 99 %

Step Down Voltage Special Ramp:

100 ... 10 %

Current Limit Function:

1.5 ... 7.5 xle

Switch for Inside Delta Connection:

Yes

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

0…10 V, 0…20 mA, 4…20 mA

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Communication:

Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Cable Clamp

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Main Circuit 8 N·m

Product Main Type:

PSTX85

Function:

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Full voltage start

Jog with slow speed, forward and reverse

Keypad password

Kick start

Limp mode with two-phase motor control if one set of thyristors is shorted

Motor heating

Pre-start function

Pump cleaning

Real time clock

Sequence start

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Stand still brake

Start reverse (external contactors)

Thyristor runtime measurement

Torque limit

Voltage sags detection

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Protection Function:

Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection

Warning Details:

Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 25 Hp

(220 ... 240 V AC) Three Phase 30 Hp

(440 ... 480 V AC) Three Phase 60 Hp

(550 ... 600 V AC) Three Phase 75 Hp

(200 ... 208 V AC) Three Phase 25 Hp

(220 ... 240 V AC) Three Phase 30 Hp

(440 ... 480 V AC) Three Phase 60 Hp

(550 ... 600 V AC) Three Phase 75 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Main Circuit 70.8

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

f3a0566c-5aad-4ac9-94d0-4c2d5492623c China

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

Declaration of Conformity - CCC:

CE Declaration of Conformity - Softstarters - PSTX30...PSTX1250

Declaration of Conformity - CE:

DNV Certificate:

ABB 1SFA898107R7000 ABB - PSTX72-600-70

Container Information

Package Level 1 Width:

200 mm

Package Level 1 Depth / Length:

282 mm

Package Level 1 Height:

388 mm

Package Level 1 Gross Weight:

5.7 kg

Package Level 1 EAN:

7320500501306

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

€1.093,95

Only 10 units left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSTX72

Wiring Diagram:

Dimensions

Product Net Width:

150 mm

Product Net Height:

314 mm

Product Net Depth / Length:

198 mm

Product Net Weight:

4.7 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 18.5 kW

(400 V) 37 kW

(500 V) 45 kW

(230 V) 18.5 kW

(400 V) 37 kW

(500 V) 45 kW

Rated Operational Current - In-Line Connection (Ie):

72 A

Rated Operational Power - Inside Delta Connection:

at 230 V 37 kW

at 400 V 59 kW

at 500 V 80 kW

at 230 V 37 kW

at 400 V 59 kW

at 500 V 80 kW

Rated Operational Current - Inside Delta Connection:

124 A

Service Factor Percentage:

100 %

Overload Protection:

Built-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

1 ... 120 second [unit of time]

Initial Voltage During Start:

10 ... 99 %

Step Down Voltage Special Ramp:

100 ... 10 %

Current Limit Function:

1.5 ... 7.5 xle

Switch for Inside Delta Connection:

Yes

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

0…10 V, 0…20 mA, 4…20 mA

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Communication:

Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Cable Clamp

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Main Circuit 8 N·m

Product Main Type:

PSTX72

Function:

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Full voltage start

Jog with slow speed, forward and reverse

Keypad password

Kick start

Limp mode with two-phase motor control if one set of thyristors is shorted

Motor heating

Pre-start function

Pump cleaning

Real time clock

Sequence start

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Stand still brake

Start reverse (external contactors)

Thyristor runtime measurement

Torque limit

Voltage sags detection

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Protection Function:

Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection

Warning Details:

Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 20 Hp

(220 ... 240 V AC) Three Phase 25 Hp

(440 ... 480 V AC) Three Phase 50 Hp

(550 ... 600 V AC) Three Phase 60 Hp

(200 ... 208 V AC) Three Phase 20 Hp

(220 ... 240 V AC) Three Phase 25 Hp

(440 ... 480 V AC) Three Phase 50 Hp

(550 ... 600 V AC) Three Phase 60 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Main Circuit 70.8

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

ac10f14a-1b4e-426d-af4a-2e5fd406051c China

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

Declaration of Conformity - CCC:

CE Declaration of Conformity - Softstarters - PSTX30...PSTX1250

Declaration of Conformity - CE:

DNV Certificate:

ABB 1SFA898106R7000 ABB PSTX60-600-70

Container Information

Package Level 1 Width:

200 mm

Package Level 1 Depth / Length:

282 mm

Package Level 1 Height:

388 mm

Package Level 1 Gross Weight:

5.7 kg

Package Level 1 EAN:

7320500501405

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

€968,95

In stock, 15 units

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSTX60

Wiring Diagram:

Dimensions

Product Net Width:

150 mm

Product Net Height:

314 mm

Product Net Depth / Length:

198 mm

Product Net Weight:

4.6 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 15 kW

(400 V) 30 kW

(500 V) 37 kW

(230 V) 15 kW

(400 V) 30 kW

(500 V) 37 kW

Rated Operational Current - In-Line Connection (Ie):

60 A

Rated Operational Power - Inside Delta Connection:

at 230 V 30 kW

at 400 V 55 kW

at 500 V 75 kW

at 230 V 30 kW

at 400 V 55 kW

at 500 V 75 kW

Rated Operational Current - Inside Delta Connection:

105 A

Service Factor Percentage:

100 %

Overload Protection:

Built-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

1 ... 120 second [unit of time]

Initial Voltage During Start:

10 ... 99 %

Step Down Voltage Special Ramp:

100 ... 10 %

Current Limit Function:

1.5 ... 7.5 xle

Switch for Inside Delta Connection:

Yes

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

0…10 V, 0…20 mA, 4…20 mA

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Communication:

Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Cable Clamp

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Main Circuit 8 N·m

Product Main Type:

PSTX60

Function:

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Full voltage start

Jog with slow speed, forward and reverse

Keypad password

Kick start

Limp mode with two-phase motor control if one set of thyristors is shorted

Motor heating

Pre-start function

Pump cleaning

Real time clock

Sequence start

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Stand still brake

Start reverse (external contactors)

Thyristor runtime measurement

Torque limit

Voltage sags detection

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Protection Function:

Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection

Warning Details:

Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 20 Hp

(220 ... 240 V AC) Three Phase 20 Hp

(440 ... 480 V AC) Three Phase 40 Hp

(550 ... 600 V AC) Three Phase 50 Hp

(200 ... 208 V AC) Three Phase 20 Hp

(220 ... 240 V AC) Three Phase 20 Hp

(440 ... 480 V AC) Three Phase 40 Hp

(550 ... 600 V AC) Three Phase 50 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Main Circuit 70.8

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

d1eab0cb-c4c6-4233-8fa0-1a9d9a9b7de8 China

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

Declaration of Conformity - CCC:

CE Declaration of Conformity - Softstarters - PSTX30...PSTX1250

Declaration of Conformity - CE:

DNV Certificate:

ABB 1SFA898105R7000 ABB - PSTX45-600-70

Container Information

Package Level 1 Width:

200 mm

Package Level 1 Depth / Length:

282 mm

Package Level 1 Height:

388 mm

Package Level 1 Gross Weight:

5.6 kg

Package Level 1 EAN:

7320500501368

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

€861,95

Only 7 units left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSTX45

Wiring Diagram:

Dimensions

Product Net Width:

150 mm

Product Net Height:

314 mm

Product Net Depth / Length:

198 mm

Product Net Weight:

4.6 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 12.5 kW

(400 V) 22 kW

(500 V) 25 kW

(230 V) 12.5 kW

(400 V) 22 kW

(500 V) 25 kW

Rated Operational Current - In-Line Connection (Ie):

45 A

Rated Operational Power - Inside Delta Connection:

at 230 V 25 kW

at 400 V 37 kW

at 500 V 45 kW

at 230 V 25 kW

at 400 V 37 kW

at 500 V 45 kW

Rated Operational Current - Inside Delta Connection:

76 A

Service Factor Percentage:

100 %

Overload Protection:

Built-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

1 ... 120 second [unit of time]

Initial Voltage During Start:

10 ... 99 %

Step Down Voltage Special Ramp:

100 ... 10 %

Current Limit Function:

1.5 ... 7.5 xle

Switch for Inside Delta Connection:

Yes

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

0…10 V, 0…20 mA, 4…20 mA

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Communication:

Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Cable Clamp

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Main Circuit 8 N·m

Product Main Type:

PSTX45

Function:

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Full voltage start

Jog with slow speed, forward and reverse

Keypad password

Kick start

Limp mode with two-phase motor control if one set of thyristors is shorted

Motor heating

Pre-start function

Pump cleaning

Real time clock

Sequence start

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Stand still brake

Start reverse (external contactors)

Thyristor runtime measurement

Torque limit

Voltage sags detection

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Protection Function:

Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection

Warning Details:

Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 10 Hp

(220 ... 240 V AC) Three Phase 15 Hp

(440 ... 480 V AC) Three Phase 30 Hp

(550 ... 600 V AC) Three Phase 40 Hp

(200 ... 208 V AC) Three Phase 10 Hp

(220 ... 240 V AC) Three Phase 15 Hp

(440 ... 480 V AC) Three Phase 30 Hp

(550 ... 600 V AC) Three Phase 40 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Main Circuit 70.8

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

e1fe3351-a6ac-4cbd-aebf-814f3a66a5bc China

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

Declaration of Conformity - CCC:

CE Declaration of Conformity - Softstarters - PSTX30...PSTX1250

Declaration of Conformity - CE:

DNV Certificate:

Container Information

Package Level 1 Width:

200 mm

Package Level 1 Depth / Length:

282 mm

Package Level 1 Height:

388 mm

Package Level 1 Gross Weight:

5.6 kg

Package Level 1 EAN:

7320500501337

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

ABB 1SFA898104R7000 ABB

€755,95

In stock, 15 units

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSTX37

Wiring Diagram:

Dimensions

Product Net Width:

150 mm

Product Net Height:

314 mm

Product Net Depth / Length:

198 mm

Product Net Weight:

4.6 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 9 kW

(400 V) 18.5 kW

(500 V) 22 kW

(230 V) 9 kW

(400 V) 18.5 kW

(500 V) 22 kW

Rated Operational Current - In-Line Connection (Ie):

37 A

Rated Operational Power - Inside Delta Connection:

at 230 V 15 kW

at 400 V 30 kW

at 500 V 37 kW

at 230 V 15 kW

at 400 V 30 kW

at 500 V 37 kW

Rated Operational Current - Inside Delta Connection:

64 A

Service Factor Percentage:

100 %

Overload Protection:

Built-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

1 ... 120 second [unit of time]

Initial Voltage During Start:

10 ... 99 %

Step Down Voltage Special Ramp:

100 ... 10 %

Current Limit Function:

1.5 ... 7.5 xle

Switch for Inside Delta Connection:

Yes

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

0…10 V, 0…20 mA, 4…20 mA

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Communication:

Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Cable Clamp

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Main Circuit 8 N·m

Product Main Type:

PSTX37

Function:

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Full voltage start

Jog with slow speed, forward and reverse

Keypad password

Kick start

Limp mode with two-phase motor control if one set of thyristors is shorted

Motor heating

Pre-start function

Pump cleaning

Real time clock

Sequence start

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Stand still brake

Start reverse (external contactors)

Thyristor runtime measurement

Torque limit

Voltage sags detection

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Protection Function:

Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection

Warning Details:

Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 10 Hp

(220 ... 240 V AC) Three Phase 10 Hp

(440 ... 480 V AC) Three Phase 25 Hp

(550 ... 600 V AC) Three Phase 30 Hp

(200 ... 208 V AC) Three Phase 10 Hp

(220 ... 240 V AC) Three Phase 10 Hp

(440 ... 480 V AC) Three Phase 25 Hp

(550 ... 600 V AC) Three Phase 30 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Main Circuit 70.8

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

46ee42b5-0784-4f84-a200-fba43f921301 China

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

Declaration of Conformity - CCC:

CE Declaration of Conformity - Softstarters - PSTX30...PSTX1250

Declaration of Conformity - CE:

DNV Certificate:

ABB 1SFA898103R7000 ABB - PSTX30-600-70

Container Information

Package Level 1 Width:

200 mm

Package Level 1 Depth / Length:

282 mm

Package Level 1 Height:

388 mm

Package Level 1 Gross Weight:

5.6 kg

Package Level 1 EAN:

7320500501320

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

€686,95

In stock, 11 units

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSTX30

Wiring Diagram:

Dimensions

Product Net Width:

150 mm

Product Net Height:

314 mm

Product Net Depth / Length:

198 mm

Product Net Weight:

4.6 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 7.5 kW

(400 V) 15 kW

(500 V) 18.5 kW

(230 V) 7.5 kW

(400 V) 15 kW

(500 V) 18.5 kW

Rated Operational Current - In-Line Connection (Ie):

30 A

Rated Operational Power - Inside Delta Connection:

at 230 V 12.5 kW

at 400 V 25 kW

at 500 V 30 kW

at 230 V 12.5 kW

at 400 V 25 kW

at 500 V 30 kW

Rated Operational Current - Inside Delta Connection:

52 A

Service Factor Percentage:

100 %

Overload Protection:

Built-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

1 ... 120 second [unit of time]

Initial Voltage During Start:

10 ... 99 %

Step Down Voltage Special Ramp:

100 ... 10 %

Current Limit Function:

1.5 ... 7.5 xle

Switch for Inside Delta Connection:

Yes

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

0…10 V, 0…20 mA, 4…20 mA

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Communication:

Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Cable Clamp

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Main Circuit 8 N·m

Product Main Type:

PSTX30

Function:

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Full voltage start

Jog with slow speed, forward and reverse

Keypad password

Kick start

Limp mode with two-phase motor control if one set of thyristors is shorted

Motor heating

Pre-start function

Pump cleaning

Real time clock

Sequence start

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Stand still brake

Start reverse (external contactors)

Thyristor runtime measurement

Torque limit

Voltage sags detection

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Protection Function:

Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection

Warning Details:

Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 7.5 Hp

(220 ... 240 V AC) Three Phase 10 Hp

(440 ... 480 V AC) Three Phase 20 Hp

(550 ... 600 V AC) Three Phase 25 Hp

(200 ... 208 V AC) Three Phase 7.5 Hp

(220 ... 240 V AC) Three Phase 10 Hp

(440 ... 480 V AC) Three Phase 20 Hp

(550 ... 600 V AC) Three Phase 25 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Main Circuit 70.8

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

46ee42b5-0784-4f84-a200-fba43f921301 China

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

Declaration of Conformity - CCC:

CE Declaration of Conformity - Softstarters - PSTX30...PSTX1250

Declaration of Conformity - CE:

DNV Certificate:

ABB 1SFA898110R7000 ABB - PSTX142-600-70

Container Information

Package Level 1 Width:

200 mm

Package Level 1 Depth / Length:

282 mm

Package Level 1 Height:

388 mm

Package Level 1 Gross Weight:

5.6 kg

Package Level 1 EAN:

7320500501290

Package Level 1 Units:

box 1 piece

External Classifications and Standards

Object Classification Code:

Q

ETIM 7:

EC000640 - Soft starter

ETIM 8:

EC000640 - Soft starter

ETIM 9:

EC000640 - Soft starter

eClass:

V11.0 : 27370907

UNSPSC:

39121521

IDEA Granular Category Code (IGCC):

4740 >> Soft starter

€1.413,95

Only 6 units left

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85371091

Popular Downloads

Data Sheet, Technical Information:

Instructions and Manuals:

Instructions and Manuals (Part 2):

Instructions and Manuals (Part 3):

CAD Dimensional Drawing:

EPLAN Data:

EPLAN EDZ PSTX142

Wiring Diagram:

Dimensions

Product Net Width:

199 mm

Product Net Height:

377 mm

Product Net Depth / Length:

283 mm

Product Net Weight:

7 kg

Technical

Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (U_s):

100 ... 250 V AC

Rated Control Circuit Voltage (U_c):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 37 kW

(400 V) 75 kW

(500 V) 90 kW

(230 V) 37 kW

(400 V) 75 kW

(500 V) 90 kW

Rated Operational Current - In-Line Connection (Ie):

142 A

Rated Operational Power - Inside Delta Connection:

at 230 V 75 kW

at 400 V 132 kW

at 500 V 160 kW

at 230 V 75 kW

at 400 V 132 kW

at 500 V 160 kW

Rated Operational Current - Inside Delta Connection:

245 A

Service Factor Percentage:

100 %

Overload Protection:

Built-in electronic overload protection

Integrated Electronic Overload:

Yes

Starting Capacity at Maximum Rated Current Ie:

4xIe for 10s

Ramp Time:

1 ... 120 second [unit of time]

Initial Voltage During Start:

10 ... 99 %

Step Down Voltage Special Ramp:

100 ... 10 %

Current Limit Function:

1.5 ... 7.5 xle

Switch for Inside Delta Connection:

Yes

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

Yes

Overload Signal Relay:

Yes

Analog Outputs:

0…10 V, 0…20 mA, 4…20 mA

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Protection (LED):

Yellow

Signal Indication Fault (LED):

Red

Communication:

Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:

Main Circuit: Bars

Connecting Capacity Main Circuit:

Hole Diameter 8.5 mm

Connecting Capacity Control Circuit:

Rigid 1 x 2.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 2.5

Tightening Torque:

Main Circuit 14 N·m

Product Main Type:

PSTX142

Function:

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Full voltage start

Jog with slow speed, forward and reverse

Keypad password

Kick start

Limp mode with two-phase motor control if one set of thyristors is shorted

Motor heating

Pre-start function

Pump cleaning

Real time clock

Sequence start

Soft start with torque control

Soft start with voltage ramp

Soft stop with torque control

Soft stop with voltage ramp

Stand still brake

Start reverse (external contactors)

Thyristor runtime measurement

Torque limit

Voltage sags detection

Auto phase sequence detection

Automatic restart

Current limit

Current limit ramp

Dual current limit

Dynamic brake

Electricity metering

Electronic overload Time-to-cool

Emergency mode

Event log

Protection Function:

Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection

Warning Details:

Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning

Technical UL/CSA

Horsepower Rating UL/CSA:

(200 ... 208 V AC) Three Phase 40 Hp

(220 ... 240 V AC) Three Phase 50 Hp

(440 ... 480 V AC) Three Phase 100 Hp

(550 ... 600 V AC) Three Phase 125 Hp

(200 ... 208 V AC) Three Phase 40 Hp

(220 ... 240 V AC) Three Phase 50 Hp

(440 ... 480 V AC) Three Phase 100 Hp

(550 ... 600 V AC) Three Phase 125 Hp

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V

Tightening Torque UL/CSA:

Main Circuit 123.9

Environmental

Ambient Air Temperature:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Operation -25 ... +60 °C

Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):

REACH Declaration:

RoHS Information:

Toxic Substances Control Act (TSCA) declaration for Softstarters

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

SCIP:

26f21088-b8bb-4914-b092-1fc09456661d China

Simplified SCIP:

0ab76afe-9586-406c-b1d9-3f72d29c6360 Netherlands

117db3bc-26f8-486b-9661-9213c47e0dce Germany

13efe971-0aef-4a3e-b200-9388f7b13699 Sweden

14290cdf-4981-4228-ac25-fbf6ff6bede1 Poland

2a18edcd-ab8d-49d6-9e8e-a36742111f1c Belgium

3833bc73-a767-402d-b8b2-abad0c0099a9 Norway

3ac3b2ef-d72e-4baa-a85b-7a6308c05cd5 France

3ce45bbe-7f17-4746-a062-621c143a1593 Belgium

45148e2f-b3ab-4084-a4ff-2d3992dff4e3 Greece

483327c0-4c3f-426a-8884-5793dc883e80 Germany

4895692a-8d27-4479-86bf-173e094805d8 Finland

693ca665-b359-42b9-8505-0a1d73f17bb1 Croatia

721706c8-8f98-4edd-93f6-85eb76f49408 Sweden

734b7456-6afc-4ba5-9eb1-e44eb712b188 Estonia

7c8972af-46d8-45d8-9928-ca11c959706a Bulgaria

84993a02-0bda-48c2-a072-0f582e778ff3 Hungary

9601f0fb-71c8-46d6-901c-b0c11e41b94c Germany

98705313-f7c3-4ad9-bc8e-c866590c7b4c Germany

a46c12be-e940-4ade-9322-97a2ddebbaed Portugal

a7d57835-a734-4c2d-9f77-81733f7491bf Hungary

ced2cf36-a96f-4b81-ac85-517042ee7ef1 Germany

d73af370-e733-4369-9550-2ae47c351b48 Poland

d8506a36-85a5-4e05-9a69-9b4c090cc148 Spain

e079558d-a47b-4f28-8edf-f04ab44fd258 France

e7f3ccdd-9d79-4c97-84ad-b4c479119f1b Poland

ef546eb4-0fda-49d8-947c-db988a7a5730 Czech Republic

f3952e38-6433-4473-9a54-aee6eac8f612 Denmark

0ab76afe-9586-406c-b1d9-3f72d29c6360 Netherlands

117db3bc-26f8-486b-9661-9213c47e0dce Germany

13efe971-0aef-4a3e-b200-9388f7b13699 Sweden

14290cdf-4981-4228-ac25-fbf6ff6bede1 Poland

2a18edcd-ab8d-49d6-9e8e-a36742111f1c Belgium

3833bc73-a767-402d-b8b2-abad0c0099a9 Norway

3ac3b2ef-d72e-4baa-a85b-7a6308c05cd5 France

3ce45bbe-7f17-4746-a062-621c143a1593 Belgium

45148e2f-b3ab-4084-a4ff-2d3992dff4e3 Greece

483327c0-4c3f-426a-8884-5793dc883e80 Germany

Toxic Substances Control Act - TSCA:

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:

CN: CQC2014010304744407 / SE: CQC2014010304724379

Declaration of Conformity - CCC:

CN: 2020980304001092 / SE: 2020980304001485

Declaration of Conformity - CE:

CE Declaration of Conformity - Softstarters - PSTX30...PSTX1250

DNV Certificate:
