Schneider

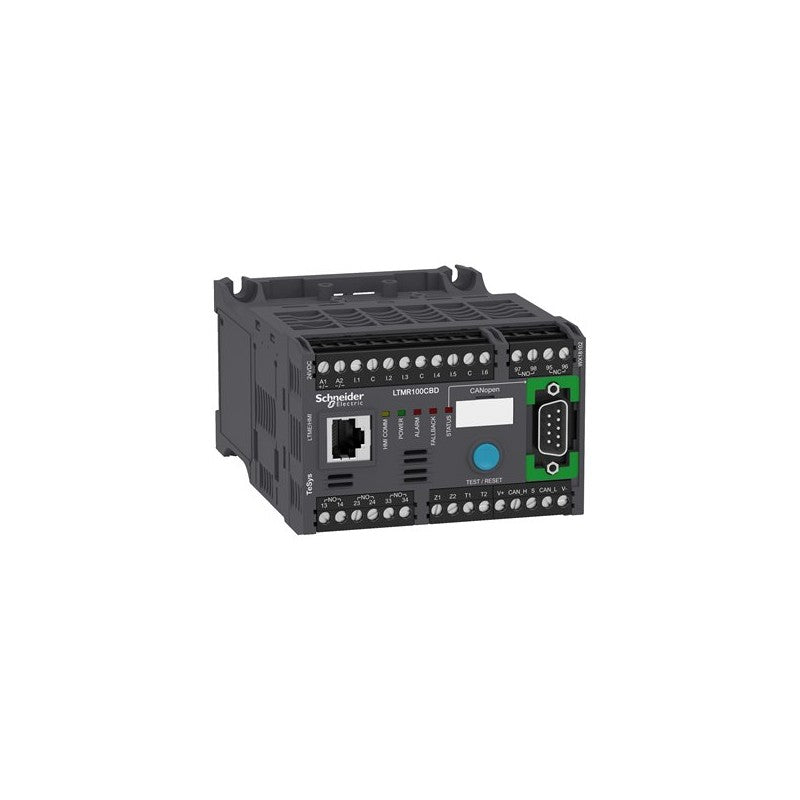

LTMR100CBD Schneider Electric

Main

Characteristic Value(s)
Range TeSys
product name TeSys T
Device short name LTMR
Product or Component Type Motor controller
Device Application Equipment monitoring and control
Measurement current 5…100 A
[Us] rated supply voltage 24 V DC
Current Consumption 56...127 mA
Supply voltage limits 20.4…26.24 V DC
Communication Port Protocol CANopen
Bus type CANopen ISO 1198 1...127 10...1000 kbit/s, SUB-D 9 4 twisted shielded pairs cable
CANopen ISO 1198 1...127 10...1000 kbit/s, terminal block 4 twisted shielded pairs cable

Complementary

Characteristic Value(s)
[Ui] rated insulation voltage 690 V EN/IEC 60947-1
690 V CSA C22.2 No 14
690 V UL 508
[Uimp] rated impulse withstand voltage 6 kV current or voltage measurement circuit EN/IEC 60947-4-1
0.8 kV communication circuit EN/IEC 60947-4-1
0.8 kV supply, inputs and outputs EN/IEC 60947-4-1
Short-circuit withstand 100 kA conforming to EN/IEC 60947-4-1
Associated fuse rating 4 A gG output
0.5 A gG control circuit
Protection Type Thermal protection
Reverse polarity protection
Phase unbalance
Phase failure
Overload (long time)
Thermal overload protection
Load fluctuation
Power factor variation
Earth-leakage protection
Locked rotor
Overload
Network and machine diagnosis type Motor control command recording
Trip context information
Starting current and time
Event recording
Fault recording
Remaining operating time before overload tripping
Phase fault and earth fault trip counters
Waiting time after overload tripping
Running hours counter/operating time
Trip history information
Logic input number 6
Input current 7 mA
Current state 0 guaranteed Logic input < 5 V <= 15 mA 5 ms
Current state 1 guaranteed Logic input < 15 V 2...15 mA 15 ms
maximum output switching frequency 2 Hz
Load current 5 A 250 V AC logic output
5 A 30 V DC logic output
Permissible power 480 VA AC-15), Ie = 2 A, 500000 cycles output)
30 W DC-13), Ie = 1.25 A, 500000 cycles output)
Maximum operating rate 1800 cyc/h
Contacts type and composition 1 NO + 1 NC fault signal
3 NO
Metering type Imbalance current
Earth-fault current
Temperature
Phase current I1, I2, I3 RMS
Average current Iavg
Measurement accuracy 5...15 % earth fault current internal measurement
1 % voltage 100...830 V)
3 % power factor
5 % earth fault current external measurement
+/- 30 min/year internal clock
0,02 Temperature
5 % active and reactive power
0,02 current
Overvoltage category III
Connection pitch 0.20 in (5.08 mm)
Connections - terminals Control circuit connector 1 0.0004…0.004 in² (0.25…2.5 mm²) AWG 24...AWG 14)flexible with cable end
Control circuit connector 1 0.0003…0.004 in² (0.2…2.5 mm²) AWG 24...AWG 14)flexible without cable end
Control circuit connector 1 0.0004…0.004 in² (0.25…2.5 mm²) AWG 24...AWG 14)flexible without cable end
Control circuit connector 1 0.0003…0.004 in² (0.2…2.5 mm²) AWG 24...AWG 14)solid without cable end
Control circuit connector 2 0.0003…0.002 in² (0.2…1 mm²) AWG 24...AWG 14)flexible with cable end
Control circuit connector 2 0.0003…0.002 in² (0.2…1.5 mm²) AWG 24...AWG 14)flexible without cable end
Control circuit connector 2 0.0008…0.002 in² (0.5…1.5 mm²) AWG 24...AWG 14)flexible without cable end
Control circuit connector 2 0.0003…0.002 in² (0.2…1 mm²) AWG 24...AWG 14)solid without cable end
Tightening torque Control circuit: 4.4…5.3 lbf.in (0.5…0.6 N.m) flat screwdriver 0.1 in (3 mm)
pollution degree 3
Electromagnetic compatibility Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
Radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3
Fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4
Fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4
Voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11
Conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6
Temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5
Temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5
Control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5
Control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5
Communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5
Relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5
Relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5
Width 3.6 in (91 mm)
Height 2.4 in (61 mm)
Depth 4.8 in (122.5 mm)
Product Weight 1.17 lb(US) (0.53 kg)
Web services Web server
Compatibility code LTMR
